Moisture Sensitive Level Scenarios#

This section walks through the main MSL execution scenarios described in the source tutorial.

Scenario 1 - Start Floor Life Counter#

Use the material available in master data: RawMaterials.03.

  1. Open the Material Details page and confirm that floor life is defined and the state is Stopped.
  2. Execute the Start Floor Life Counter operation.
  3. Confirm that the state changes to Running and that the Floor Life Open Date is recorded.

This operation also affects sub-materials.

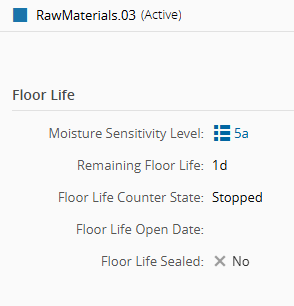

Screenshot showing the material before starting the floor life counter, with the state set to Stopped.

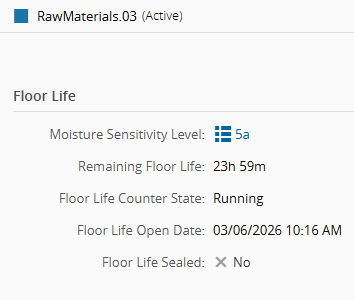

Screenshot showing the material after starting the floor life counter, with the state set to Running and the open date filled in.

Scenario 2 - Stop Floor Life Counter#

Use the same material from the previous scenario: RawMaterials.03.

  1. Confirm that floor life is defined and the state is Running.
  2. Execute the Stop Floor Life Counter operation.
  3. Confirm that the state changes to Stopped and that the Floor Life Open Date is removed.

This operation also affects sub-materials.

Screenshot showing the material after stopping the floor life counter, with the state set to Stopped.

Scenario 3 - Seal Material#

Use the same material from the previous scenario: RawMaterials.03.

  1. Confirm that floor life is defined and the state is Stopped or Running.
  2. Execute the Seal Material operation.
  3. Confirm that the state is Stopped and that Floor Life Sealed is set to Yes.

This operation also affects sub-materials.

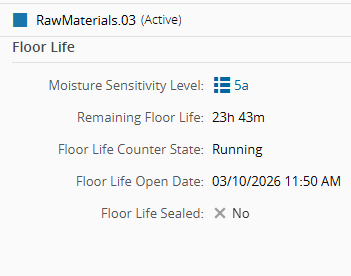

Screenshot showing the material before sealing, with floor life available and not yet sealed.

Screenshot showing the material after sealing, with Floor Life Sealed set to Yes.

Scenario 4 - Reset Floor Life#

Use the same material from the previous scenario: RawMaterials.03.

  1. Confirm that floor life is defined and the state is Stopped.
  2. Execute the Reset Floor Life Counter operation.
  3. Confirm that the remaining floor life is reset according to the time defined in the MSL table.

This operation also affects sub-materials.

Note

If the material MSL is unlimited, the reset cannot be performed because the remaining floor life is also unlimited.

Screenshot showing the material before resetting the floor life counter.

Screenshot showing the material after resetting the floor life counter to its original duration.

See the configuration of these first four scenarios in the video below:

Scenario 5 - Store Material#

In this scenario, storing the material under specific storage conditions automatically stops the counter.

On the storage resource, enable the following flags:

  • Floor Life Safe - determines whether the remaining floor life is paused while the material is stored.
  • Start Floor Life Counter On Retrieve - automatically starts the counter when the material is retrieved, provided the material is not sealed.

For the resource setup itself, see Create Resource.

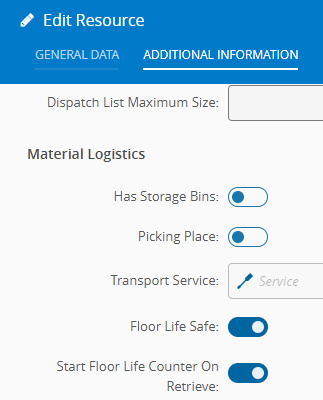

Screenshot showing the storage resource flags for Floor Life Safe and Start Floor Life Counter On Retrieve.

Use RawMaterials.03, with the counter in either the running or stopped state.

  1. Store the material in the storage resource and confirm that the state changes to, or remains, Stopped.
  2. Retrieve the material from the storage resource and confirm that the state changes to Running.
  3. Store the material again and confirm that the state changes back to Stopped.

Screenshot showing the material after being stored, with the floor life counter stopped.

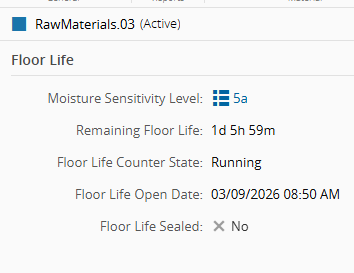

Screenshot showing the material after retrieval, with the floor life counter running again.

Screenshot showing the material after being stored again, with the floor life counter stopped.

See the configuration of this scenario in the video below:

Scenario 6 - Consume Material with Floor Life#

For this scenario, use RawMaterials.01. The material should be ready to be consumed and the floor life should be in either the Running or Stopped state.

The scenario uses the Assemble Material operation.

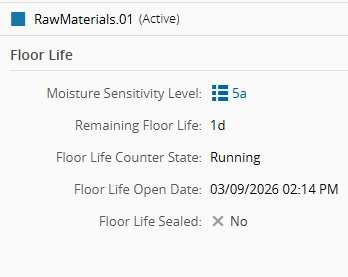

Screenshot showing the material before consumption, with a valid remaining floor life.

  1. Track in the material to Engine Block H08-P9.002.
  2. At track-in, a BOM appears.
  3. After track-in, open Assemble.
  4. Confirm that RawMaterials.01 is available in the assemble operation.

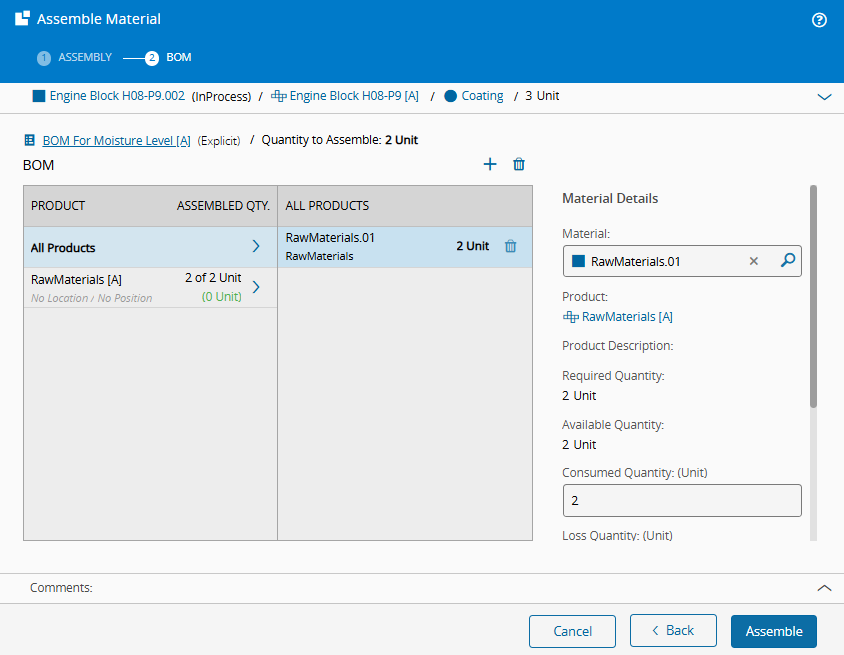

Screenshot showing the Assemble Material wizard where the valid material is available for use.

Then repeat the same exercise when the floor life reaches 0.

  1. Confirm that the floor life of the material has expired.
  2. Open Assemble again.
  3. Confirm that the material is no longer available in the wizard.

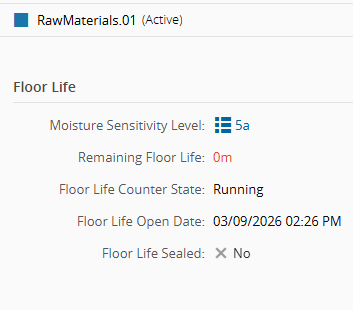

Screenshot showing the material after the remaining floor life reaches zero.

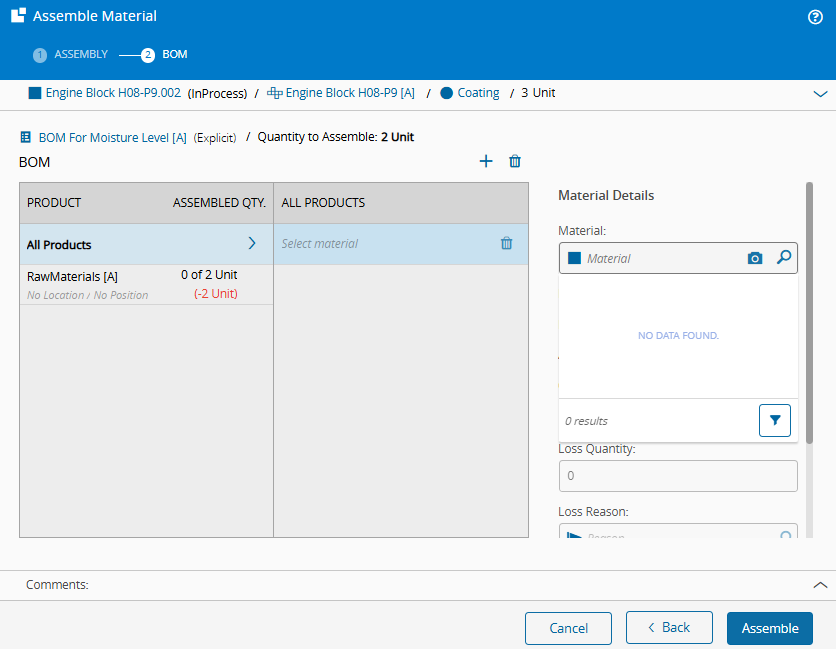

Screenshot showing the Assemble Material wizard with the expired material blocked from use.

See the configuration of this scenario in the video below:

Scenario 7 - Attach Durable with Floor Life#

For this scenario, create the durable using Register Materials. The same behavior also applies if it is created directly in the material management page.

The main goal is to explore floor life when it is defined on the Product Manufacturer.

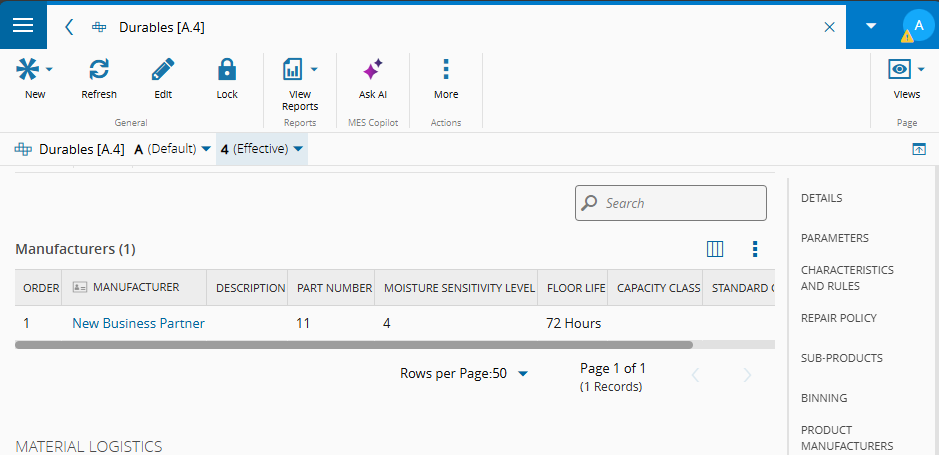

Screenshot showing the durable product manufacturer with the configured Moisture Sensitivity Level and Floor Life.

  1. Add a new line in Register Materials.
  2. Enter 11 in Part Number.
  3. Confirm that the system automatically fills the MS-Level field according to the product manufacturer configuration.
  4. Register the durable and confirm that the system fills in the floor life automatically.

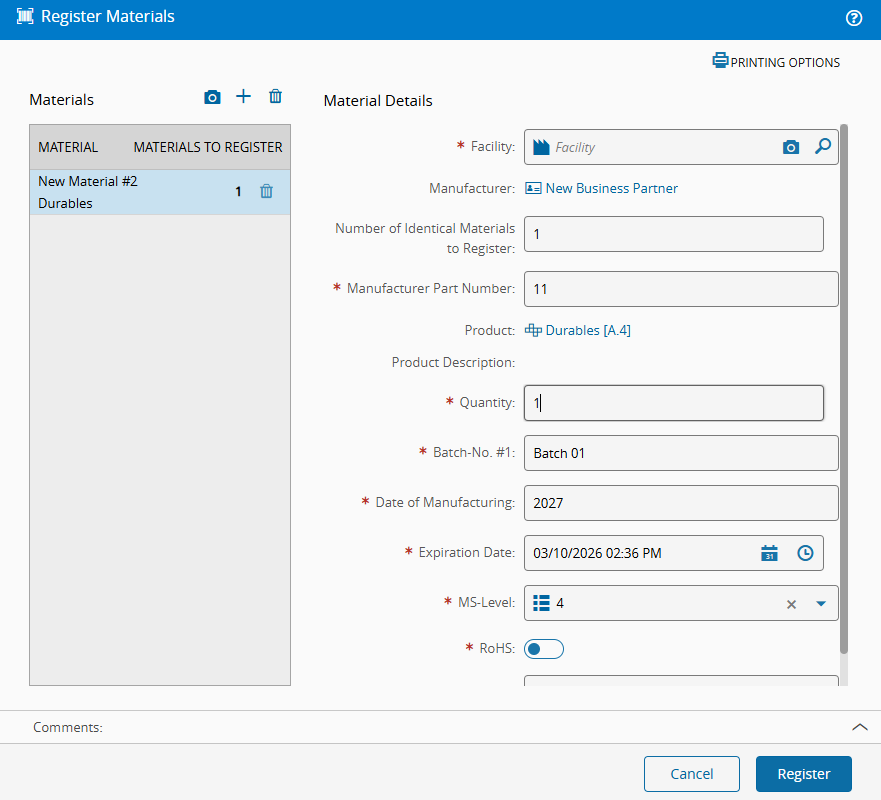

Screenshot showing Register Materials with the durable data, including MSL and expiration date fields.

Screenshot showing the created durable with the floor life data already defined.

Next, use Manage Resource Durables to assign the durable to Coater-001.

  1. Assign the durable while the remaining floor life is valid and confirm that the operation succeeds.
  2. Repeat the assignment when the remaining floor life reaches 0.
  3. Confirm that the system displays an error because the floor life has expired.

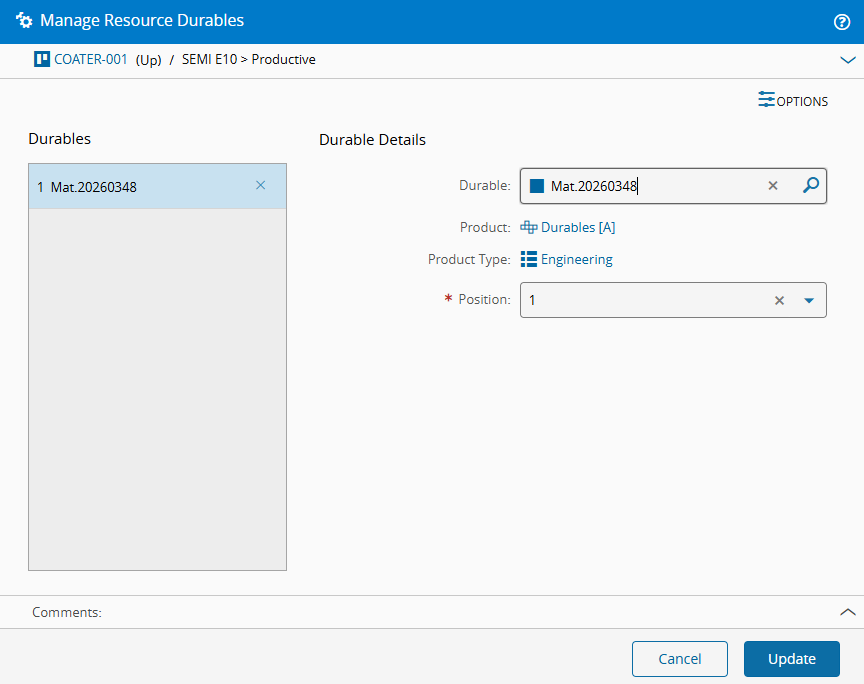

Screenshot showing the durable assignment to the resource while the floor life is still valid.

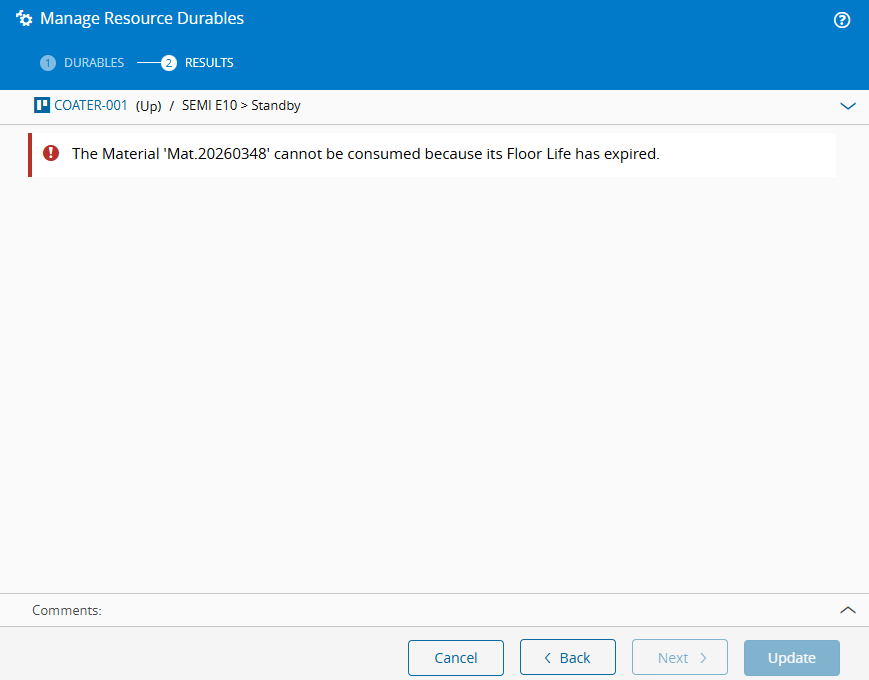

Screenshot showing the error returned when the durable is assigned after its floor life has expired.

See the configuration of this scenario in the video below:

Scenario 8 - Use the Expiration Date in the Material#

Use the same durable from the previous scenario. Even though the example uses a durable, the expiration date can be used with any material type.

At this point, the durable still has remaining floor life, but its expiration date has already been exceeded.

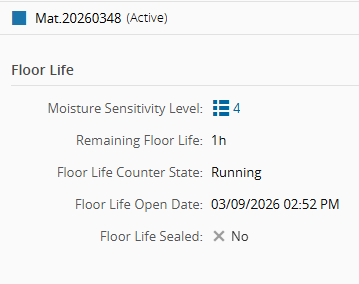

Screenshot showing the durable with remaining floor life still running.

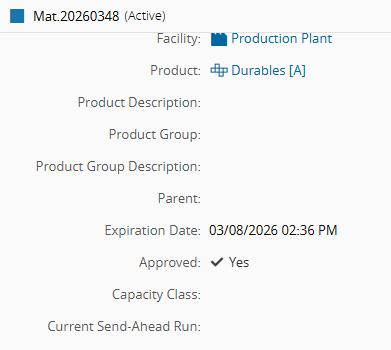

Screenshot showing the durable details page with an expiration date already in the past.

  1. Assign the durable to Coater-001.
  2. Confirm that the system blocks the operation because the expiration date has been exceeded.

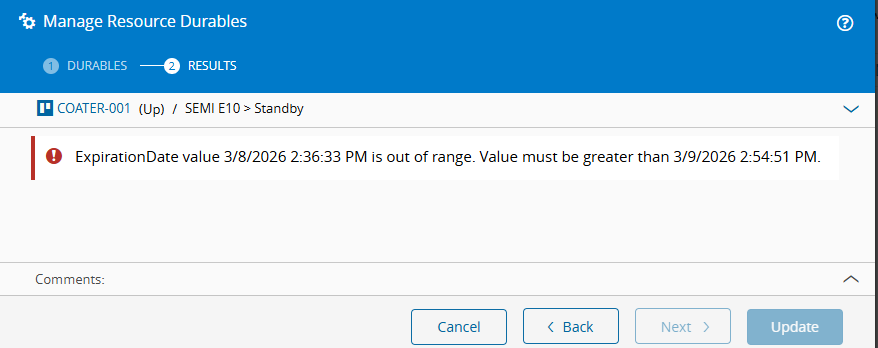

Screenshot showing the error returned when the expiration date is out of range.

The expiration date can be used independently of floor life. Although this scenario is demonstrated with durable assignment, the same behavior also applies when using Assemble, Combine, or Compose.
