Tutorial: Scan, Create and Attach Raw Material#

Estimated time to read: 2 minutes

Objective#

Learn how to scan, create, and attach raw materials using barcode labels, both at:

• Resource level (flexible mode)
• Step level (BOM-driven production mode)

Step 0: Validate Preconditions#

Before starting, ensure the following configurations are in place:

• /SMT/ManageRawMaterials/IsEnabled = True

• /SMT/ManageRawMaterials/BarcodeRegExp is defined

  • Example:
    • ^(?<productName>[^\/]+)\/(?<quantity>[^\/]+)\/(?<materialName>[^\/]+)$
  • This configuration ensures the system can extract:
    • Product Name
    • Quantity
    • Material Name

Scenario A: Resource-Based Mode (Resource Details)#

When to use#

• Preparing materials before production
• Loading feeders manually
• No BOM validation required

Step 1: Open Resource#

• Select and open a Resource

• Click Create & Attach

Step 2: Scan Material Labels and Finish#

• Scan the barcode of each material

• Confirm that the system extracts:

  • Material Name
  • Product Name
  • Quantity

• Repeat for all required materials

• Click Finish

Scenario B: Production-Based Mode (Step View)#

When to use#

• During production
• When materials must match the BOM
• For controlled assembly execution

Step 1: Prepare Production Context and Open Create & Attach#

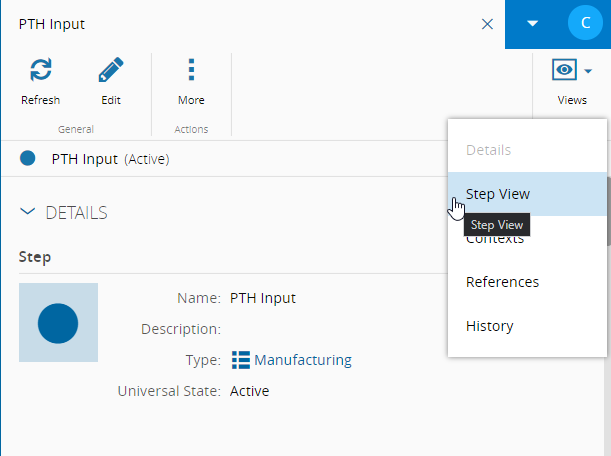

• Select and open a Step and navigate to Step View

• Select a Material in the following conditions:

  • System State must be In Process
  • A Current BOM Instance is available

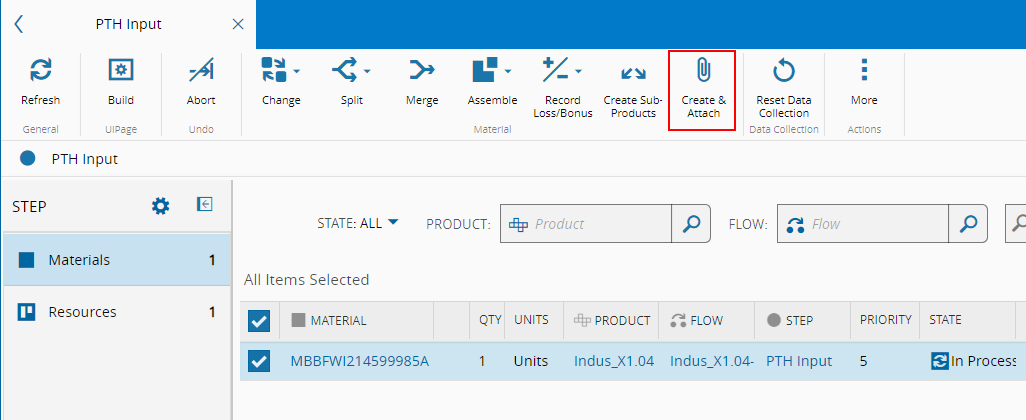

• Click Create & Attach

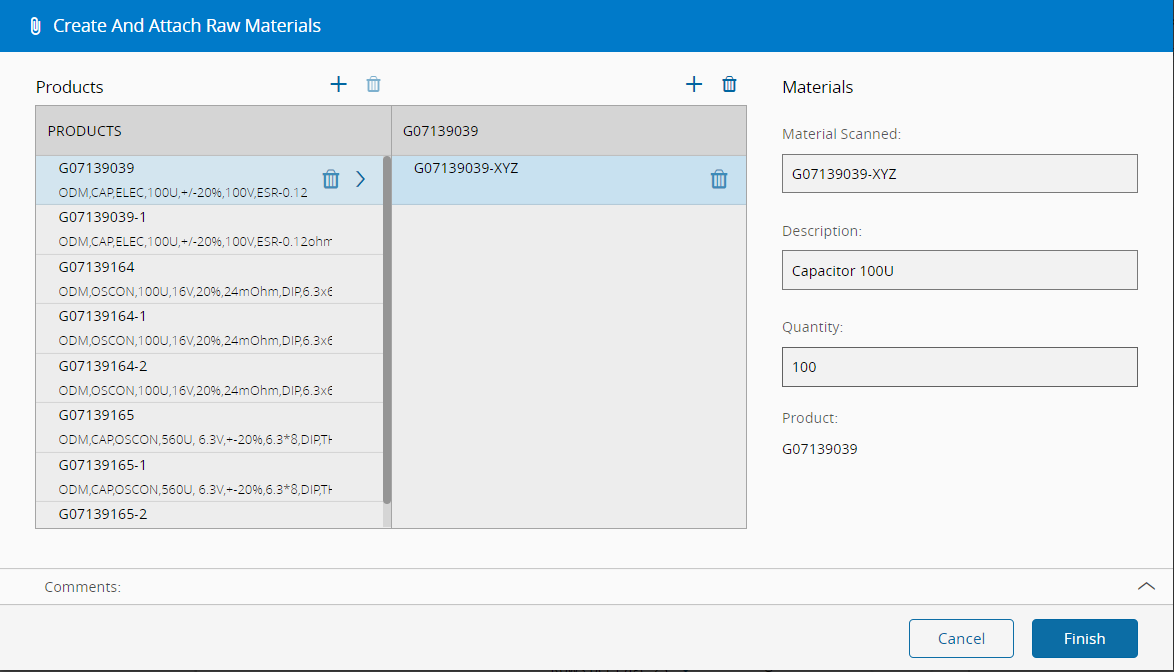

Step 2: Select BOM Product#

• The wizard displays required BOM materials

• Select one product

• Scan the label

• Verify extracted data:

  • Material Scanned
  • Description
  • Quantity

Step 3: Repeat for All Materials#

• Repeat scanning for all required BOM products

• Click Finish

Expected Result#

• Materials are created from scanned labels
• Materials are validated against the BOM
• Materials are attached to the production step
• Assemble is now ready to be performed

Frequent Configuration Questions#

Why is the barcode not being recognized?#

Validate that the /SMT/ManageRawMaterials/BarcodeRegExp configuration is correctly defined and matches the structure of the scanned barcode.

Why can't I proceed with the assembly process?#

Ensure that all materials required by the Bill of Materials (BOM) have been provided and successfully identified.

Why are materials not being created?#

Confirm that the feature is enabled by verifying the IsEnabled setting.

Why are the extracted values (such as name or quantity) incorrect?#

Review the barcode structure and verify that the RegExp mapping is correctly configured to extract the expected information.
