Scenario 4: Perform Setup - Instruments Step#

Estimated time to read: 2 minutes

Use this scenario to validate Instruments before production begins. The Perform Setup wizard lets you associate a calibrated Instrument with a Resource during setup.

  1. Go to the Resource view of Measurement Station 01.
  2. Select PCB-LOT-003 in the dispatch list.

  3. Select Perform on the ribbon and then select Perform Setup.

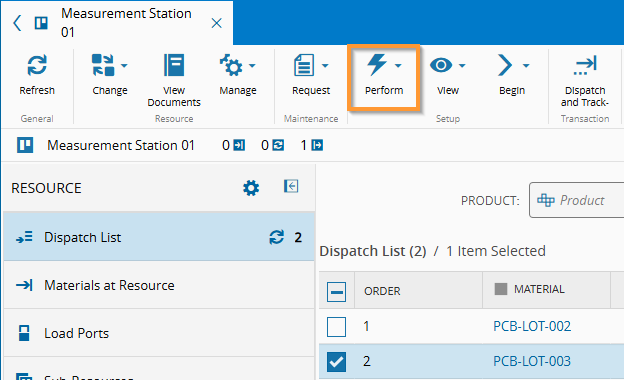

    Screenshot showing the Perform Setup action used from the dispatch list.

  4. In the Perform Setup wizard, select Instruments in the left-side panel under Resource.

  5. Associate Caliper-001 with Measurement Station 01.

  6. Confirm that Maximum Width and Thickness show green checkmarks and Caliper-001 as the assigned Instrument.

    Note

    The Instruments step in Perform Setup provides visual confirmation that all measurement parameters have a valid calibrated instrument before production begins.

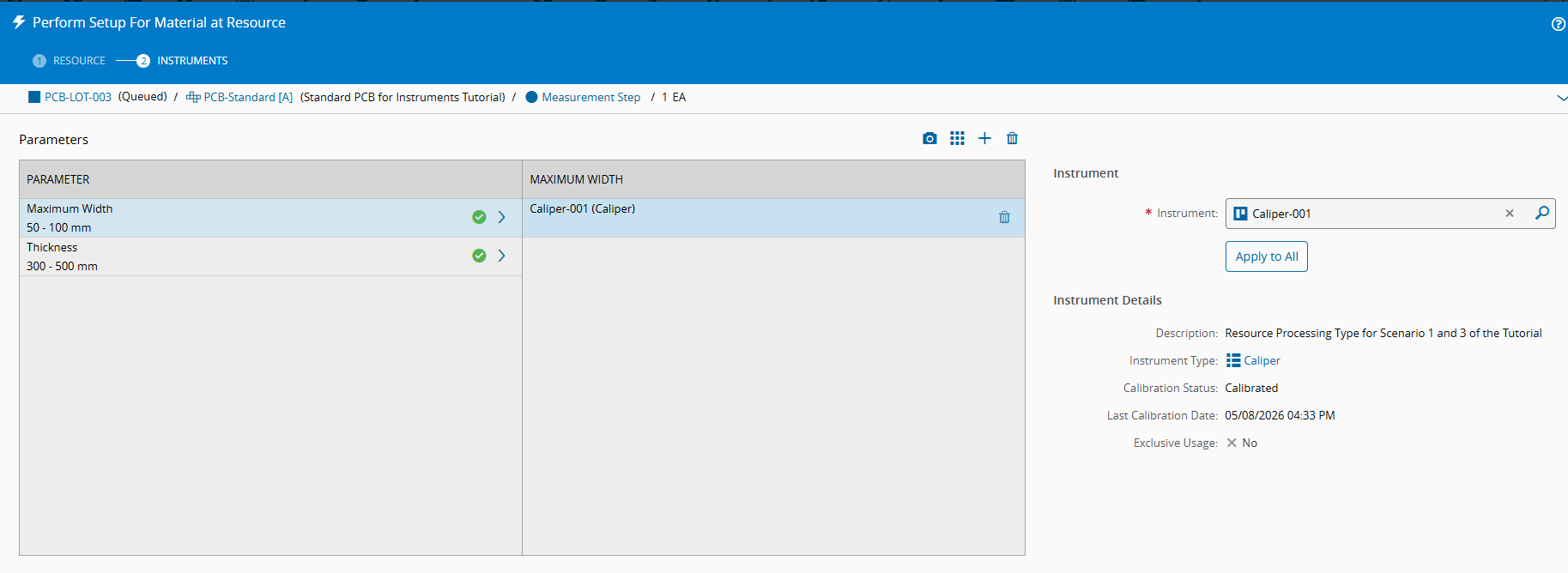

    Screenshot showing Caliper-001 validated for the instrument parameters during Perform Setup.

  7. Select PCB-LOT-003 again in the dispatch list and open View Setup.

  8. Confirm that Caliper-001 is associated with Measurement Station 01 in the Instruments section.

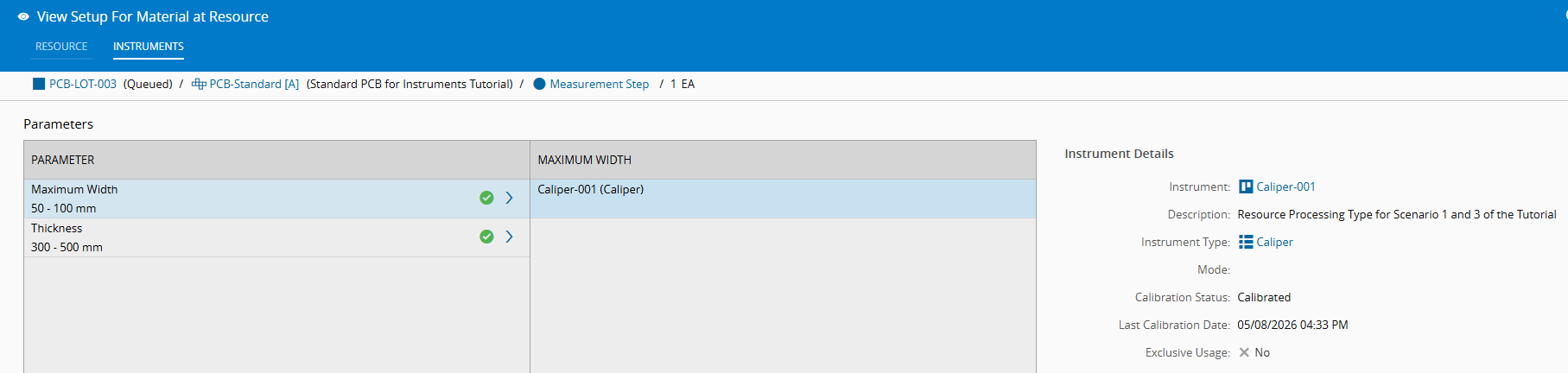

Screenshot showing View Setup with Caliper-001 associated to Measurement Station 01.
