Configuration#

This section covers only the configuration that is specific to Durables. Assume the base model, such as Calendars, Facilities, and Areas, already exists.

Useful Documentation

Use the Master Data file to load the model used in this tutorial.

Configure the Model#

  1. Define a Flow and the Steps where the Durables are stored.

    Screenshot showing the flow and steps used to store the durables.

  2. Create Products with the type set to Durable.

    Screenshot showing durable product definitions in the product configuration.

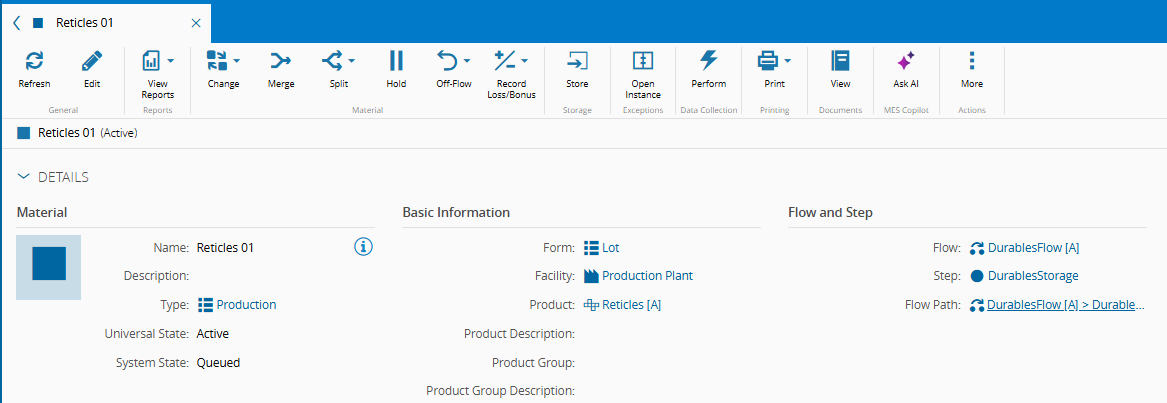

  3. Create the durable Materials that represent the physical tooling used in production.

    Screenshot showing the durable materials created for the tutorial model.

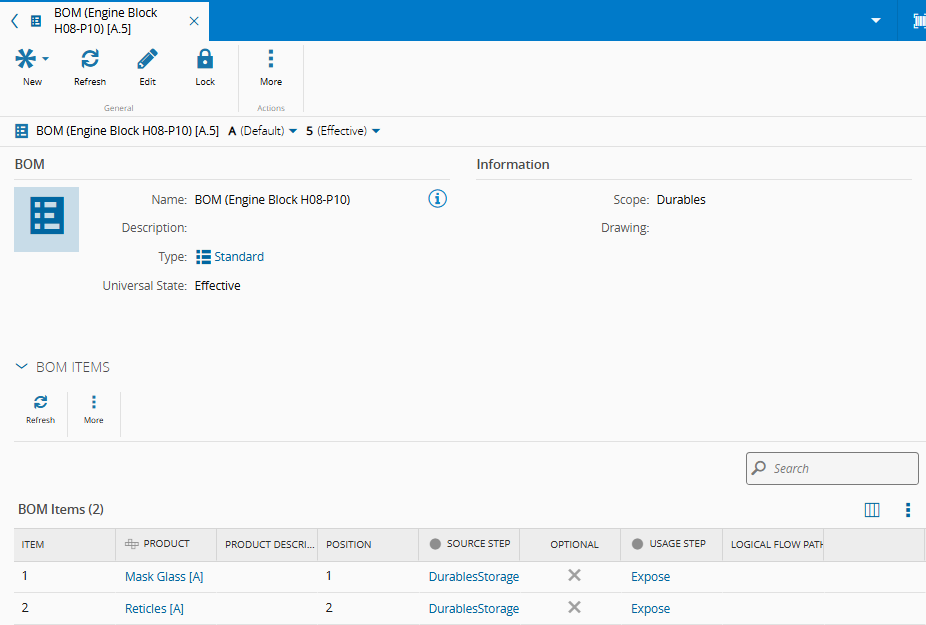

  4. Create a BOM of scope Durables and define the required durable Product, the attachment position on the Resource, and the usage Step.

    Screenshot showing a BOM of scope Durables with the required product, position, and step.

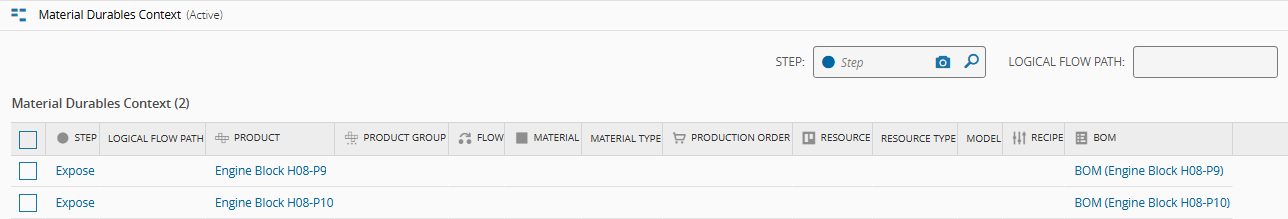

  5. Populate the MaterialDurablesContext Smart Table so the system resolves the correct BOM for each material context.

    Screenshot showing the MaterialDurablesContext smart table populated for the tutorial scenario.

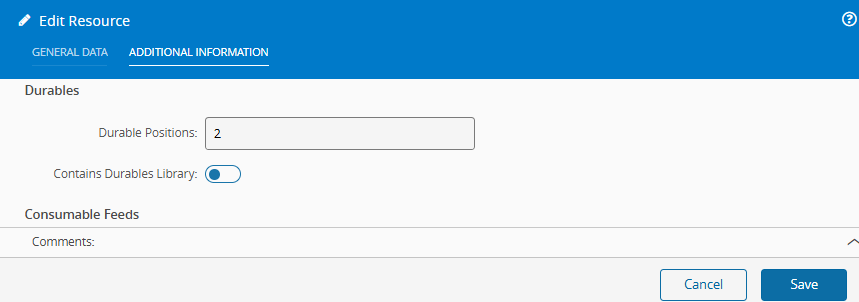

  6. Define the number of durable positions available on the Resource.

    Screenshot showing the resource configuration with the durable positions defined.

After you complete this configuration, continue to Scenarios. The scenarios validate the model in order, from a single durable requirement to a durable library.

Watch the recorded walkthrough below for the complete configuration flow.
