Timers#

Administration.Timer

A Timer is an object in the Critical Manufacturing MES system that will trigger the execution of a Rule after a certain predefined amount of time has elapsed.

A Timer is identified by a unique name and is defined by a specific recurrence and contains two Rules:

• A Rule that will be executed when the recurrence time is reached.
• An error Rule that will be run if the original Rule fails.

Additional information can be viewed in each Timer page, including:

• Start Date
• Number of times the Timer has been executed
• Expire Date
• State
• Recurrence information
  • Type
  • Frequency

Browsing existing Timers#

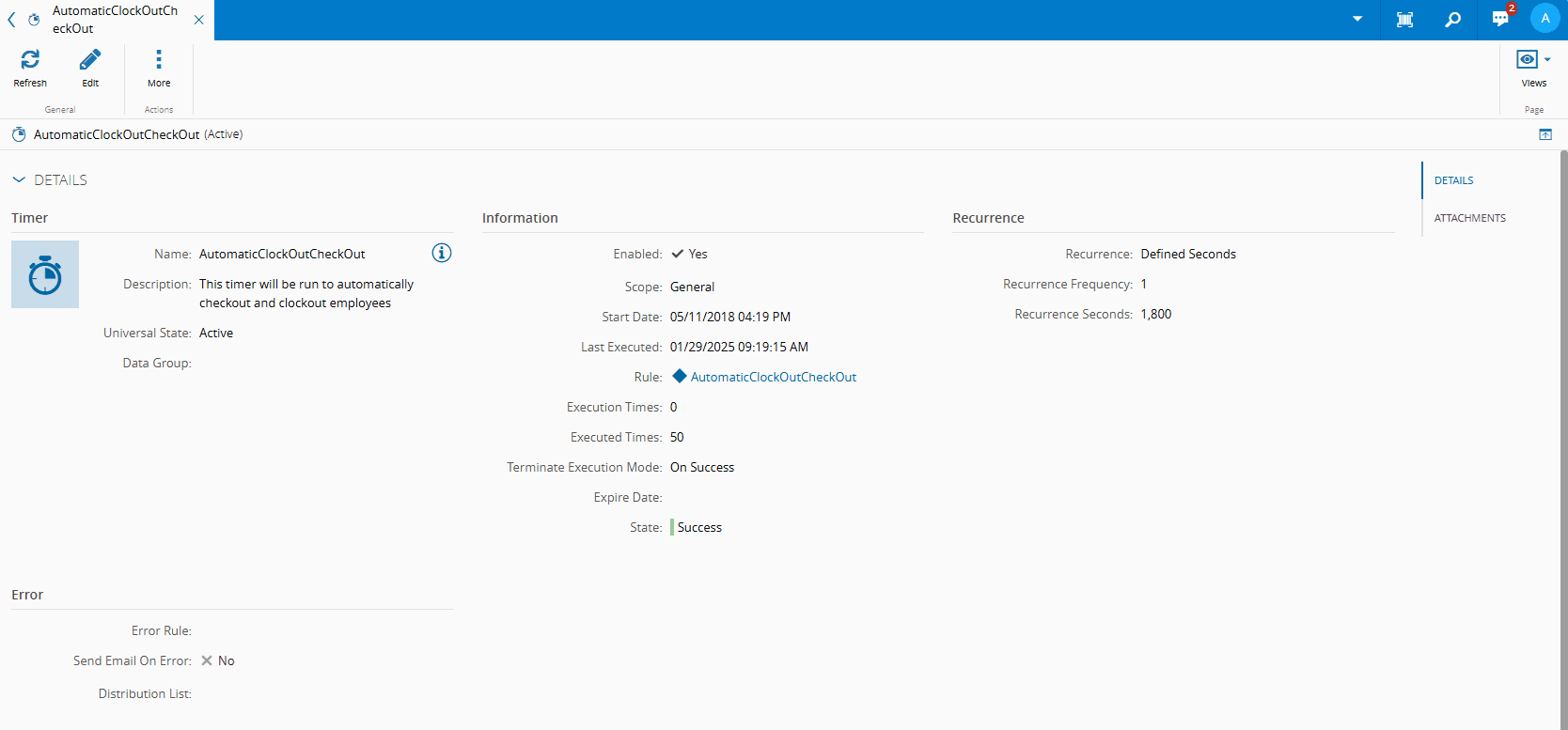

The Timers page in the Administration menu lists all the available Timers. If you select a Timer, its Details page is open:

System Timers#

Creating a Timer#

CmfTimer.Create

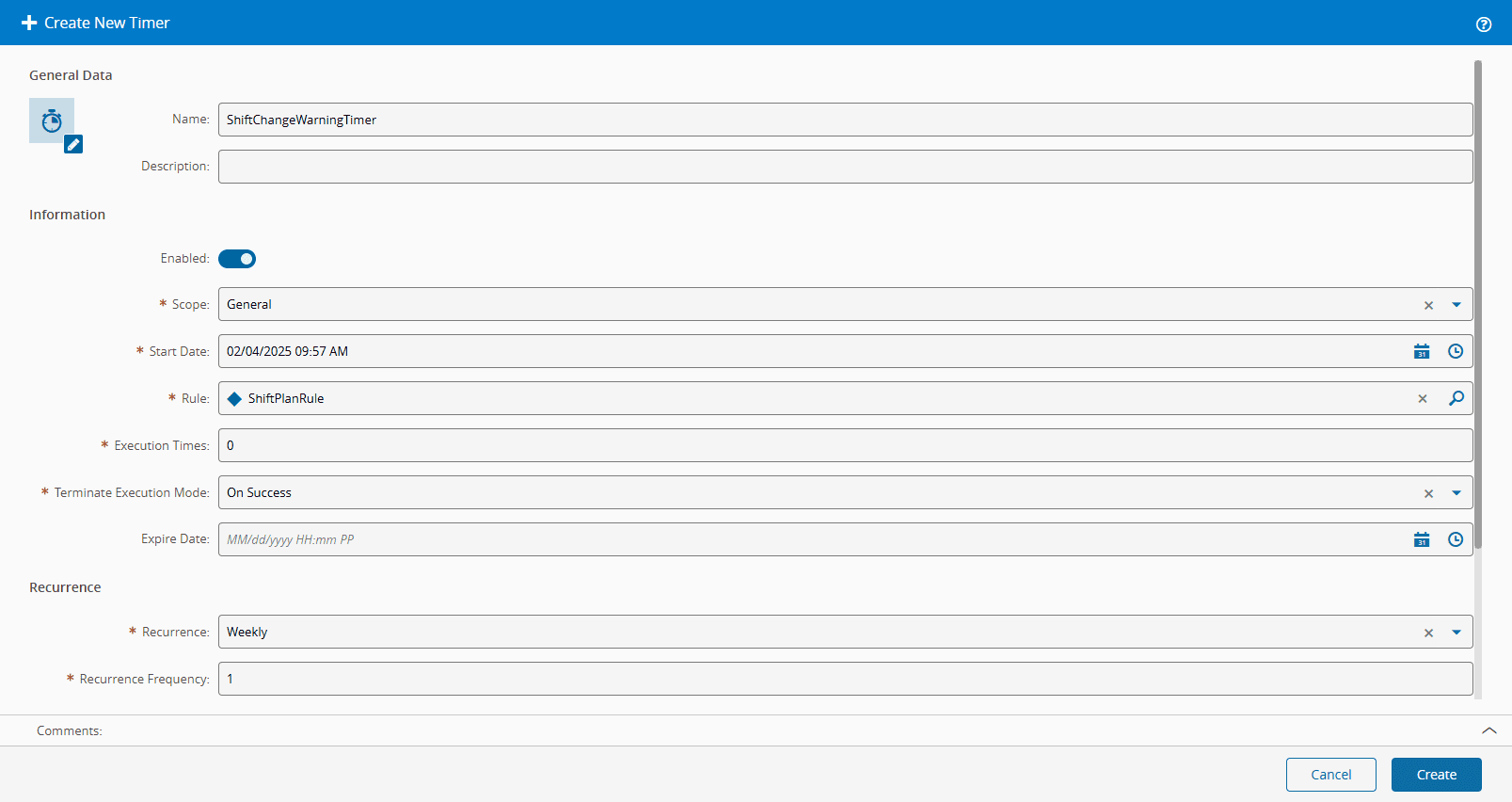

To create a new Timer, select Create on the top ribbon of the Timers page and follow the information below.

Step 1 - General data#

1. Provide a Name for the Timer.
2. Optionally, provide a Description for the Timer.
3. Select whether the Timer is Enabled (default).
4. Select a Scope for the Timer. You can select from:
   • General
   • Integration Entry
   • Maintenance Management
   • Order Management
   • Planning
   • Time Constraints
5. Select a Start Date after which the Timer will be active.
6. Select the Rule that will run after the recurrence period is elapsed.
7. Select the number of times the Timer will be able to run.
8. Select the mode the Timer will follow upon terminating the execution of the Rule. Available options are:
   • Always - Timer execution is terminated after Execution Times is reached, regardless of the outcome of the Rule.
   • None - Timer will keep running even after the completion of the Rule.
   • On Success - Timer execution is terminated after Execution Times is reached only if the Rule is executed successfully.
9. Optionally, select a date for the Timer to expire and no longer be enabled.

10. Select the type of Recurrence to apply to the Timer, and set other mandatory value(s) as follows:

    • Daily - must provide Recurrence Frequency.
    • Defined Seconds - must provide Recurrence Frequency and Recurrence Seconds.
    • Monthly - must provide Recurrence Frequency.
    • One Time

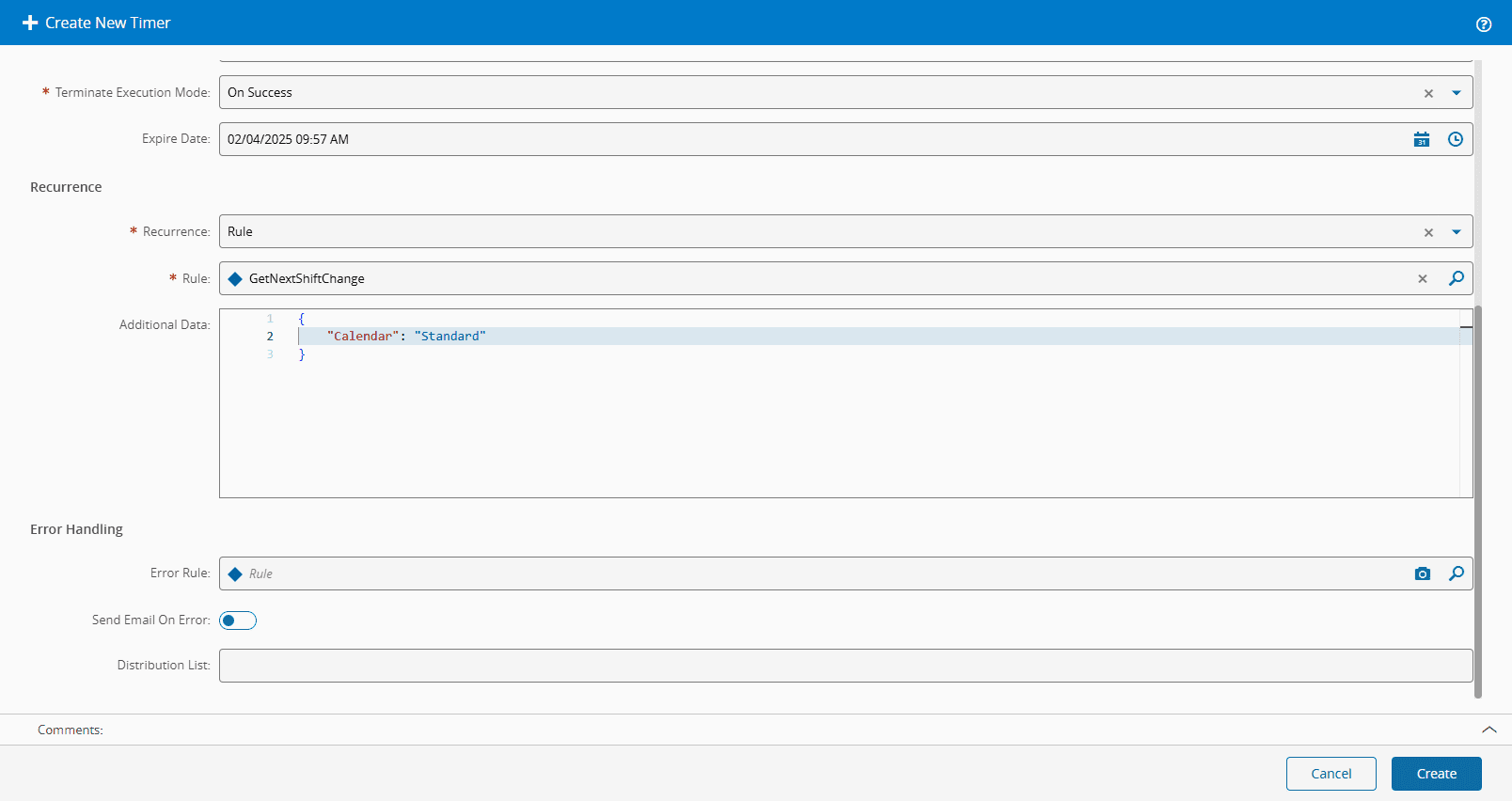

    • Rule - must provide Rule, used to calculate the recurrence of the timer, matching use case pre-conditions (non-template Rule) and, may specify a well formatted JSON string to be passed to the Recurrence Rule in the Additional Information field, used to pass information for the DEE of the Rule, that may be required or needed, which will allow you to have a customizable recurrence.

      Note

      This rule must receive Additional Data that is provided by the RecurrenceRuleData input. This Rule must return a date that will be the next execution date of the Timer.



    • Weekly - must provide Recurrence Frequency.

    • Yearly - must provide Recurrence Frequency.

11. Optionally, define a Rule to be executed in case of an error. If desired, a distribution list can be configured to receive an email notification of the error.

12. Select Create to complete the operation.

Editing a Timer#

CmfTimer.Edit

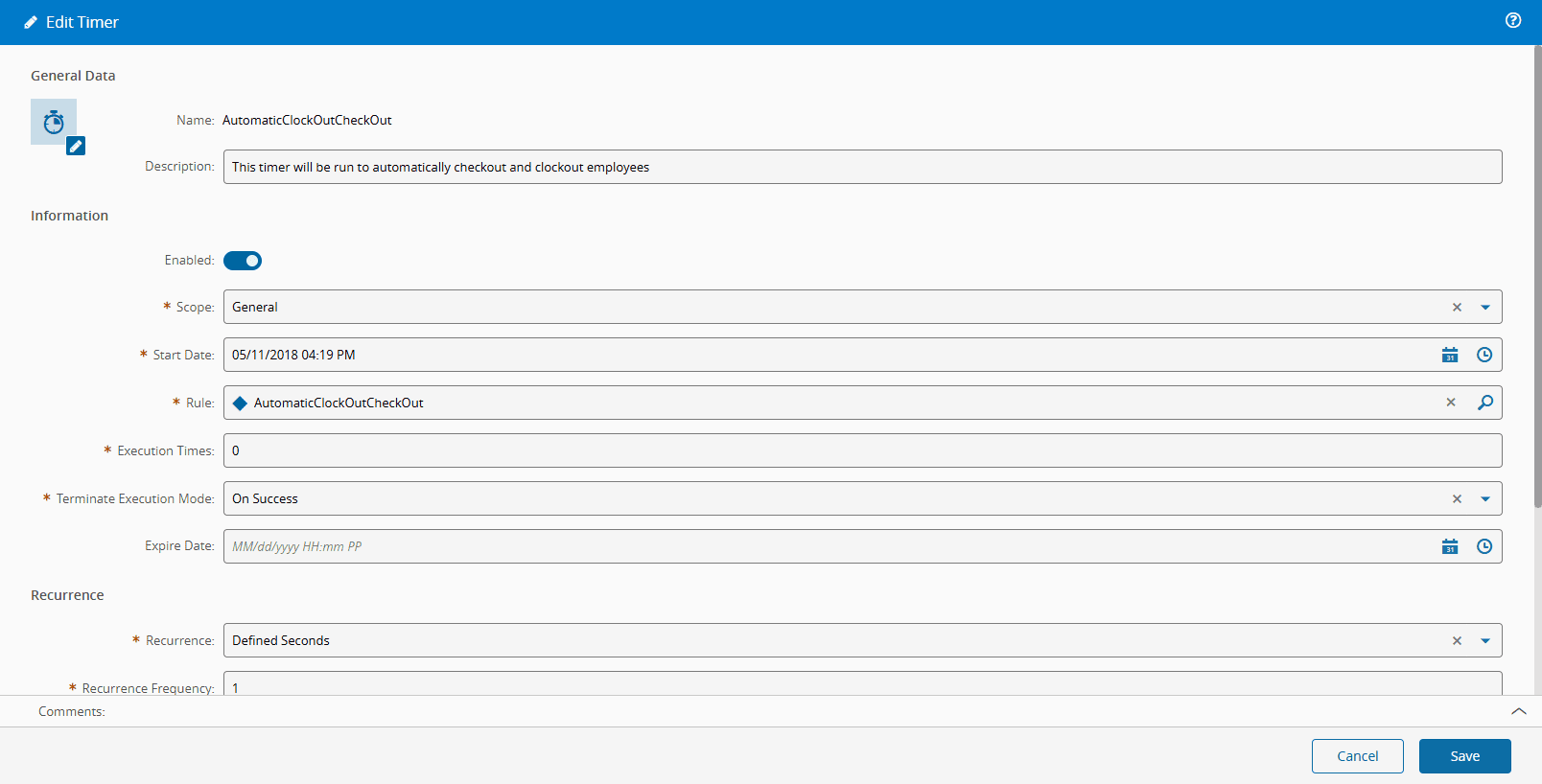

A Timer can be edited from within the main details page by selecting the Edit button on the top ribbon.

Terminating a Timer#

CmfTimer.Terminate

It is possible to terminate an existing Timer by selecting it from the list and then selecting the Terminate button.

Unterminating a Timer#

CmfTimer.Unterminate

It is possible to unterminate an existing Timer by selecting it from the list and then selecting the Unterminate button.
