Using Automation Tasks Library Settings#

Automation tasks have settings to define their behavior, inputs, and outputs. These settings are configured within the Automation Task Library using a structured JSON format.

Settings Format#

Settings are represented by a JSON object using a hierarchical tree format (Tabs, Sections, and Settings):

Tabs: The top-level organization, presented as a tab in the task settings UI.
Sections: Groups of settings within a tab.
Settings: Individual fields where data is entered.

Example:

This task's settings includes:

Tabs: "General", "Inputs", "Outputs", and "Code"
Sections within the "General" Tab: "General" and "Settings"
Setting within the "General" Section: "Name"

{
  "General": {
    "General": [
      {
        "displayName": "Name",
        "name": "name",
        "settingKey": "nameSetting",
        "dataType": "String",
        "defaultValue": "Code",
        "isMandatory": true,
        "infoMessage": "The name for the code task"
      }
    ],
    "Settings": [
      {
        "..."
      }
    ]
  },
  "Inputs": {},
  "Outputs": {},
  "Code": {}
}

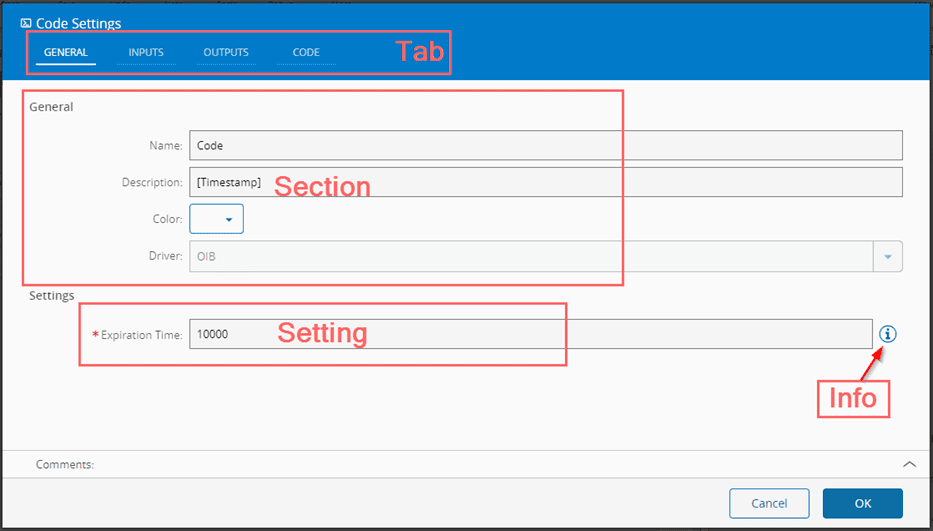

This configuration generates the following Settings Wizard:

Note

If the section is a string instead of an array with settings, then the GUI will render an information block without any settings.

Task Settings#

A setting is composed of the following properties:

Property	Description	Notes
Name	Name of the setting	Mandatory, Unique, String
DisplayName	Text to display in the GUI, defaults to Name if not defined.	Optional, String
SettingKey	Key of the settings where the value will be stored. Must be unique within the entire set of settings in the task.	Mandatory, String
IsMandatory	Flag indicating if this setting must be filled.	Optional, Boolean, defaults to false
EnumValues	List of possible values when the Type is Enum. Use object if the display value and the value are different. The display value is the key, the value is the value. Note: This key is left here for compatibility reasons, but it should be deprecated. This field should be used inside the Settings object.	Optional, list of strings or Object
InfoMessage	Text to display in the hint box when hovered.	Optional, String
InfoMessageBlock	Text to display in the hint box when hovered using a block HTML view where the text can be formatted with new lines, tabs, etc.	Optional, String
DefaultValue	Value to use as default.	Optional, any
Condition	Expression (MathJS) that will be parsed to identify if this setting is to be displayed. Example: `timerType != null && timerType != "CronJob"`	Optional, string
Settings	Extra settings to use to model the behavior of the field. These settings are different per control to use.	Optional, Object
PropertiesToSave	Optional setting to define the properties to store in the settings if the value is an object. Can define sub-objects. Example: `[“$type”, “name”]` Note: Subfields are not supported. To achieve that use the BeforeSave trigger scripts.	Optional, Array of Strings

Setting types#

The settings can be of primitive types (like String, Boolean, Integer, etc.) or complex types. The following subsections detail these types.

Settings Primitive types#

The following primitive types are supported:

String
Integer
Decimal
Long
Boolean
Object
Text
Password
Note
HTML

Example:

This example defines a General tab containing a Settings section with three settings: a string, a boolean, and an integer. The integer setting includes type-specific configuration that specifies a minimum value and a unit symbol.

{
    "settings": {
        "General": {
            "Settings": [
            {
                "displayName": "Example Setting",
                "name": "exampleSetting",
                "settingKey": "exampleSetting",
                "dataType": "String",
                "defaultValue": "Example",
                "isMandatory": true,
                "infoMessage": "Super Example"
            },
            {
                "displayName": "Example Setting Boolean",
                "name": "exampleSettingBoolean",
                "settingKey": "exampleSettingBoolean",
                "dataType": "Boolean"
            },
            {
                "displayName": "Example Setting Integer",
                "name": "exampleSettingInteger",
                "settingKey": "exampleSettingInteger",
                "dataType": "Integer",
                "defaultValue": 1000,
                "settings": {
                    "symbol": "ms",
                    "min": 0
                    }
                }
            ]
        }
    }
}

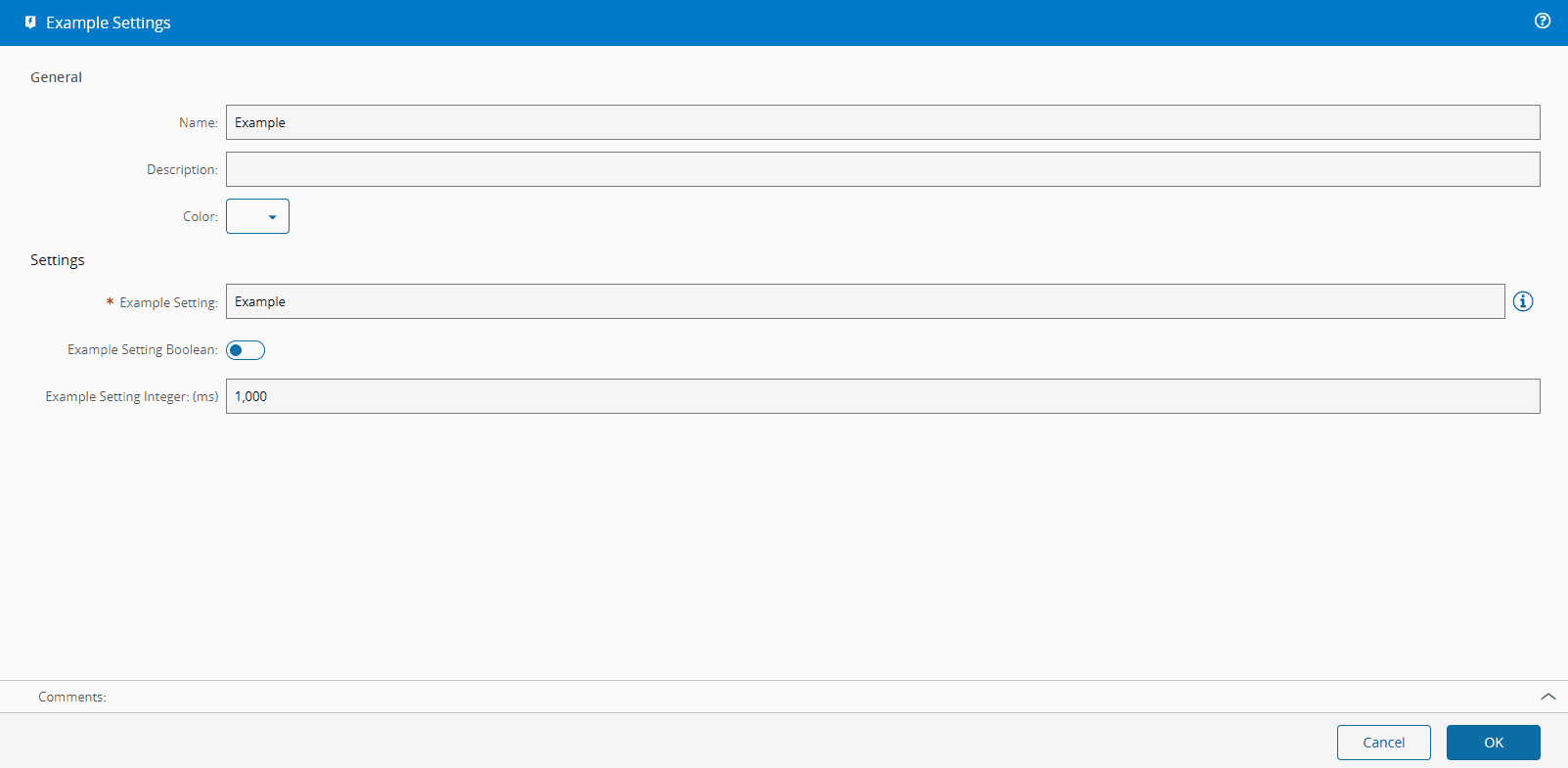

This configuration generates the following Settings Wizard:

Settings Complex Types#

The following table lists the supported complex data types and their configurable properties.

DataType	Property	Description	Notes
Lookup		Provides a value selected from a predefined lookup table.
	TableName	Name of the table to use for this lookup (must be a Lookup table).	Mandatory, String
	OnChange	Script to execute when the value changes.	Optional, AutomationTaskScript
Enum		Provides a value selected from a predefined set of enumerated values.
	EnumValues	List of possible values when the Type is Enum. Use object if the display value and the value are different. The display value is the key, the value is the value.	Mandatory, list of strings or Object
	OnChange	Script to execute when the value changes.	Optional, AutomationTaskScript
	Data	Script to execute to fill the possible values.	Optional, AutomationTaskScript
EntityType		Provides a value selected from a set of entities returned by a query.
	Query	Script that returns a query object.	Mandatory, AutomationTaskScript
	ValueReferenceType	Optional, defaults to "EntityType".	Optional, String
	NestedEditorType	Optional, defaults to "EntityComboBox".	Optional, String
	DataComparisonField	Optional, defaults to "Name".	Optional, String
	OnChange	Script to execute when the value changes.	Optional, AutomationTaskScript
FindEntity		Provides an entity selection mechanism based on a query and an explicit entity type.
	Query	Script that returns a query object.	Mandatory, AutomationTaskScript
	ReferenceTypeName	Type of entity configured to use by the FindEntity.	Mandatory, String
	OnChange	Script to execute when the value changes.	Optional, AutomationTaskScript
	Data	Script to execute to fill the possible values.	Optional, AutomationTaskScript
ListView		Displays a list of items generated dynamically and supports configurable selection behavior.
	Data	Items to show on the ListView (by default it is the `defaultValue` falling back to an empty array).	Optional, AutomationTaskScript
	DataQuery	It runs on init to replace the data property to show on the ListView. Exposes the entire context of the GUI.	Mandatory, String
	OnChange	Script to execute when the value changes.	Optional, AutomationTaskScript
	PropertyDataToRender	Expects a property to be rendered.	Optional, String
	IsDataItemChecked	It expects a boolean to check if the item is selected. Exposes the item itself (`this.item`) and an array with current value of the setting (`this.items`).	Optional, AutomationTaskScript
	SelectionType	Enum to indicate how the ListView should behave.	Optional, from an enumeration: • Single (default) • Multiple • None
	EmptyMessage	Message to render when the `data` property is empty.	Optional, String
ExtendedPropertiesViewer		Shows extended properties from a JSON formatted object, in the ATLs.	Optional, JSON formatted object
	Dependencies	Setting key of the task property that this viewer depends on. The extended properties exposed by this viewer are directly linked to the value of the referenced setting.	String
	dynamicDependency	Reference to a task setting key provided dynamically through a Dynamic configuration.	String
	extendedDataType	Specifies which extended data type, defined as part of the authorization protocol, is used to determine the extended properties displayed by this viewer.	enum

Automation Task Scripts#

Automation Task settings can have associated scripts. For more information, see AutomationTaskScript.

Example:

The following setting demonstrates script associations:

An onChange event for the Event property
The associated script is eventDefinitionNameOnChange
The script executes when the setting value changes

[...]
    {
      "displayName": "Event",
      "name": "eventDefinitionName",
      "settingKey": "eventDefinitionName",
      "dataType": "FindEntity",
      "isMandatory": true,
      "settings": {
          "referenceTypeName": "IoTEventDefinition",
          "onChange": {
              "type": "Reference",
              "script": "eventDefinitionNameOnChange"
          }
      }
    }
[...]
"scripts": {
    "eventDefinitionNameOnChange": "dGhpcyBpcyB0aGUgYmFzZSA2NCBleGFtcGxlIDI"
}

Information Section#

In the Task settings, information blocks can be added.

Example:

{
    "General": {
        "Settings": [
            {
                "name": "JobName",
                "displayName": "Job Name",
                "settingKey": "JobName",
                "dataType": "string"
            }
        ],
        "Information Section": "Testing the information Section. Here you can explain something as you want."
    }
}

CheckList#

The CheckList component displays a list of items that supports single or multiple selection with custom item templates.

Example:

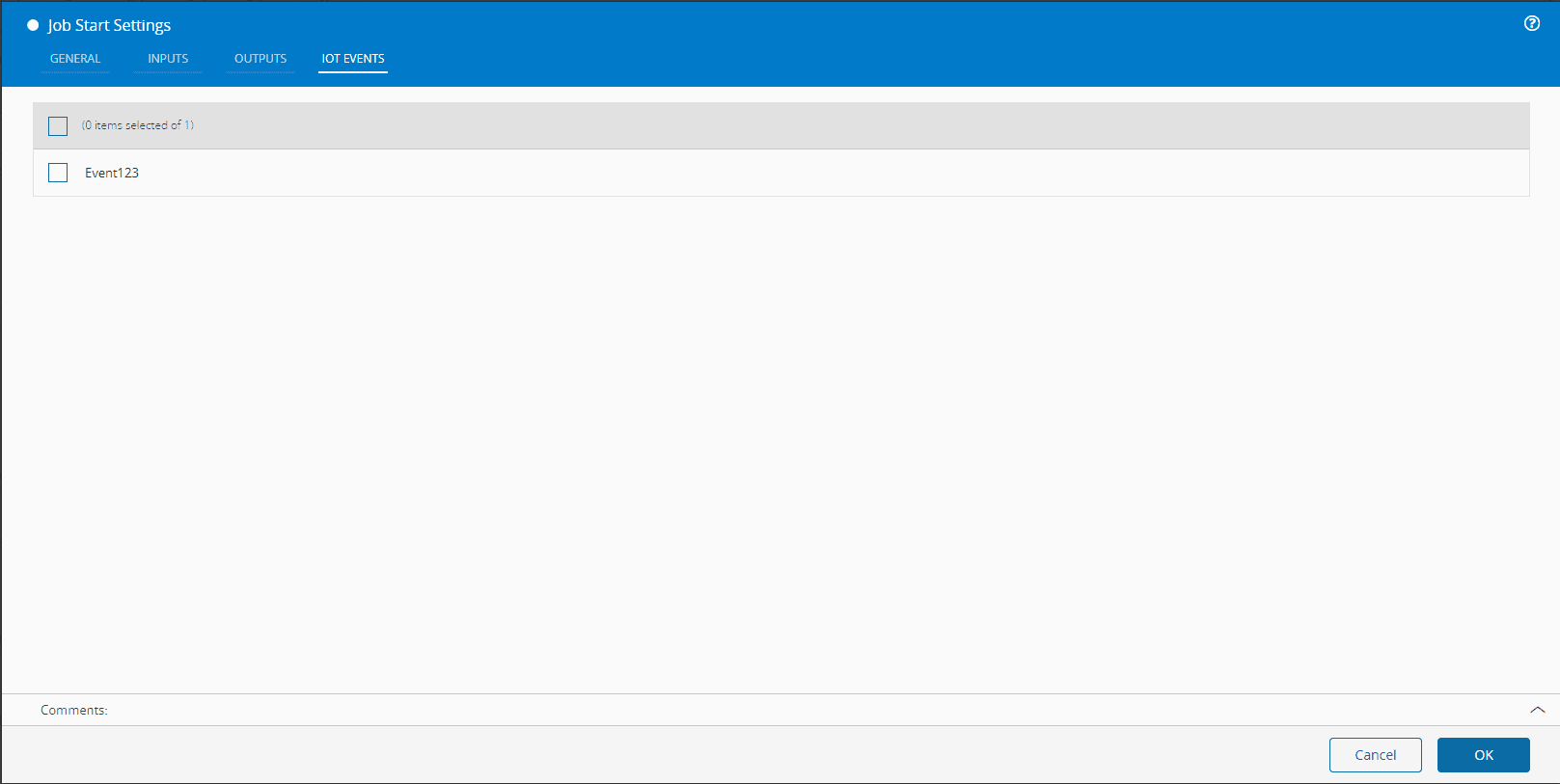

To implement a CheckList, add a new tab with the following structure:

{
    "settings": {
        "IoT Events": {
            "" : [
                {
                    "settingKey": "_availableEvents",
                    "dataType": "ListView",
                    "settings": {
                        "selectionType": "Multiple",
                        "emptyMessage": "No events to show"
                    }
                }
            ]
        }
    }
}

The configuration requires an empty section name ("") containing an array of settings with one ListView dataType setting. The component requires both a selectionType and an emptyMessage property. The selectionType can be set to Single, Multiple, or None.

Exploring Examples#

To see real-world implementations:

Open MES and navigate to the Automation section.
Open the Task Libraries page.
Select an existing library and click Edit.
Navigate to the Metadata tab to view the JSON configuration for the selected library.
