API Post Event#
The task API Post Event is a Task that posts an event into the Data Platform event ingestion.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow Control flow |
IsProtocol flag |

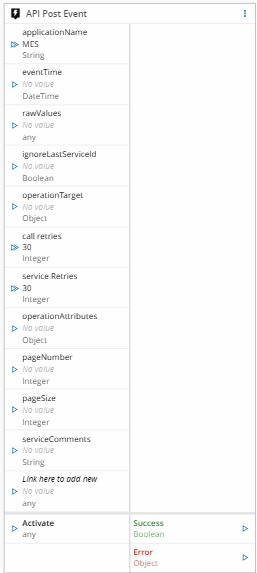

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Application Name | String | The application name for the event posting |
| Event Time | DateTime | The time when the event was triggered |
| Raw Values | Any | The values to be sent to the Data Platform |
| Activate | Any | Activates the task execution |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | Returns true if the event was posted successfully |
| Error | Error | Error that occurred during the processing of this task |
Settings#

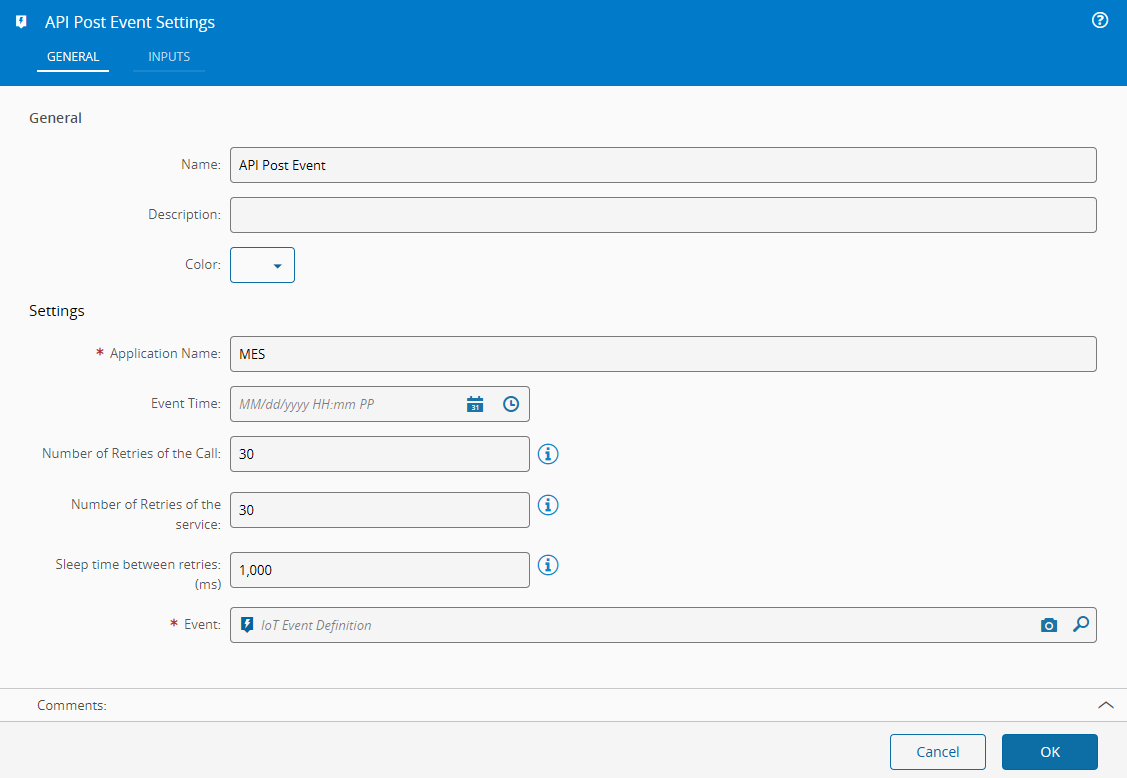

On the General Tab, there are the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Application Name | String | MES | The application name for the event posting |
| Event Time | DateTime | The time when the event was triggered | |
| Event | String | IoT Event Definition full name ({folder_path}\{event_name}) to which post MES request should be performed |
And the following retries settings:
| Setting | Data Type | Default | Description |
|---|---|---|---|
| Number of Retries | integer | 30 | The maximum number of attempts the IoT process (client) makes to call the MES backend if the connection or execution fails. |
| Sleep Time between retries (ms) | integer | 1000 | Number of milliseconds to wait between retries. It only applies when the previous call fails |
| Number of System Retries | integer | 10 | The maximum number of attempts the MES backend makes to call the target service if the execution fails. |
Multiplicative Retry Effect
Retry limits are cumulative. In the event of a persistent target service failure, the total number of requests generated will be the product of the Client Retries (N) and the Backend Retries (M). For example, if both are set to 10, a single IoT request could result in up to 100 total attempts (N x M), which may lead to system congestion or high latency.
Behavior#
The task is used to generate information that will be received and saved by an IoT Consumer. It posts the IoT Event with the supplied raw values as well as the dynamic inputs inherited from the IoT Event Definition and sends all values as payload.
