Recipe Upload Reply#
This task sends a reply back to the MES system in response to a recipe upload request. It is used in the Data Flow scope, paired with the Recipe Upload Request task to complete the request/reply cycle.
Workflows#
| Data Flow | Control Flow |
|---|---|

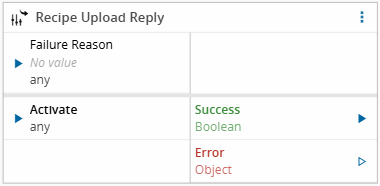

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Failure Reason | Any | The failure reason to send back to the MES. Leave undefined (or omit) if the upload succeeded. |
| Activate | Any | Activates the task, triggering the reply to be sent. |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | Triggered when the reply is successfully sent. |
| Error | Error | Triggered when the task fails to send the reply. |

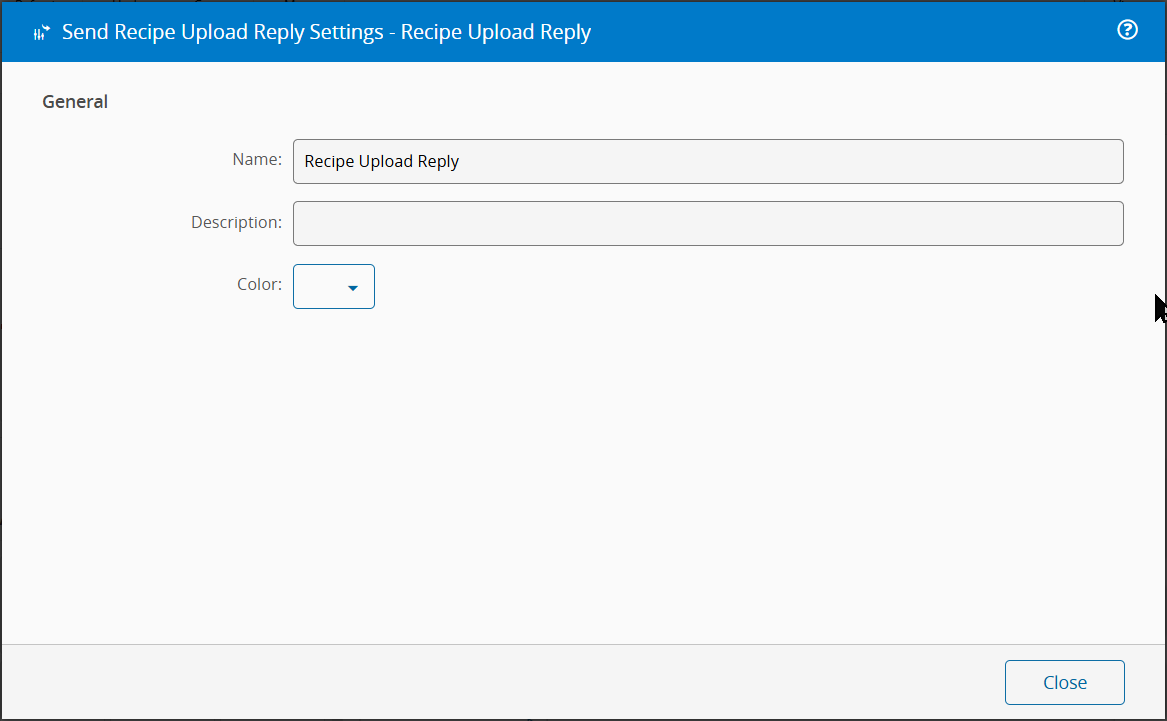

Settings#
This task has no additional settings beyond the default task settings.
Behavior#
When activated, this task sends a reply back to the MES in response to a recipe upload request. If Failure Reason is provided, it is sent as the failure content; otherwise, the MES interprets the reply as a successful upload.
Remarks#
This task can only be used within the Data Flow scope of a Recipe Upload Request task.
This task uses a context-based data structure called a zone. For more information, see Zones page.
