Update KPI#
This task updates a MES KPI Time Frame with a new value. Given a specific KPI and a value the task will automatically calculate the current KPI Time frame and update it with the given value.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow Control flow |
IsProtocol flag |

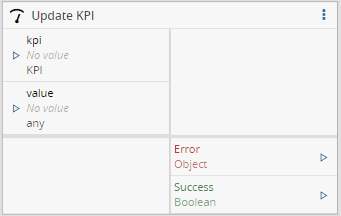

Inputs#
| Name | Data Type | Description |
|---|---|---|
| kpi | KPI | A KPI Entity |
| value | Decimal | An input value |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |

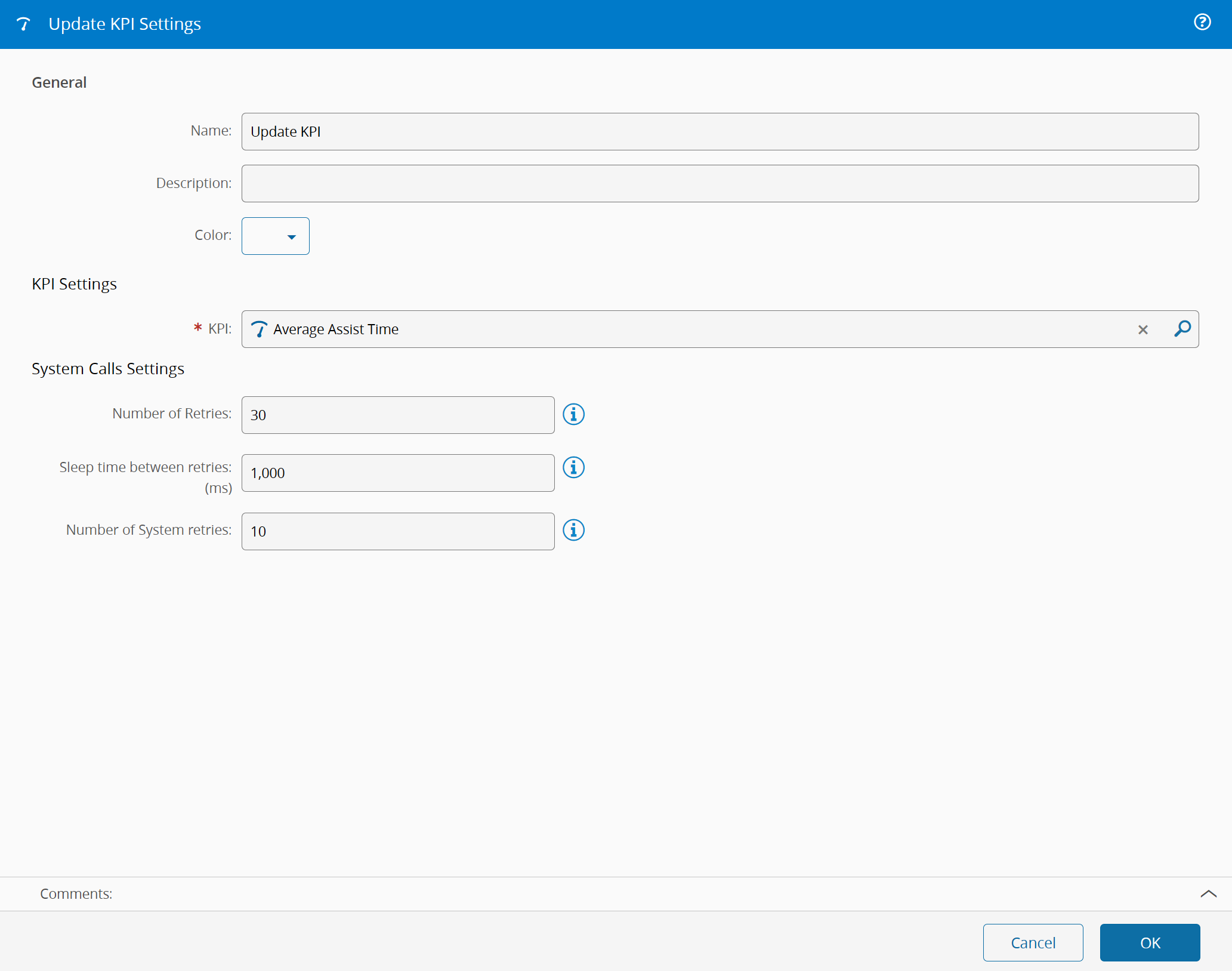

Settings#
On the General Tab, there are the following settings:
| Name | Data Type | Description |
|---|---|---|
| KPI | KPI | The existing MES KPI that we wish to associate |
And the following retries settings:
| Setting | Data Type | Default | Description |
|---|---|---|---|
| Number of Retries | integer | 30 | The maximum number of attempts the IoT process (client) makes to call the MES backend if the connection or execution fails. |
| Sleep Time between retries (ms) | integer | 1000 | Number of milliseconds to wait between retries. It only applies when the previous call fails |
| Number of System Retries | integer | 10 | The maximum number of attempts the MES backend makes to call the target service if the execution fails. |
Multiplicative Retry Effect
Retry limits are cumulative. In the event of a persistent target service failure, the total number of requests generated will be the product of the Client Retries (N) and the Backend Retries (M). For example, if both are set to 10, a single IoT request could result in up to 100 total attempts (N x M), which may lead to system congestion or high latency.
Behavior#
A change of the input value triggers the task, the task uses the current time, calculates the kpi timeframe, then adds the KPITimeFrame actual value as our given input value, updating the KPI in the MES System.
