Create Experiment for Qualification#

🔒 MaintenanceActivityOrder.CreateExperimentForQualification

Overview#

This operation is used to Create an Experiment to be assigned to the Qualification of a Maintenance Activity Order (MAO).

Preconditions#

  • The MAO exists and is Active.
  • The MAO Maintenance Type is set to Qualification.
  • The MAO Material Type Restriction Mode is set to Require Specific.
  • The MAO Execution State is Requested, Approved, Released, In Progress, or Waiting For Acceptance.
  • There must be at least one MAO Qualification Check whose system state is neither Completed or Obsolete.
  • The Material exists, is Active, and Non-Template.
  • The Material is Top-Most and not in an Off-Flow (either Temporary Off-Flow or Rework).
  • The Material Pick List Item Count must be empty.
  • The Material In Transfer Order Item must be empty.
  • If the Material is associated with a Resource, and the state of the Material is Consumable, Durable, Dispatched, In Process, or the property In Store is set to true, the Resource Inventory Locked must be false.
  • The Material Is Approved property must not be set to false.
  • The Material Expiration Date is null, or if defined, it must be in the future.
  • The Source Material Floor Life must be valid. This condition is met if any of the following applies:
    • Floor Life Remaining Hours is null; or
    • Floor Life Remaining Hours is greater than 0 and the Floor Life Counter State is Stopped; or
    • The Floor Life Counter State is Running, and the Floor Life Remaining Hours - calculated as Floor Life Remaining Hours - (Now() - Floor Life Open Date) - is greater than 0.
  • The Material Product must not be blocked or if blocked, the Material property Override Product Block must be true.
  • The MAO Assignment Experiment Definition is defined and the Material is not assigned to the current MAO.

Sequence of Steps#

Step 1: Material#

  1. Select a Material that matches the preconditions above.
  2. Select Next to proceed.

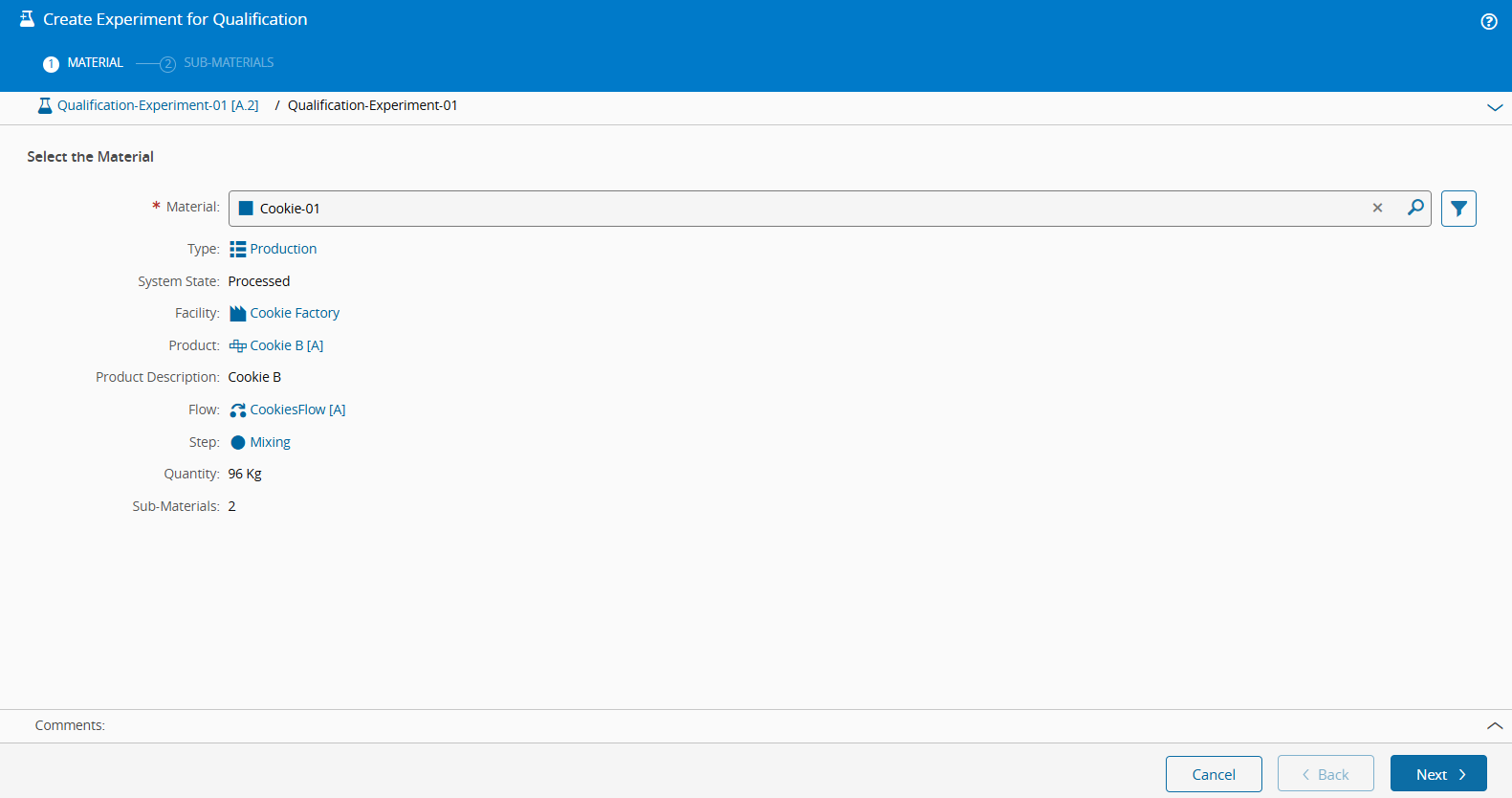

Screenshot of the Create Experiment for Qualification wizard where the user can select the Material to associate with the Experiment

Step 2: Sub-Materials#

  1. Select the Sub-Material for each Material group and number. You can assign the Sub-Materials manually or select the icon to define the criteria by which you will assign the Sub-Materials. For more information, see Create Experiment.
  2. Select Create to complete the operation.

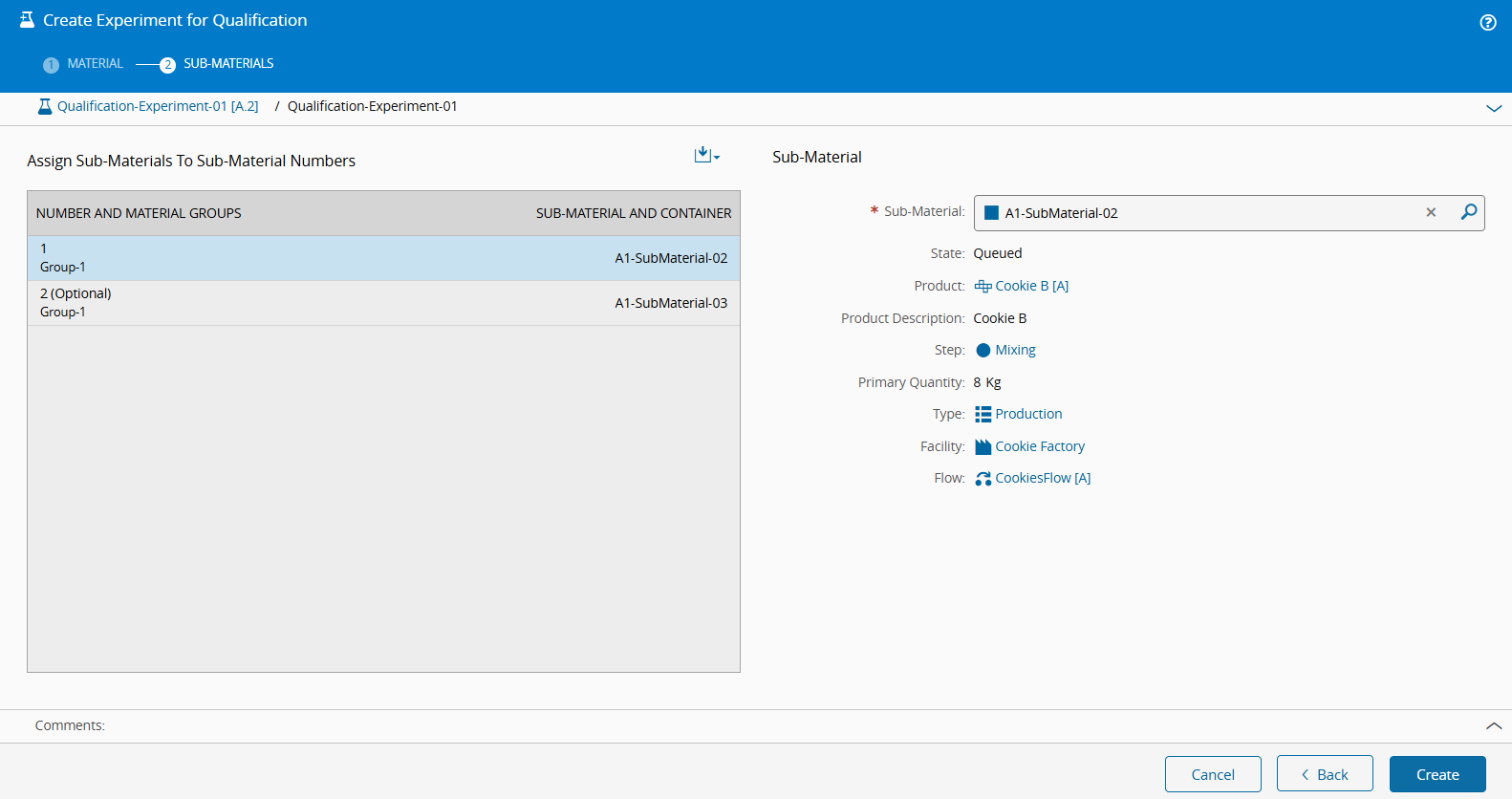

Screenshot of the Create Experiment for Qualification wizard where the user can select the Sub-Materials to associate with the Experiment
