Upload Recipe to Resource#

🔒 Recipe.UploadToResources

Overview#

This operation is used to upload a Recipe to one or more Resources.

Setup#

No specific setup is required other than to meet the precondition of the transaction.

Preconditions#

  • The Recipe exists in the system, is Active, and non-Template.
  • The Resource entity type must have the Connect IoT Enabled property set to true.

  • The Resource must have the following properties set to true:

    • Recipe Management Enabled
    • Track Resource Recipes

  • The Resource has the following configuration:

    • Automation Mode set to Online
    • Recipe Upload property set to true

  • The Recipe must have a Source and a Body.

  • The Resource must have at least one Recipe associated with it.
  • The Resource must have an Automation Controller Instance with a workflow configured.

Sequence of Steps#

This operation can be performed from either the Recipe or from the Resource page.

Recipe Page#

  1. Navigate to the Recipe page.
  2. In the Resource section, select the Recipes you want to upload.
  3. Select Upload.
  4. The selected Recipes are uploaded to the associated Resource. After the upload is completed, the system updates the Last Upload Date in the Resource section.

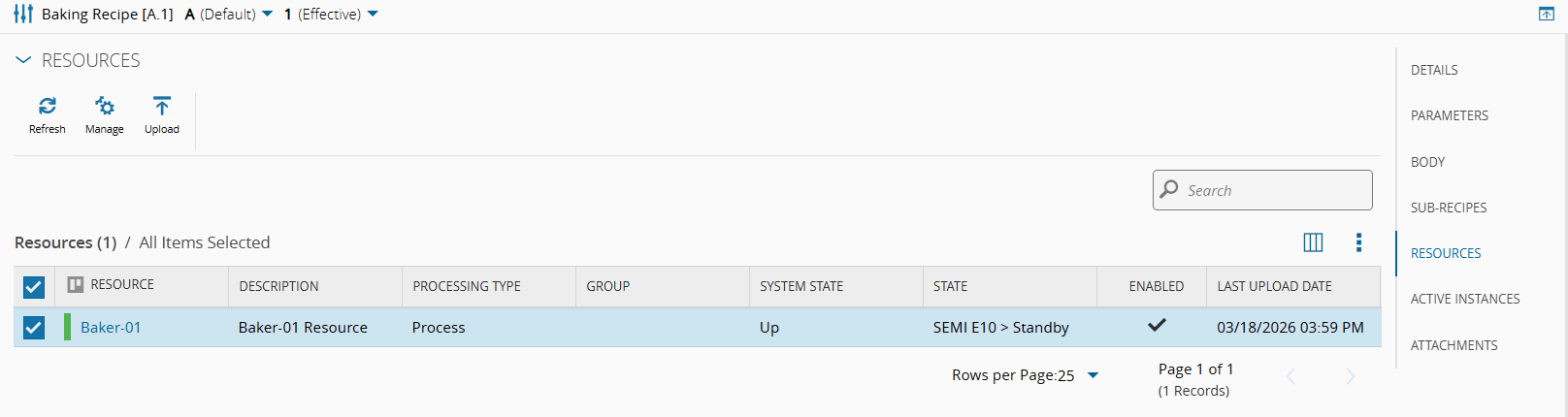

Screenshot showing how to upload a recipe to a resource from the recipe page

Resource Page#

  1. Navigate to the Resource page.
  2. In the Recipes section, select the Recipes you want to upload.
  3. Select Upload.
  4. The selected Recipes are uploaded to the associated Resource. After the upload is completed, the system updates the Last Upload Date and Last Upload Version in the Recipes section.

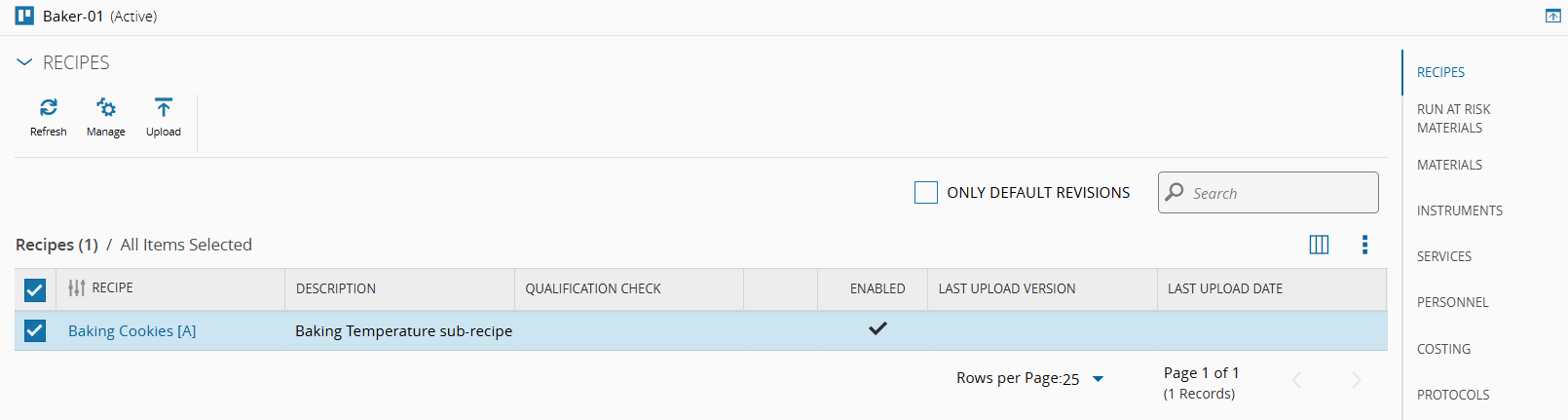

Screenshot showing how to upload a recipe to a resource from the resource page
