Create Substrate Map#

Substrate Map.Create

Substrate Map.CreateTemplate

Substrate Map.CreateFromTemplate

Overview#

This operation is used to create a Substrate Map. A template can also be created using a similar procedure and there is also the possibility of using a template to create the new object as well. This selection can be done in the main entity menu.

Setup#

No specific setup is required other than to meet the preconditions of the transaction.

Preconditions#

• The Mapping module must be properly licensed.
• The Substrate Map name must be unique.

Sequence of Steps#

Step 1: General Data#

1. Enter the Name (must be unique).
2. Enter the Description.

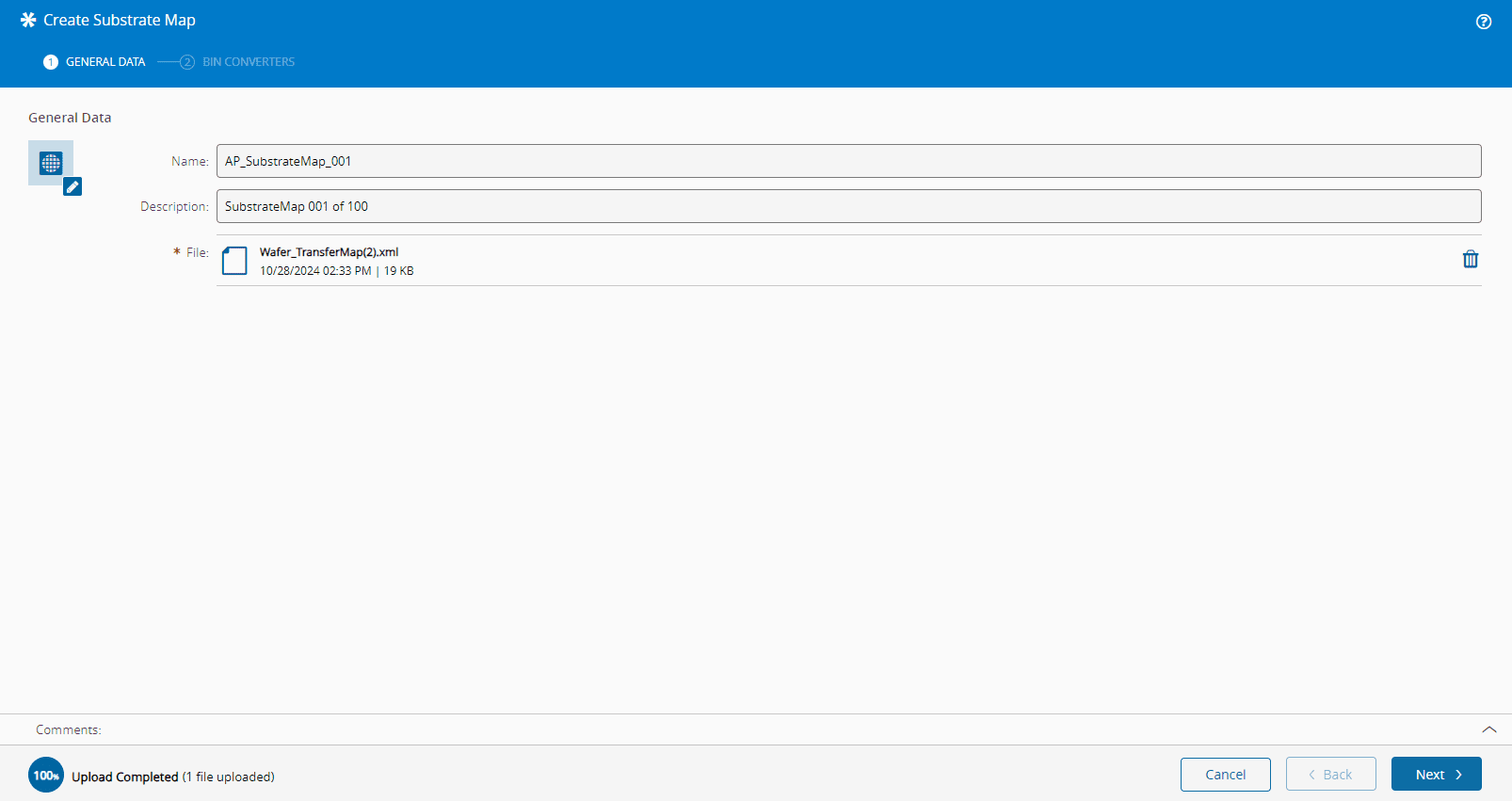

3. Enter the xml file with the map content:



   Info

   When creating a Substrate Map the system validates that the uploaded file is compliant with SEMI E142.

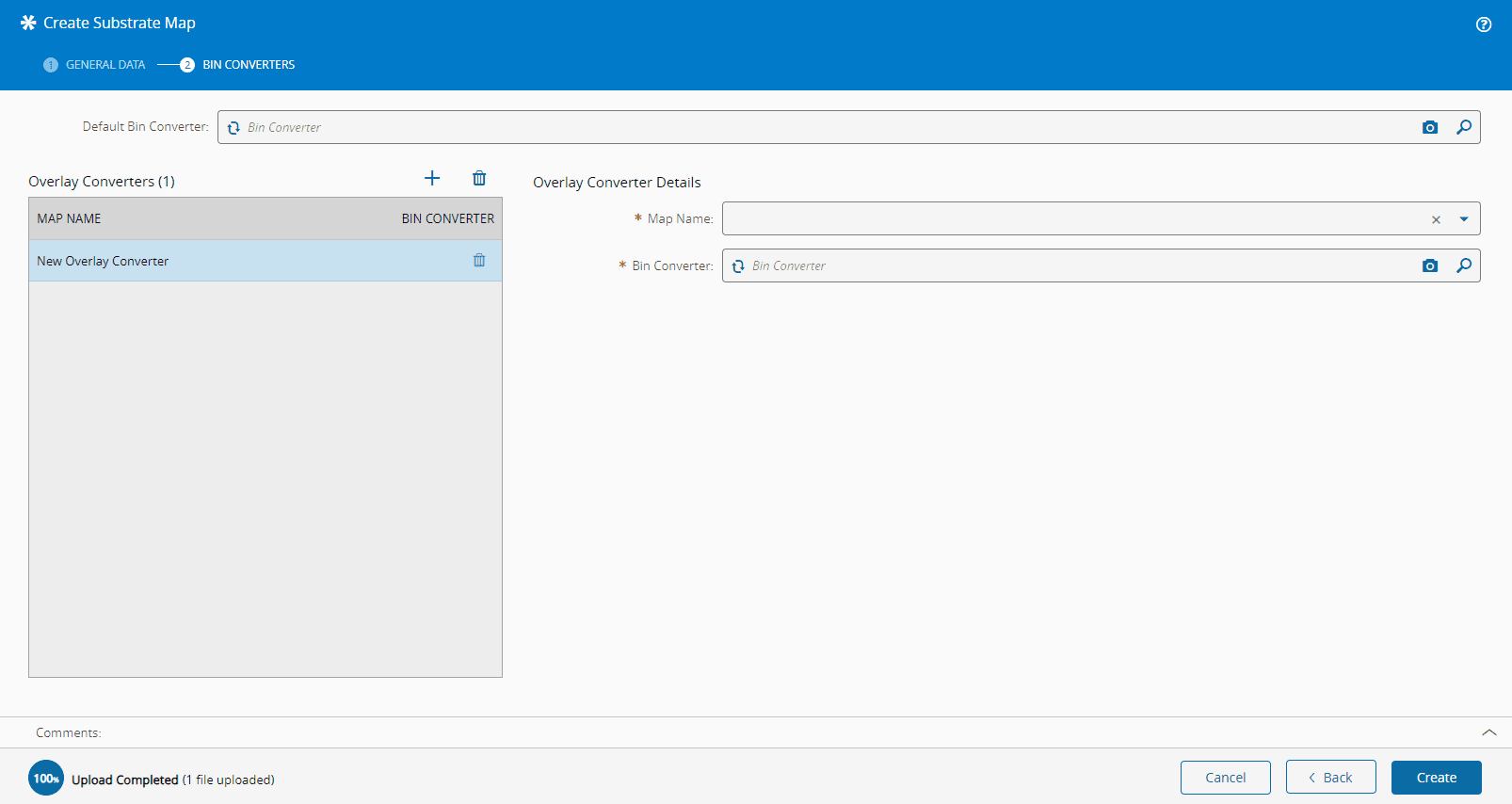

4. Select Next to optionally select a Bin Converters:



5. Select Create to complete the operation.



Step 2: Bin Converters#

1. Optionally, specify a Default Bin Converter.

2. Optionally, specify a list of Overlay Converters, and define the following for each:

   • Map Name
   • Bin Converter

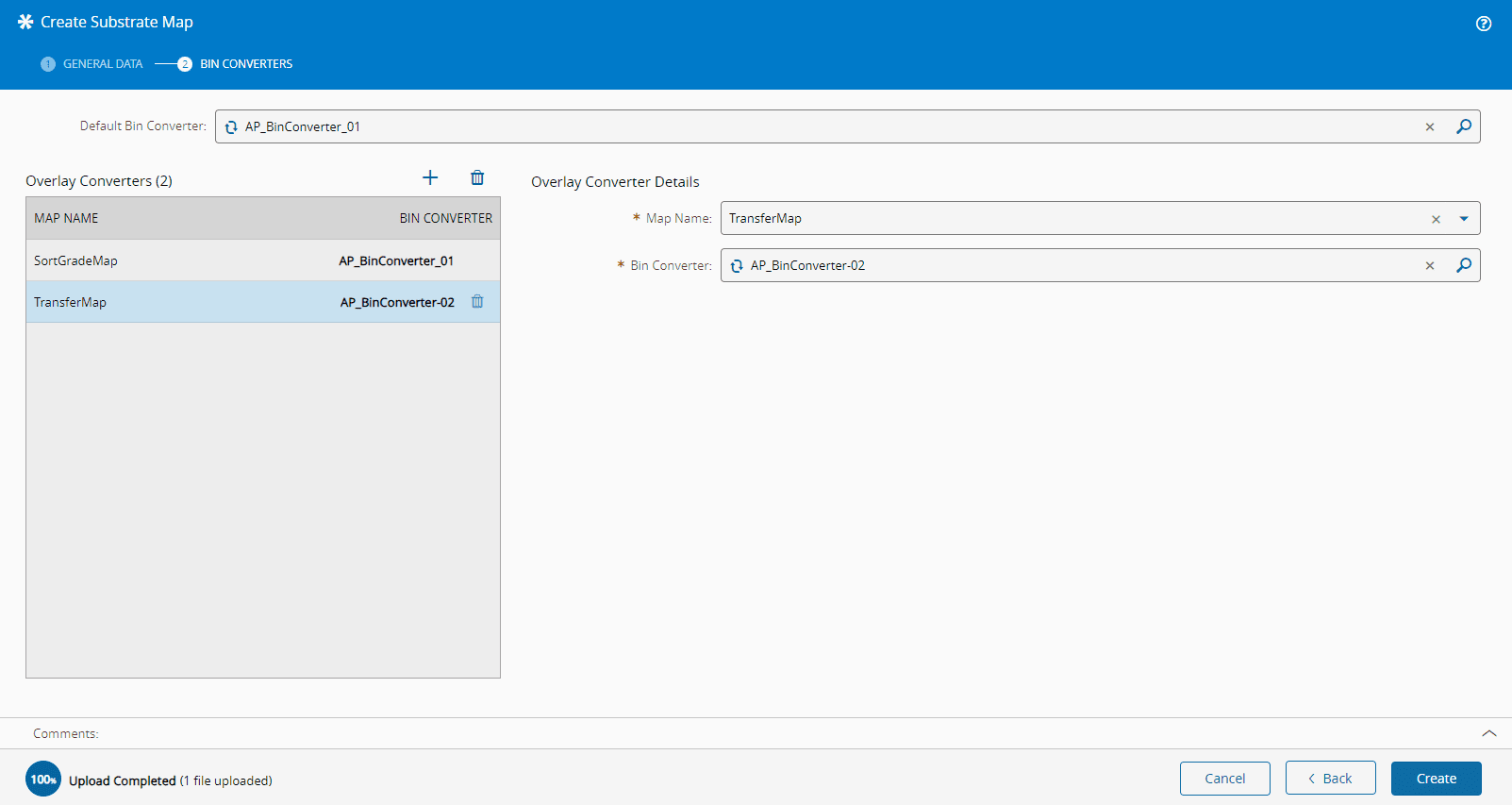

3. Select Create to complete the operation:

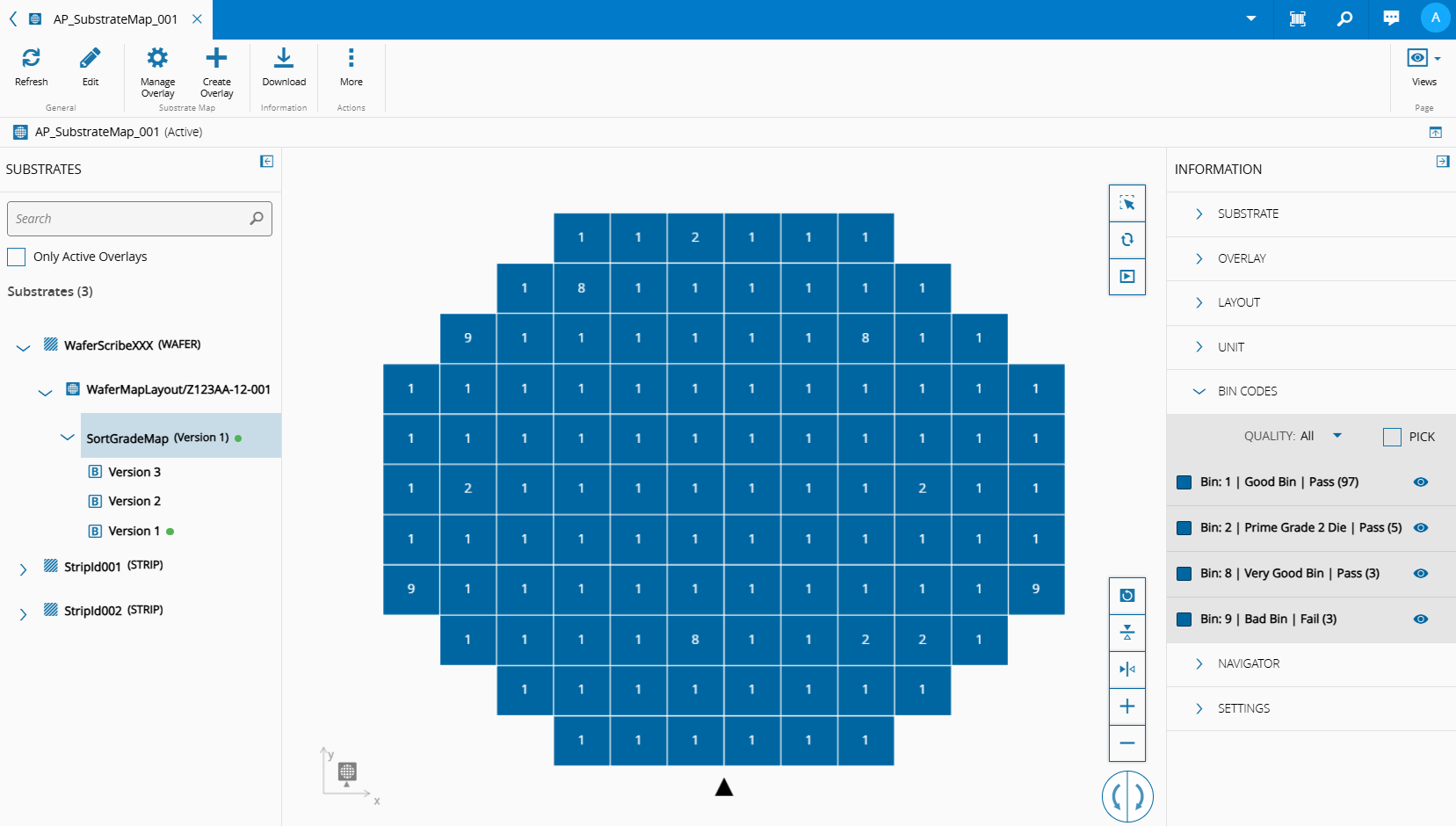

After it is successfully created, the conversion will be automatically applied:

After Creating a Substrate Map#

The Substrate Map file can define several entities for each overlay. These entities provide contextual information that is used during import and processing.

The following entities can be associated with each overlay:

• Enterprise
• Facility
• Site
• Step
• Resource

When importing a Substrate Map, the system determines the value of each entity based on a predefined resolution logic, which is described in the diagram below.

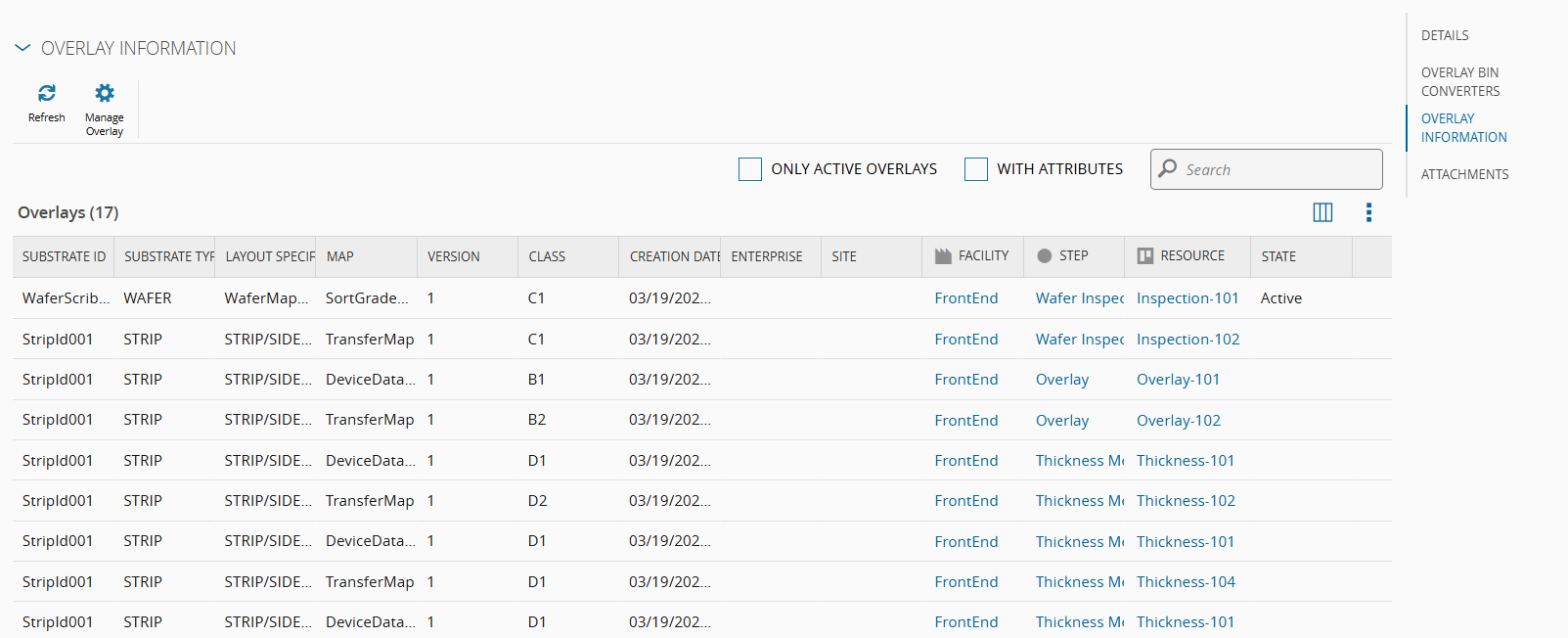

After the Substrate Map is imported, all Overlay data is available in the Overlay Information section.
