View Device Bin Code History#

SubstrateMap.BinCodeHistory

Overview#

The View Device Bin Code History page allows you to retrieve and review the historical Bin Code information associated with a device. All Bin Code changes are securely stored indefinitely, ensuring full traceability and data availability for audits, quality control, and in the event of customer complaints.

Setup#

No specific setup is required other than to meet the preconditions of the operation.

Preconditions#

• The Mapping module must be properly licensed.
• The Substrate Map name must be unique.

Sequence of Steps#

Step 1: General Data#

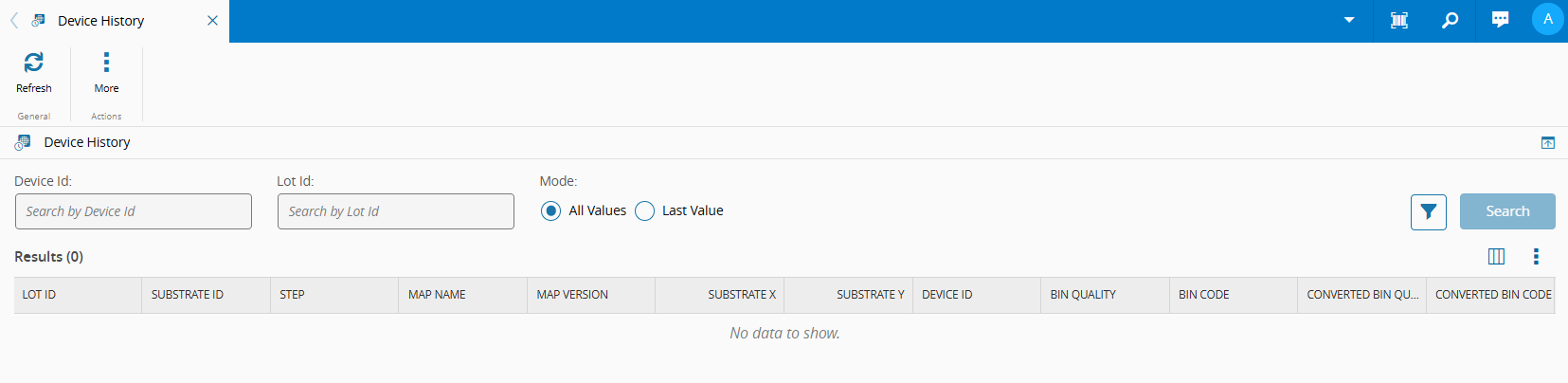

1. In the Substrate Map entity page, select the Device History button to open the View Device Bin Code History page.
2. Enter a Device Id or a Lot Id, choosing to show All Values or only the Last Value.

3. Optionally, select the icon to apply one or more advanced filters for more detailed results:

   • Enterprise
   • Site
   • Facility
   • Step
   • Date From
   • Date To
   • Map Name
   • Map Version
   • Layout Specifier
   • Substrate Type
   • Substrate Id



4. Select Search to view the device history.
