OpenID Connect#

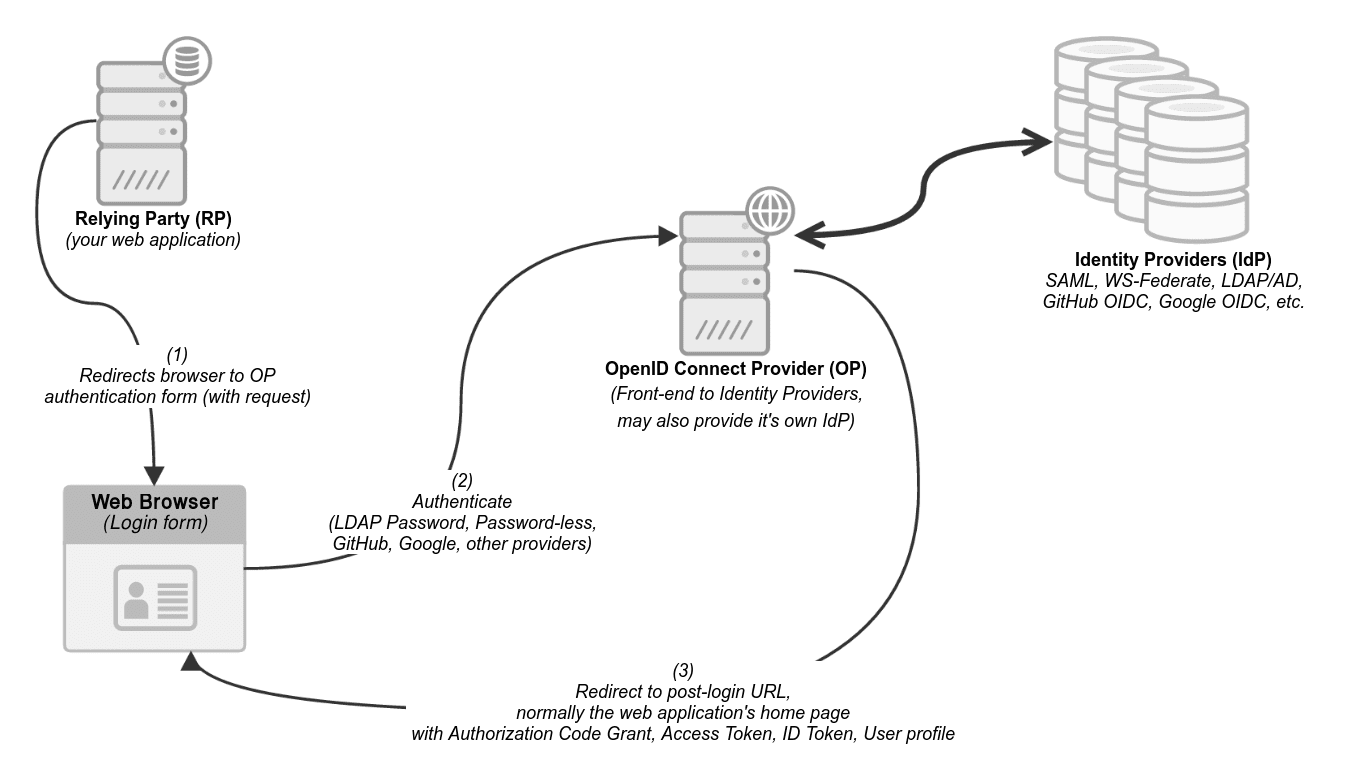

The integration of OpenID Connect, a layer built on top of OAuth 2.0, allows the Critical Manufacturing Security Portal to establish a login session using a RESTful HTTP API to provide user identity and authentication on top of the OAuth 2.0 framework while allowing OAuth to access protected resources. All this while using a framework that is interoperable (using JSON), simple to implement and secure.

More information on these external guides:

Configuration#

Available out of the box. Enable and configure it in DevOps Center during the installation, with the strategy ID (Display Name field, default OpenID), metadata URL, client ID, and extra scopes. Disabled by default. DevOps Center doesn't set a client secret, so the strategy uses PKCE. To use a client secret, configure the strategy through a customization package. See Deployment via CmfEntrypoint ↗ in the Developer Portal.

In this section, <Security Portal URL> is the public address of the Security Portal, for example https://mes.example.com/SecurityPortal.

Parameters#

Strategy type	Plugin
`open-id-connect`	`@criticalmanufacturing/auth-plugin-openidconnect`

Table: OpenID Connect strategy type and plugin

Each strategy entry also accepts the common strategy properties.

Parameter	Required	Description
`metadataUrl`	Yes	OpenID Connect discovery URL of the provider, usually ending in `/.well-known/openid-configuration`.
`redirectUrl`	Yes	`<Security Portal URL>/tenant/<TenantName>/login/callback`. Register the same URL in the provider.
`clientId`	Yes	Client ID of the application registered in the provider.
`clientSecret`	No	Client secret of the application. If omitted, the Security Portal uses PKCE.
`scopes`	No	Scopes to request, as an array or a space-separated string. Default: `openid email`.
`openIdProviderLoginHint`	No	MES User property sent to the provider as sign-in hint: `UserAccount`, `MailAddress`, or `Legacy`. `Legacy` (default) sends the user account if it is an email address, otherwise the email address.

Table: OpenID Connect strategy parameters

Example#

{
  "id": "OpenID",
  "type": "open-id-connect",
  "config": {
    "metadataUrl": "https://<ProviderAddress>/.well-known/openid-configuration",
    "redirectUrl": "<Security Portal URL>/tenant/<TenantName>/login/callback",
    "clientId": "<ClientID>",
    "scopes": "openid email"
  }
}

If the OIDC provider identifies users by email address, add the following property to the dataSource.config section of the tenant in config.json (tenants[0].config.<TenantName>.dataSource.config):

"userAccountFallbackField": "MailAddress"

With this setting, the Security Portal matches the account returned by the provider against both the UserAccount and the MailAddress of the MES User.

Email Addresses Must Be Unique

If more than one MES User matches the account, through either UserAccount or MailAddress, the sign-in fails. The Security Portal logs There is more than one User with UserAccount or MailAddress = '<account>'.
