Details View#

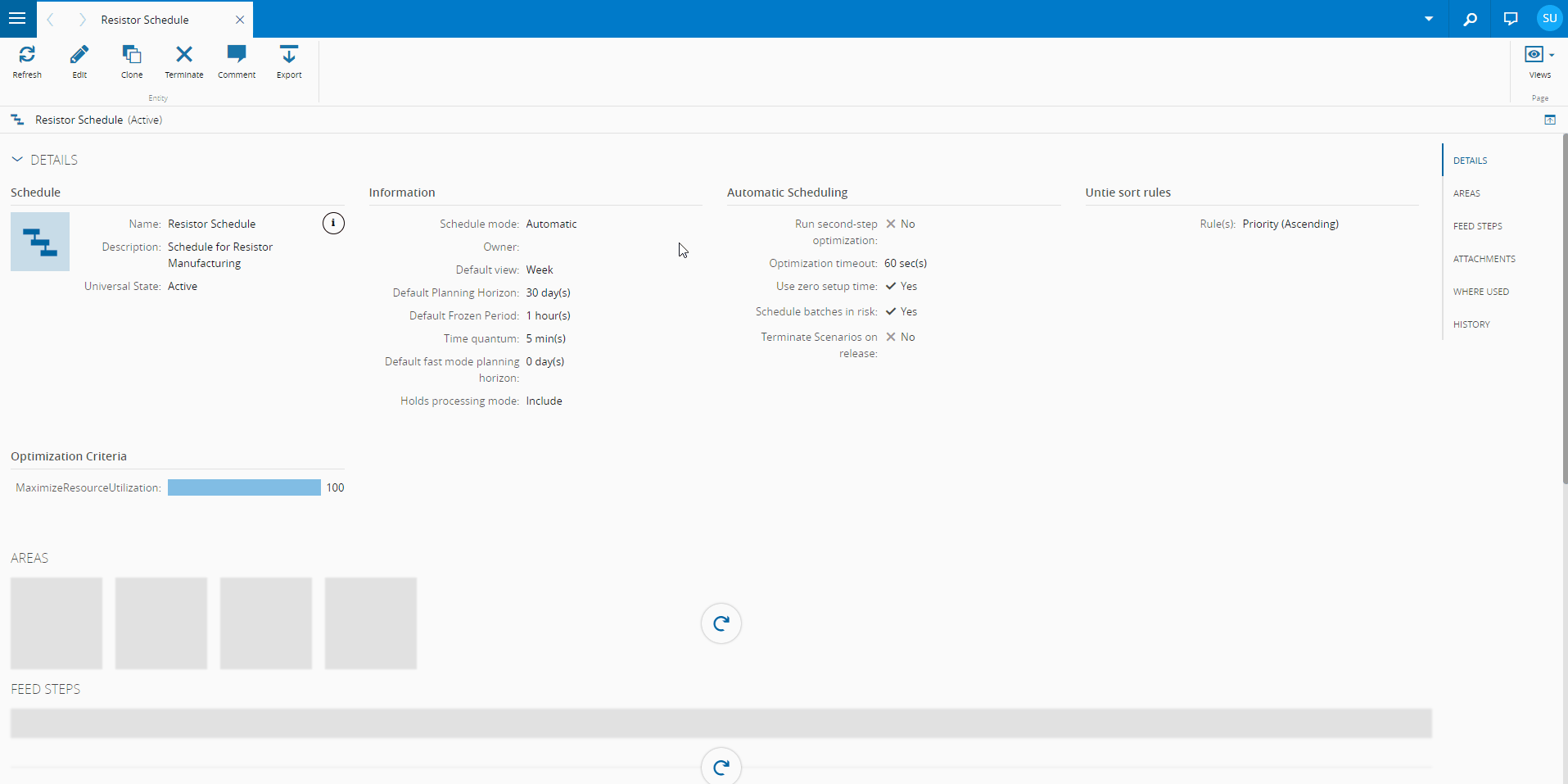

The Details view of a Schedule is accessible through the Details View panel on the left side of the page. It displays the various properties of the Schedule essential to the planning process, such as: Default Planning Horizon, Default Frozen Period and Holds Processing Mode.

Select the Areas sub-section to view which areas are connected with the current Schedule. Only Resources, Steps, Materials, Durables, and Employees present within these areas are considered during Scheduling.

The Feed Steps sub-section allows you to define feed steps. These are steps that fall outside of your connected Areas and would normally be excluded from the Schedule. By defining them as Feed Steps, they are treated as supplying a chosen Facility with unlimited capacity, independent of any specific Resource allocation.

The Attachments and History sub-sections function in the same way as they do for other entities.
