Connect IoT - Raw File and CSV Tutorial#

Overview#

Many machines exchange data through files: a tester writes one result file per run into a folder, a gauge writes one CSV file per lot, and some equipment waits for a file from the host before it starts. Connect IoT covers these cases with two drivers that share the same folder watcher:

• File Raw - reports the files that appear, change, or disappear in a folder, and runs file operations on request. It never opens a file on its own: the workflow reads the content with a command and parses it.
• CSV - watches a folder the same way, opens each CSV file, and sends its rows as events, one at a time. It reads the next row only when the workflow asks for it.

Choose the CSV driver only when each row must be handled and confirmed before the next one, or when the equipment appends rows to a file while it is read. For any other format, and for a CSV file read whole, use the File Raw driver and parse the text in the workflow.

This tutorial is for integrators who completed Connect IoT - Basic Configuration Tutorial and know the Data Flow designer. You build one Automation Controller with two drivers for a Resource, such as Tester-01:

• Results (File Raw) - writes a ready file when the connection comes up, then reads each new result file, logs its text, and moves the file to a done folder.
• Gauge (CSV) - logs the item of each row of a lot file and asks for the next row.

At the end, the Automation Manager console shows the content of each result file and each CSV row in order, and the watched folder holds only the files that nobody handled.

Before You Start#

• Complete Connect IoT - Basic Configuration Tutorial: the Resource entity type is enabled for Connect IoT, your user is an integration user, and an Automation Manager, such as FileTutorialManager, is downloaded and runs in console mode.
• Create two folders on the machine, or in the container, where the Automation Manager runs, for example C:/Tester/Results and C:/Gauge/Out. The drivers resolve every path on that machine, and a watched folder must exist before the connection starts.
• Play the equipment yourself: create or copy files into the folders with any text editor. To run the same exercise as an automated test, the Test Orchestrator can run this controller against your MES, with its File-Raw simulator owning the folders in place of the equipment. See Connecting to a Live MES ↗. The Test Orchestrator is a .NET test framework, currently in alpha.

Sequence of Steps#

Step 1: Create the Two Automation Protocols#

Each driver is an npm package that an Automation Protocol pins with its version. Create one protocol per driver, as in How to: Create an Automation Protocol, and keep the default parameter values. You set the folder of each connection in the controller, in Step 4.

Table 1: Automation Protocols of the tutorial

Both protocols are in the Created state. The parameters of CSV are those of File Raw plus six parser parameters, such as hasHeader, delimiter, and numberOfLines.

Step 2: Create the Raw File Driver Definition#

The File Raw package ships a complete definition: nine properties, three events, and twelve commands. The driver takes the meaning of each entry from its extended data (propertyType, eventTrigger, or commandType) and ignores its device ID. A definition for this protocol therefore declares nothing of its own, and the workflow selects the shipped entries by name.

1. Create an Automation Driver Definition, such as Tester Results, with the Automation Protocol File Raw and the Entity Type Resource, as in Create Automation Driver Definition.
2. Select Next on the properties, events, and commands steps without adding entries, and select Create.

The workflows of this tutorial use these shipped entries:

Table 2: Shipped File Raw entries used in the tutorial

Each of these commands also takes attempts (default 1) and sleepBetweenAttempts (default 1000 milliseconds): a failed command is retried before the task emits Error. Take the name and path of a file from the outputs of the event, not with Get Equipment Properties: the shipped properties describe the last file the watcher reported, and another file may have arrived since.

Step 3: Create the CSV Driver Definition with the Columns#

The CSV package ships the file entries, the MoreDataRequest command, and the OnDataAvailable event, but no column: the package cannot know them. Declare each column the workflow needs as a property, and an event that carries the columns. The gauge of this exercise writes one CSV file per lot, one item per row:

ItemId,Thickness
W-01,178.2
W-02,181.5

1. Create an Automation Driver Definition, such as Gauge Rows, with the Automation Protocol CSV and the Entity Type Resource.

2. Add the following properties. Set the Protocol Data Type to the same value as the Type. For a column, the Property Device ID is the header text, character for character.

   Name	Property Device ID	Type	Extended data
   ItemId	ItemId	String	propertyType FileContent, identifierType Name
   Thickness	Thickness	Decimal	propertyType FileContent, identifierType Name
   FullPath	FullPath	String	propertyType FullPath
   EndOfFile	EndOfFile	Boolean	propertyType EndOfFile

   Table 3: Properties of the CSV driver definition

3. Add an event, such as OnItemRow, with the extended data eventTrigger set to NewData, and link the four properties to it.

4. Select Create.

The driver raises every NewData event of the definition for each row, and converts the text of each column to the Type of its property. The shipped OnDataAvailable is also a NewData event, but it carries only FullPath and EndOfFile, so a workflow that listens to it receives each row without its values. FullPath and EndOfFile are declared again because the event properties step of the wizard lists only the properties of the definition itself.

Step 4: Create the Controller and Configure Both Connections#

1. Create an Automation Controller, such as File Tutorial Controller, as in Create Automation Controller, with the Scope Connect IoT, the Workflow Type Data Flow, and the Entity Type Resource.
2. Add two driver definitions: Results with Tester Results, and Gauge with Gauge Rows. Keep only the core tasks package: the File Drivers tasks are deprecated, and the core On Equipment Event and Execute Equipment Command tasks replace them.
3. Select Create. The Setup page holds one chain for each driver: Driver Event (OnInitialize), Equipment Configuration, and Driver Command (Connect). See Create the Setup Workflow.

4. Open the settings of each Equipment Configuration task and set the following values on the Communication Parameters tab. Keep the other parameters at their defaults.

   Driver	Parameter	Value	Effect
   Results	path	C:/Tester/Results	The folder to watch.
   Results	fileMask	*.txt	Reports result files only.
   Gauge	path	C:/Gauge/Out	The folder to watch.

   Table 4: Communication parameters to set

Some defaults matter for this exercise. With ignoreInitial false, every file already in the folder is reported when the connection starts, on every start. With awaitWriteFinish true, a file is reported only after its size holds still for 2000 milliseconds, so the equipment has finished writing it. With depth 0, subfolders are not watched, so a done folder inside the watched folder is a safe place for handled files. On Gauge, keep numberOfLines at 1: with more lines per block, the FileContent properties receive no value.

The driver receives the communication parameters when it connects. After you change a parameter of a connection that is already Communicating, restart the controller instance.

Step 5: Answer the Setup with a Ready File#

Some file-based equipment waits for a file from the host before it starts. Write that file during the setup phase of the Results connection, and complete the setup only after the file exists.

1. On the Setup page, open the settings of the Driver Event task of Results and disable Automatic Setup.

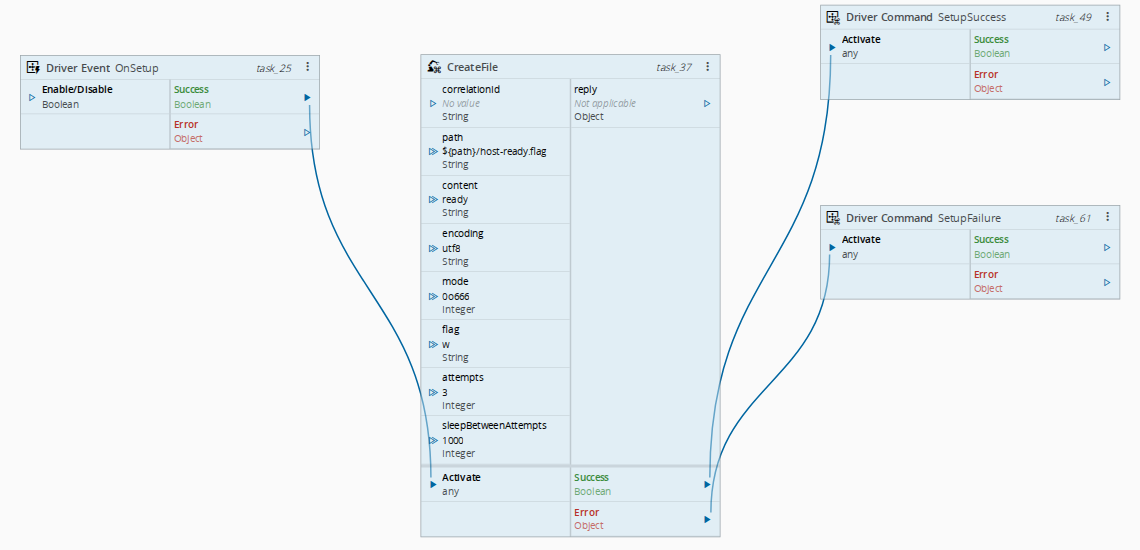

2. Add the following tasks for the driver Results and link them. In the link columns of this tutorial, an Execute Equipment Command task is named after its command.

   Task	Settings to set	Inputs/Outputs to link
   Driver Event	Event OnSetup	-
   Execute Equipment Command	Equipment Command CreateFile; values path ${path}/host-ready.flag, content ready, mode 438, and attempts 3	Activate from Driver Event Success
   Driver Command	Command SetupSuccess	Activate from CreateFile Success
   Driver Command	Command SetupFailure	Activate from CreateFile Error

   Table 5: Tasks that answer the setup phase



The driver replaces ${path} with the watched folder, so the ready file follows the connection when path changes. The .flag extension keeps the file out of fileMask, so the watcher does not report it as a result. 438 is the decimal form of the permission 0o666. The connection stays in the Setup state until a Driver Command reports the result: an OnSetup handler that never sends SetupSuccess fails the setup after the Setup Timeout of the Equipment Configuration task, on every attempt. For the two ways to complete the setup phase, see Create the Setup Workflow.

Step 6: Read Each New Result File and Move It to Done#

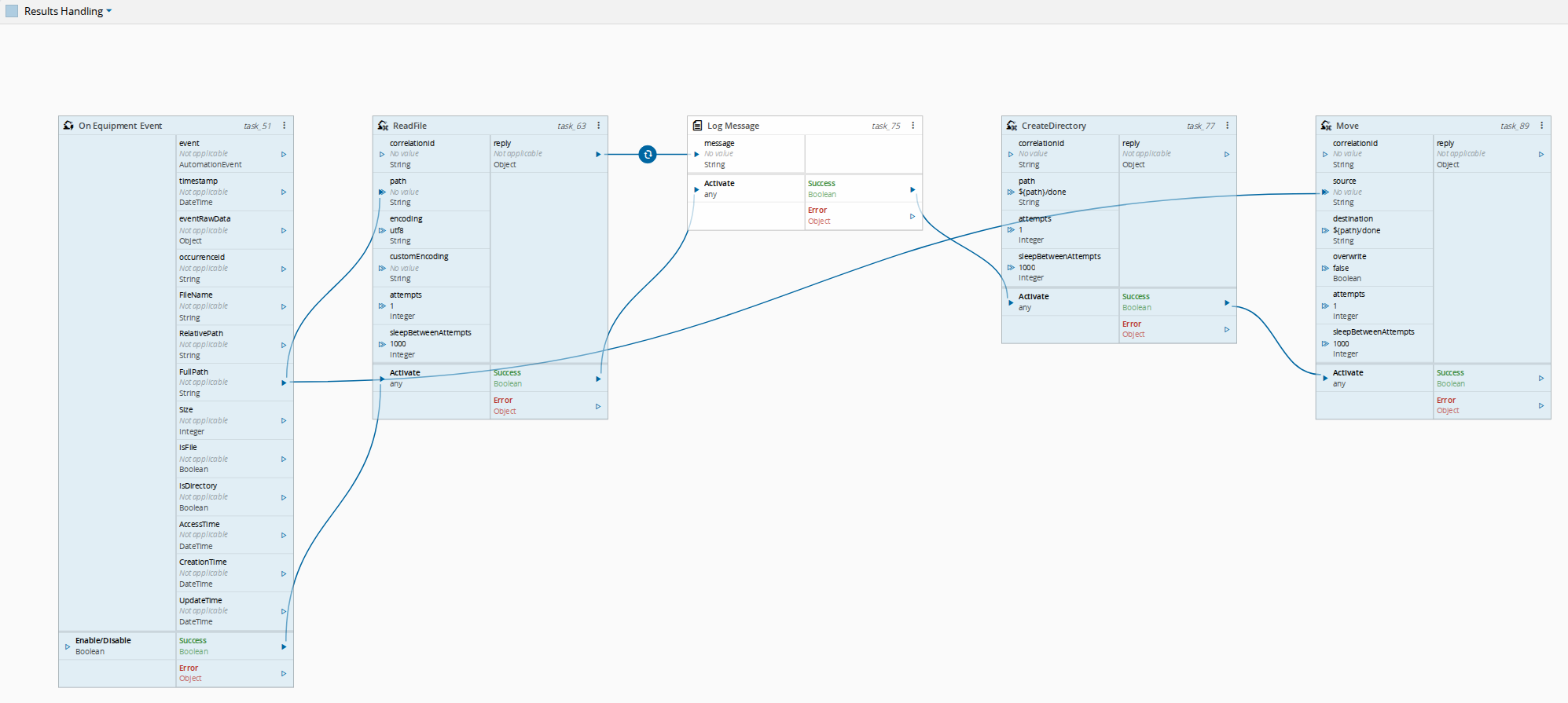

Create a Data Flow page, such as Results Handling, and add the following tasks for the driver Results. Each task runs from the Success of the task before it, so nothing moves a file that was not read and logged.

Table 6: Tasks of the Results Handling page

Three rules keep the files where you expect them:

• Link FullPath, never FileName. The driver resolves a relative path against its own working folder, not against path, so a bare file name reads or writes the wrong file.
• Set destination to the folder and create the folder just before the move. When destination does not exist, Move takes it as the new file name, so the first file becomes a file called done and every later move fails.
• End the handling of every file by taking it out of the watched folder. With ignoreInitial false, a file left in the folder is reported again on every start. With ignoreInitial true, the files that arrive while the controller is down are never reported.

Log Message writes only when its Activate input receives a value, so the message link alone logs nothing.

Step 7: Read the CSV Rows One at a Time#

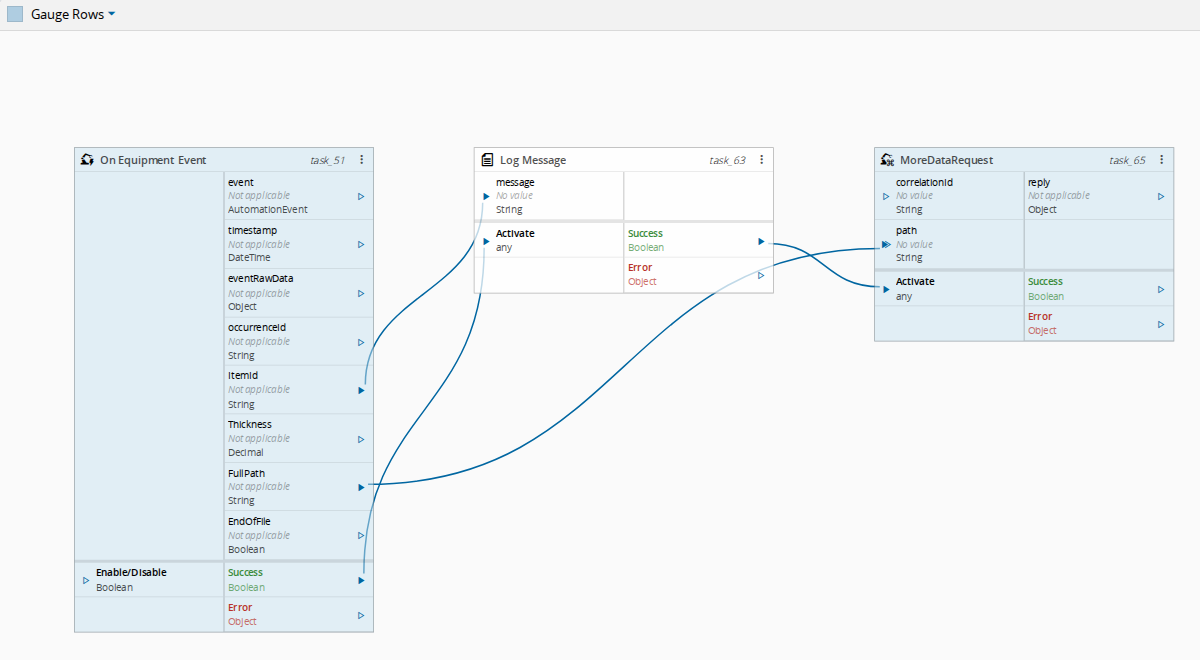

Create a Data Flow page, such as Gauge Rows, and add the following tasks for the driver Gauge:

Table 7: Tasks of the Gauge Rows page

The driver and the workflow take turns. The driver raises OnItemRow with the first row and waits. MoreDataRequest confirms the row just handled, raises the event with the next row, and replies true. When no row is left, it replies false and raises nothing. Follow these rules:

• Link path from the event FullPath, exactly. The driver applies no token to this command, and any other path fails with Unable to fetch more data in file.
• Ask for the next row after every row, the last one included, where EndOfFile is true. The driver stores how far it read a file only when the next request arrives, so after a restart the last unconfirmed row is sent again. A row handler that writes to MES must tolerate a row it has already seen.
• Run once-per-file work, such as moving the file, after the final request, and read one file at a time: after a MoreDataRequest, FullPath can belong to another file.

Step 8: Connect the Controller and Start It#

1. Connect the controller to the Resource Tester-01 and the Automation Manager, as in How to Create a Controller Instance. On the drivers step, select the same Resource for Results and for Gauge.
2. Start the Automation Manager in console mode.

On the Connect IoT page, both driver instances reach Communicating, and host-ready.flag appears in C:/Tester/Results. When a watched folder does not exist, the connection goes from Connecting to Disconnected and retries after each Reconnect Interval, without reaching ConnectingFailed: only the driver log names the folder, with Unable to find path.

Validate the Result#

1. Create a file run-0042.txt in C:/Tester/Results with the following content:

   lot=B-1001
   peak=212.5


   About two seconds later, the console shows the two lines logged by Log Message, and run-0042.txt is in C:/Tester/Results/done.

2. Restart the controller instance on the Connect IoT page. No result is reported again: the folder holds no file that matches *.txt. host-ready.flag is written again during the new setup.

3. Copy a file lot-L1001.csv with the content of Step 3 into C:/Gauge/Out. The console shows W-01 and then W-02, each logged before the next row is requested.

Next Steps#

Turn the text you read into data with a Code task, as in Connect IoT - Writing a Code Task Tutorial, and send the results to MES, as in Connect IoT - Talking to MES Tutorial. To compare protocols that push values instead of files, continue with Connect IoT - OPC UA Tutorial or Connect IoT - MQTT Tutorial. When a folder stays silent or a file lands in the wrong place, see Troubleshooting by Symptom.
