Connect IoT - Control Flow in Depth Tutorial#

Overview#

In a Control Flow workflow, tasks are blocks nested under the event that starts them, and they run top to bottom. Each occurrence of the event gets a branch of its own, so a burst of events never overwrites the values of a run in progress. In exchange, nothing links one task to another: each task reads earlier results through expressions.

This tutorial is for integrators who completed Connect IoT - Basic Configuration Tutorial and Connect IoT - How Values Travel Tutorial. You build one workflow that handles each lot file dropped in a folder. Step by step, it reads the event values, routes the file by its size, goes through its lines, archives it with a retry, and asks a function, which any workflow of the controller can call, how to classify it. At the end, the Automation Manager console shows one ordered sequence of log lines per file.

Three rules apply to every step:

• Each occurrence builds a new branch. Its tasks are created when the event fires and released when the branch ends, so a run starts from the stored settings and sees nothing of the previous run.
• Settings are applied when the branch is built, before any task of the branch runs. Input rows are evaluated just before their task runs, so expressions go in input rows.
• A task reads the outputs of tasks that already ran, in its own branch or in a branch that encloses it, as {{ $<block name>.<output> }}.

Before You Start#

Set up a controller with one File Raw driver, as in Connect IoT - Basic Configuration Tutorial, with these values:

Table 1: Controller used in the tutorial

Create the folder C:/Lots/Incoming on the machine where the Automation Manager runs. Then, outside that folder, create two text files:

Table 2: Test files

Copy the test files into the watched folder at each checkpoint, and remove them from it afterward until Step 4 moves them for you. With ignoreInitial false, the default, every file left in the folder is reported again each time the connection starts. With awaitWriteFinish true, also the default, each event arrives about two seconds after the copy.

To run the exercise as an automated test instead, the Test Orchestrator File-Raw simulator ↗ can own the watched folder and create the files in place of the equipment.

Sequence of Steps#

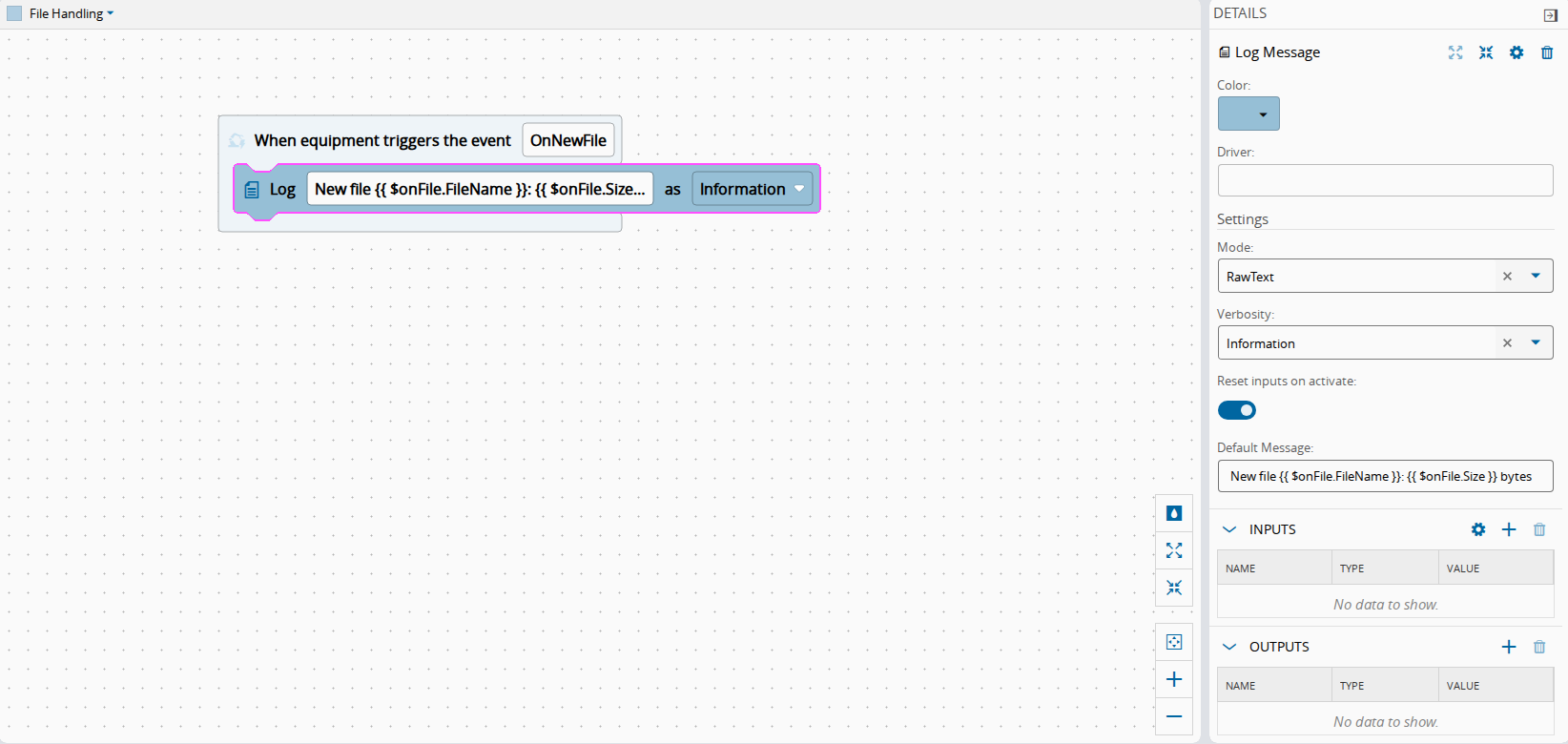

Step 1: Read the Event Values Through Expressions#

On the Automation Controller, add a workflow page, select Control Flow, and name the page File Handling. Add the following blocks, the second one inside the branch of the first. In the settings of each block, set Name to the value of the table: the expressions of this tutorial read each block by that name.

Table 3: Blocks of Step 1

1. Save the Automation Controller. The Automation Manager receives the change.

2. Copy lot-a.txt into C:/Lots/Incoming.

   The console shows New file lot-a.txt: <size> bytes. The size depends on the line endings of your editor.



3. Copy lot-b.txt. Its line appears with its own name and size: the second occurrence ran in a new branch.

The field after Log on the block is Default Message. Log Message evaluates it when announce runs, after onFile emitted its values. The expression names the block by its name, not by its block ID: a name that matches no block fails with Undefined symbol $onFile, and the branch ends on every file. The text around the expressions is joined without any operator. In other tasks, write expressions in input rows: only the few settings listed in Control Flow Expressions, such as Default Message, evaluate an expression.

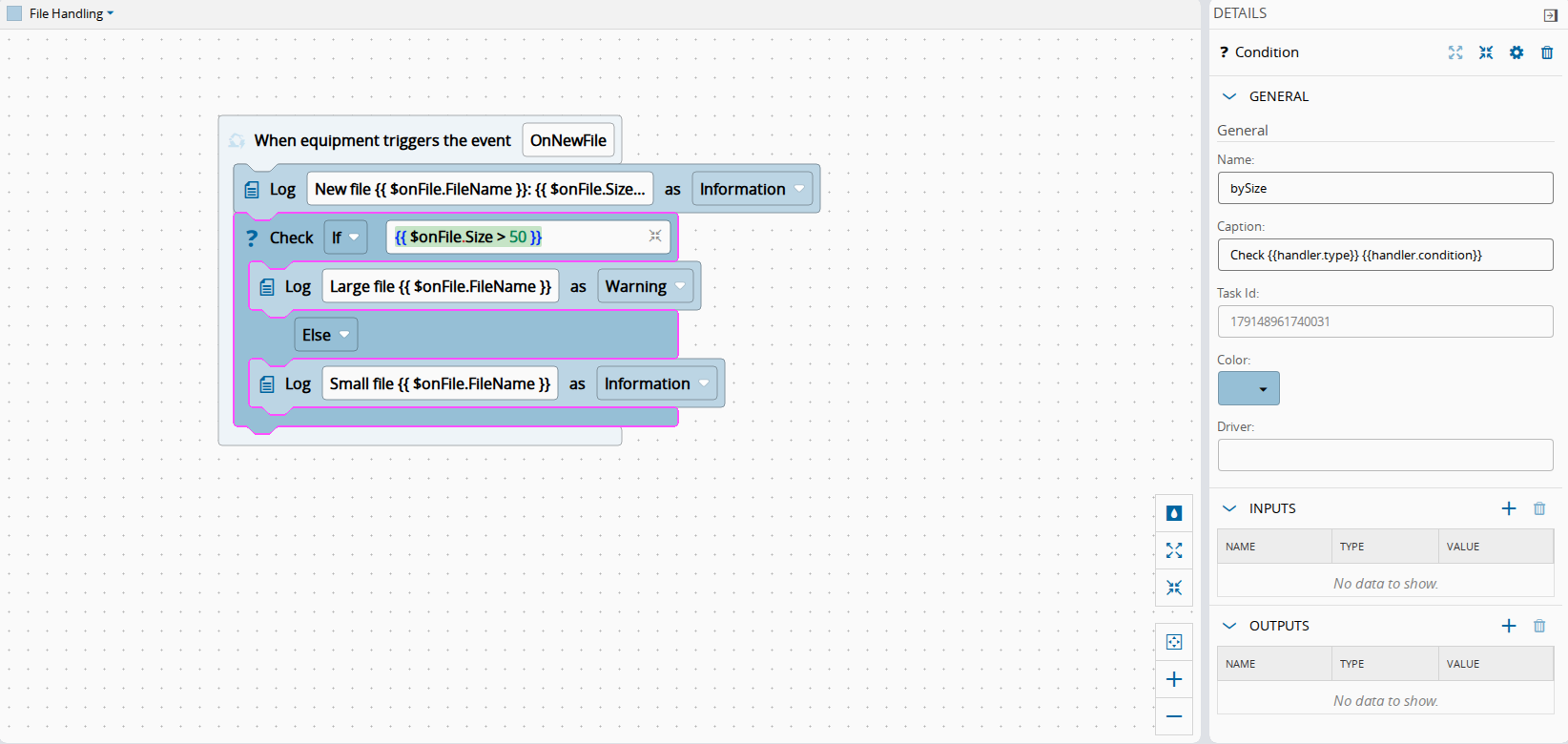

Step 2: Route the File With a Condition#

Add a Condition block after announce, in the onFile branch, and a Log Message block in each of its branches:

Table 4: Blocks of Step 2

1. Save, then copy lot-a.txt and lot-b.txt.

   The console shows Small file lot-a.txt and the warning Large file lot-b.txt.



2. Change the condition to {{ $onFile.Size }}, save, and copy lot-b.txt again. The file now takes the Else branch.

3. Restore {{ $onFile.Size > 50 }} and save.

The Condition evaluates its branch conditions itself, when it runs, which is why a setting holds an expression here. A result that is not a Boolean is true only when it reads true, t, yes, y, or 1, so a bare size of 60 is false: compare values instead of testing them bare. Combine tests with and, or, and not (...), never with &&, ||, or !, which fail to parse. The blocks after the Condition run whichever branch ran. To route a value in Data Flow, use Switch, which Control Flow does not offer.

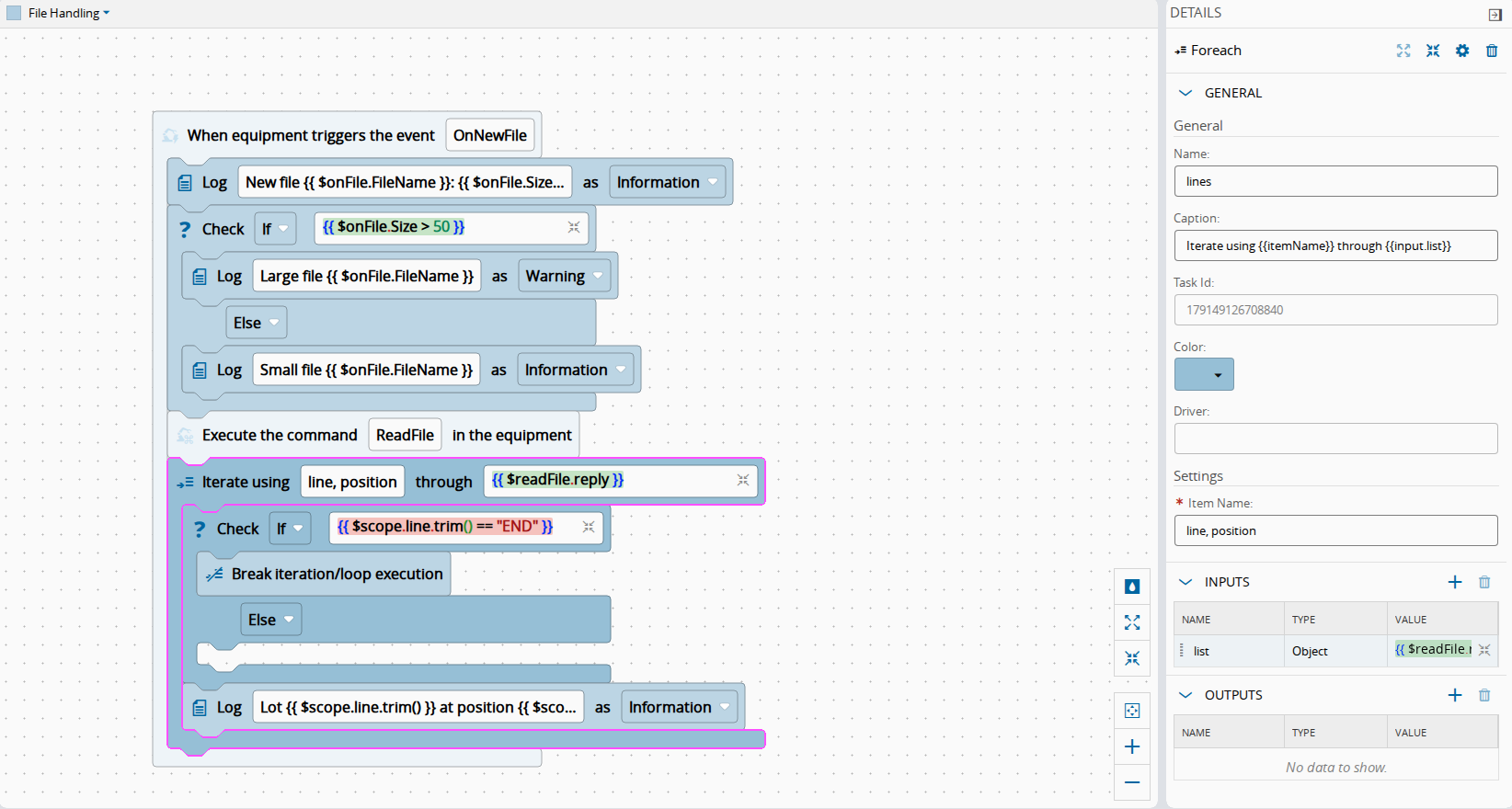

Step 3: Go Through the Lines With Foreach and Break#

Add the following blocks after bySize, in the onFile branch. Nest endMark and lot in the branch of lines, and stop in the If branch of endMark.

Table 5: Blocks of Step 3

1. In the Command Results of readFile, change the Value of the reply row to {{ $this.reply.split("\n") }}. The command replies with the text of the file, and the reply row has the type Object, which you cannot change. An Object row parses text as JSON, which fails with Failed to process outputs from task '<task ID>', while the array of lines passes as it is.



2. Save, then copy lot-a.txt and lot-b.txt.

   The console shows Lot LOT-01 at position 0 and Lot LOT-02 at position 1 for lot-a.txt, then the warning Requested for the execution to break an iteration/loop. LOT-99 is never logged. For lot-b.txt, the eight lots appear before the break. The lines of the two files can interleave, because each file runs in its own branch.

Item Name with two names publishes each element under the first and its index, from 0, under the second, both read through $scope. Write the line separator as the escape "\n": a line break entered in a row reaches the evaluator as a space. trim() removes the carriage return that Windows editors leave at the end of each line. Break ends the innermost loop, the loop reports success, and the blocks after it run. After the loop, $scope.line no longer exists. A block can read only what already ran: placed after lines, readFile would fail the branch with Undefined symbol $readFile.

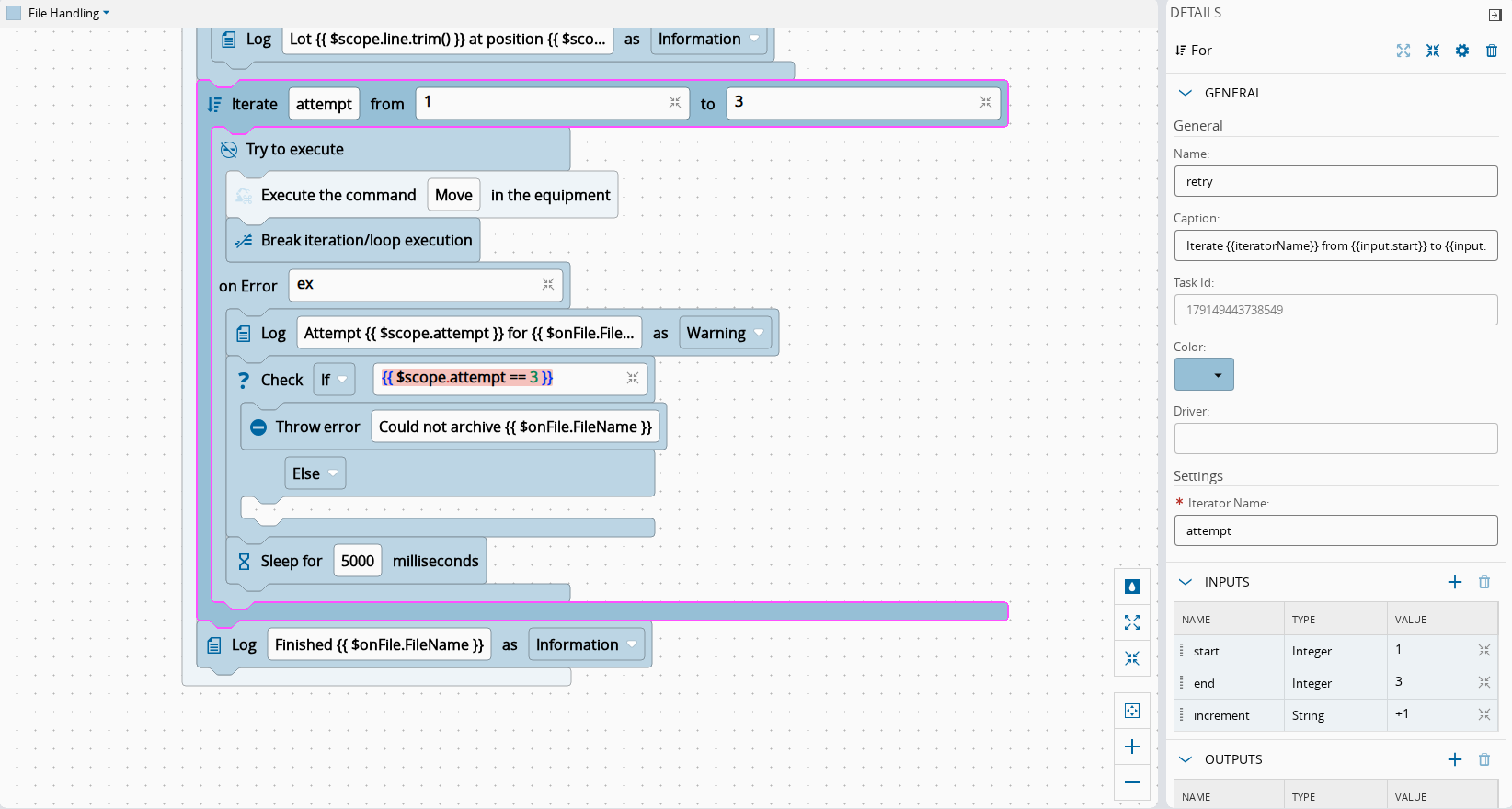

Step 4: Archive the File With a Retry#

Moving a file can fail, for example when the destination already holds a file with that name. Move has an attempts parameter of its own, but a step without one, or a sequence of steps, needs the recommended retry pattern: a For loop whose branch holds a Try..Catch. The step and a Break go in try, so that the loop ends after the first success. A pause goes in catch, so that the next attempt waits. Add the following blocks after lines, in the onFile branch:

Table 6: Blocks of Step 4

1. Save, then copy lot-a.txt.

   The file moves to C:/Lots/Incoming/done, which Move creates when it is missing, and the console shows Finished lot-a.txt. The done folder is not watched, because depth is 0.



2. Copy lot-a.txt again. done already holds a file with that name, so each move fails.

   The console shows three warnings, Attempt 1, Attempt 2, and Attempt 3, five seconds apart, each with the reason. Then it shows Throwing error 'Could not archive lot-a.txt' and Failed to execute the workflow! with that message. Finished lot-a.txt does not appear.

3. Copy lot-a.txt again, and delete C:/Lots/Incoming/done/lot-a.txt during the pause after the first warning. The second attempt moves the file, and Finished lot-a.txt appears.

The catch branch receives the error message, a text, under $scope.ex, the default variableName of the branch. Break in try is not a failure: the catch does not run, and the loop ends. Without gaveUp, the loop would end after the third attempt and report success like any loop, and finished would run as if the file was archived. A failure inside catch is not caught by the same Try..Catch, so gaveUp ends the loop and the branch. Error Text is a setting that Throw evaluates when it runs. The driver replaces ${path} with the watched folder.

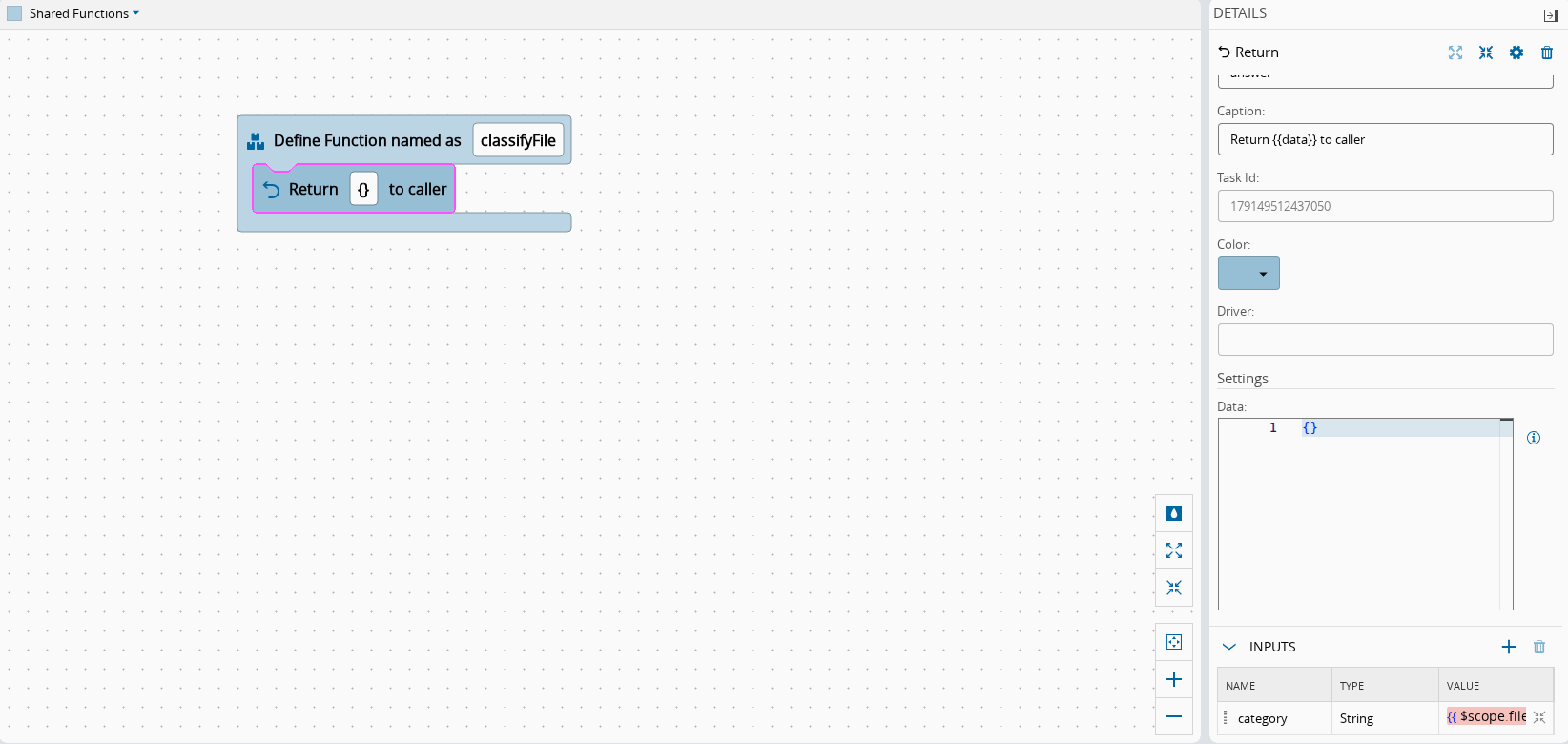

Step 5: Move the Classification Into a Function#

A function is a named branch that any workflow of the controller can run with Call Function, from Control Flow or Data Flow. Add a Control Flow page Shared Functions with these blocks:

Table 7: Blocks of the Shared Functions page

On the File Handling page, add a Call Function block between announce and bySize, and change the condition of bySize:

Table 8: Changes to the File Handling page

Selecting the function fills Function Arguments with fileSize (Integer) and Function Results with category (String), as the Define Function declares them.

1. Save, then copy lot-a.txt and lot-b.txt.

   Before the size lines, the console shows Calling function 'classifyFile' from workflow 'Shared Functions', task '<block ID>' for each file. The routing is the same as in Step 2.



Call Function looks the function up by its exact name, letter case included, across every workflow of the controller, each time it runs. When no function or more than one function has that name, it fails with Found '<count>' functions with the name '<name>' within the entire controller, so give each function a name that is unique in the controller. The argument is converted to the type of the function argument, and the function reads it as $scope.fileSize. Return sends back Data with each input row added under its own name. Keep Data a JSON object: when it is not valid JSON, the rows are not returned and the caller logs Unable to parse the results into a valid json object. Return ends the function only, and the caller continues with bySize.

A function suits reusable logic that needs a condition, a loop, or a Try..Catch. When the reusable piece must merge values that arrive separately or wait for several of them, build a Data Flow sub-workflow with Workflow Start and Workflow End, and call it with Workflow. From version 12.0.0, a sub-workflow does not start with the controller: it runs only while a Workflow task executes it, and the auto-enabled tasks inside it, such as timers, live only for that call. The controller logs Workflow '<name>' will not be started because it is a subworkflow when it loads one.

Validate the Result#

1. Delete the done folder, then copy lot-a.txt and lot-b.txt into C:/Lots/Incoming.

2. Check the console. For each file, in this order, the log shows:

   Block	Log line
   announce	New file lot-a.txt: <size> bytes
   classify	Calling function 'classifyFile' ...
   small or large	Small file lot-a.txt
   lot	One line per lot until END, then the break warning
   done	The break warning, after the move
   finished	Finished lot-a.txt

   Table 9: Log lines of one file

3. Check that C:/Lots/Incoming holds only the done folder, and that done holds both files.

The finished onFile branch reads top to bottom:

onFile (On Equipment Event, OnNewFile)
    announce (Log Message)
    classify (Call Function, classifyFile)
    bySize (Condition): If -> large, Else -> small
    readFile (Execute Equipment Command, ReadFile)
    lines (Foreach): endMark (Condition): If -> stop (Break); lot (Log Message)
    retry (For, 1 to 3)
        guard (Try..Catch)
            try: archive (Move), done (Break)
            catch: failed (Log Message), lastTry (Condition): If -> gaveUp (Throw); pause (Sleep)
    finished (Log Message)

What You Learned#

• Each event occurrence runs in a branch of its own, and a block reads earlier blocks by name through {{ $<block name>.<output> }}.
• Expressions go in input rows, which are evaluated when the block runs, and only a few settings, such as a condition, Error Text, or Default Message, evaluate their own.
• A condition compares values, a row type decides how a value is converted, and Break ends only the innermost loop.
• A For with a Try..Catch retries a step, and running out of attempts is not a failure unless you throw one.
• A function is found by its unique name each time it is called, and Return ends only the function.

Next Steps#

Nothing in this workflow outlives a branch. To keep values between occurrences, wait, and react on a schedule, continue to Connect IoT - Timing and State Tutorial. To turn the content of a file into data with code, see Connect IoT - Writing a Code Task Tutorial. For the order of all the Connect IoT tutorials, see Connect IoT - Learning Path.
