Connect IoT - How Values Travel Tutorial#

Overview#

A workflow reads like a short program: each task is a call that receives inputs, emits outputs, and then signals Success or Error. Many defects that look like bad equipment data come from how values move between those calls: a task that never runs, a value left from an earlier event, or a value that the next event replaces before it is used.

This tutorial is for integrators who completed Connect IoT - Basic Configuration Tutorial and build workflows in the Automation Controller designer. A File Raw driver plays the equipment, so you raise each event yourself by dropping a file into a folder, and you read each result on the Automation Manager console.

At the end, you have a Data Flow workflow that shows each mechanism one at a time, and a Control Flow workflow that handles overlapping files without mixing their values.

Before You Start#

• Prepare a File Raw integration: an Automation Protocol on the @criticalmanufacturing/connect-iot-driver-fileraw package, an Automation Driver Definition with the driver's shipped events, and an Automation Controller with that driver. Connect IoT - Control Flow Configuration Tutorial creates these entities, and Connect IoT - Raw File Driver lists the events OnNewFile and OnFileDeleted and the properties they carry.
• Set path in the Equipment Configuration task of the controller setup workflow to an empty folder, for example c:/temp/Handler. Keep alwaysStat at its default, true, so that OnNewFile carries Size.
• Run an Automation Manager in console mode with an instance of the controller.
• Raise the events by hand, or from an automated test with the Test Orchestrator File-Raw simulator ↗, which creates and deletes files in the watched folder.

Sequence of Steps#

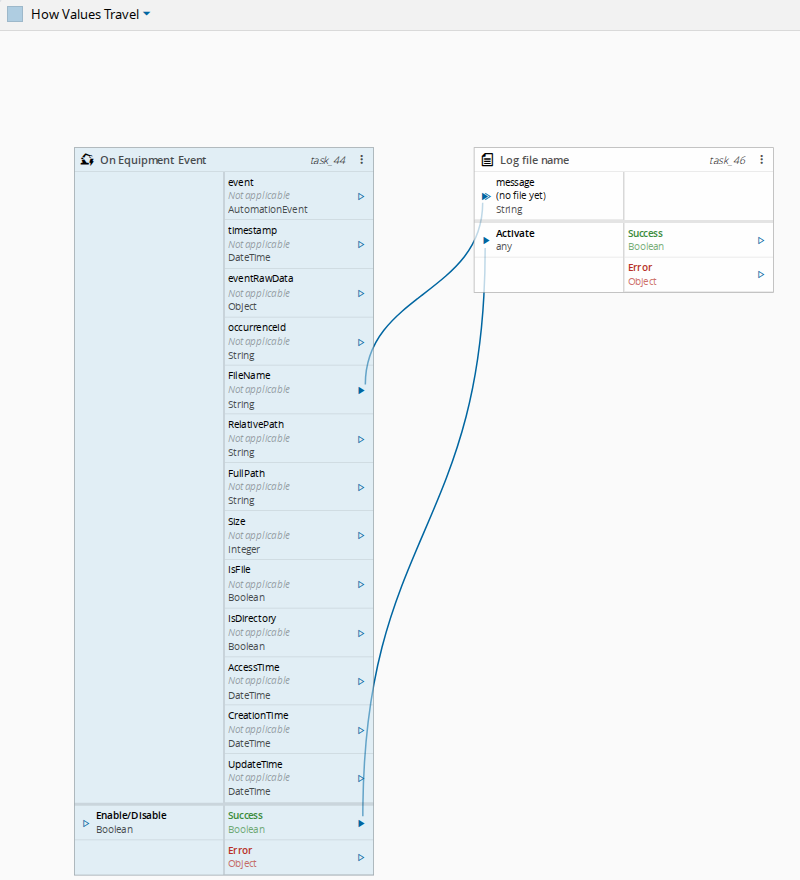

Step 1: Log Each New File#

A task runs when a value reaches its Activate input. A value that reaches any other input waits there until the task is activated.

1. In the Automation Controller, add a Data Flow workflow named, for example, How Values Travel.
2. Add an On Equipment Event task and set Equipment Event to OnNewFile. Its outputs include FileName and Size.
3. Add a Log Message task named Log file name, with Mode RawText and Default Message (no file yet).

4. Link the FileName output to the message input of Log file name, save, and drop a file, such as a.csv, into the watched folder.

   No line from Log file name appears: a value on message does not run the task.

5. Link the Success output of On Equipment Event to the Activate input of Log file name, save, and drop b.csv.

   The console shows b.csv.



Every task has Activate, Success, and Error. A task emits its own outputs first and Success last, so a task activated by Success finds the values already on its inputs. Link the values that a task reads, then link Success to Activate to say when to read them. Switch follows the same rule: it compares only when a value reaches Activate.

Step 2: Activate the Log From Another Event#

In Data Flow, one instance of each task serves the whole workflow, and an input keeps its value until something clears or replaces it. Log Message clears its inputs after each line while Reset inputs on activate is on, its default.

1. Add a second On Equipment Event task with Equipment Event OnFileDeleted, link its Success to the Activate input of Log file name, and save.

2. Drop c.csv, and then delete it.

   The console shows c.csv when the file arrives and (no file yet) when you delete it. The first line cleared message, so the second activation falls back to Default Message.

3. Turn off Reset inputs on activate, save, and repeat with d.csv.

   The deletion now shows d.csv again: the task reads a value that another event left on its input, and nothing in the log says so.

4. Turn Reset inputs on activate back on, delete the OnFileDeleted task, and save.

Tasks differ in what they keep between runs. Execute Equipment Command, for example, keeps its arguments unless Clear Inputs (on activate) is on, and that setting is off by default. Check the reference page of each task, and feed each chain from one event, so that every activation brings every value the task reads.

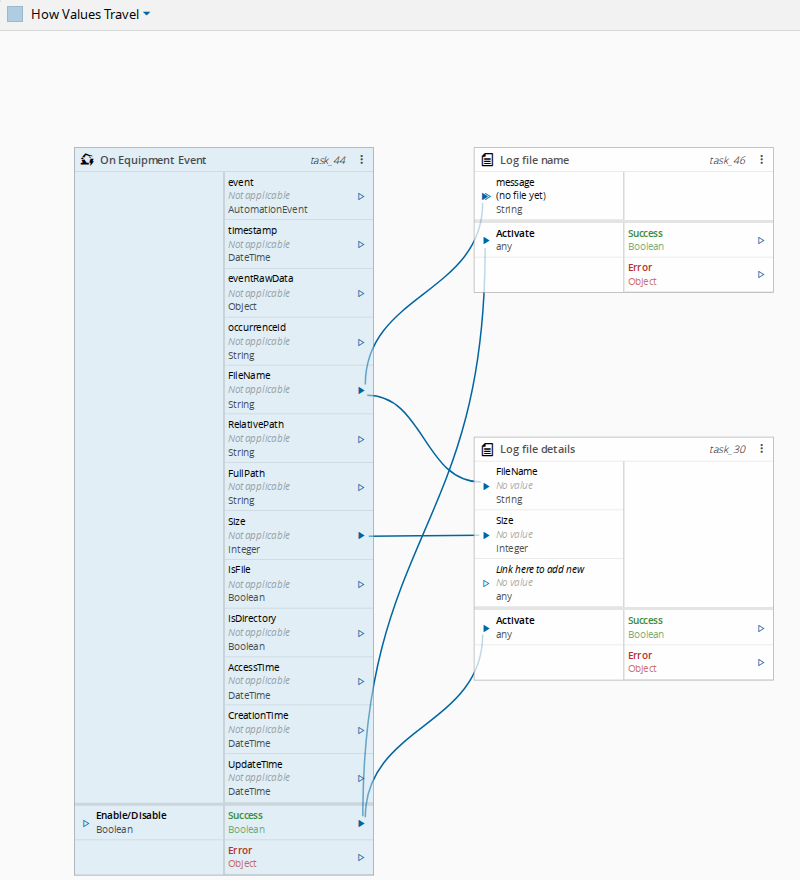

Step 3: Log Several Values Through Added Ports#

Some tasks cannot declare in advance the values they carry, so you add their ports. Linking an output to the Link here to add new input of such a task adds a named input.

1. Add a Log Message task named Log file details, with Mode MultipleInputs.
2. Link the FileName and Size outputs of On Equipment Event to the Link here to add new input of Log file details, link Success to its Activate, and save.

3. Drop e.csv.

   Log file details shows FileName = e.csv and Size = <bytes>. Each label is the name of the added input.



The canvas labels an added port with the name you gave it, but each task stores the port under a name of its own. A Data Flow link uses the stored name without showing it, while a Control Flow input row or expression must write it:

Table: Stored names of added ports

A wrong port name raises no error. The value does not arrive, and the task logs <null> or runs on a default value.

Step 4: Tell null From undefined#

An output that emits undefined changes nothing on the input it reaches, so it activates nothing. An output that emits null is delivered like any other value, and it activates the task it reaches.

1. Add a Code task named classify, and on its Outputs tab add an output status of type String.
2. Link the Size output of On Equipment Event to the Link here to add new input of classify, which adds the input Size, and link Success to its Activate.

3. On the Code tab, make main return a status:

   public async main(inputs: any, outputs: any): Promise<any> {
       return { status: inputs.Size > 0 ? "has data" : null };
   }


4. Add a Log Message task named Log status, with Mode RawText and Default Message (no status). Link the status output of classify to both the message and the Activate inputs of Log status, and save.

5. Drop a file with some text in it, and then an empty file, such as empty.csv.

   Log status shows has data, and then (no status). The null reached Activate and ran the task, and the empty message fell back to Default Message.

6. Replace null with undefined in the code, save, and drop another empty file.

   Log status shows nothing: the undefined did not activate it.

7. Replace undefined with "empty", save, and drop another empty file. Log status shows empty.

Give a value its fallback where you produce it, and do not emit null. The link from status to Activate only makes the difference visible: in a workflow, activate Log status from the Success of classify.

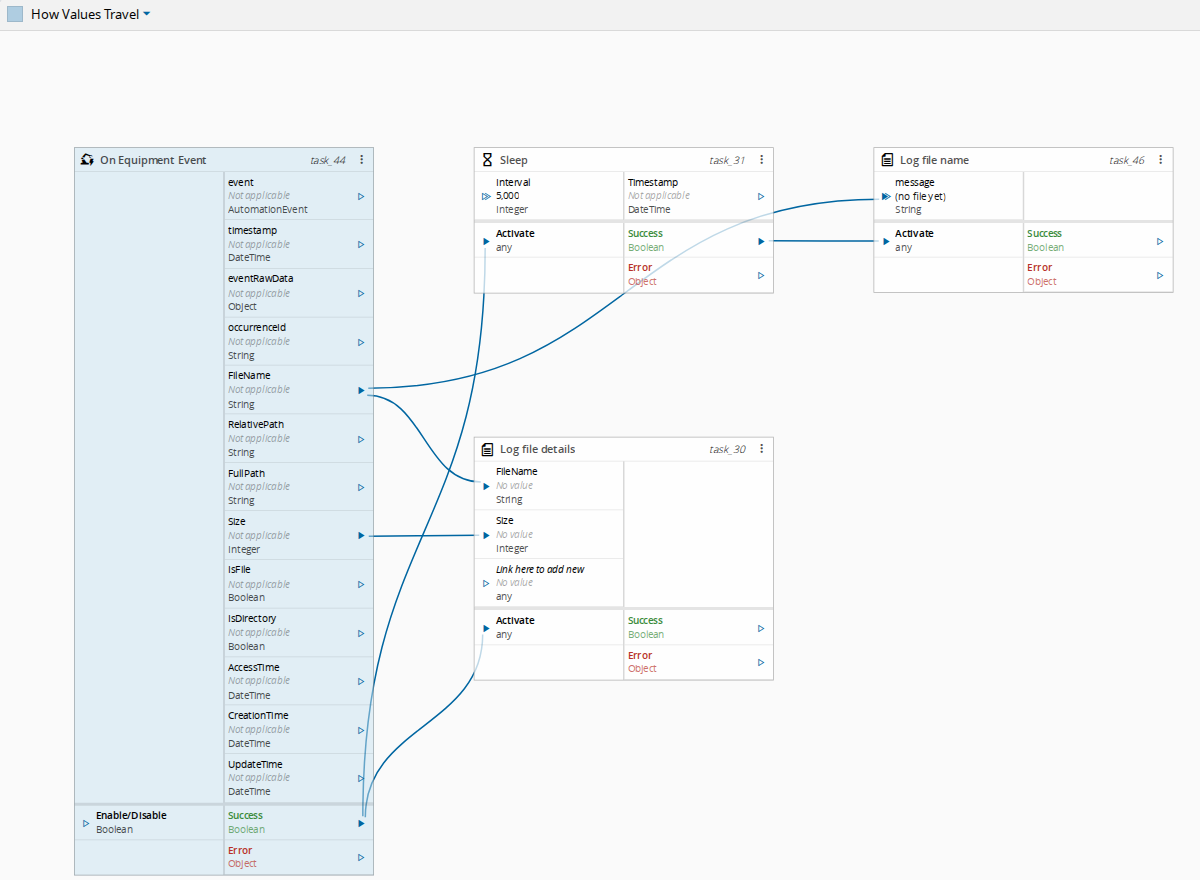

Step 5: Let Two Files Share One Task Instance#

Overlapping events share every Data Flow task. When a second event reaches an input before the first run reads it, the second value replaces the first.

1. Add a Sleep task with Interval 5000. Remove the link from Success of On Equipment Event to Activate of Log file name, link that Success to the Activate of Sleep, and link the Success of Sleep to the Activate of Log file name. Keep the link from FileName to message, and save.

2. Drop f1.csv, and drop f2.csv within five seconds.

   Five seconds after each file, Log file name shows f2.csv, and then (no file yet). The second file replaced f1.csv on message while the first run waited, and the first line cleared it.



The Sleep only makes the window visible. Events that arrive closer together than their chain takes to run overwrite values in the same way. When a second value reaches an input before the first was delivered, the controller warns Task '<page>\<task>' input '<input>' will receive value '<new>' instead of '<old>'. No task or workflow setting makes Data Flow safe for fast events.

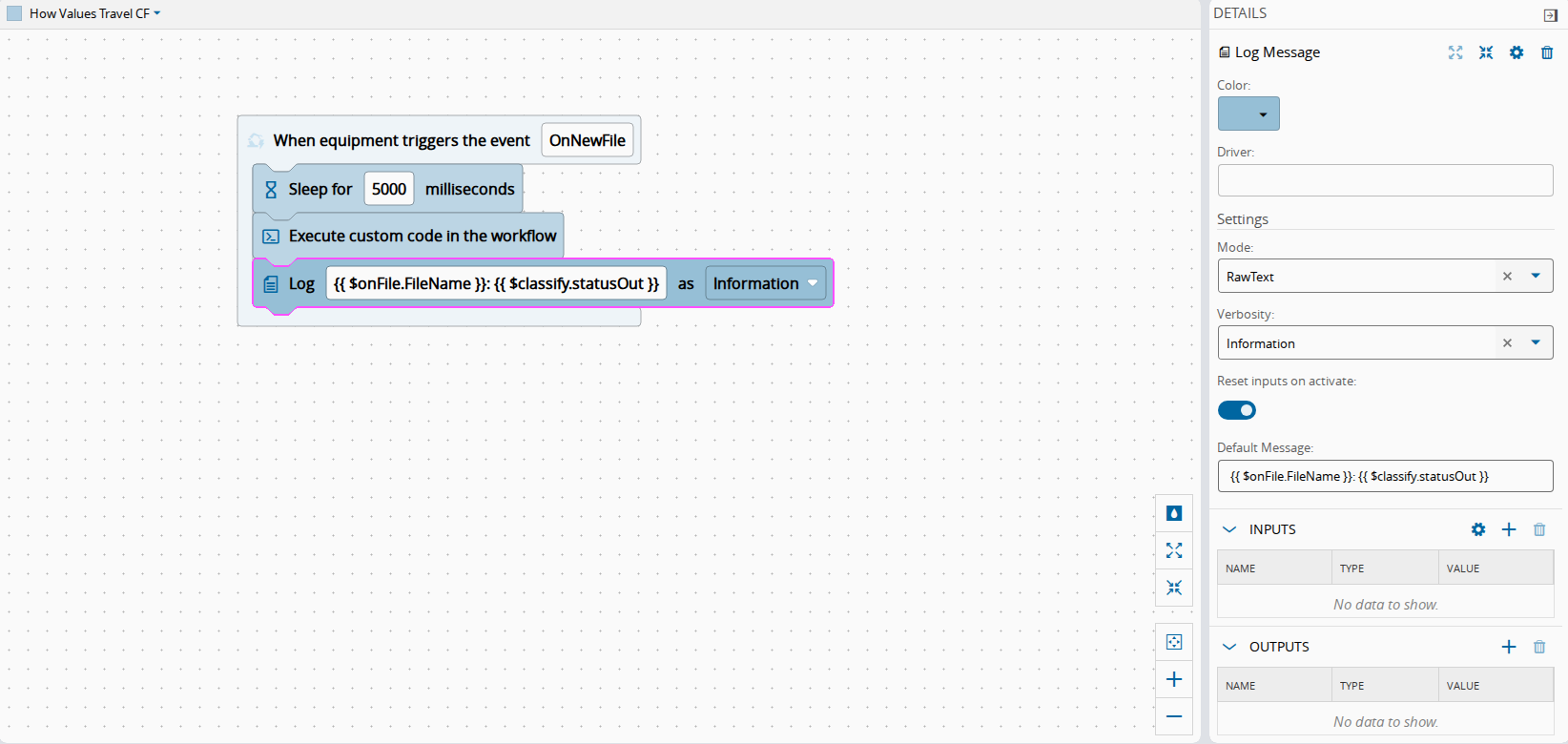

Step 6: Rebuild the Handler in Control Flow#

A Control Flow branch builds its tasks anew for each event, so each run reads only its own values. There are no links: an input row reads an earlier task through an expression, {{ $<block name>.<stored output name> }}. This step writes the On Equipment Event block as onFile and the Code block as classify; in your workflow, type $ inside {{ }} and pick the block names that the designer suggests.

1. In the How Values Travel workflow, turn off Auto Enable on On Equipment Event, so that only the new workflow reacts to files, and save.
2. Add a Control Flow workflow named, for example, How Values Travel CF, and place an On Equipment Event task with Equipment Event OnNewFile.

3. Place these tasks in the handler of the event, in this order:

   Task	Settings	Input rows
   Sleep	Interval 5000	-
   Code	Input Size of type Integer, output status of type String, and the code from Step 4 with "empty"	SizeIn: {{ $onFile.Size }}
   Log Message	Mode RawText, and Default Message {{ $onFile.FileName }}: {{ $classify.statusOut }}	-

   Table: Tasks in the Control Flow handler

   The field after Log on the block is Default Message. In Control Flow, Log Message evaluates the expressions in it.



4. Save, drop g1.csv with some text in it, and drop an empty g2.csv within five seconds.

   After each wait, the console shows g1.csv: has data and then g2.csv: empty, each line under the execution context of its own file.

An expression that reads $classify.status gets nothing, because Code emits its added output as statusOut. Handle a fast or overlapping event in Control Flow. Data Flow suits events spaced further apart than their chain takes to run, and workflows that switch their own triggers on and off.

Validate the Result#

1. Drop three files within five seconds, one of them empty.

   How Values Travel CF shows one line per file, each with its own name and status. How Values Travel shows nothing, because its trigger is off.

2. Turn Auto Enable back on in How Values Travel, save, and repeat.

   Log file details and Log status show each file immediately. Log file name shows the name of a later file after the first wait and (no file yet) after the others. The Control Flow lines stay correct.

What You Learned#

• A task runs when a value reaches Activate, and it emits its outputs before Success.
• A Data Flow task is one instance for the whole workflow: it keeps what its inputs received unless it clears them, as Reset inputs on activate does for Log Message.
• An added port has the name you gave it on the canvas and a stored name, such as statusOut, that Control Flow rows and expressions use.
• An undefined output activates nothing, and a null output is delivered.
• Overlapping events overwrite values in Data Flow, and Control Flow gives each event its own run.

Next Steps#

Continue with Connect IoT - Control Flow in Depth Tutorial to branch, loop, and handle failures in Control Flow, and with Connect IoT - Timing and State Tutorial to add clocks, time limits, and values that outlive a run. The Connect IoT - Learning Path lists the full sequence.
