Connect IoT - Talking to MES Tutorial#

Overview#

A controller and MES talk through three channels, each with its own tasks:

A system action reaches only the instance it is sent to, and its action group only tells the messages of that instance apart. A message bus subject is global: every listener of the subject hears it. That difference decides the channel when MES has something to tell the line.

In this tutorial, you add one Data Flow page to an existing controller. A DEE action asks the controller instance three questions, and the workflow answers each one: a load limit read from a configuration entry, the Resource that the instance represents, and a recipe obtained over the message bus. The workflow also raises a notification for each limit request. The tutorial is for integrators who completed the basic configuration tutorial. It extends Connect IoT - MES Interoperability Scenarios Tutorial, where MES transactions send the requests, with the general request and reply tasks.

Before You Start#

• Have an Automation Controller with the Workflow Type Data Flow and an instance connected to a Resource, such as Resource-A, and an Automation Manager that you can start in console mode, for example from Connect IoT - Basic Configuration Tutorial.
• Make sure you can create and execute DEE actions (DEE Actions) and create configuration entries (Configuration).
• Check the values of the NotificationType and NotificationSeverity lookup tables of your installation, such as General and Information.

Sequence of Steps#

Step 1: Create a DEE Action That Asks the Instance#

A DEE action reaches a controller instance through the Resource it is connected to. SendRequest sends a request under an action group and waits for the answer; Publish sends a notification that nothing answers.

Go to Administration > DEE Actions, select New, and create the action AskController with the classification ConnectIoT and this code:

UseReference("Cmf.Foundation.BusinessObjects.dll", "Cmf.Foundation.BusinessObjects");
UseReference("Cmf.Foundation.BusinessOrchestration.dll", "");
UseReference("", "Cmf.Foundation.Common.Exceptions");
UseReference("", "Cmf.Foundation.Common");
UseReference("Cmf.Navigo.BusinessObjects.dll", "Cmf.Navigo.BusinessObjects");
UseReference("%MicrosoftNetPath%Microsoft.CSharp.dll", "");

var serviceProvider = (IServiceProvider)Input["ServiceProvider"];
IResource resource = serviceProvider.GetService<IResource>();
resource.Name = Input["Resource"] as string;
resource.Load();

var instance = resource.GetAutomationControllerInstance();
if (instance == null)
{
    throw new Exception("Resource not connected to any IoT instance");
}

// Ask this instance only, under the action group given, and wait up to 10 seconds
dynamic reply = instance.SendRequest(Input["Group"] as string, null, 10000);
Input.Add("Answer", reply == null ? "Nothing received" : reply.ToString());

Select Validate. The syntax check passes, and the action is ready to execute with the inputs Resource and Group.

Step 2: Answer a Request from MES#

Open the controller, add a Data Flow page named Talk to MES, and place the tasks below:

Select Save, and stop and start the controller instance in Automation > Connect IoT so that it runs the new page. Repeat this after each later change to the workflow.

Execute AskController with Resource set to Resource-A and Group set to load.limit. The Answer output holds {}: the reply received no value, so the task sent its Default Reply.

Step 3: Answer with a Configuration Value#

Get Configurations reads configuration entries, values that belong to the installation and change without a new controller version.

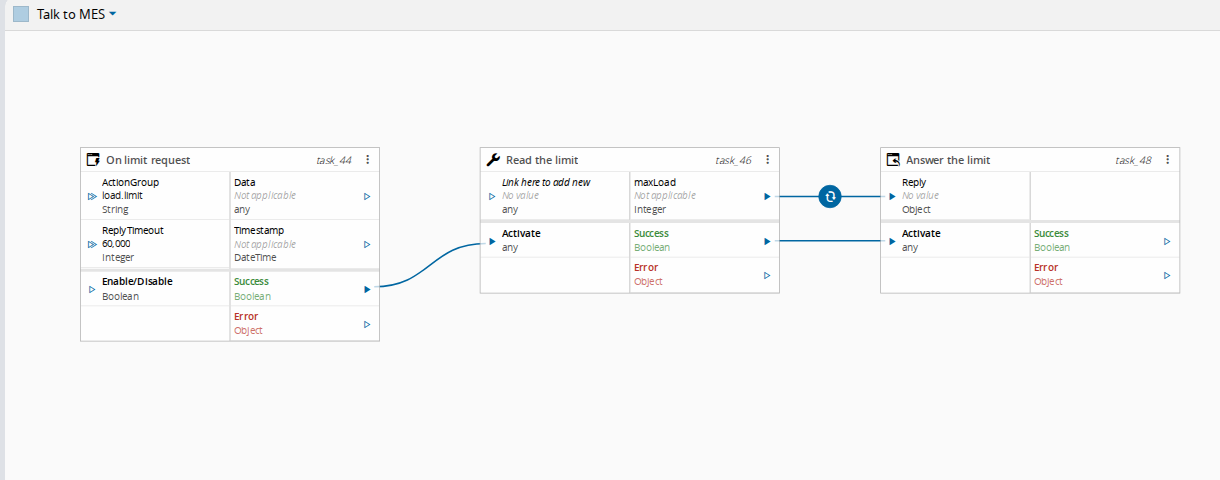

1. Go to Administration > Configuration, create the entries for the path /Cmf/Custom/ConnectIoT/, and create in it the entry MaxLoad with the type String and the value 25.
2. On the Talk to MES page, add Get Configurations, named Read the limit, and on its Outputs tab add the output maxLoad with the type Integer, the full path /Cmf/Custom/ConnectIoT/MaxLoad, and the default value -1. The canvas shows the output as maxLoad, and its stored port name is maxLoadOut.

3. Replace the link into Activate of Answer the limit, and link the tasks as follows:

   From	To
   Success of On limit request	Activate of Read the limit
   maxLoad of Read the limit	Reply of Answer the limit, with the Any To Any converter
   Success of Read the limit	Activate of Answer the limit



Execute AskController again with the group load.limit. The answer holds reply with the value 25: an object is sent as it is, and any other value is wrapped as {"reply": <value>}. The value is converted to the type of the output, and an entry that is missing or empty emits the default value with a warning, followed by Success.

Edit MaxLoad to 0, and execute the action once more without restarting the instance. The answer holds reply with the value 0, read on this request. In 12.0, Send System Action Reply, Message Bus Reply, and Send Ready State Reply send the Default Reply only when no value arrived since their previous answer, so 0 and false are sent as answers.

Step 4: Tell the Operators with a Notification#

Add Create Notification, named Notify the request, and link Success of Read the limit to its Activate. In its settings:

• Leave Name empty, so that MES names each notification. MES holds one notification per name, so a fixed name creates the first notification and fails every later one.
• Set Type to General, Title to MES asked for the load limit, and Severity to a value of your installation, such as Information.
• Set Assignment to Everyone, and keep the clearance Mode ManualSingleUser, which needs no Valid To date.

Execute AskController twice with the group load.limit. Each execution adds a new notification for every user.

Step 5: Hand Over the Resource of the Instance#

Entity Instance hands the workflow the entity that the controller instance, or one of its driver instances, is attached to, so one workflow serves every instance.

1. Add a second System Action Listener, named On resource request, with the Action Group resource.describe.
2. Add Entity Instance, named This instance's Resource, and choose the entity of the controller when the designer asks.
3. Add a second Send System Action Reply, named Answer with the Resource.
4. Link Success of the listener to Activate of Entity Instance, instance to Reply, and Success of Entity Instance to Activate of Answer with the Resource.

Execute AskController with the group resource.describe. The answer holds the Resource, with the Name Resource-A.

Choose the task that calls MES from what it needs to reach:

In Data Flow, an added input of Execute Service Call or Execute Action keeps the last value it received, so deliver a value on every activation.

Step 6: Ask over the Message Bus#

A message bus request is answered by whichever listener subscribes to its subject: another controller, an MES application, or, here, the same workflow.

Execute AskController with the group recipe.describe. The answer holds recipe with the value R-7. A Notification message type is sent without waiting, and its Success means the message was handed to the bus, not that anyone received it. A Request waits up to Timeout for an answer and emits Error when none arrives.

Validate the Result#

Execute AskController with Resource set to Resource-A and each group:

When nothing answers within the timeout, SendRequest returns null, and the action reports Nothing received. It raises an exception only when the workflow replies with an error.

When a Call to MES Fails#

The tasks that call MES share three retry settings:

• Number of Retries (default 30) counts the attempts of the controller, made only for the transient failures listed in Retry Mechanism, such as a deadlock, data changed since last viewed, or a refused connection. Any other failure is reported once on Error.
• Sleep Time between retries (ms) (default 1000) is the wait after each failed attempt.
• Number of System Retries (default 10) is meant for MES, which retries the service on its side. In 12.0, Execute Action, API Post Event, Get Configurations, and Resolve Table send it to MES. On Execute Action and API Post Event, a value received on the numberOfRetries input replaces the setting.

Execute Service Call always sends 10 to MES, whatever its Number of System Retries holds, and Entity Instance and Adjust State do not send the setting. Number of Retries and Sleep Time between retries (ms) work on every task that calls MES.

Link Error wherever a failure matters. In Control Flow, an error ends the branch. Execute Service Call with no service selected is an exception: it emits a text on Error, and a Control Flow branch continues as if the call succeeded.

Control Flow Differences#

Give each request group or subject one listener that answers: two listeners on one group both answer the same request. Two listeners on a notification are safe, because both hear it and neither answers.

Zero downtime uses the same pattern: when an Automation Scheduled Action uses the DefinedInWorkflow detector, MES sends a CheckForReadyState request, Ready State Requested receives it, and the workflow answers with Send Ready State Reply. Anything but true, including a timeout, counts as not ready. See Scenario 4 - Controller Version Update - Workflow Ready Signal.

Next Steps#

Enable the out-of-the-box interoperability scenarios of a Resource in Connect IoT - MES Interoperability Scenarios Tutorial, which use the same request and reply pattern for setup, material, container, and recipe transactions. To understand why a Data Flow task sends the last value it held, see Connect IoT - How Values Travel Tutorial, and to build the same answers in Control Flow, see Connect IoT - Control Flow in Depth Tutorial.
