Connect IoT - Timing and State Tutorial#

Overview#

Between one equipment event and the next, a workflow decides when to act, how long to wait, and what to remember. Clocks start runs on a period or on a schedule, Sleep and Timeout act inside a run, and the controller data store keeps the values that must outlive the run that produced them.

This tutorial is for integrators who completed Connect IoT - How Values Travel Tutorial. The File Raw driver plays a handler that drops one file per part. You add a file counter with a scheduled report, a watchdog that raises an alarm when files stop arriving, a time limit on slow work, a join that keeps the values of each file together, and a queue per part that remembers what the arrival of a part carried until the part leaves. At the end, the Automation Manager console shows each of them at work.

Choose the timing task by what the requirement says about time:

Table: Timing tasks by requirement

Before You Start#

• Use the File Raw integration and the Automation Manager console from Connect IoT - How Values Travel Tutorial, with an empty watched folder, for example c:/temp/Handler. Turn off Auto Enable on the triggers of the workflows of that tutorial, so that their lines do not mix with the new ones.
• Check that the Automation Driver Definition has the shipped events OnNewFile and OnFileDeleted. See Connect IoT - Raw File Driver.
• Raise the events by hand, or from an automated test with the Test Orchestrator File-Raw simulator ↗.
• In Control Flow expressions, this tutorial writes each block by a readable name, such as onFile. In your workflow, type $ inside {{ }} and pick the block names that the designer suggests.

Sequence of Steps#

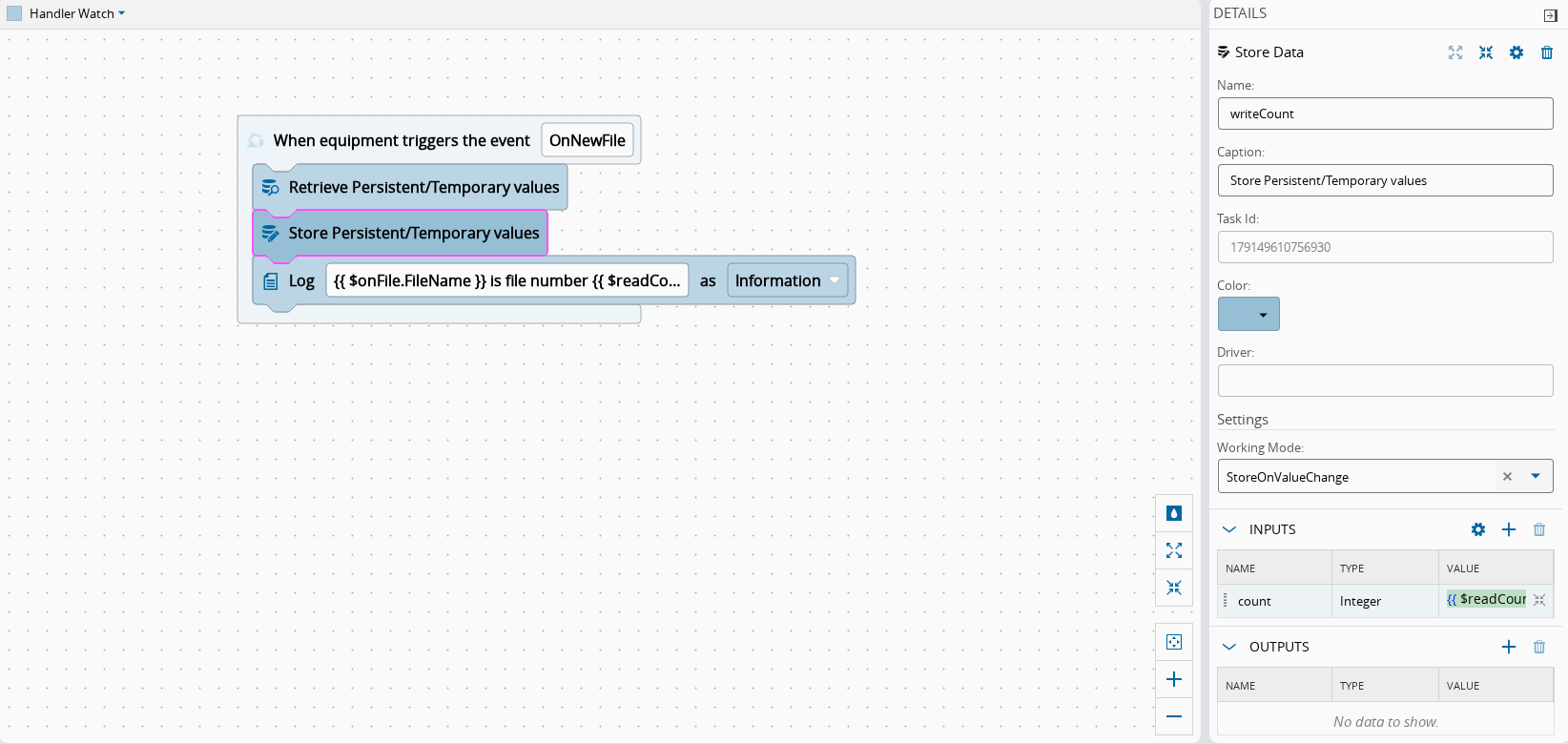

Step 1: Count Files in the Data Store#

A value needed later in the same run travels with the run. A value that another run, another handler, or another workflow needs goes into the controller data store: Store Data writes it under an Identifier, and Retrieve Data reads it back by the same Identifier.

1. Add a Control Flow workflow named, for example, Handler Watch, with an On Equipment Event trigger onFile whose Equipment Event is OnNewFile.

2. Place these tasks in the handler of onFile, in this order:

   Task	Settings	Input rows
   Retrieve Data (readCount)	Outputs tab: entry count, Identifier handlerWatch.fileCount, Type Integer, Default Value 0	-
   Store Data (writeCount)	Inputs tab: entry count, Identifier handlerWatch.fileCount, Type Integer, Storage Persistent	count: {{ $readCount.count + 1 }}
   Log Message	Mode RawText; Default Message {{ $onFile.FileName }} is file number {{ $readCount.count + 1 }}	-

   Table: Tasks that count the files



3. Save, and drop a.csv and then b.csv into the watched folder.

   The console shows a.csv is file number 1 and b.csv is file number 2.

The Identifier is shared by every workflow of the controller, and the last write wins. Name each identifier after the workflow that owns it, as handlerWatch.fileCount does. A Temporary value is lost when the controller restarts. A Persistent value survives the restart and also outlives the workflow that wrote it, so a new workflow that reuses the identifier starts from the old value.

Reading and writing are two separate steps. Control Flow gives each file its own run with its own values, while a Data Flow counter fed by a burst of files pairs names with the wrong numbers. In Control Flow, give every Store Data entry an input row: an entry without one writes no value, and the data store deletes its identifier.

Step 2: Start Runs on the Clock#

On Timer starts a run every Interval milliseconds, and On Cron Job starts one at each moment of a cron expression. Each tick or firing is a run of its own, and in Control Flow each runs the handler of the trigger.

1. In Handler Watch, add an On Timer trigger heartbeat with Interval 10000 and Number of Occurrences 3. In its handler, place a Log Message with Default Message Handler watch alive at {{ $heartbeat.timestamp }}.

2. Add an On Cron Job trigger report with Cron Expression */30 * * * * *, and place these tasks in its handler:

   Task	Settings	Input rows
   Retrieve Data (readTotal)	Entry count, as in Step 1	-
   Log Message	Mode RawText; Default Message Files since the last report: {{ $readTotal.count }}	-
   Store Data	Entry count, as in Step 1	count: 0

   Table: Tasks of the scheduled report

3. Save, drop two files, and wait one minute.

   The heartbeat shows three lines, ten seconds apart, and Timer deactivated after '3' occurrences appears just before the third line. On each whole and half minute, the report shows the number of files since the last report and sets it back to 0.

Number of Occurrences 0, the default, sets no limit, and the count starts again each time the clock is enabled. A tick is never early and often a few milliseconds late, so read the time from timestamp instead of counting ticks.

The cron expression starts with an optional seconds field, and it runs in UTC: 0 0 6 * * * fires at 06:00 UTC, not at 06:00 on the clock of the plant. Write the expression in UTC, and change it when the plant changes to or from summer time. An expression that is not valid fails when the job starts, with Cron expression '<expression>' is not valid. With Auto Enable on, the error goes to a linked Error or to an Unhandled Error task, and without either, the workflow does not start. A start refused from Enable/Disable, in Data Flow, leaves the job off, and the next true checks the expression again.

In Control Flow, a clock runs from the start of the workflow. To start, stop, or change a clock from the workflow, build it in Data Flow and link its Enable/Disable and its inputs. A value linked to Interval reaches the timer as it arrives, so send a number of milliseconds, not a text.

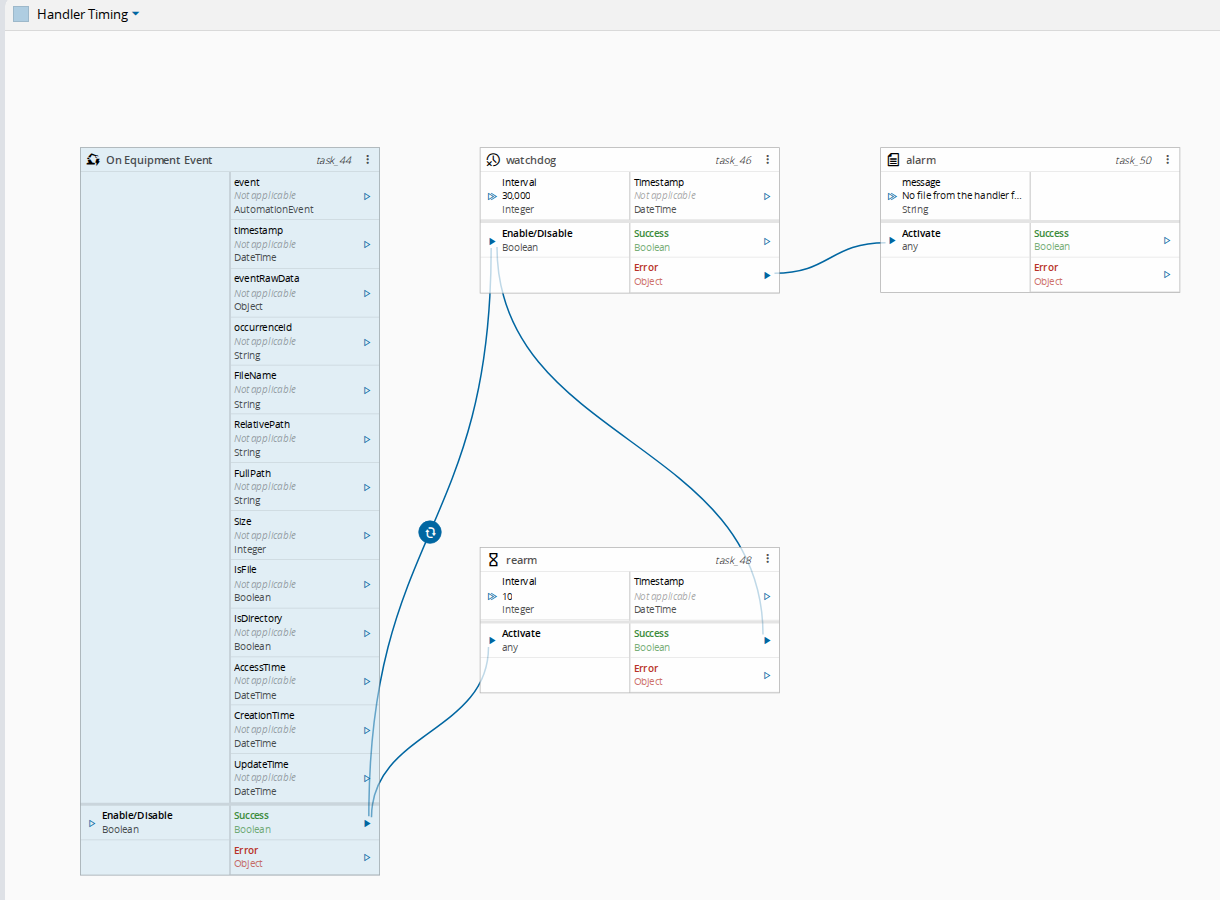

Step 3: Raise an Alarm When Files Stop Arriving#

In Data Flow, Timeout is a watchdog: true on Enable/Disable arms it, false disarms it, and when Interval passes while it is armed, it emits Error. Arming a watchdog that is already armed is ignored, so each file must disarm it and then arm it again, in two separate deliveries.

1. Add a Data Flow workflow named, for example, Handler Timing, with an On Equipment Event task whose Equipment Event is OnNewFile.

2. Add these tasks and links:

   Task	Settings	Links
   Timeout (watchdog)	Interval 30000	From Success of On Equipment Event to Enable/Disable, with the Any to Constant converter on the link, type Boolean and value false
   Sleep (rearm)	Interval 10	From Success of On Equipment Event to Activate. From Success of rearm to Enable/Disable of watchdog
   Log Message (alarm)	Mode RawText, Verbosity Warning, Default Message No file from the handler for 30 seconds	From Error of watchdog to Activate

   Table: Tasks and links of the watchdog



3. Save, drop a file every few seconds for half a minute, and then stop.

   While files arrive, each one shows Timeout deactivated and Timeout activated for the next '30000 ms', and no alarm appears. The first file shows No timeout is currently active. Ignoring cancel request instead of the deactivation. Thirty seconds after the last file, the console shows Timeout occurred and then the alarm line.

A watchdog armed by every file, with no false first, keeps its first deadline, shows Timeout is already activated. Ignoring new request., and raises the alarm 30 seconds after the first file while files are still arriving. Two links from the same event to Enable/Disable, one false and one true, do not help either: both values reach the input in the same moment, the second replaces the first, and only true arrives. The 10-millisecond Sleep makes true a later delivery.

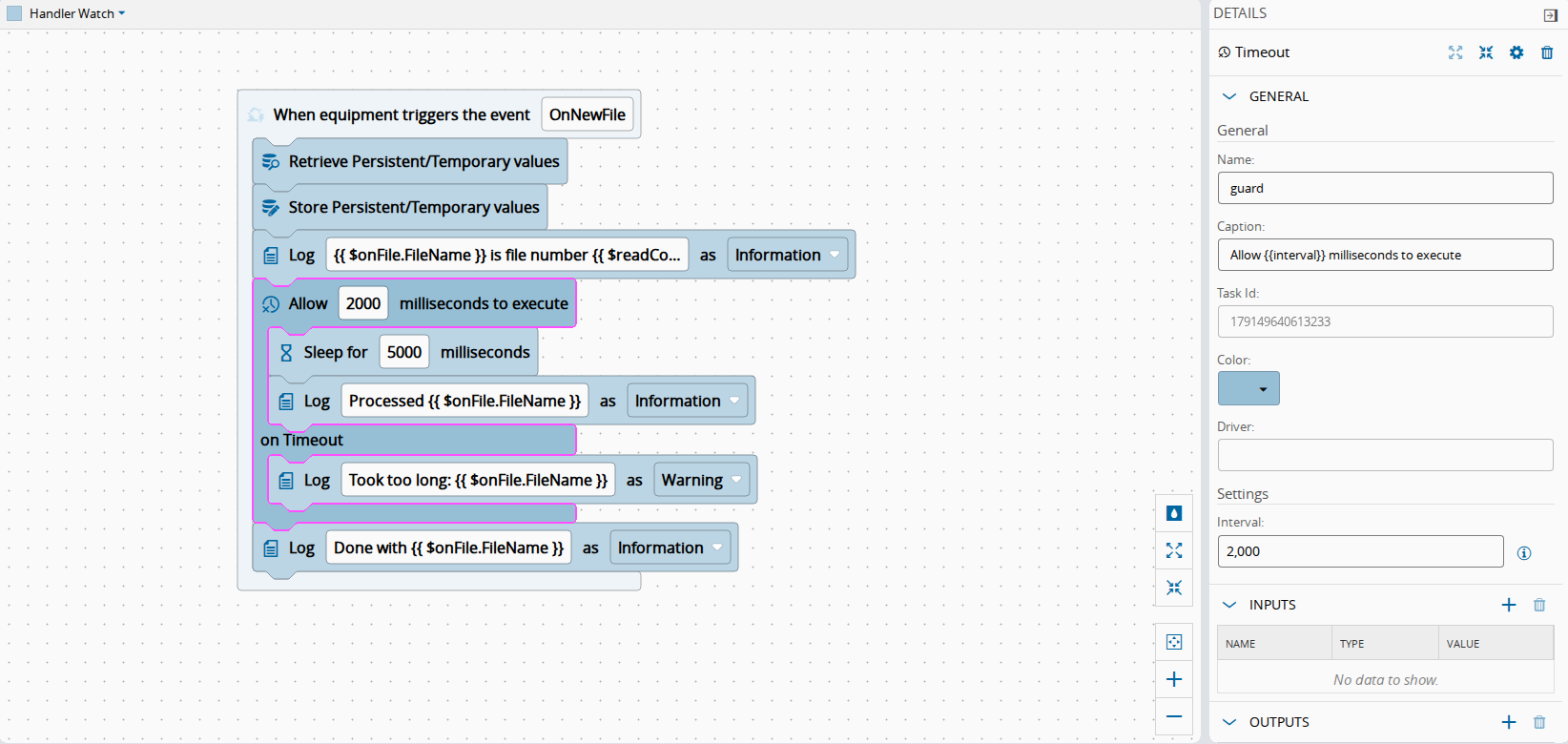

Step 4: Put a Time Limit on Slow Work#

In Control Flow, Timeout runs the branch inside it under a time limit. When the limit passes, the engine stops that branch and runs the on Timeout branch. Either way, the flow then continues after the Timeout.

1. In the handler of onFile in Handler Watch, after the tasks of Step 1, add a Timeout (guard) with Interval 2000.
2. Inside guard, place a Sleep with Interval 5000, standing in for slow work, and then a Log Message with Default Message Processed {{ $onFile.FileName }}.
3. In the on Timeout branch of guard, place a Log Message with Verbosity Warning and Default Message Took too long: {{ $onFile.FileName }}.

4. After guard, place a Log Message with Default Message Done with {{ $onFile.FileName }}.



5. Save, and drop c.csv.

   The console shows Starting execution with a timeout of '2000 ms', an error-level line with execution timeout after '2000' ms. Stopping context tree, the warning Execution timeout after '2000' ms. Executing the onTimeout handler, Took too long: c.csv, Successfully executed the tasks within the timeout protected area, and Done with c.csv. Processed c.csv never appears.

6. Set the Interval of the Sleep to 500, save, and drop d.csv.

   The console shows Processed d.csv and Done with d.csv.

The success line is the same in both cases and ends with the limit, after '2000 ms', not with the time taken. Only the warning before it tells a timeout apart, and the engine logs the stopped branch at error level although the flow continues. A Control Flow Timeout never emits Error, so decide in the on Timeout branch what a late result means: report it there, or end the branch with Throw when the rest of the flow must not run. To limit a single Execute Equipment Command, use its own Timeout setting instead.

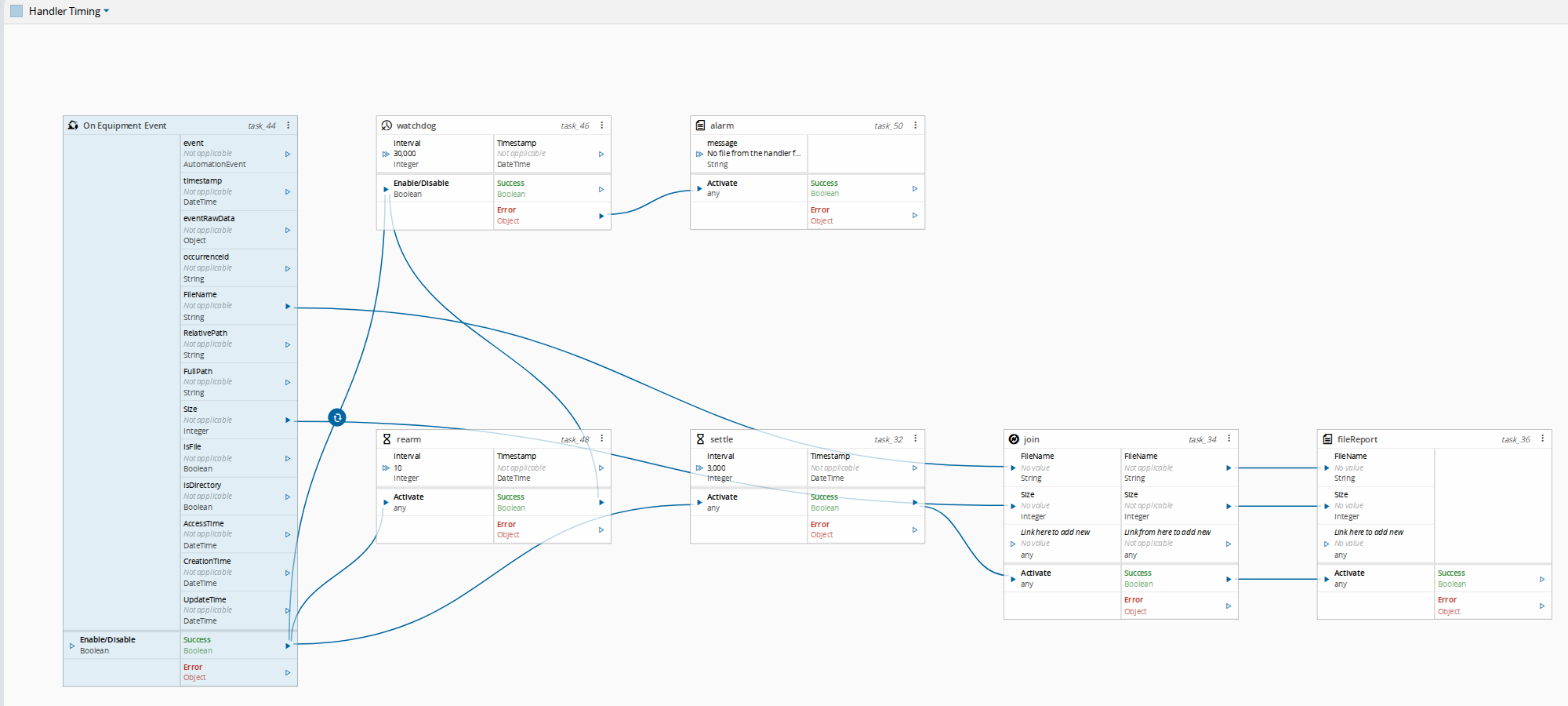

Step 5: Keep the Values of Each File Together#

In Data Flow, Synchronize holds the values it receives for each run and emits them when a value reaches its Activate. A value that travels past a Sleep through Synchronize stays with its own file, where a value linked straight past the Sleep is replaced by the next file, as in Connect IoT - How Values Travel Tutorial.

1. In Handler Timing, add a Synchronize (join) with Emit when all defined on, and a Sleep (settle) with Interval 3000.
2. Link the FileName and Size outputs of On Equipment Event to the Link here to add new input of join, which adds the matching outputs. Link Success of On Equipment Event to Activate of settle, and Success of settle to Activate of join.

3. Add a Log Message (fileReport) with Mode MultipleInputs. Link the FileName and Size outputs of join to its Link here to add new input, link Success of join to its Activate, and save.



4. Drop e1.csv, and drop a larger e2.csv within three seconds.

   Three seconds after each file, fileReport shows the FileName and Size of that file.

Sleep continues the run that activated it, so its Success reaches join in the run of its own file. Activate Synchronize from the task that produces its last value, never from the trigger: an activation that arrives before the values is not kept, and the held values are dropped after Expiration Time, 60000 milliseconds by default, without a new value. Any value on Activate, false included, releases the held values. Synchronize exists only in Data Flow, because each Control Flow run already keeps its own values.

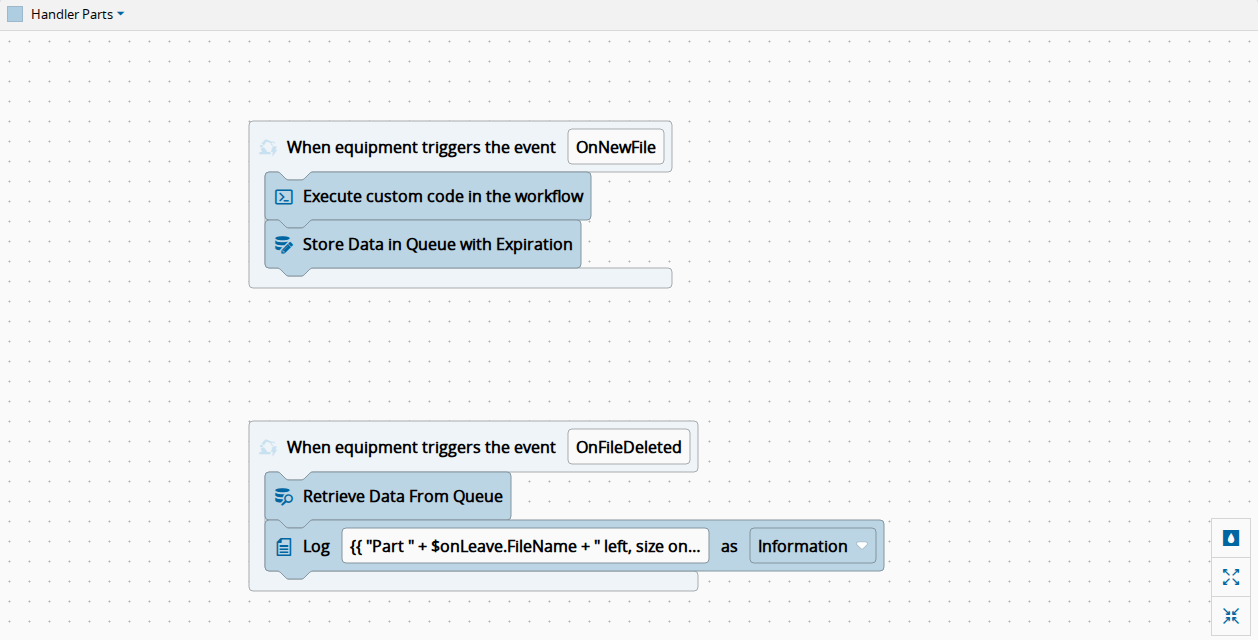

Step 6: Remember Each Part Until It Leaves#

A queue in the data store holds values that you take out one at a time, and taking a value removes it. A queue named after each part carries what the first event of the part learned to its last event, and leaves nothing behind after the part is gone. In this step, a new file is a part that arrives, and the deletion of the file is the part that leaves.

1. Add a Control Flow workflow named, for example, Handler Parts, with an On Equipment Event trigger onArrive on OnNewFile and an On Equipment Event trigger onLeave on OnFileDeleted.

2. Place these tasks in the handler of onArrive, in this order:

   Task	Settings	Input rows
   Code (deadline)	Output until of type DateTime. On the Code tab, main returns { until: new Date(Date.now() + 3600000) }	-
   Store Data In Queue With Expiration	Storage Persistent	queueName: handler.part.{{ $onArrive.FileName }}. value: {{ {"size": $onArrive.Size} }}. queueExpiration: {{ $deadline.untilOut }}

   Table: Tasks that store a part

3. Place these tasks in the handler of onLeave, in this order:

   Task	Settings	Input rows
   Retrieve Data From Queue (take)	Queue Type FIFO	queueName: handler.part.{{ $onLeave.FileName }}. defaultValue: {{ {"size": "(not recorded)"} }}
   Log Message	Mode RawText; Default Message {{ "Part " + $onLeave.FileName + " left, size on arrival " + string($take.value.size) }}	-

   Table: Tasks that take a part

   The queueName and defaultValue rows are not listed by default. Add each with + in Inputs: the settings of the same name, Default Queue Name and Default Value, do not evaluate an expression.



4. Save, drop P-001.csv with some text in it, and then delete it.

   The console shows Part P-001.csv left, size on arrival <bytes>, a size that only the arrival event carried.

Take the value at the start of the handler of the last event, on every path, before any condition. A queue that a condition skips stays in the data store for every part that the condition did not select, and with Persistent storage it grows without end. Store the values of a part as one object, and give the take a default object with the same fields: a text default read by field fails the branch.

A queue expiration is a fixed moment, set when a value is stored, and later stores and takes do not move it. After it, the next task that reads or writes the queue deletes the queue with everything it holds and emits an error. Set it well past the longest time a part stays in the equipment, so that the queue of a part whose last event never comes lapses by itself. For values that go stale one by one, give each value an itemExpiration instead. Queue Type decides, for each take, which value comes out next:

Table: Queue types

With any queue type, a value whose item expiration has passed is skipped. An empty queue gives the default value with Success, not an error, so test for the default when a timer drains a queue. Do not give a queue the name of a Store Data identifier: the queue tasks fail on a name that holds a plain value.

When one current value per identifier is enough, Store Data With Expiration stores it with a deadline, and Retrieve Data reads it until then. The deadline must be a date, not a text. The first read after the deadline deletes the value and emits on Error an error whose message is Error while retrieving data: undefined, and the next read gets the default value. A Store Data write over that identifier keeps the old deadline.

Validate the Result#

Drop three files two seconds apart, wait one minute, and then delete one of the files. The console shows:

Table: Expected console lines

What You Learned#

• On Timer and On Cron Job start runs, the cron expression runs in UTC, and Sleep and Timeout act inside a run.
• A Data Flow watchdog is disarmed and armed again by each occurrence, in two separate deliveries, and a Control Flow Timeout decides in its on Timeout branch what late means.
• Synchronize keeps the values of each run together until the last producer activates it.
• The data store shares identifiers and queue names across the controller, Persistent values outlive restarts and workflows, and a queue per part is taken on every path with an expiration as a safety net.

Next Steps#

The deadlines in this tutorial came from a small Code task. Continue with Connect IoT - Writing a Code Task Tutorial to decide when a Code task is the right tool and to write, log, and test one. The Connect IoT - Learning Path lists the full sequence.
