Connect IoT - MQTT Tutorial#

Overview#

MQTT has no equipment server. Sensors and machines publish messages to a broker, each on a topic such as hall2/machine-3/temperature, and the broker delivers each message to every client subscribed to a matching topic. The MQTT driver is one such client: it does not host a broker, so one is required. The driver maps the whole protocol onto properties:

Definition entry On the broker Workflow task
Readable property A subscription to its topic Carried by an event
Writable property A publish to its topic Set Equipment Properties
Event Fires when a message arrives on a trigger topic among its properties On Equipment Event
Command None: the protocol has no commands -

Table 1: How the definition maps to the MQTT broker

This tutorial is for integrators who completed Connect IoT - Basic Configuration Tutorial and know the Control Flow designer. You build the integration of a hall for a Resource, such as Hall-2: the controller logs every temperature reading of the hall with the latest humidity, and publishes a setpoint of 180 to machine 1 whenever its temperature goes above 185. At the end, the Automation Manager console shows each reading, and an MQTT client subscribed to the setpoint topic receives the setpoint.

Info

For every protocol parameter and extended data field of the driver, see Connect IoT - MQTT Driver.

Before You Start#

Sequence of Steps#

Step 1: Create the Automation Protocol and Set the Broker Parameters#

Create an Automation Protocol, such as MQTT, for the package @criticalmanufacturing/connect-iot-driver-mqtt, as in How to: Create an Automation Protocol. The parameters that matter for this exercise are the following. You set the values for this broker in the controller, in Step 3.

Parameter Default Effect
address Empty The host of the broker. Empty means localhost.
port 1883 The port of the broker. 8883 is usual for MQTTS.
protocol MQTT MQTTS connects over TLS, with certificate, privateKey, and certificateAuthority.
protocolVersion 3.1.1 The MQTT version of the connection, 3.1.1 or 5.0.
user, password Empty The broker credentials. Empty connects without authentication.
byteOrder BigEndian How the bytes of a binary numeric payload are read. Text payloads are not affected.

Table 2: Broker parameters of the MQTT protocol

pollInterval is not used by the driver: to report on a timer, set the triggerMode of an event to OnInterval. The QoS and the retain flag are not protocol parameters: each property carries its own, so two topics of one connection can use different levels.

The driver connects as a clean session, so the broker keeps nothing for it while it is away. It subscribes the topics of the readable properties only when the setup of the connection completes: a message published before then is lost, unless the broker retained it.

Step 2: Create the Driver Definition with the Topics#

The MQTT package ships no driver definition. Declare each topic the controller reads or writes as a property, with the topic in Topic Name (the Property Device ID), and each reaction as an event.

  1. Create an Automation Driver Definition, such as Hall 2 MQTT, with the Automation Protocol MQTT and the Entity Type Resource, as in Create Automation Driver Definition.

  2. Add the properties. The Protocol Data Type String reads a text payload, and the Type is the value the workflow receives: a text such as 21.4 becomes a Decimal.

    Name Topic Name (Property Device ID) Type Protocol Data Type Access Extended data
    Temperature hall2/+/temperature Decimal String Readable qos 1
    Humidity hall2/+/humidity Decimal String Readable qos 1
    Machine1Temperature hall2/machine-1/temperature Decimal String Readable qos 1
    Machine1Setpoint hall2/machine-1/setpoint String String Writable, not readable qos 1, retain true

    Table 3: Properties of the MQTT driver definition

  3. Add two events with the Event Trigger Mode (extended data triggerMode) Always, the default.

    Event Event properties
    SensorReading Temperature with isTrigger true, Humidity with isTrigger false
    Machine1Reading Machine1Temperature with isTrigger true

    Table 4: Events of the MQTT driver definition

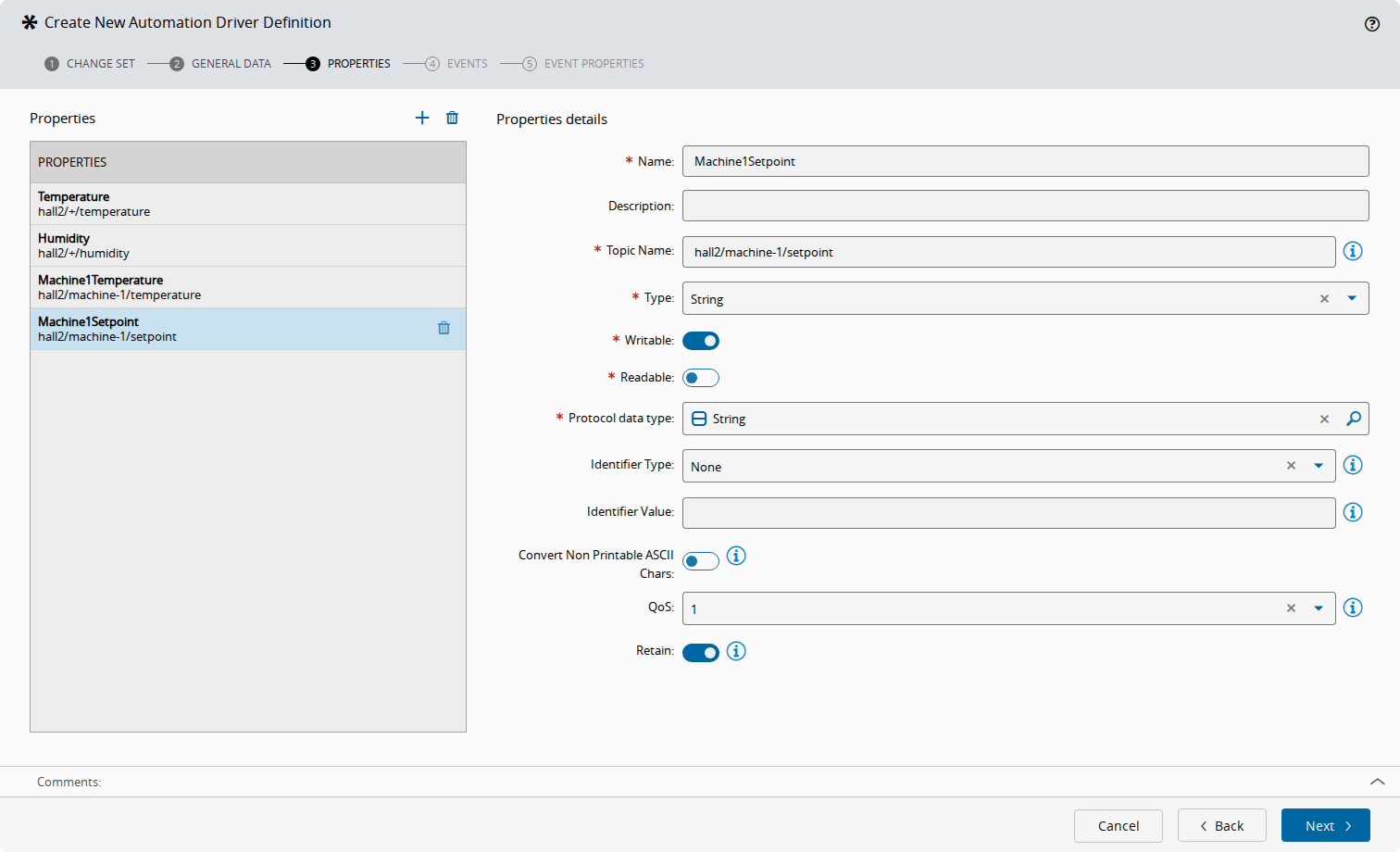

    Properties step with the four topics

  4. Select Create.

A message on hall2/machine-3/temperature matches hall2/+/temperature and fires SensorReading, because Temperature is a trigger and triggerMode Always fires on each qualifying message. A humidity message alone fires nothing, and Humidity carries the latest humidity of any sensor, not necessarily the one whose temperature fired the event. With OnChange, the event fires only when the value differs from the last one, and with OnInterval, every interval milliseconds with the latest values.

Write wildcards with + for one level and /# for everything below, such as hall2/#. A topic that is # alone, or that starts with $, never matches a received message. A wildcard property suits a state, where the latest value is what matters: when messages on several matching topics arrive within a few milliseconds, an occurrence can carry the value of a later message. When every message must be handled with its own value, declare one property and one event per topic, or have the publisher send one JSON payload per message and read it with the Type Object. The topic a wildcard message came on is in the original value of the property, { "topic": "<topic>", "value": <payload> }: select the Output Type RawValue on the event to receive it.

Machine1Setpoint is not readable, so the driver does not subscribe to it. A readable topic that the controller also publishes to comes back as a received message and fires the events it belongs to. The setpoint is a state that a client connecting later needs, so it is published with retain: the broker keeps the last value of the topic and hands it to each new subscriber. Leave retain off for events, such as a count or an alarm occurrence, because a retained event is replayed to each new subscriber as if it had just happened.

Step 3: Create the Controller and Connect It to the Broker#

  1. Create an Automation Controller, such as Hall 2 Controller, with the Scope Connect IoT, the Workflow Type Control Flow, the Entity Type Resource, and one driver definition, Broker, with Hall 2 MQTT. See Create Automation Controller.
  2. On the Setup page, open the settings of the Equipment Configuration task and, on the Communication Parameters tab, set address to the host of your broker, such as localhost, and port, user, and password as the broker requires. Keep Automatic Setup enabled on the Driver Event task.

The driver receives the communication parameters when it connects. After you change a parameter of a connection that is already Communicating, restart the controller instance.

Step 4: Log Every Reading of the Hall#

Create a Control Flow page, such as Hall Readings, and add the following blocks for the driver Broker:

Block Settings to set Placement
On Equipment Event On Equipment Event SensorReading Trigger
Log Message Mode RawText; Default Message Temperature {{ $<event block>.Temperature }}, humidity {{ $<event block>.Humidity }} Inside the handler of the trigger

Table 5: Blocks that log the readings

Replace <event block> with the block name of the On Equipment Event task. Inside {{ }}, typing $ suggests the names of the preceding blocks. In Control Flow, Log Message evaluates the expressions of its Default Message when it runs, so one block logs both values.

Step 5: Publish a Setpoint When Machine 1 Runs Too Hot#

Add the following blocks to the Hall Readings page:

Block Settings to set Placement
On Equipment Event On Equipment Event Machine1Reading Trigger
Condition If condition {{ $<event block>.Machine1Temperature > 185 }}, where <event block> is the name of the Machine1Reading block Inside the handler of the trigger
Set Equipment Properties Input Machine1Setpoint with the value 180 Inside the If branch

Table 6: Blocks that publish the setpoint

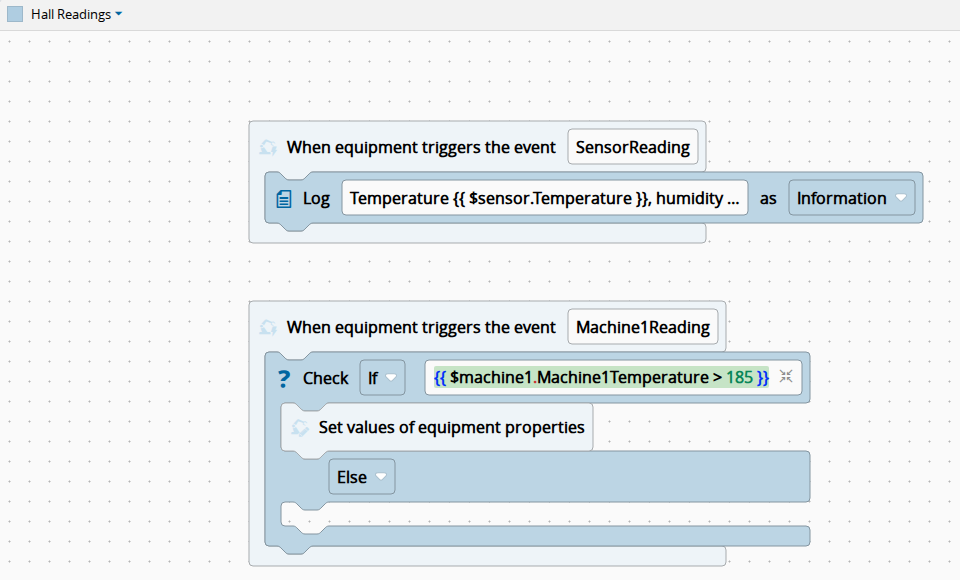

Hall Readings page

Publishing is writing a property: Set Equipment Properties publishes 180 to the topic of Machine1Setpoint, converted to its protocol data type, with its qos and retain. Keep identifierType None on a property that is only published. With Token or RegularExpression, a value that does not match identifierValue is not published, and the write still reports success.

Do not publish or subscribe with Send Notification to Driver or Subscribe in Driver. Their subjects are the channel between the controller and the driver process, not MQTT topics: with no readable property, the connection reaches Communicating while the broker sees no subscription. The subjects that the driver defines for itself, connect.iot.driver.template.*, are deprecated.

Step 6: Connect the Controller and Start It#

Connect the controller to the Resource Hall-2 and the Automation Manager, with the same Resource for the driver Broker, as in How to Create a Controller Instance. Start the Automation Manager in console mode.

On the Connect IoT page, the driver instance reaches Communicating. A broker that lists its subscriptions shows the three readable topics and not the setpoint topic.

Validate the Result#

  1. With the MQTT client, subscribe to hall2/machine-1/setpoint.
  2. Publish 48 on hall2/machine-3/humidity. Nothing is logged: Humidity is not a trigger.
  3. Publish 21.4 on hall2/machine-3/temperature. The console shows Temperature 21.4, humidity 48.
  4. Publish 182.4 on hall2/machine-1/temperature. The console logs the reading, because the topic also matches hall2/+/temperature, and nothing is published on the setpoint topic.
  5. Publish 186.1 on hall2/machine-1/temperature. The client receives 180 on hall2/machine-1/setpoint.
  6. Disconnect the client and subscribe again to hall2/machine-1/setpoint. The broker hands it the retained 180 at once.
  7. Stop the broker for a few seconds and start it again. The driver instance moves to Disconnected, retries after each Reconnect Interval of the Equipment Configuration task, and passes through Disconnected on every failed attempt. When the broker is back, the instance returns to Communicating and subscribes again. Publish a temperature to confirm that readings are logged again.

Next Steps#

To report each reading to MES, continue with Connect IoT - Talking to MES Tutorial. A handler that reacts to Disconnected on the OnCommunicationChange event runs on every retry of an outage: keep a flag that is set when the loss is reported and cleared on Communicating, and report the loss only when the flag is clear. To keep such a flag, see Connect IoT - Timing and State Tutorial. For other protocols, see Connect IoT - OPC UA Tutorial and Connect IoT - Raw File and CSV Tutorial, and for symptoms such as a connection that is Communicating with nothing subscribed, see Troubleshooting by Symptom.
