Connect IoT - OPC UA Tutorial#

Overview#

A machine that speaks OPC UA runs a server: an address space of nodes, each identified by a NodeId. Variable nodes hold values, object nodes group other nodes, and method nodes can be called. The OPC UA driver is a client of that server: it reads and writes variables, subscribes to value changes and to OPC UA events, and calls methods. Each entry of an Automation Driver Definition maps to one of these:

Definition entry On the server Workflow task
Property A variable node, named by its NodeId Get Equipment Properties, Set Equipment Properties, or carried by an event
Event of eventType Subscription One subscription, with a monitored item for each property of the event On Equipment Event
Event of eventType Event or Alarm An event filter for one OPC UA event type On Equipment Event
Command A method, called on the object that owns it Execute Equipment Command

Table 1: How the definition maps to the OPC UA server

This tutorial is for integrators who completed Connect IoT - Basic Configuration Tutorial, which connects a controller to an OPC UA server and stops there. Here you build the integration of a furnace for a Resource, such as Furnace-01. When the furnace reports a loaded batch, the workflow reads the current setpoint, writes the batch setpoint, calls the StartBatch method with the batch identifier, and logs the reply. At the end, the Automation Manager console shows the setpoint read and the method reply for each batch, and the setpoint node on the server holds the new value.

Info

For every protocol parameter and extended data field of the driver, see Connect IoT - OPC UA Driver.

Before You Start#

  • Complete Connect IoT - Basic Configuration Tutorial. Reuse its Automation Protocol for the package @criticalmanufacturing/connect-iot-driver-opcua and its Automation Manager, running in console mode.
  • Have an OPC UA server that exposes the nodes of Table 2, reachable from the machine where the Automation Manager runs, and an OPC UA client to browse the address space and change values. The Test Orchestrator OPCUA simulator can stand in for the furnace: it hosts an OPC UA server endpoint, adds the nodes with AddTag, registers the method with AddCustomCommand, and changes a value with WriteTag. To run it against your MES, see Connecting to a Live MES ↗. The Test Orchestrator is a .NET test framework, currently in alpha.
Node NodeId OPC UA type Access
Batch identifier ns=2;s=Machine.Batch.Id String Read
Chamber temperature ns=2;s=Machine.Chamber.Temperature Double Read
Setpoint ns=2;s=Machine.Setpoint Double Read and write
Machine object ns=2;s=Machine Object -
Start batch method ns=2;s=Machine.StartBatch Method with the input arguments BatchId (String) and Temperature (Double), in this order -

Table 2: Address space of the furnace

Copy every NodeId from the address space of your own server, namespace index included. The server assigns the namespace index (ns=): it can change between server versions and differ between two machines of the same model.

Sequence of Steps#

Step 1: Create the Driver Definition with the NodeIds#

The OPC UA package ships no driver definition, because every node belongs to one particular server. Declare each entry by hand, with the NodeId exactly as the server gives it.

  1. Create an Automation Driver Definition, such as Furnace OPC UA, with the OPC UA Automation Protocol and the Entity Type Resource, as in Create Automation Driver Definition.
  2. Add the properties. The Protocol Data Type is the OPC UA type of the node, and the Type is the value the workflow receives: a Double node is a Decimal property.

    Name NodeId (Property Device ID) Type Protocol Data Type Access Extended data
    BatchId ns=2;s=Machine.Batch.Id String String Readable arrayType Scalar
    Temperature ns=2;s=Machine.Chamber.Temperature Decimal Double Readable arrayType Scalar
    Setpoint ns=2;s=Machine.Setpoint Decimal Double Readable and writable arrayType Scalar

    Table 3: Properties of the OPC UA driver definition

  3. Add an event, such as BatchLoaded, with the extended data eventType Subscription and publishingInterval 1000. A Subscription event has no node of its own, so its Event Device ID is not used.

  4. Link the properties to the event and set their extended data:

    Event property isTrigger samplingInterval queueSize
    BatchId true 1000 1
    Temperature false 1000 1

    Table 4: Properties of the BatchLoaded event

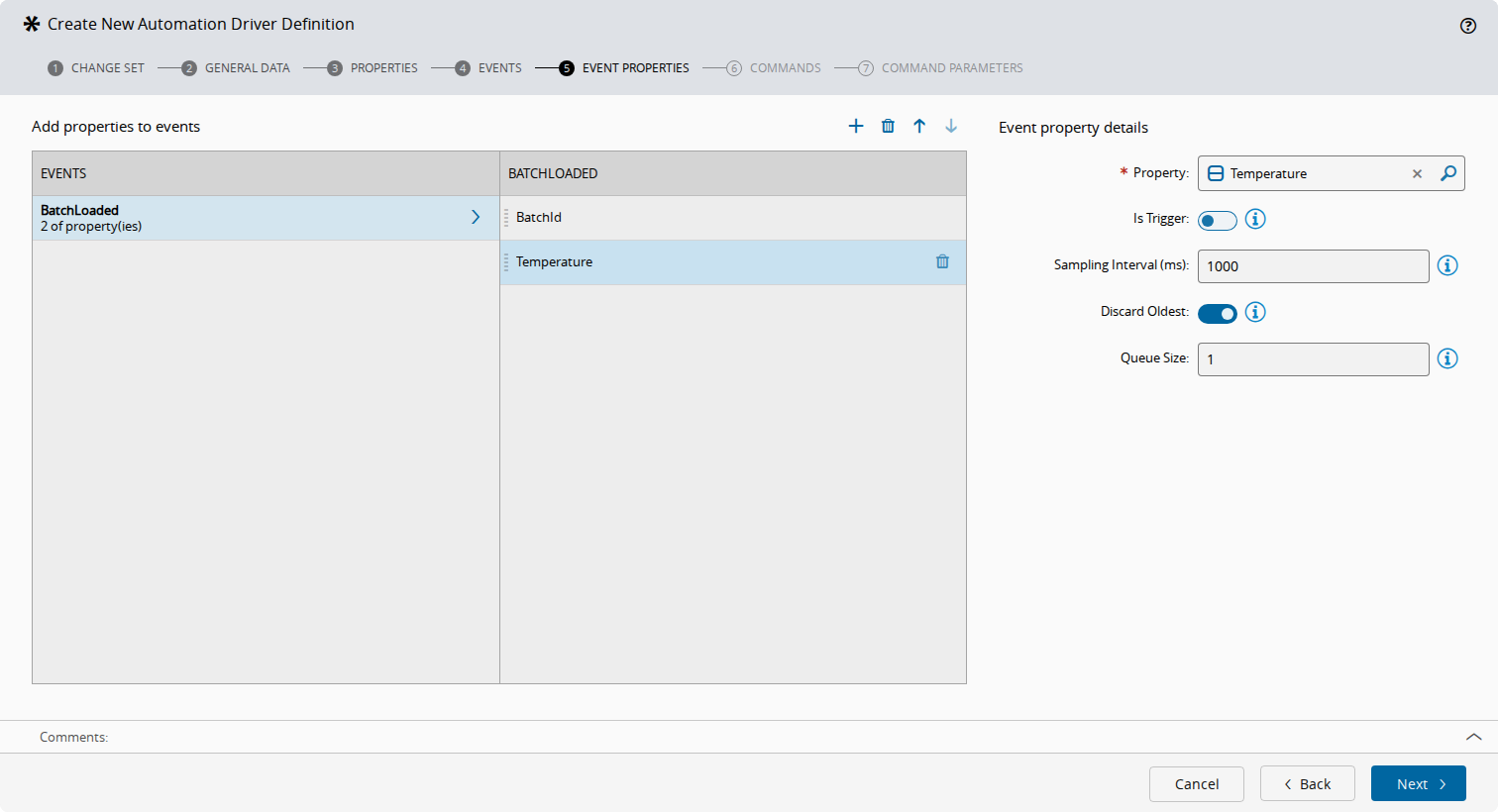

    Event Properties step with BatchId as trigger and Temperature not as trigger

  5. Add a command, such as StartBatch, with the NodeId (Command Device ID) ns=2;s=Machine.StartBatch and the Object Identifier (extended data objectDeviceId) ns=2;s=Machine.

  6. Add the command parameters in the order of the input arguments of the method: BatchId (Type String, Protocol Data Type String), then Temperature (Type Decimal, Protocol Data Type Double). Select Create.

When the setup of the connection completes, the driver creates one subscription for the event, published every publishingInterval, with one monitored item for each property, sampled every samplingInterval. Only a change of a trigger property fires the event. Temperature travels with each occurrence without firing it. The first value the server reports after the subscription is the starting point and does not fire the event, and a value equal to the previous one is not a change. The driver reports the state, not every transition: changes faster than samplingInterval, or several changes between two publishes with queueSize 1, are lost.

OPC UA calls a method on an object, so a command needs two NodeIds: the method in the Command Device ID and its parent object in objectDeviceId. The workflow hands the arguments to the driver by name, and the driver passes them to the method by position, in the order of the command parameters. Parameters in the wrong order send each value to the wrong argument, and nothing fails when the types happen to fit.

Info

An event of eventType Event or Alarm subscribes to an OPC UA event type instead of value changes. Its Event Device ID is the NodeId of the event type, and serverNodeId names the object that emits it. serverNodeId has no default node: set i=2253 for the Server object. The device ID of each of its properties is written <namespace index>:<BrowseName>, such as 2:Temperature.

Step 2: Create the Controller and Set the Connection Parameters#

  1. Create an Automation Controller, such as Furnace Controller, with the Scope Connect IoT, the Workflow Type Data Flow, the Entity Type Resource, and one driver definition, Furnace, with Furnace OPC UA. See Create Automation Controller.
  2. On the Setup page, open the settings of the Equipment Configuration task and set the parameters on the Communication Parameters tab:

    Parameter Value Effect
    address opc.tcp://localhost:4840 The endpoint of the server, opc.tcp://<host>:<port>[/<path>].
    user, password Empty (default) Opens an anonymous session. Set both for user name authentication.
    securityPolicy, securityMode None (default) Neither signs nor encrypts.
    certificatesRootFolder Default Keeps the client certificate and the trusted and rejected server certificates. ${temp} is the temporary folder and ${id} the driver instance.
    defaultTransactionTimeout 15000 (default) Milliseconds that one request to the server may take.

    Table 5: Communication parameters of the OPC UA connection

  3. Keep Automatic Setup enabled on the Driver Event task and save the controller.

The driver subscribes the events of the definition only when the setup completes. If Automatic Setup is disabled and no workflow sends SetupSuccess on OnSetup, the connection times out in Setup again and again, and every event stays silent.

When the server requires security, use the securityPolicy Basic256Sha256 with the securityMode Sign or SignAndEncrypt. The server must then trust the client certificate: the one in certificate and privateKey, or the one the client generates under certificatesRootFolder. Have it trusted before the first connection. The driver reads the security settings when it receives the communication parameters, and a reconnect reuses them, so restart the controller instance after you change one.

Step 3: React to a Loaded Batch and Read the Setpoint#

Create a Data Flow page, such as Batch Start, and add the following tasks for the driver Furnace:

Task Settings to set Inputs/Outputs to link
On Equipment Event On Equipment Event BatchLoaded -
Get Equipment Properties Output Equipment Property Setpoint Activate from the event Success
Log Message Mode RawText message from Get Equipment Properties Setpoint; Activate from Get Equipment Properties Success

Table 6: Tasks that react and read

Get Equipment Properties reads the node from the server when the task runs, whatever the subscription has seen, and converts the value to the Type of the property. The event value of Temperature, by contrast, is as fresh as the last sample. A read of a NodeId that does not exist does not fail: the property has no value, and its original value carries the quality Bad. Set the Output Type of the output to RawValue to receive the original value, with its quality and statusCode. When a property stays empty, check its NodeId against the server first.

Step 4: Write the Batch Setpoint#

Add a Set Equipment Properties task for the driver Furnace. On its Inputs tab, add the Equipment Property Setpoint with the Default Value 210, and link its Activate input from the Success output of the Log Message task of Step 3.

The driver converts the value to the protocol type of the node and checks its range before sending it, so a value out of range for the type fails before the server is asked. A Bad status from the server, for example on a read-only node, fails the task, and its Error output carries the status. A property that is not writable in the definition is not offered to the task unless Allow Non Writable Properties is enabled.

Step 5: Call the StartBatch Method#

Add the following tasks to the Batch Start page:

Task Settings to set Inputs/Outputs to link
Execute Equipment Command Equipment Command StartBatch; value Temperature 210 BatchId from the event BatchId; Activate from Set Equipment Properties Success
Log Message Mode RawText message from StartBatch reply, through the converter Any To String; Activate from StartBatch Success

Table 7: Tasks that call the method

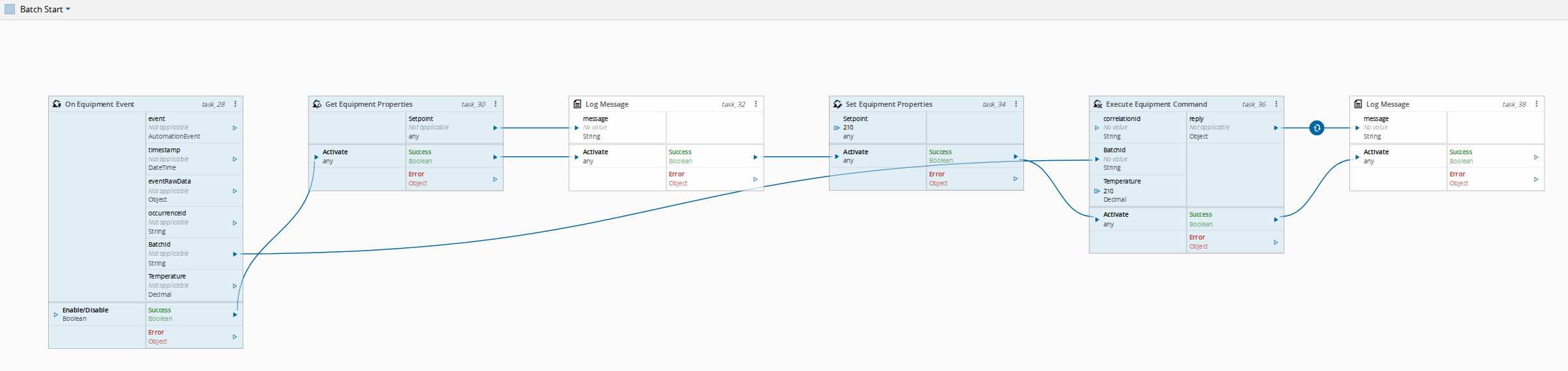

Batch Start page

The reply output carries the single output argument of the method, an array when the method has several, or true when it has none. A Bad status fails the command, and the task emits the status on Error.

Step 6: Connect the Controller and Start It#

Connect the controller to the Resource Furnace-01 and the Automation Manager, with the same Resource for the driver Furnace, as in How to Create a Controller Instance. Start the Automation Manager in console mode.

On the Connect IoT page, the driver instance reaches Communicating. If it does not reach Setup, check the address and the network path to the server. If it fails in Setup, check that the setup phase is completed, as in Step 2.

Validate the Result#

  1. With the OPC UA client, write a batch identifier, such as B-0042, to ns=2;s=Machine.Batch.Id. The console shows the setpoint the server held before, then the reply of StartBatch. On the server, ns=2;s=Machine.Setpoint reads 210, and the method received B-0042 and 210.
  2. Change only the chamber temperature. Nothing is logged: Temperature is not a trigger.
  3. Restart the controller instance on the Connect IoT page. Nothing is logged after the restart: the batch identifier already on the server is the starting value of the subscription. Write a new identifier, such as B-0043, to fire the event again.

Next Steps#

To report each batch to MES, continue with Connect IoT - Talking to MES Tutorial. To react to every transition instead of the current state, have the machine count or queue the transitions in a node of its own, and mark that node as the trigger. For other protocols, see Connect IoT - MQTT Tutorial and Connect IoT - Raw File and CSV Tutorial, and for symptoms such as an event that never fires, see Troubleshooting by Symptom.
