Connect IoT - REST Client and Server Tutorial#

Overview#

HTTP reaches a controller through two drivers, one for each direction:

Driver Direction What the driver definition holds
REST Client The controller calls an HTTP API Commands only: each command is one request (path, method, and where each parameter goes). The reply is the response body
REST Server Another system calls the controller Events and properties: each event is one endpoint, and its properties read parts of the request. The package ships the reply command

A REST Client cannot be called, and a REST Server cannot call: a controller that is asked and must ask someone else uses both, as two drivers of one controller. Neither driver reaches MES; for that, use the tasks for MES shown in Connect IoT - Talking to MES Tutorial.

In this tutorial, you build a track-in gateway. A line gateway posts POST /gateway/lot-start/<lot> and waits. The controller holds the request, asks a scheduling system GET /v2/lot-tracking/<lot>?detail=summary, and answers the gateway with the scheduling system's reply, or with 502 when the scheduling system cannot be reached. The tutorial is for integrators who completed the basic configuration tutorial and build Data Flow workflows.

Info

For more information, see Connect IoT - Rest Client and Connect IoT - Rest Server.

Before You Start#

  • Complete Connect IoT - Basic Configuration Tutorial: you need an Automation Manager that you can start in console mode, the Resource entity type enabled for Connect IoT, an integration user, and a Resource, such as Gateway-01.
  • Make the packages @criticalmanufacturing/connect-iot-driver-restclient and @criticalmanufacturing/connect-iot-driver-restserver available in the Connect IoT repository.
  • Choose a free port above 1024 on the machine that runs the Automation Manager, for example 8085. A port in use fails the connection, and a port below 1024, the default 80 included, usually needs rights that the Automation Manager does not have.
  • Prepare a stand-in for the scheduling system that answers GET /v2/lot-tracking/B-1001 with JSON, such as {"lotId": "B-1001", "state": "Staged"}. Any HTTP service you control works. For automated tests, the Test Orchestrator Rest Server simulator ↗ hosts such an endpoint.
  • Prepare a stand-in for the gateway: any HTTP client, such as curl. For automated tests, use the Test Orchestrator Rest Client simulator ↗.

Sequence of Steps#

Step 1: Create the Two Automation Protocols#

Go to Business Data > Automation Protocol and create one protocol for each package, as described in How to: Create an Automation Protocol:

  1. Create REST Client with the package @criticalmanufacturing/connect-iot-driver-restclient and keep the default parameter values.
  2. Create REST Server with the package @criticalmanufacturing/connect-iot-driver-restserver and keep the default parameter values.

Both protocols are in the Created state. You set the values below per connection in Step 4:

Protocol Parameter Value in this tutorial Why it matters
REST Client baseUrl The host of the scheduling system, such as 127.0.0.1 A host with an optional base path (api.example.com/v1), without the scheme and without a query string
REST Client protocol HTTP HTTPS for a TLS endpoint, with clientCertificate, clientPrivateKey, and certificateAuthority when the server requires them
REST Client port The port of the stand-in, such as 8090 When it is greater than 0, the driver writes it into every URL, even the usual port of the protocol: set 443 for HTTPS, or 0 to add no port
REST Client authenticationMode None BasicAuthentication, BearerToken, or APIKey, with the matching credential parameters
REST Server address 0.0.0.0 0.0.0.0 listens on every interface. An empty address listens on 127.0.0.1 only
REST Server port 8085 The free port you chose
REST Server protocol HTTP HTTPS needs certificate and key

Step 2: Describe the API You Call#

The REST Client package ships no driver definition, so every request the controller makes is a command you declare. The Endpoint Path of the command (its Command Device ID) is the endpoint path, with :<name> for each segment that varies.

  1. Go to Business Data > Automation Driver Definition, create a definition named Scheduler API on the REST Client protocol with the entity type Resource, and skip the properties and events.

  2. Add the command and its parameters:

    Entry Name Command Device ID or Type Extended data
    Command GetLotStatus /v2/lot-tracking/:lotId requestMethod GET, successfulStatusCodes 200, timeout 30000
    Parameter lotId String, mandatory operationParameters PathParameter
    Parameter detail String, default value summary operationParameters QueryParameter

  3. Select Create.

The driver builds the request from names alone: a PathParameter replaces the :<name> segment that carries its exact name, and a QueryParameter is appended under its name. A call with lotId set to B-1001 requests /v2/lot-tracking/B-1001?detail=summary on the base URL. A GET sends no body; RequestBody and RequestBodyParameter parameters apply to POST, PUT, and PATCH.

Note

List in successfulStatusCodes every status that the API answers on success, for example 200,201. A status outside the list fails the command even when the API did the work. The reply holds the response body only: the status code and the response headers are not returned.

Step 3: Describe the Endpoint You Expose#

On the REST Server, an event is an endpoint. Its Endpoint Path (Event Device ID) is the path in route syntax, starting with /, and a request to that path raises the event. Each property reads one part of the request: its Property Name (Property Device ID) is the name in the request, and its name is the name the workflow uses.

  1. Create a driver definition named Gateway Endpoint on the REST Server protocol with the entity type Resource.

  2. Add the properties:

    Name Property Device ID Type requestComponentType fullContent
    LotId lotId String Path false
    Operator badgeId String Body false
    RequestId requestId String RequestId false

  3. Add the event TrackInRequested with the Event Device ID /gateway/lot-start/:lotId and the extended data requestMethod POST, automaticReply false, and timeout 60000.

  4. Add LotId, Operator, and RequestId to the event, skip the commands, and select Create.

LotId is filled because its Property Device ID matches the route segment :lotId. RequestId carries the identifier that the driver gives each request, and it is the only way a reply finds its request. With automaticReply false, the driver holds the request until the workflow replies or the event timeout passes. With the default true, the driver answers 200 with an empty body as soon as the event is raised, which suits a push that only expects an acknowledgment.

You declare no command: the package ships the command Request Reply Command (device ID RequestReplyCommand), with the parameters RequestId, StatusCode (default 200), and Body.

Execute Equipment Command lists the commands of the protocol together with those of the driver definition, so it offers Request Reply Command even though the definition does not declare it.

Step 4: Create the Controller with Both Drivers#

  1. Create an Automation Controller named Track-In Gateway with the Scope Connect IoT, the entity type Resource, and the Workflow Type Data Flow.

  2. In the driver definitions step, add Scheduler with the Scheduler API definition and Gateway with the Gateway Endpoint definition, give each a different color, and keep the core task package.

    The Setup page holds, for each driver, a Driver Event (OnInitialize), an Equipment Configuration, and a Driver Command (Connect) task, already linked.

  3. In the Communication Parameters tab of each Equipment Configuration task, set the values from the table in Step 1, and select Save.

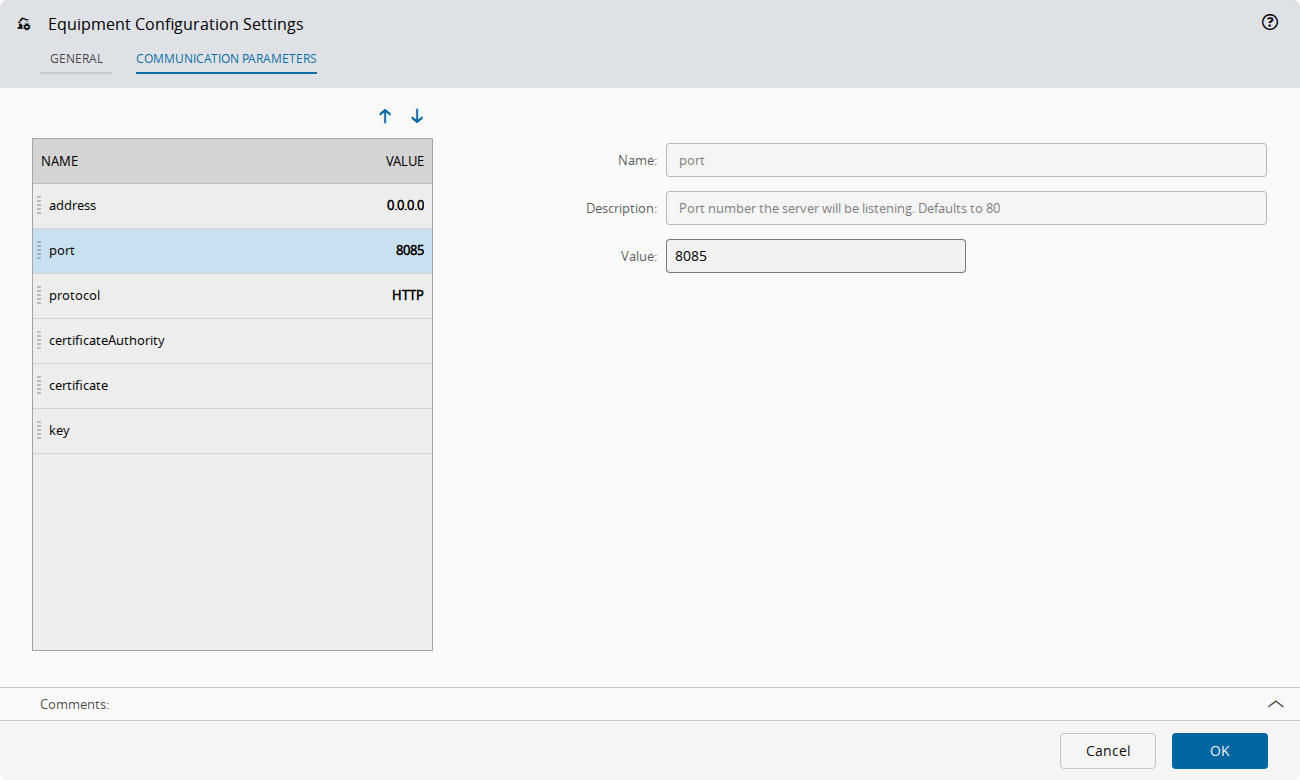

    Communication Parameters tab of the Gateway Equipment Configuration

Info

For more information, see Create Automation Controller and Create the Setup Workflow.

Step 5: Build the Track-In Workflow#

Add a workflow page named Track-In, place the tasks below, and link them as listed. When you drop an equipment task, choose the driver shown in the table.

Task Settings to set Inputs and outputs to link
On Equipment Event (driver Gateway) On Equipment Event: TrackInRequested -
Execute Equipment Command, named Ask the scheduler (driver Scheduler) Equipment Command: GetLotStatus LotId of the event to lotId; Success of the event to Activate
Execute Equipment Command, named Answer the gateway (driver Gateway) Equipment Command: Request Reply Command RequestId of the event to RequestId; reply of Ask the scheduler to Body; Success of Ask the scheduler to Activate
Execute Equipment Command, named Refuse the request (driver Gateway) Equipment Command: Request Reply Command; on Command Settings, StatusCode 502 and Body {"accepted": false} RequestId of the event to RequestId; Error of Ask the scheduler to Activate

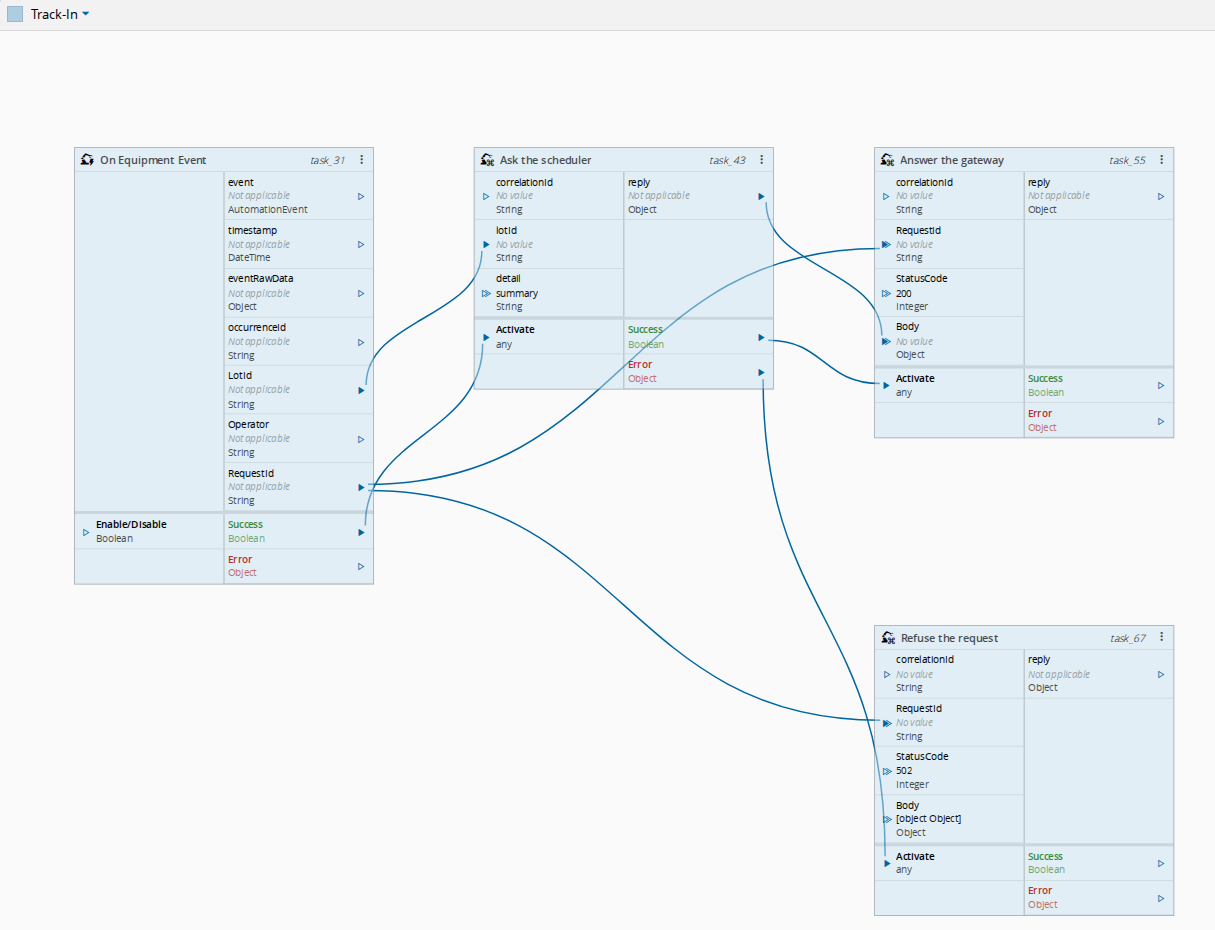

Track-In page

Select Save. Each request now follows one of two paths. When the scheduling system answers within the 30000 milliseconds of the command timeout, its parsed body goes back to the gateway with 200. When the call fails, Refuse the request answers 502 at once, so the gateway does not wait for the event timeout and then receive 500. All the work between the event and the reply must fit within the event timeout.

Step 6: Connect the Instance and Start the Manager#

  1. Connect the controller to the Resource Gateway-01 and to your Automation Manager, and select the same Resource for both drivers, as described in How to Create a Controller Instance.
  2. Start the Automation Manager in console mode.

In Automation > Connect IoT, both driver instances reach Communicating. For the REST Client, this state says nothing about the scheduling system: connecting sends no request, and an unreachable server shows only as the error of a command. The REST Server listens from the moment it connects, and registers the routes of its events only when the setup completes.

Validate the Result#

  1. Start the scheduling system stand-in.

  2. From any machine that reaches the Automation Manager, send a track-in request:

    curl -i -X POST http://<manager-host>:8085/gateway/lot-start/B-1001 -H "Content-Type: application/json" -d "{\"badgeId\": \"OP-17\"}"

    The answer is 200 with the body of the scheduling system, such as {"lotId": "B-1001", "state": "Staged"}. The Automation Manager console shows the event TrackInRequested, the command GetLotStatus, and the command Request Reply Command.

  3. Stop the scheduling system stand-in and send the same request.

    The answer is 502 with {"accepted": false}, right after the failed call to the scheduling system.

Troubleshooting#

Symptom Cause Fix
Every command fails, although the API answers from a browser protocol is HTTPS and port is still 80, or baseUrl holds a scheme Write baseUrl as a host without a scheme, and set port to the real port (443) or 0
The API does the work and every command still reports Error The API answers a status outside successfulStatusCodes, such as 201 or 204 List every success status, for example 200,201
Every request is answered 404 The Event Device ID is not a path starting with /, the request arrived before the setup completed, or two events share a path and only the first one is matched Give each event its own path, starting with /
The caller waits the whole event timeout and receives 500 with Timeout occurred while waiting for a reply to your request! The event has no RequestId property, the reply task does not receive it, or a path of the workflow ends without a reply Link RequestId into every reply task, and reply on the failure path too
LotId is empty, and Ask the scheduler fails The Property Device ID of the Path property does not match the route segment Use the segment name, lotId for :lotId
A reply fails with Unable to find a pending request with id '<id>'. Maybe it timed out? The reply was sent after the event timeout, or twice for one request Keep the work within the timeout and send one reply per request

Next Steps#

Reuse the same pattern for HTTPS by setting protocol, port, and the certificate parameters of each driver, and set authenticationMode with its credentials when the API requires them. To build the same flow in Control Flow, use the TrackInRequested event as the trigger and place the command and the reply in its handler; see Connect IoT - Control Flow Configuration Tutorial. In 12.0, the connect.iot.driver.template topics of both REST drivers are deprecated and log a deprecation warning on each message, so declare every endpoint in the driver definition. To exchange data with MES itself, continue with Connect IoT - Talking to MES Tutorial, and for socket devices, see Connect IoT - TCP/IP Tutorial.
