Connect IoT - TCP/IP Tutorial#

Overview#

The TCP/IP driver serves simple devices that exchange text or fixed-size frames over a socket, such as barcode readers, scales, label printers, and test rigs with a line-based protocol. It works at the transport level only:

  • A parser cuts the incoming byte stream into frames.
  • Every frame is tested against every property of the driver definition, and an event fires when one of its trigger properties takes the frame.
  • A command sends a frame built from its device ID, its parameters, and the framing tokens you configure. It can wait for one answer, the next frame that arrives, and the driver does nothing more to match an answer to its question.

A device with sessions, message identifiers, or acknowledgments of its own needs its own driver, or the SECS/GEM driver for a GEM tool.

The connection has two modes, which describe the role of the driver, not the role of the device:

mode The driver Use it when What to know
Active Connects to host:port The device listens on a port The socket closing moves the connection to Disconnected, and the driver reconnects
Passive Listens on host:port for up to maxClients devices The device connects to a host on its own, as most readers configured with a host address do A device leaving does not change the communication state, and every command goes to every connected device

In this tutorial, you integrate a packing station, such as Station-01, that connects to the controller and sends one line per scanned case, ended by CR LF. For each case, the controller asks the station for the weight with W, logs the answer, such as S 12.50 kg, and acknowledges the case with OK. The tutorial is for integrators who completed the basic configuration tutorial and build Data Flow workflows.

Info

For more information, see Connect IoT - TCPIP Driver.

Before You Start#

  • Complete Connect IoT - Basic Configuration Tutorial: you need an Automation Manager that you can start in console mode, the Resource entity type enabled for Connect IoT, an integration user, and a Resource, such as Station-01.
  • Make the package @criticalmanufacturing/connect-iot-driver-tcpip available in the Connect IoT repository.
  • Choose a free port on the machine that runs the Automation Manager, for example 7420.
  • Prepare a stand-in for the station: a TCP terminal that connects to that port and sends and receives lines ended by CR LF. This tutorial uses Ncat, the command-line networking tool of the Nmap project. On Windows, install Nmap ↗, which includes Ncat. On Linux, install Ncat with the package manager of your distribution. The command ncat --crlf <manager-host> 7420 connects to the port on the host of the Automation Manager, and --crlf ends each line that you send with CR LF.

Alternative TCP Terminals

Any other TCP terminal that sends CR LF, such as PuTTY in Raw mode, works as well.

Automated Tests

To automate the checks for this tutorial, write a Test Orchestrator test that uses the TCP/IP Client simulator, which dials a Passive driver, or the TCP/IP Server simulator ↗, which listens for an Active driver.

Sequence of Steps#

Step 1: Create the Automation Protocol#

Go to Business Data > Automation Protocol and create a protocol named TCP/IP with the package @criticalmanufacturing/connect-iot-driver-tcpip, as described in How to: Create an Automation Protocol. Keep the default parameter values; you set the values below for the connection in Step 3.

Parameter Value in this tutorial Why it matters
mode Passive The station connects to the driver
host 0.0.0.0 In Passive mode, the address to listen on. In Active mode, the address of the device
port 7420 In Passive mode, 0 lets the operating system choose a port, which the driver log shows
maxClients 1 Keep 1 whenever the workflow sends commands, because a command goes to every connected device
socketEncoding ascii How the bytes on the socket become text before the parser reads them
parserType Readline How the stream is cut into frames
delimiter \r\n The line end of the station, removed from each frame

Choose the parser from the way the device ends a message. A wrong parser never completes a frame, so no event fires, or it splits one message into several:

Device parserType Parameters it reads
Ends each message with a line end or another fixed sequence Readline or Delimiter delimiter
Sends frames of a fixed size ByteLength byteLengthNumber
Ends a message with a pattern Regex delimiter, read as a regular expression, and encoding
Stops sending at the end of a message InterByteTimeout timeoutValue, maxBufferSize

For Readline, Delimiter, and Ready, only the first \r, \n, and \t of delimiter are converted into control characters, so \r\n\r\n is not a valid delimiter, and a token such as <ETX> is matched as the five characters it contains. For a control character other than a line end, the Regex parser reads delimiter as a regular expression, where \x03 names ETX, provided socketEncoding is a text encoding, such as ascii. Test such a configuration against the device before you rely on it.

Step 2: Define the Messages of the Station#

The TCP/IP package ships no driver definition, so you declare every property, event, and command from the message format of the device. The identifierType of a property decides which frames it takes: None takes every frame, Token takes frames that start with parserIdentifierValue, and RegularExpression takes frames that match it.

  1. Go to Business Data > Automation Driver Definition and create a definition named Packing Station on the TCP/IP protocol with the entity type Resource.
  2. Add the property CaseCode of type String, readable and not writable, with the Identifier Type (identifierType) Token and the Identifier Value (parserIdentifierValue) CASE-.
  3. Add the event CaseScanned with the Event Working Mode (workingMode) AllValues, the default, and add CaseCode to it with Is Trigger on.

  4. Add the commands, with no parameters:

    Name Command (Command Device ID) Extended data
    GetWeight W Command Structure Behavior UseCurrentCommandSettings, Message End Token <CR><LF>, Convert Non Printable ASCII Chars on Send Value on, Reply Expected on, Reply TimeOut (ms) 5000
    Acknowledge OK Command Structure Behavior UseCurrentCommandSettings, Message End Token <CR><LF>, Convert Non Printable ASCII Chars on Send Value on

  5. Select Create.

With the default Command Device ID Usage, AtBeginning, each command sends its device ID followed by the end token. The driver adds nothing at the end of a frame unless you configure it, and the conversion turns <CR><LF> into the two control characters. Without the conversion, the station receives the six characters <CR><LF>, and a \r\n typed in Message End Token is sent as four characters: only the parser delimiter understands escapes.

With Reply Expected (expectsReply), the command waits for the next frame that arrives, whatever its content, and returns it on reply. That frame is not offered to the properties, so it fires no event. While the command waits, other commands are queued. When no frame arrives within Reply TimeOut (ms), the command fails.

Note

A Token property takes only the frames of its kind. Two None properties on one connection both take every frame, and both their events fire for each frame. Writing a property, for example with Set Equipment Properties, sends nothing to the device: only a command writes to the socket.

Step 3: Create the Controller and Set the Connection#

  1. Create an Automation Controller named Packing Station with the Scope Connect IoT, the entity type Resource, and the Workflow Type Data Flow.
  2. In the driver definitions step, add Station with the Packing Station definition, and keep the core task package.

  3. On the Setup page, open the settings of the Equipment Configuration task, set the parameters from the table in Step 1 on the Communication Parameters tab, and select Save.

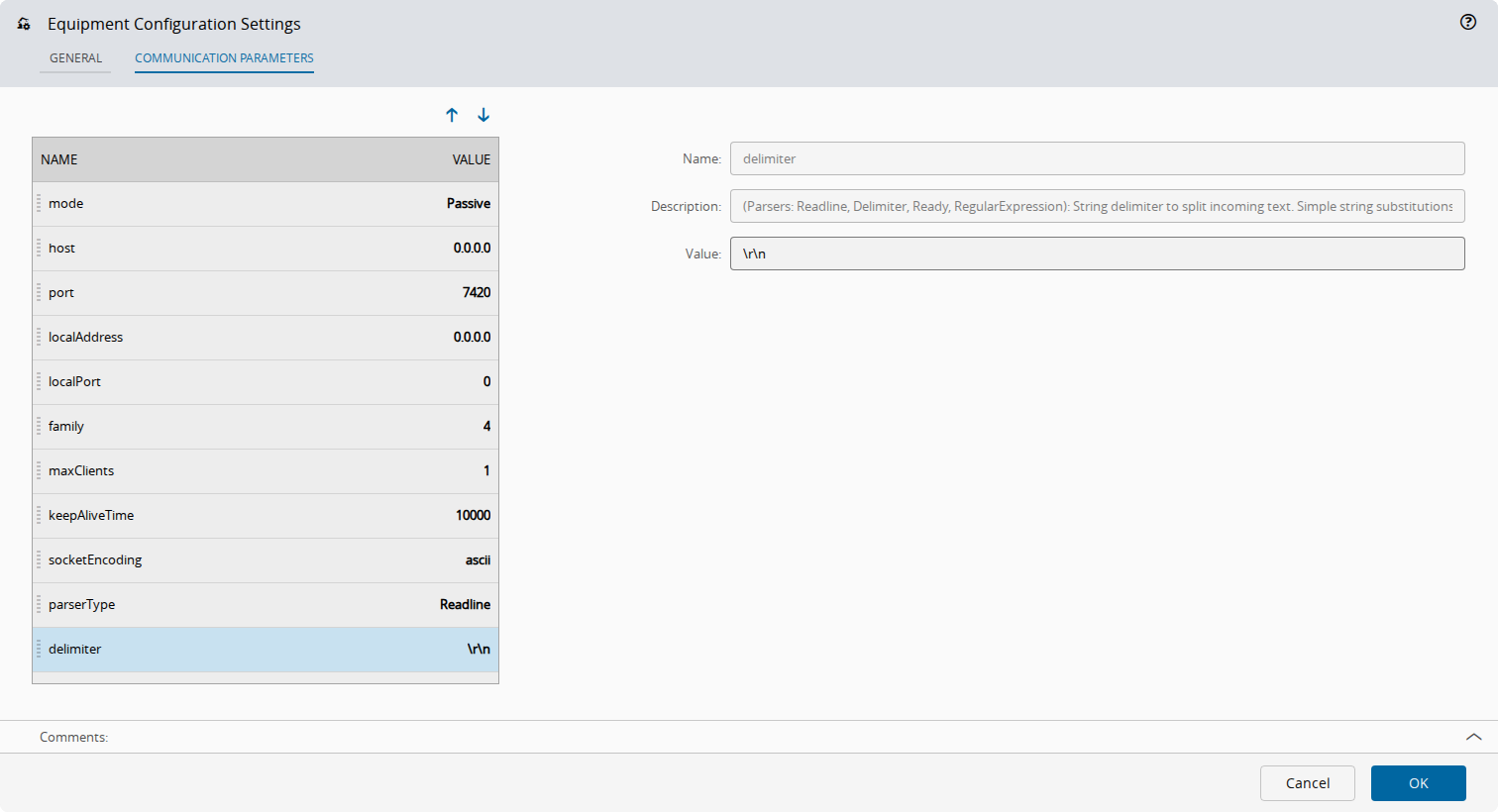

    Communication Parameters tab of Equipment Configuration

Info

For more information, see Create the Setup Workflow.

Step 4: Build the Workflow#

Add a workflow page named Weigh Each Case, place the tasks below with the driver Station for the equipment tasks, and link them as listed:

Task Settings to set Inputs and outputs to link
On Equipment Event On Equipment Event: CaseScanned -
Execute Equipment Command, named Ask for the weight Equipment Command: GetWeight; keep Timeout at 60000, longer than the Reply TimeOut (ms) Success of the event to Activate
Log Message, named Log the weight Default values reply of Ask for the weight to message, through the converter Any To String; Success of Ask for the weight to Activate
Execute Equipment Command, named Acknowledge the case Equipment Command: Acknowledge Success of Log the weight to Activate
Log Message, named Log the missing weight Default Message No weight received, Verbosity Warning Error of Ask for the weight to Activate

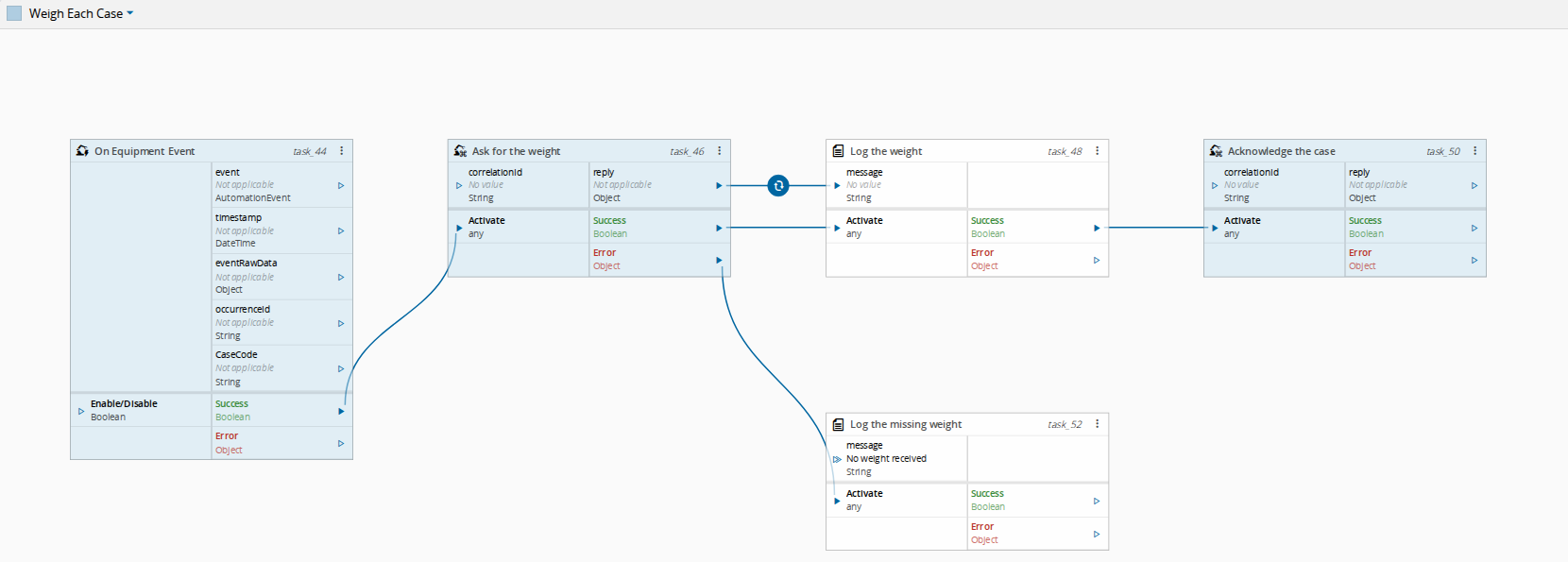

Weigh Each Case page

Select Save. The Timeout of the task is the limit of the controller; keeping it longer than Reply TimeOut (ms) makes the driver error the one reported. Success of a command means the call returned: for Acknowledge, that the frame was written.

Step 5: Connect the Instance and Start the Manager#

  1. Connect the controller to the Resource Station-01 and to your Automation Manager, and select the same Resource for the Station driver, as described in How to Create a Controller Instance.
  2. Start the Automation Manager in console mode.

The driver listens on port 7420. Until the first device connects, the driver instance does not reach Communicating, and frames that arrive before Communicating are dropped.

Validate the Result#

  1. Connect the stand-in station:

    ncat --crlf <manager-host> 7420

    The console logs Client '<id>' connected to server., and in Automation > Connect IoT the driver instance moves through Setup to Communicating.

  2. Send the line CASE-7001. The terminal shows W, the weight request of the controller.

  3. Send the line S 12.50 kg within five seconds. The console logs S 12.50 kg, and the terminal shows OK.
  4. Send the line CASE-7002, wait more than five seconds, and then send S 12.50 kg. The command fails with a message that it timed out while waiting for a reply from the device, Log the missing weight logs No weight received, and the late answer fires no event, because it does not start with CASE-.
  5. Close the terminal. The console logs Client '<id>' disconnected from server., and the driver instance stays Communicating.

Troubleshooting#

Symptom Cause Fix
No event ever fires, or two messages arrive as one The parser does not match how the device ends a message, or delimiter holds a token such as <ETX> Set parserType and delimiter from the device format; use Regex for other control characters
The device receives the command but does not react The frame has no line end, or \r\n was typed in Message End Token Write <CR><LF> and turn the conversion on, on the command or for the connection
A reply holds a message that does not answer the command The device sent another frame first, or several devices share a Passive connection Use Reply Expected only for a device that answers at once and sends nothing on its own; otherwise declare the answer as its own Token property and event
A device stopped sending and nothing reports it In Passive mode, a device disconnecting does not change the communication state Do not rely on the state of a Passive connection to detect a loss; use Active when the device listens
A command reaches every reader In Passive mode, a command is written to every connected socket Keep maxClients at 1, or give each device its own connection on its own port

Next Steps#

For a device that listens instead of connecting, set mode to Active, host to the address of the device, and port to its port; the rest of the tutorial is the same. To send every command with the same framing, set commandMessageEnd and defaultConvertNonPrintableASCIICharsOnSend as communication parameters, and keep Command Structure Behavior at UseEquipmentSetupTaskSettings. To report the weight to MES, continue with Connect IoT - Talking to MES Tutorial, and for devices that speak HTTP, see Connect IoT - REST Client and Server Tutorial.
