Same-Version Deployment#

Estimated time to read: 10 minutes

Overview#

This scenario demonstrates the complete Change Package and Global Data Orchestrator flow in Critical Manufacturing MES. A central process engineer prepares an approved cookie manufacturing model in Porto - CoE and distributes it to Dresden - Development through the Global Data Orchestrator. Both Customer Environments run MES version 12.0.

The top-level object used is the Belgas [A] BOM. The example shows how a coherent manufacturing definition moves between Customer Environments without assembling a separate file manually.

This same-version flow is the starting point for the following Change Package scenarios.

Step 1: Create a Master Data Deployment Plan#

The Master Data Deployment Plan routes the package to Dresden - Development.

1. Sign in to Customer Portal.

2. Navigate to the Global Data Orchestrator page group and select Deployment Plans.

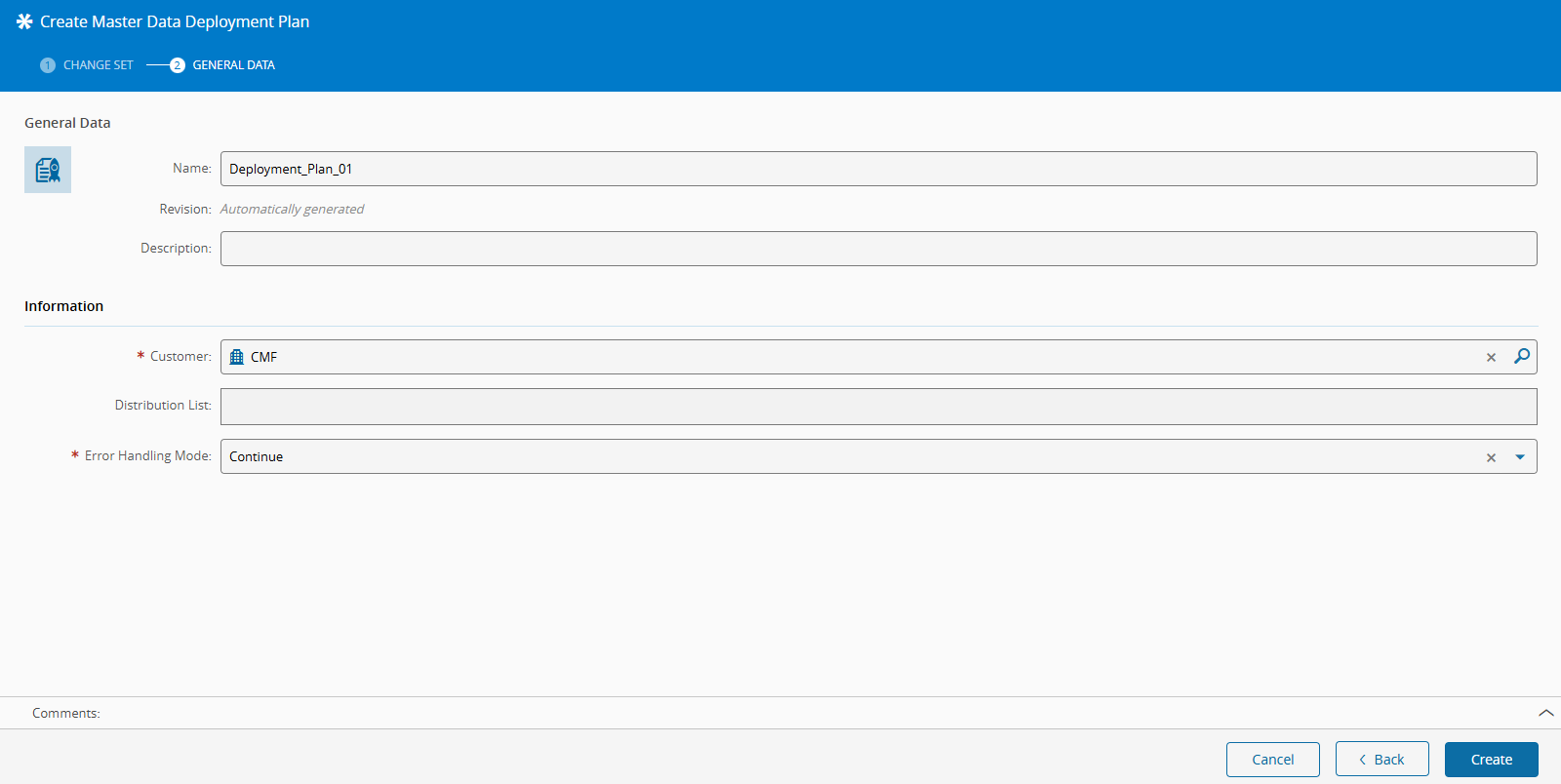

3. Select New from the action bar. Complete the Change Set step, then select Next. On General Data, configure the following fields:

   • Name: Deployment_Plan_01.
   • Customer: Select CMF.
   • Error Handling Mode: Select Continue. This mode lets the plan continue if an error occurs.

4. Select Create to complete the operation.



   The system creates Deployment_Plan_01 with a generated revision.

Step 2: Configure the Master Data Deployment Plan#

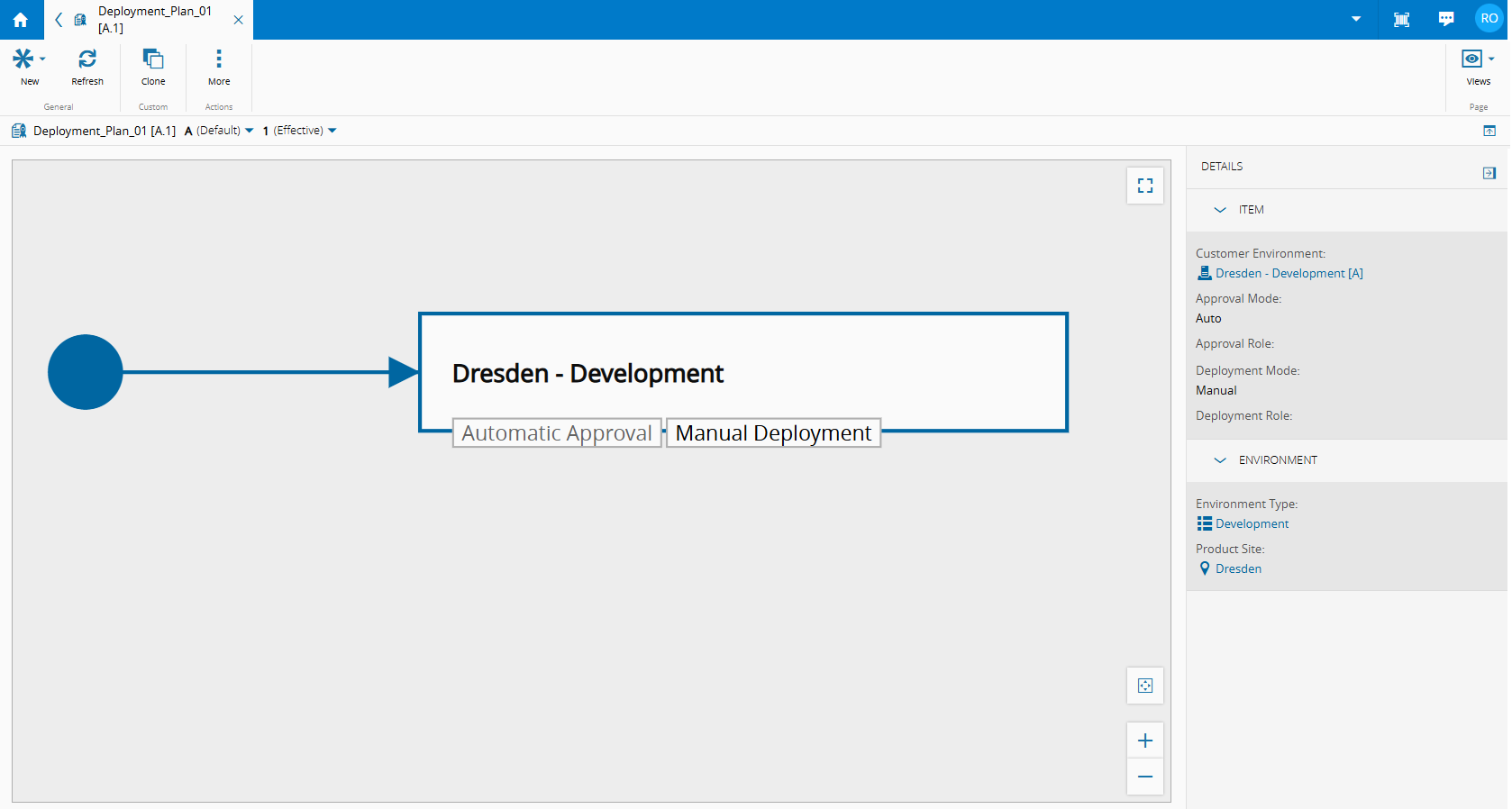

Configure one Master Data Deployment Plan Item to send the Change Package to Dresden - Development.

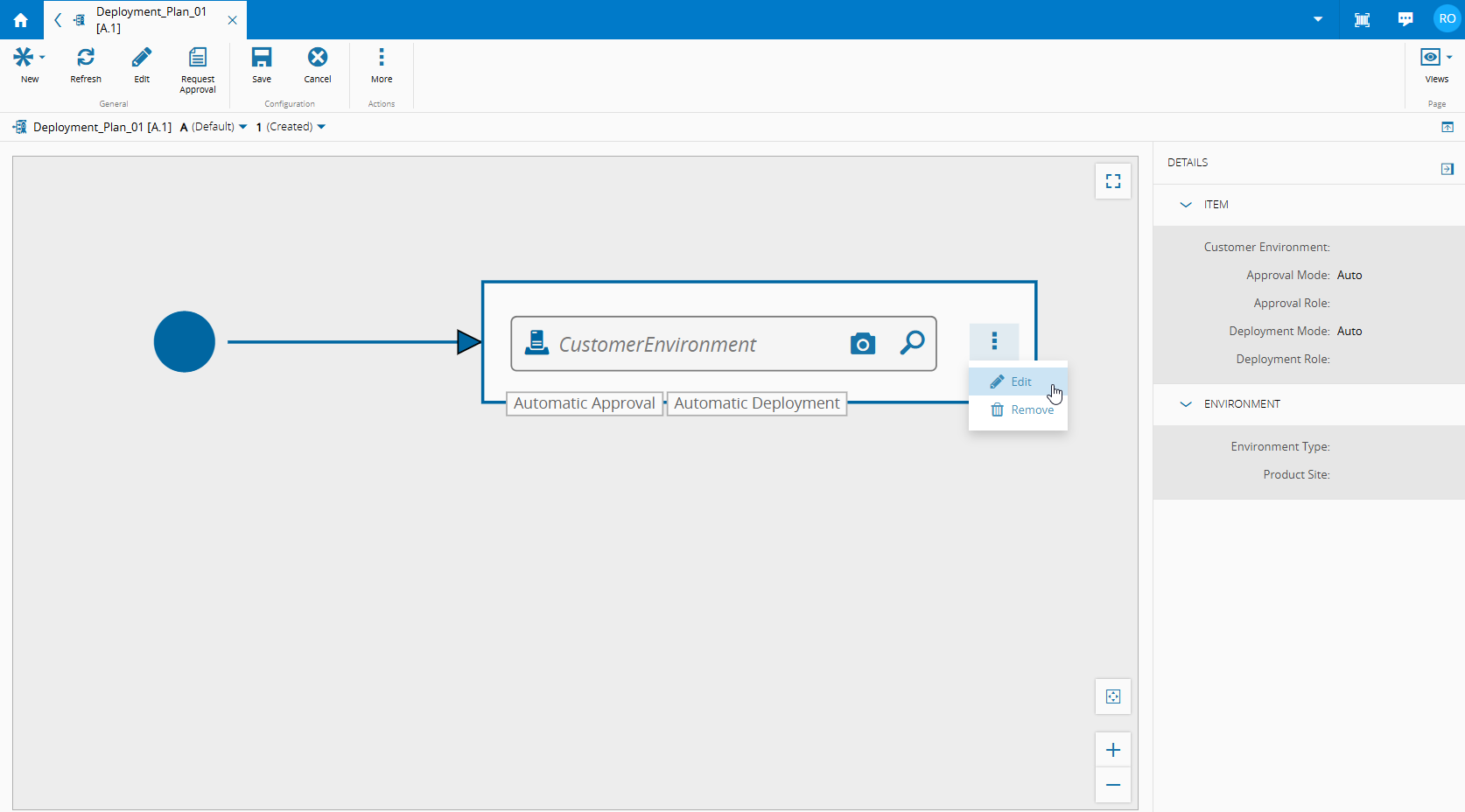

1. Pick the destination Customer Environment by using the search bar or scanning a barcode or QR code with . You can also define this by selecting , then press Edit.

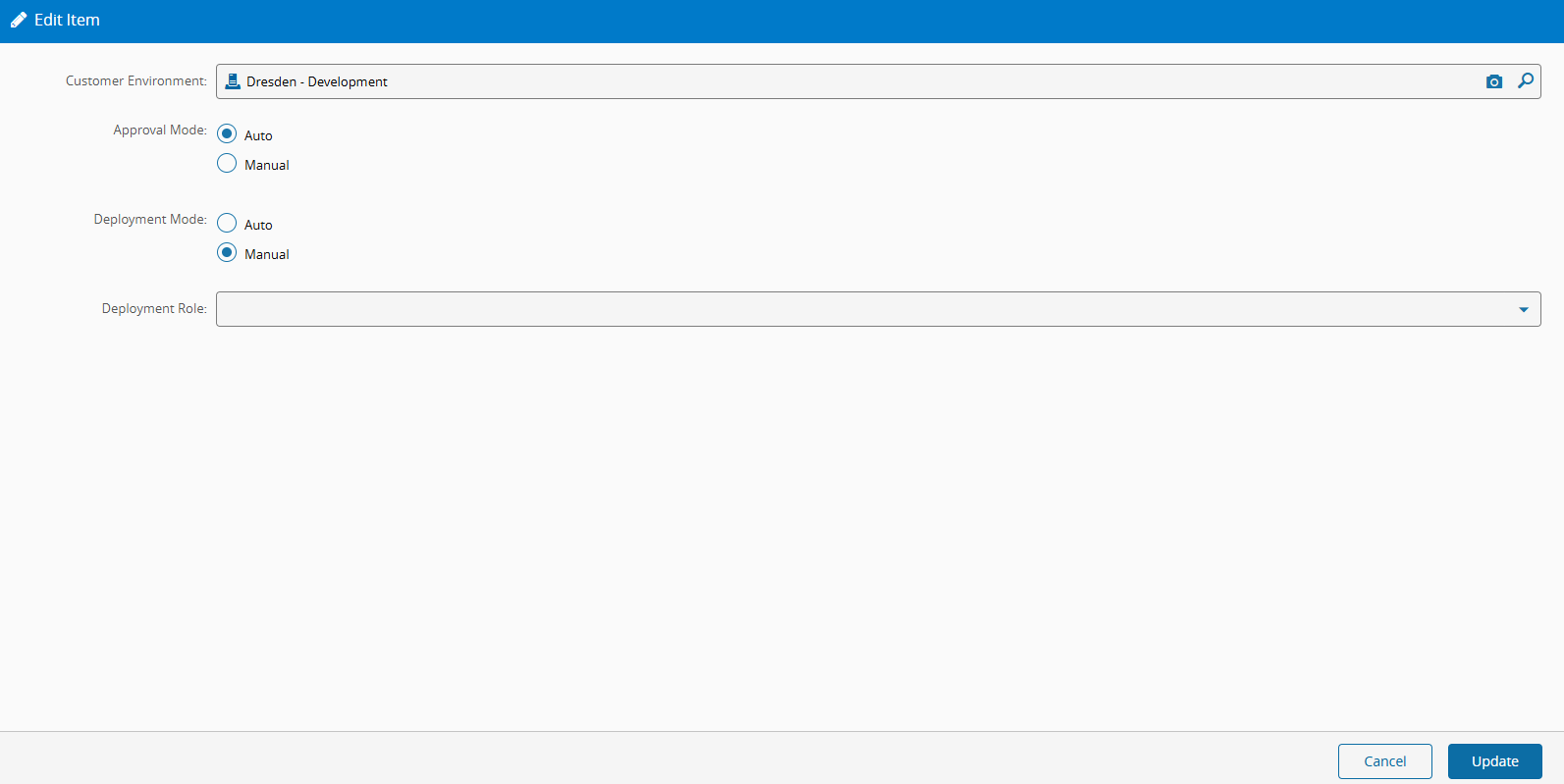

2. Select Dresden - Development as the destination Customer Environment. Set the Deployment Mode to Manual and the Approval Mode to Auto.



3. Select Update, then select Save on the action bar to apply the changes.

4. From the action bar, select Request Approval on the top ribbon, and then press Set Effective.



   The Master Data Deployment Plan is now Effective and available for selection when creating the Change Package.

Step 3: Create a Change Package#

1. Sign in to the Porto - CoE MES environment.

2. Open the Administration group page and select Change Package.



3. Select New, create the required Change Set, and then select Next.

   Useful Documentation

   • How to: Create a Change Set

   • Change Package

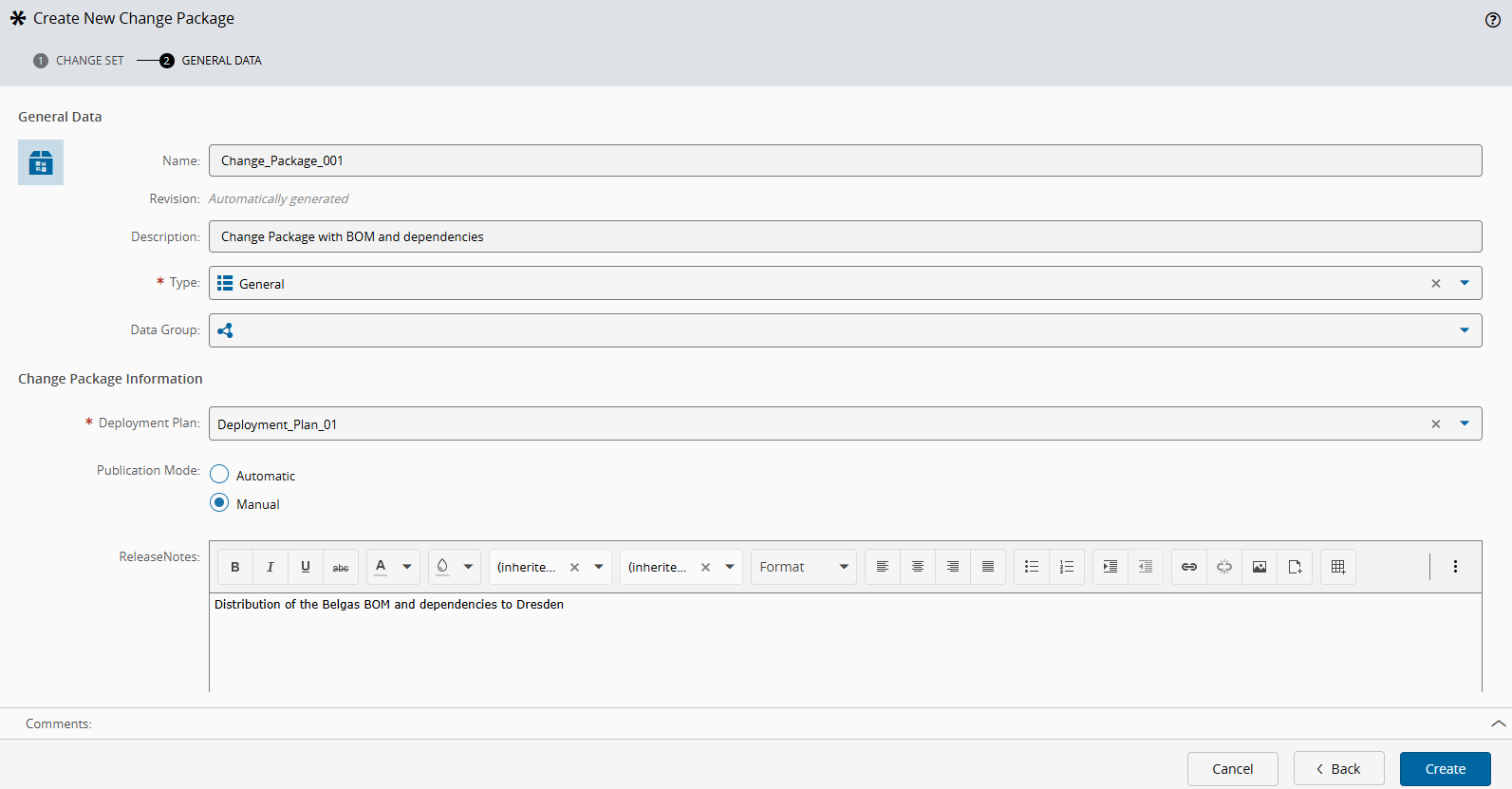

4. On General Data, enter the following values:

   • Name: Change_Package_001.
   • Description: Change Package with BOM and dependencies.
   • Type: General.
   • Master Data Deployment Plan: Deployment_Plan_01.
   • Publication Mode: Manual.
   • Release Notes: Distribution of the Belgas BOM and dependencies to Dresden.



5. Select Create to complete the operation.

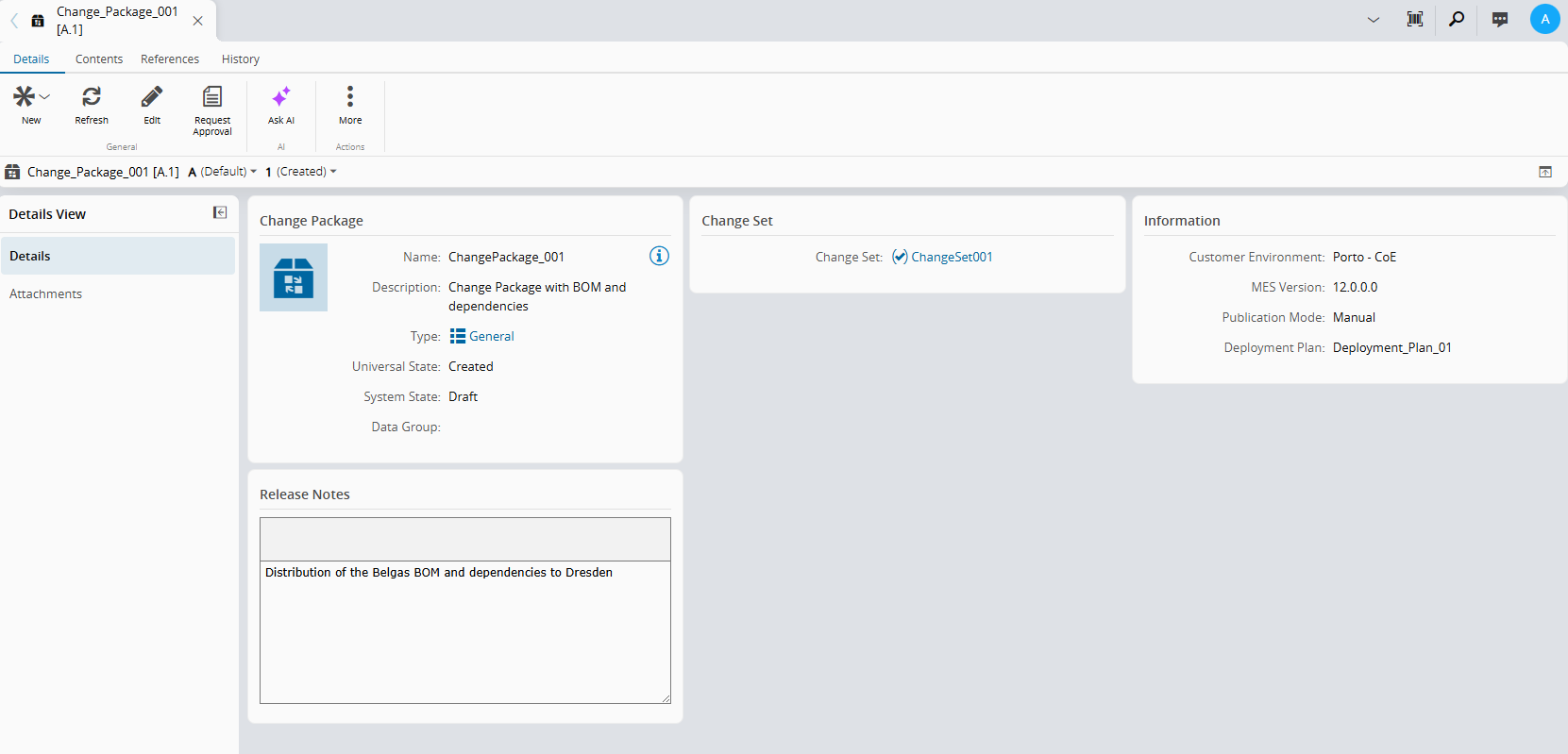

   The system creates Change_Package_001 in the Draft state. It records Porto - CoE as the Customer Environment and stores the current MES version.

Add Change Package Items#

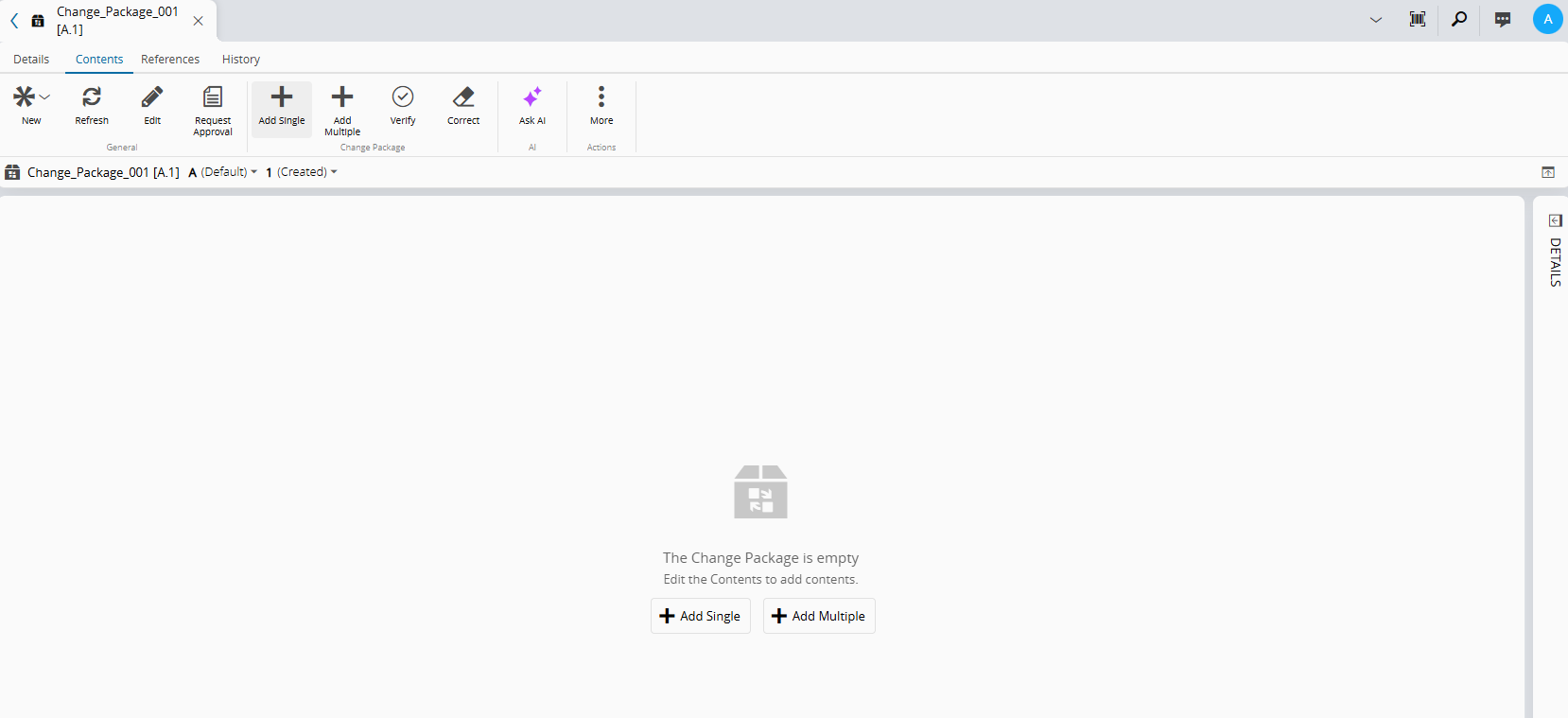

1. Open the Contents tab.

2. Select Add Single from the action bar or from the empty page section.

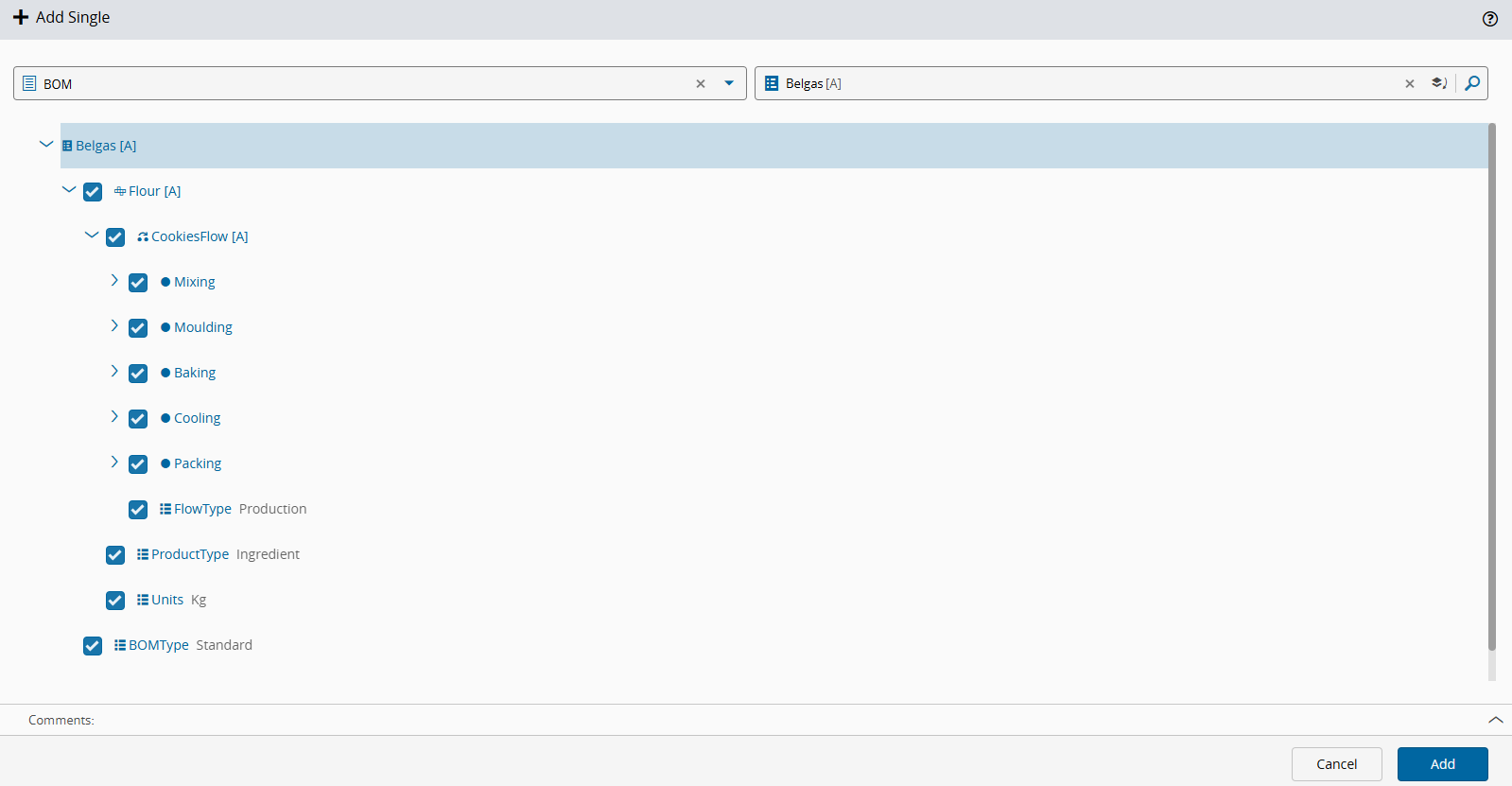

3. Select BOM as the Entity Type.

4. Select Belgas [A] as the object.

5. Optionally, expand the dependency tree and review the automatically selected items.



6. Select Add to include the selected BOM and its dependencies in the Change Package. On the Contents tab, the BOM appears as the top-level item, followed by its dependencies.

Verify the Contents#

Running Verify here is optional. The system verifies the Change Package when you request approval and before publishing. If verification reports errors, the approval request is aborted or publishing is blocked. Run Verify here to review and correct issues before requesting approval.

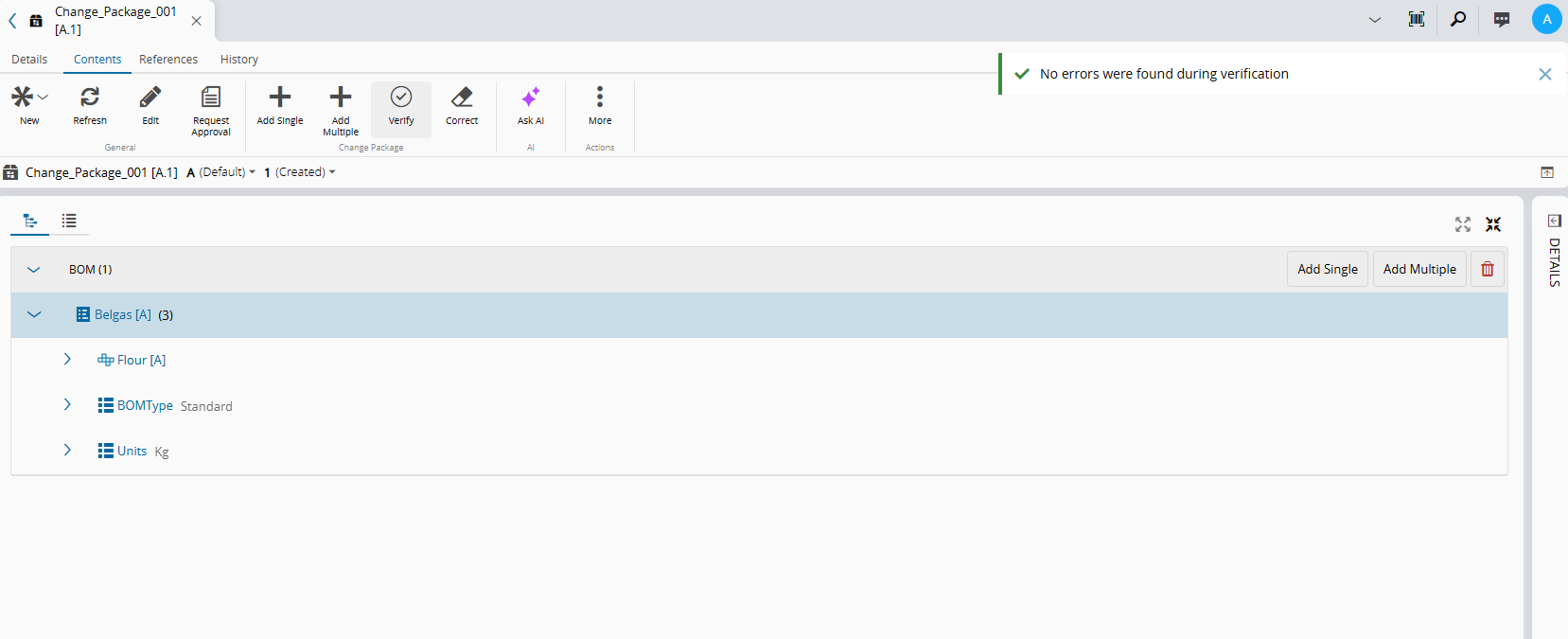

1. After reviewing the Change Package Items, select Verify from the top action bar.

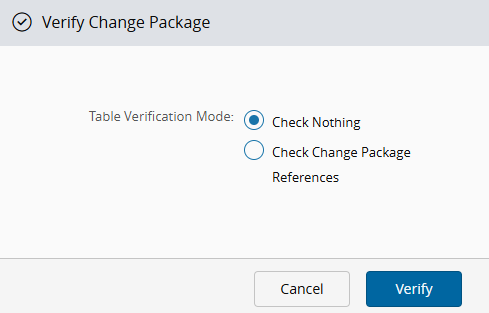

2. In the Verify Change Package wizard, keep the default Table Verification Mode (Check Nothing) and select Verify.



3. Review the verification result.



   Note

   If this verification reports invalid objects, references, or table rows, select Correct while the Change Package is still in the Created state. Review the removed branches, add any required replacement items, and run Verify again. Continue only after verification completes without errors. For more information about the Table Verification Mode options, see Verify Change Package.

Approve and Publish the Change Package#

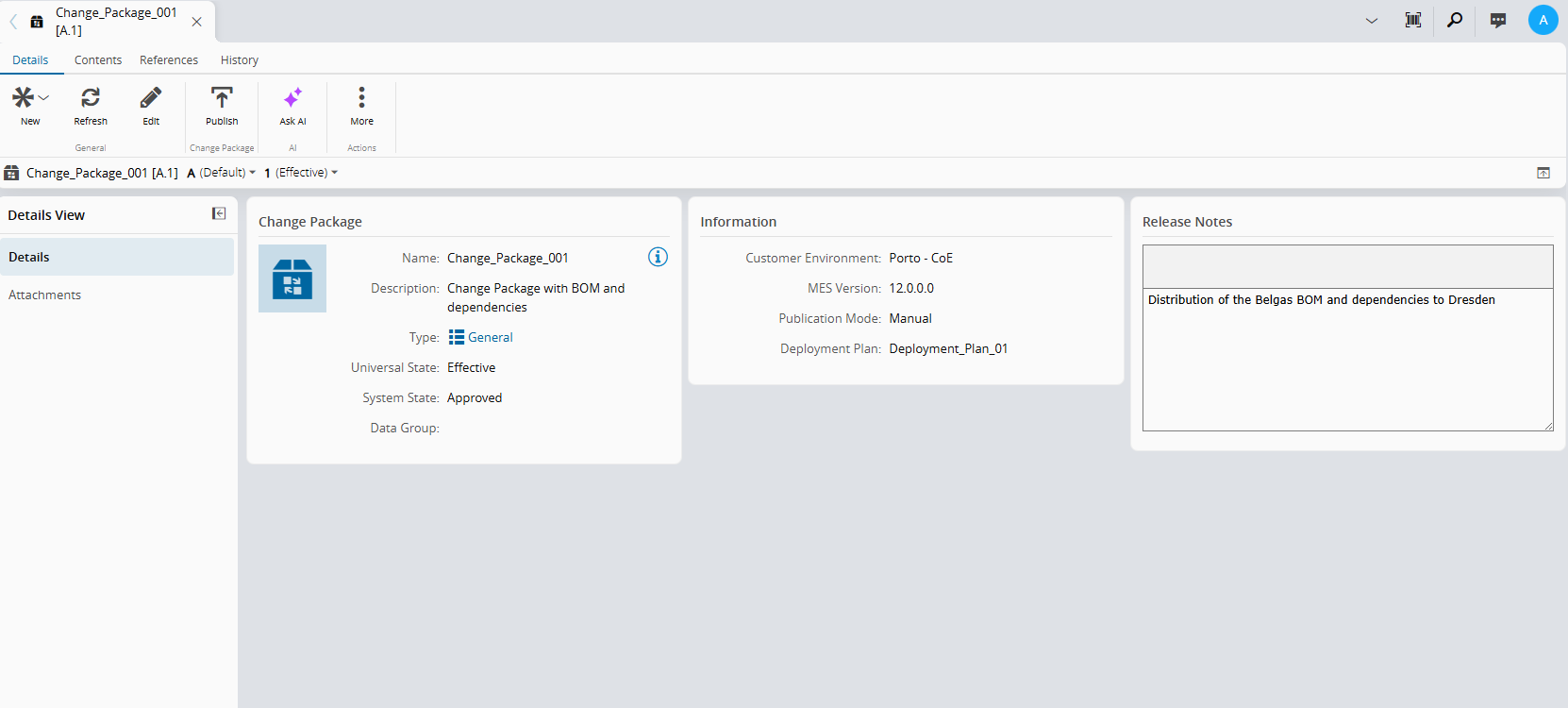

1. Select Request Approval from the top ribbon. The Change Package becomes Effective and its system state changes from Draft to Approved. Because Publication Mode is Manual, the package remains available for a separate publication action.

2. Select Publish from the action bar.

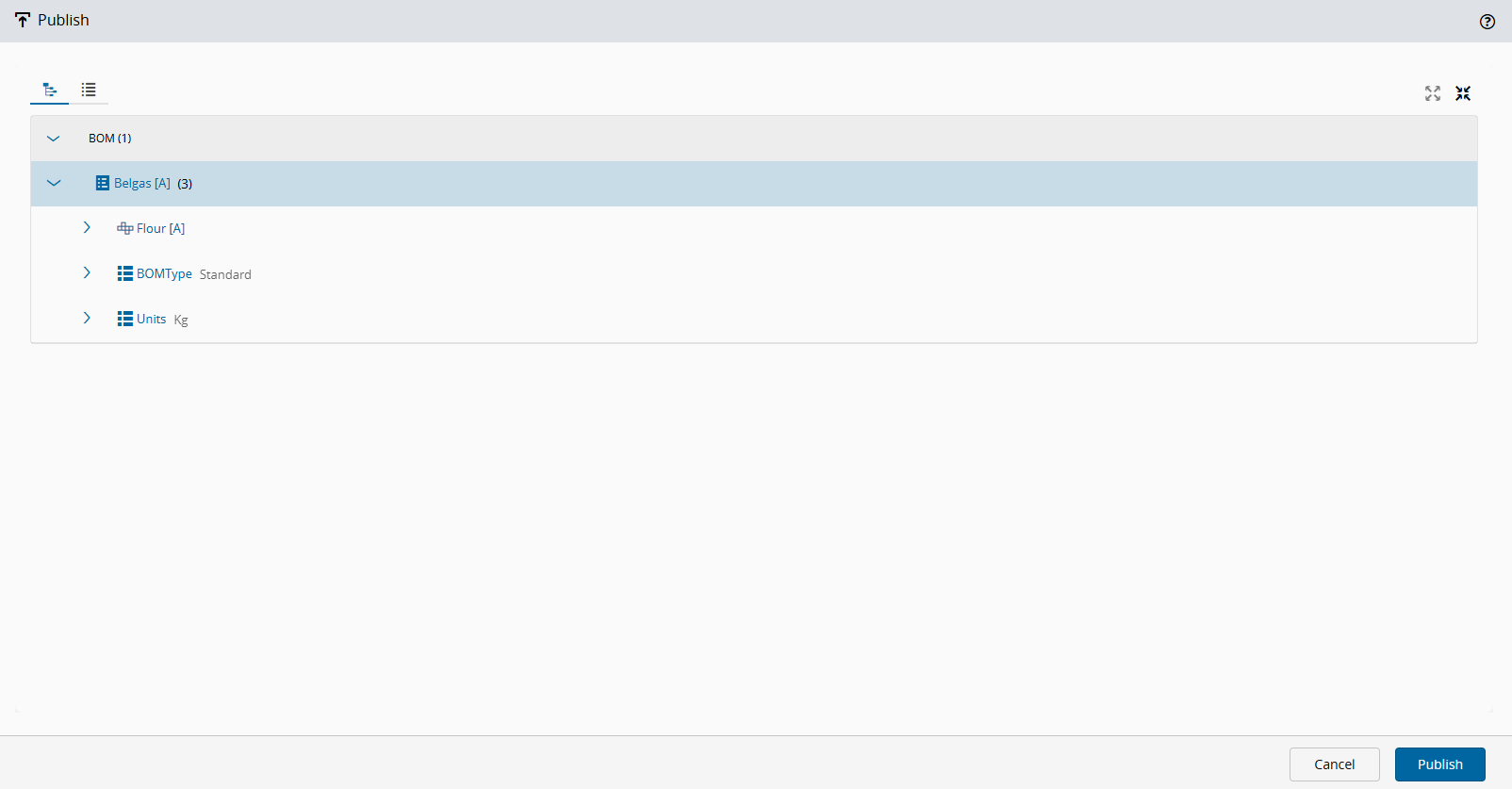

3. Review the items from the Publish wizard.

4. Select Publish.



   Info

   The source system verifies the package again and sends the publication request to the Global Data Orchestrator. When the request succeeds, it records the publisher and publication date, and terminates the Change Package after creating the corresponding Transport Package.

Step 4: Confirm Transport Package Creation#

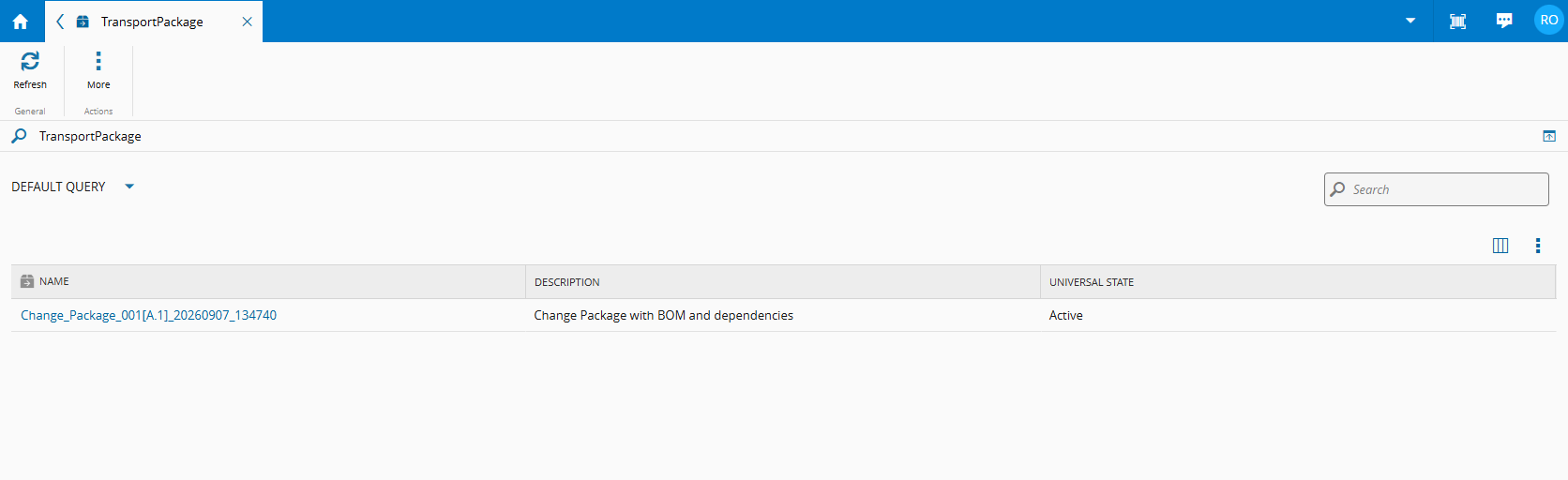

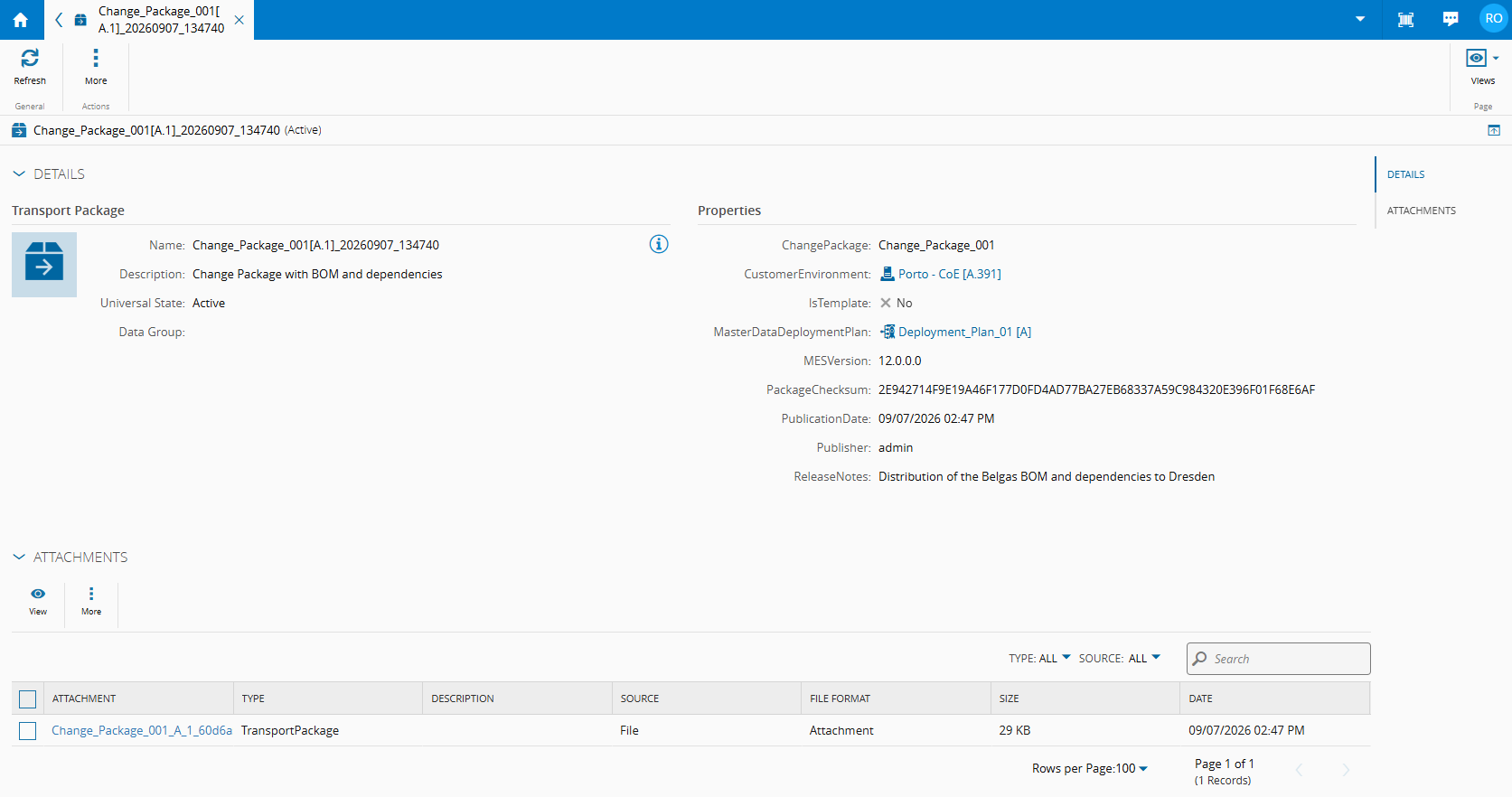

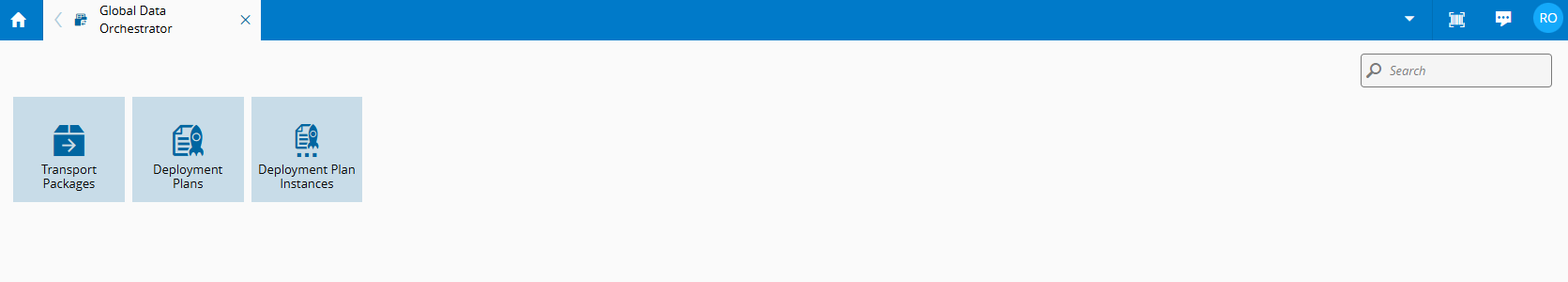

1. Open the Global Data Orchestrator in Customer Portal and access Transport Package.

2. Locate the Transport Package created from Change_Package_001.



3. Confirm the following traceability information:

   • Source Change Package: Change_Package_001 and its revision.
   • Source Customer Environment: Porto - CoE.
   • Selected Master Data Deployment Plan.
   • MES version: 12.0.0.
   • Publication date and publisher.
   • Description and release notes.

4. Confirm that the encrypted package payload and its checksum are available.



Step 5: Deploy to Destination Customer Environment#

1. Open the Global Data Orchestrator and access Deployment Plans Instances page.

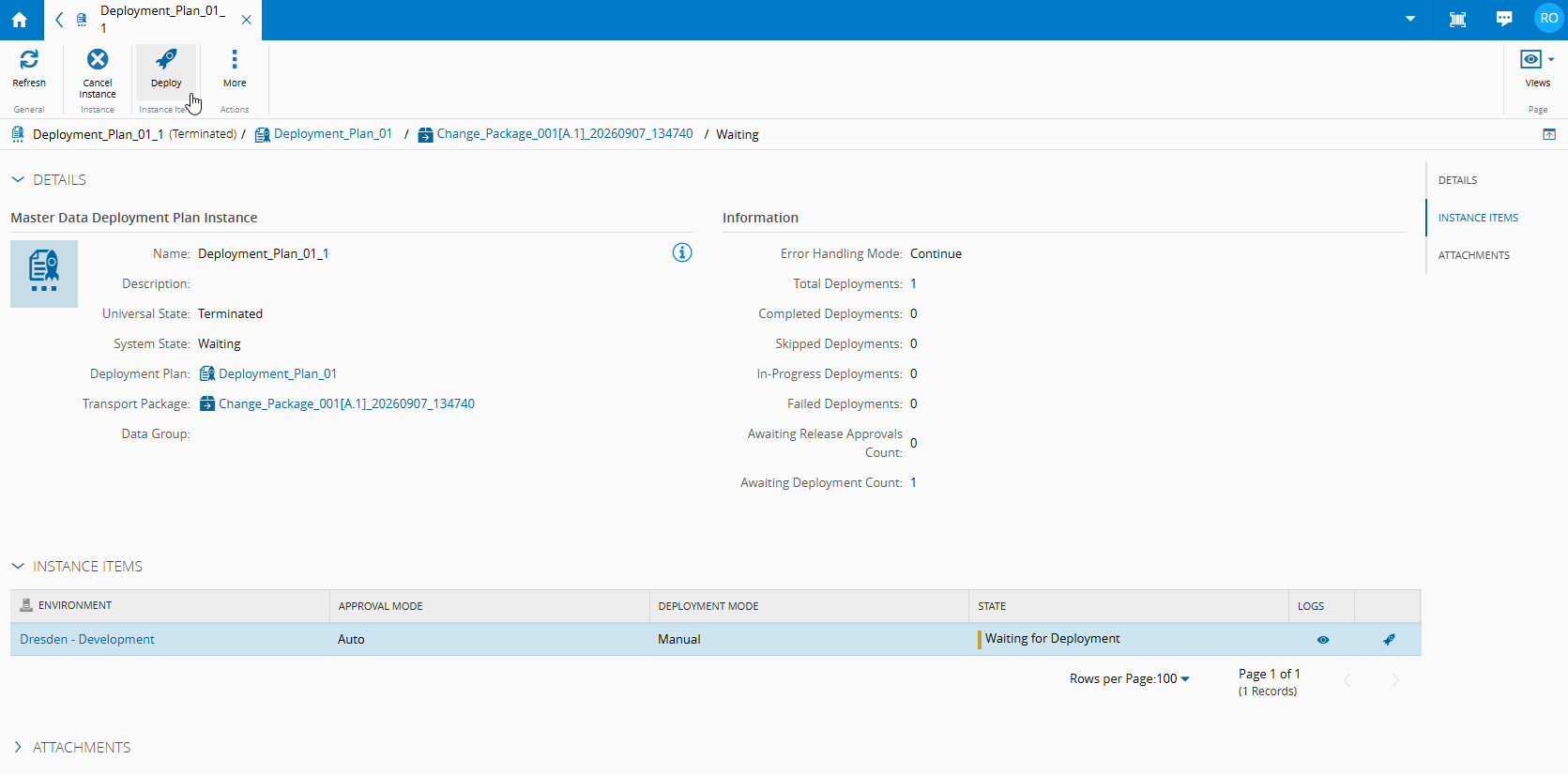

2. Open the Instance created by the Master Data Deployment Plan in Step 1 (Deployment_Plan_01_1).

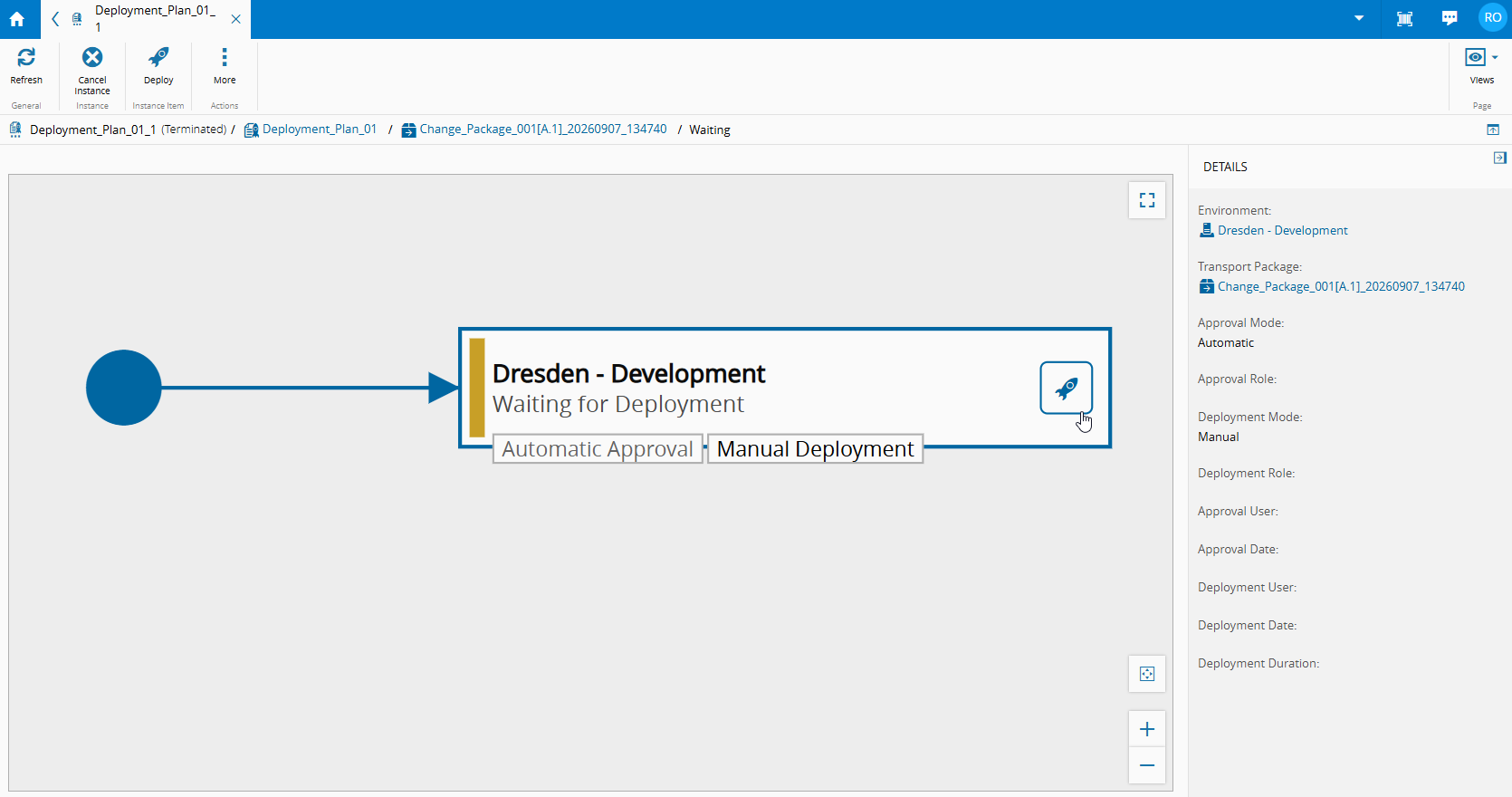

3. For this scenario, go to Views and select Diagram to deploy from the diagram.

   Note

   You can also deploy directly from the Details view. In the Instance Items section, select the Dresden - Development instance item, then select Deploy from the top action bar. Continue with the Running Mode selection in item 6.



4. Confirm that the Master Data Deployment Instance Item for Dresden - Development is in the Waiting for Deployment state and is ready for manual deployment.

5. Select Deploy on the Dresden - Development item in the diagram.

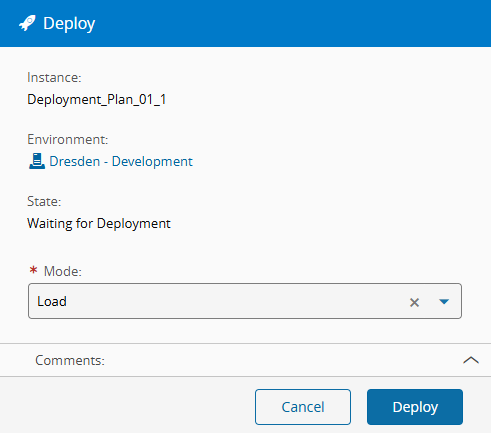

6. Select Load for the Running Mode, then select Deploy.

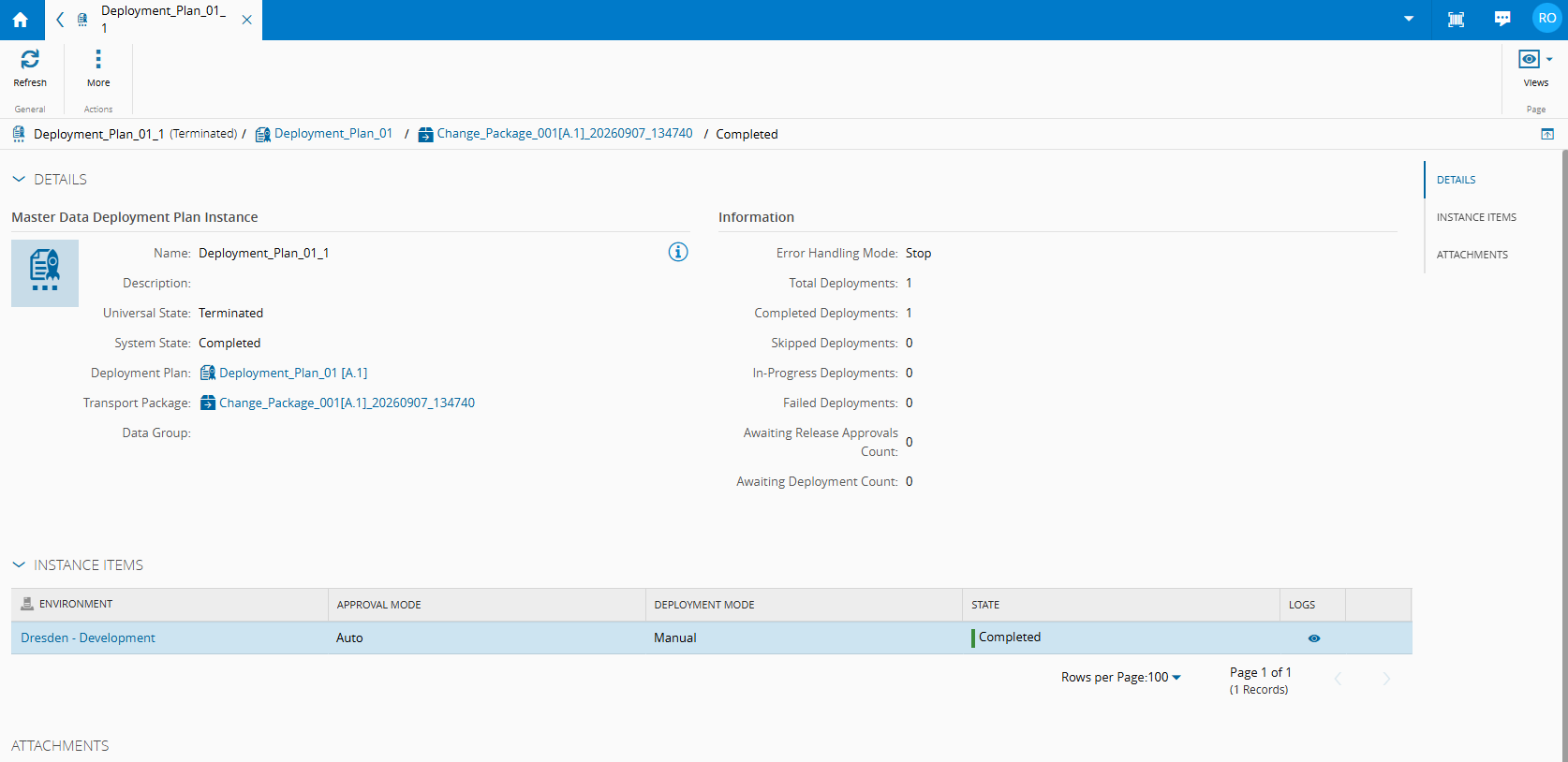

7. Monitor the deployment log until the Master Data Deployment Instance Item reaches the Completed state.



When the item reaches the Completed state, the package has been deployed to Dresden - Development. Since every Customer Environment in this scenario uses version 12.0, no package version conversion is performed by the system.

Step 6: Validate the Destination Environment#

Perform the following validation in Dresden - Development.

1. Sign in to the destination MES Customer Environment (Dresden - Development).

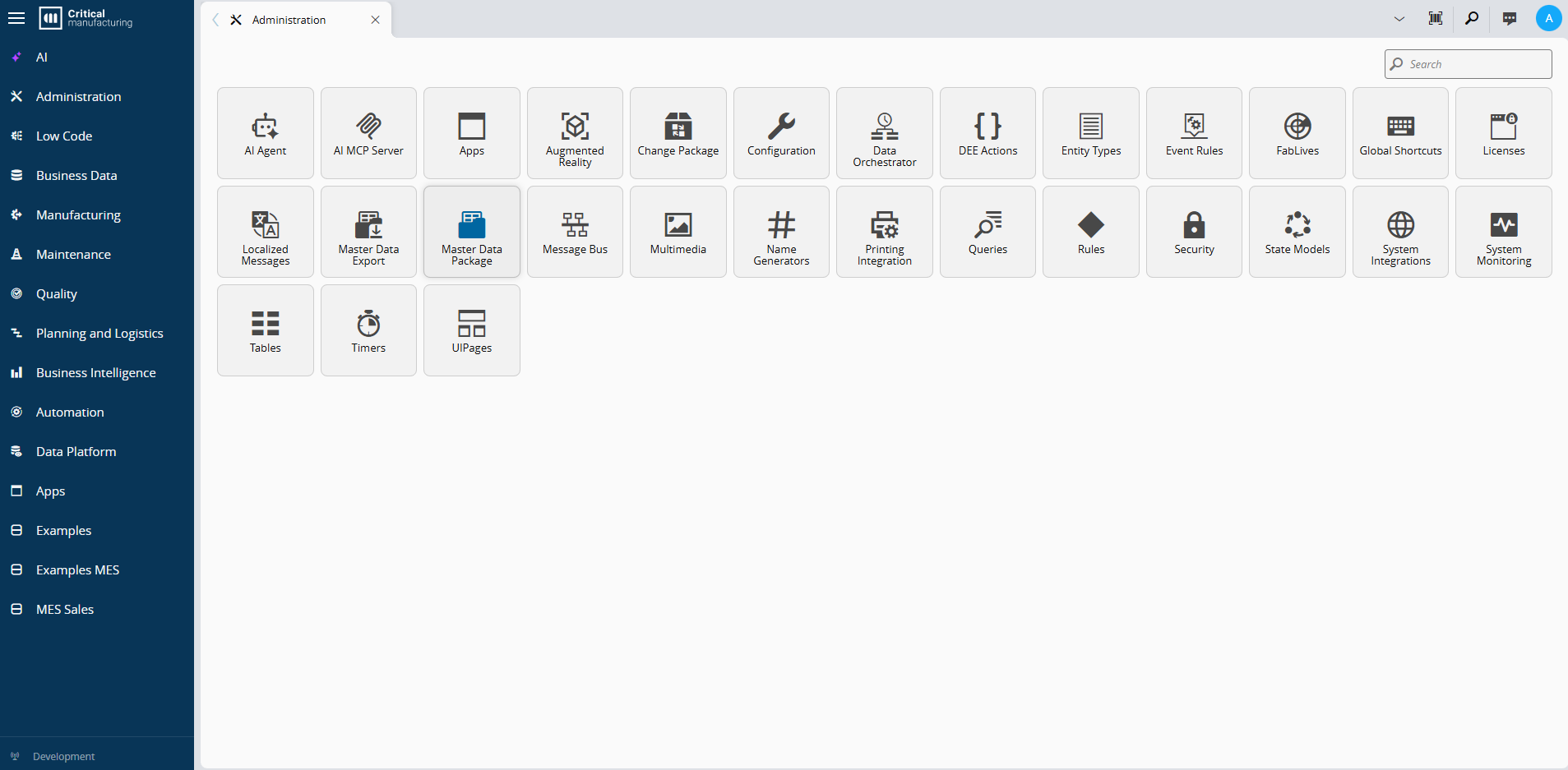

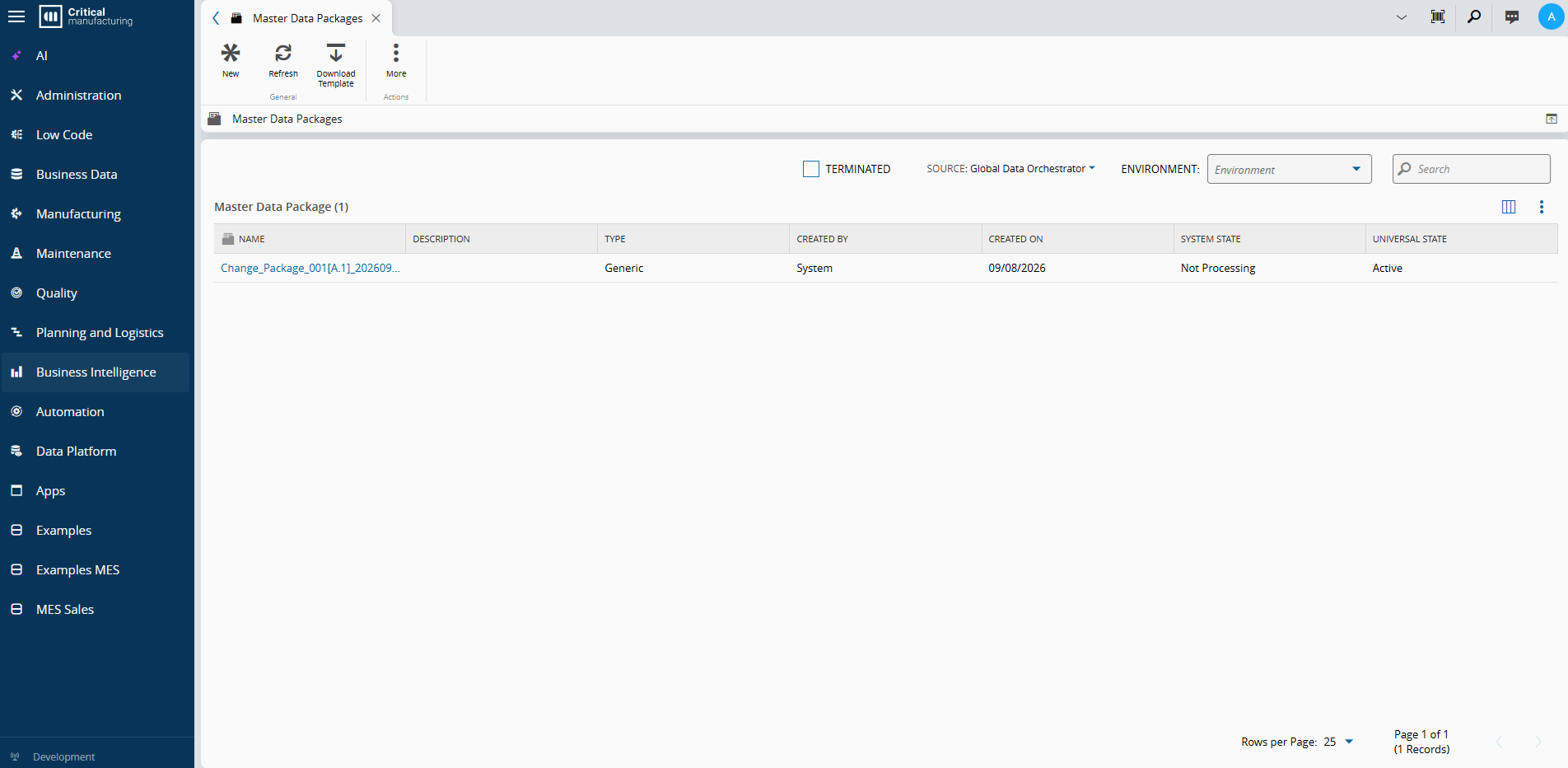

2. Navigate to Administration and access Master Data Package.



3. Use the Source filter to select Global Data Orchestrator, then locate the Master Data Package generated for the received Transport Package.

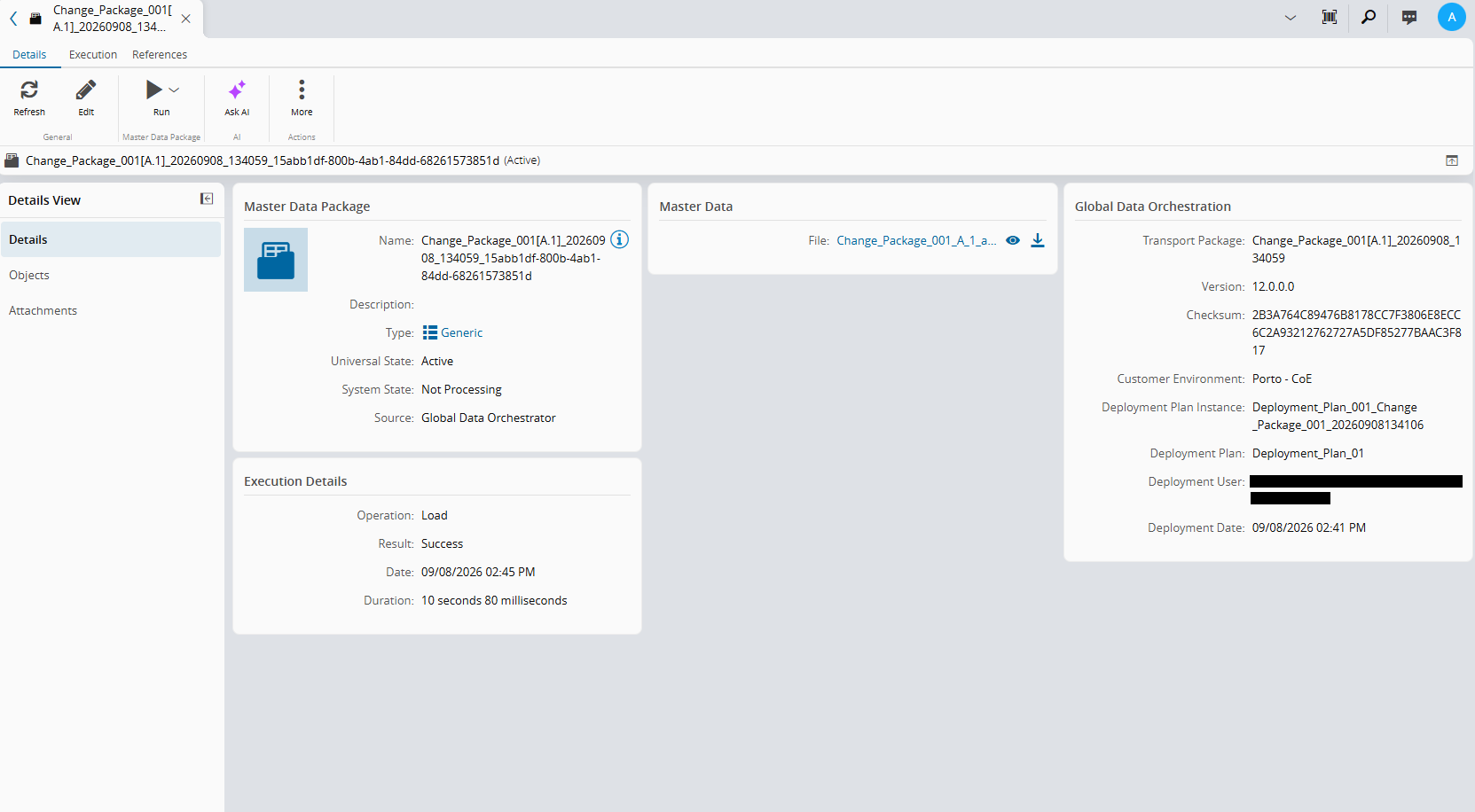

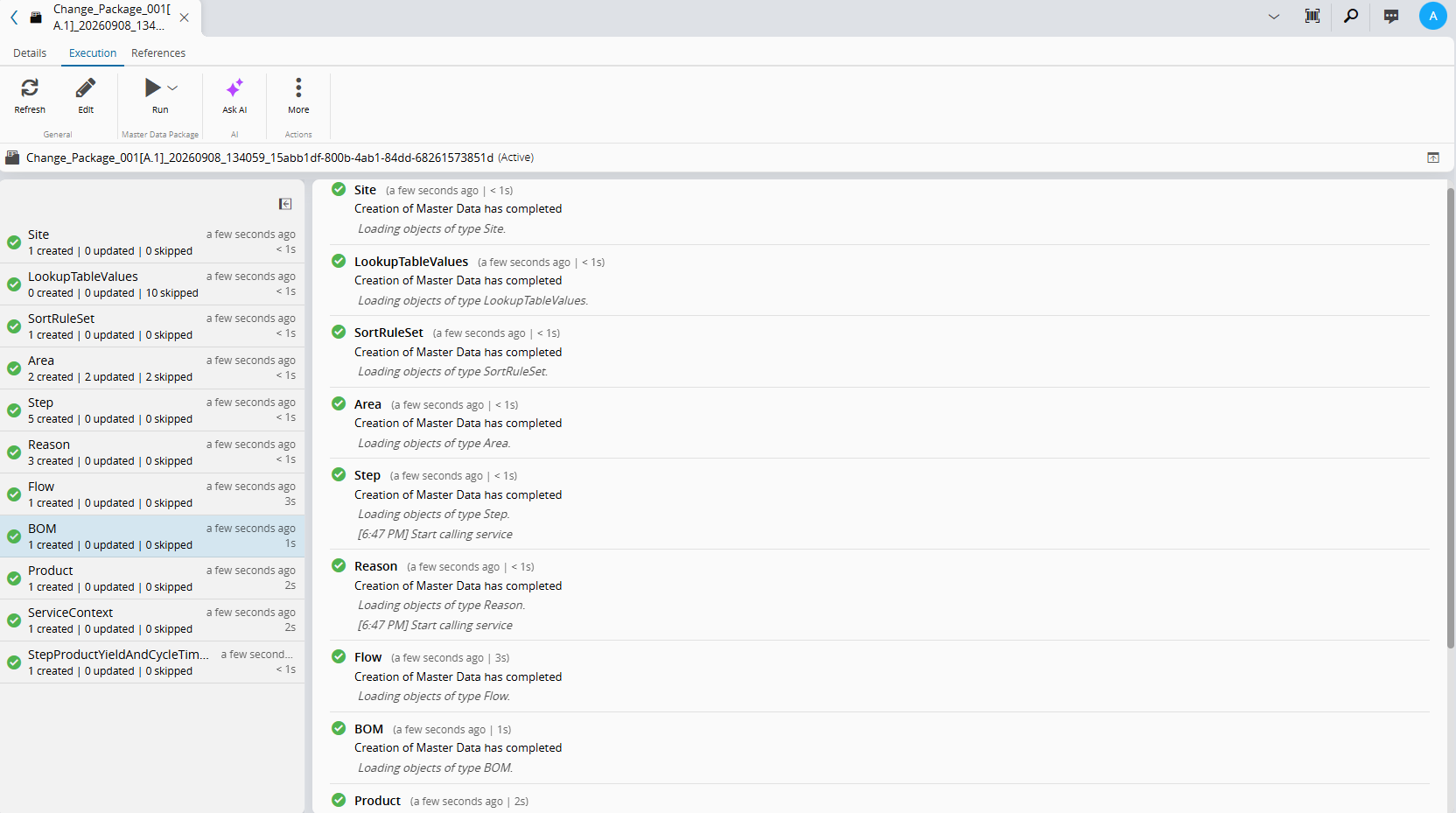

4. Open the Master Data Package and confirm on the Execution tab that the package load completed without errors.



5. Optionally, check the operation result under Execution Details in the Details tab.

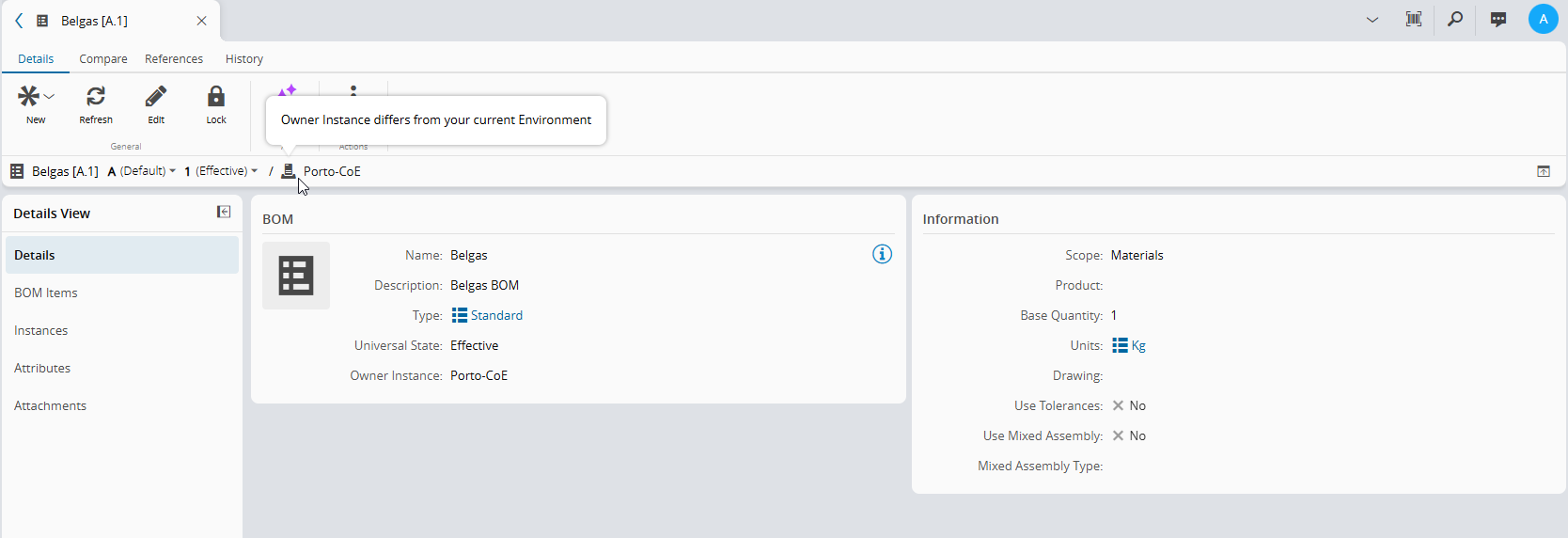

6. Optionally, open an object created by the import and confirm that it displays the Owner Instance badge.



What You Learned#

By completing this scenario, you distributed the Belgas [A] BOM and its dependencies from Porto - CoE to Dresden - Development through a manually initiated deployment.

Review the final state in each system:

Table: Expected result of the same-version Change Package scenario

Troubleshooting#

Table: Same-version Change Package troubleshooting guidance.

Next Scenario#

Continue to Cross-Version Deployment to distribute Master Data to destinations running different MES versions.
