Assembling With a Carrier Attached#

Use this final scenario after Removing a Carrier to see how assembly frees a Carrier once it consumes the Material carrying it. Consider the Bonding Step at the FGood Flow.

Preconditions#

  • The FGood.01 material has reached the Bonding step.
  • The SemiFG material** still has the Frame carrier attached.

Sequence of Steps#

1. Track in the FGood.01 material#

  1. At the Bonding step, select the FGood.01 material.

  2. Perform Track-In. The FGood.01 material consumes the SemiFG.01 material with the Frame carrier attached.

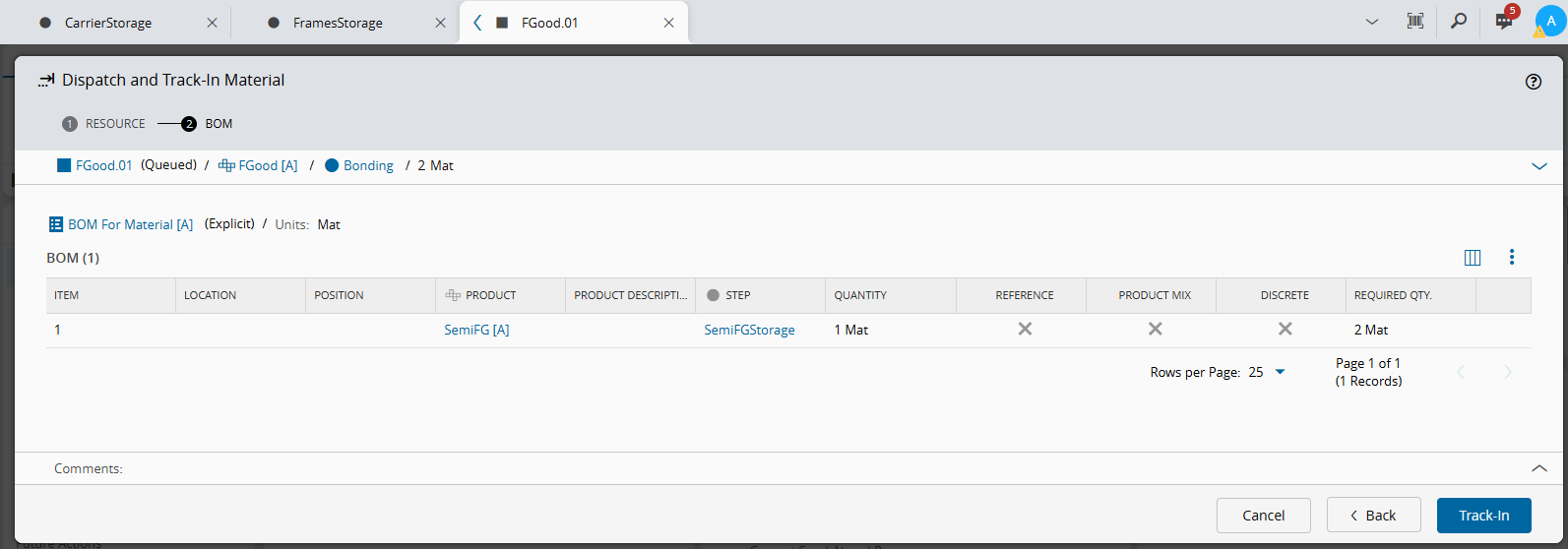

    Screenshot showing the Dispatch and Track-In Material wizard with the SemiFG BOM item still carrying the Frame.

2. Assemble the material#

  1. On the left side menu, select Business Data.
  2. On the Business Data panel, select Material.
  3. In the search box, type Mat.01.
  4. Select the corresponding Material from the search results.

  5. On the top ribbon, select Assemble.

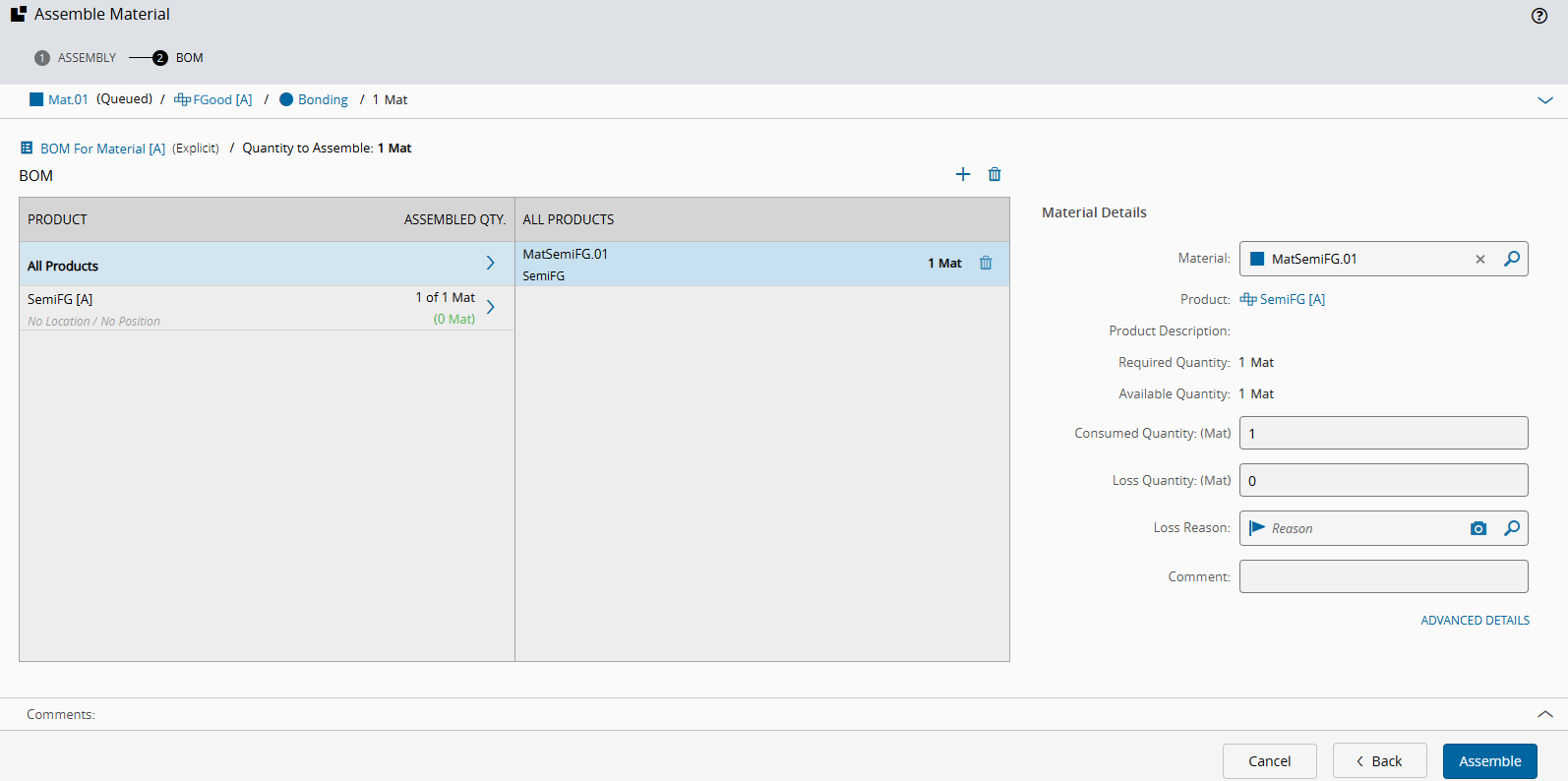

    Screenshot showing the Assemble Material dialog consuming MatSemiFG.01 into Mat.01.

Result#

After assembling, the material releases the carrier, which becomes available again for use in another material.
