Roles#

🔒 Administration.Security

Roles Overview#

The list of Roles is available by selecting the Roles label on the landing page of the Security page.

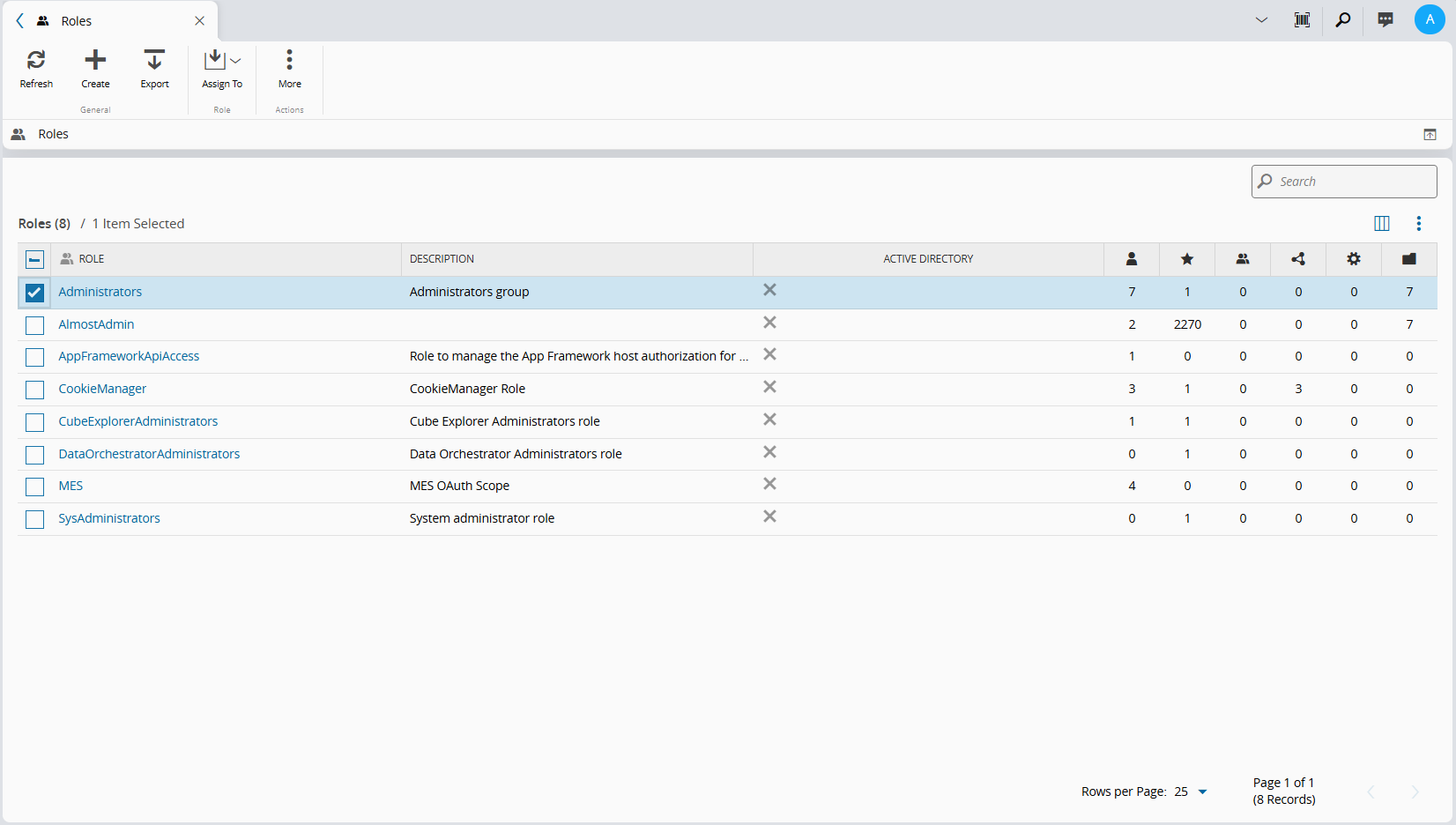

Roles list showing available security roles in the system

The Roles page displays general information on the specific Role. In addition it enables the user to perform all the operations that can be performed on a specific Role.

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

  • Details - displays general information on the Role.
  • Members - displays information on the Users or other Roles that belong to the Role.
  • Features - displays information on the Features to which the Role has access.
  • Services - displays information on the Services to which the Role has access.
  • Data Groups - displays information on the Data Groups to which the Role belongs.
  • Report Folders - displays information on the Data Groups to which the Role has access.

Warning

To access the Report Folders section within the Role page, the user must have access to the ReportFolder.Edit feature.

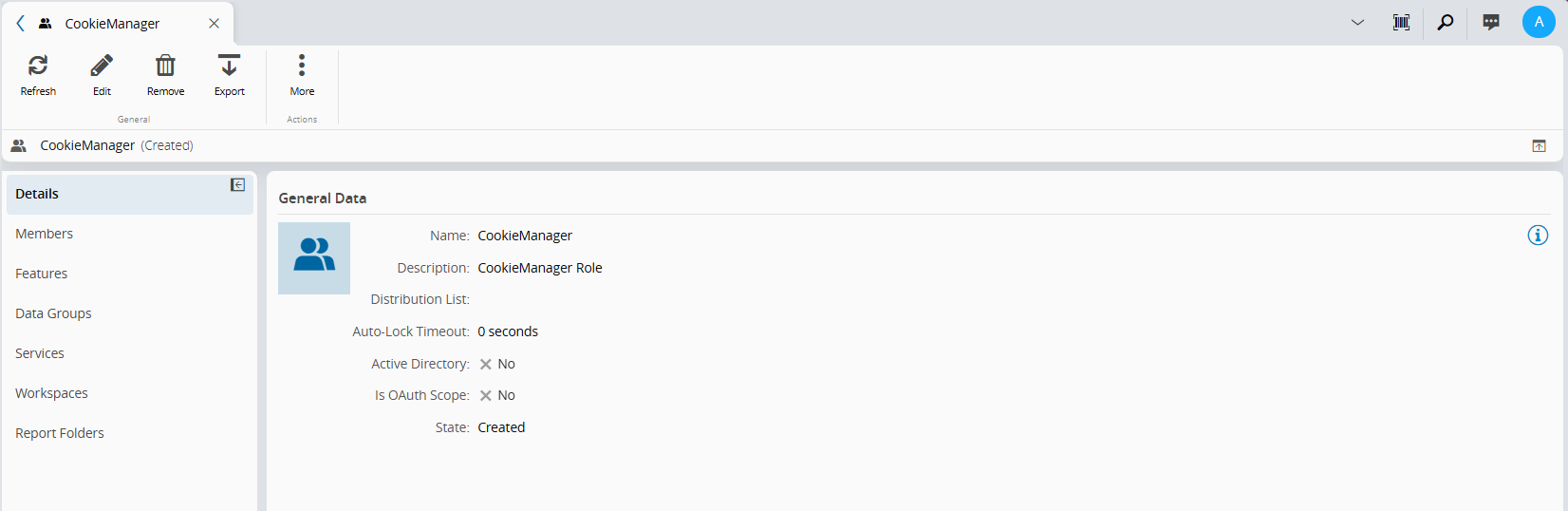

Role details view showing general information, members, features, services, and data access sections

System Default Roles#

Critical Manufacturing MES provides a set of default roles that control the operations users can perform in the system. The following roles are available by default:

  • Administrators - the system's built-in administrative role. This role cannot be deleted.
  • AppFrameworkApiAccess - grants applications the permissions required to interact with Critical Manufacturing MES APIs during installation. This role is assigned to the user representing the application being installed.
  • CubeExplorerAdministrators - a role used to control access to the Cube Explorer (Cube Playground) functionality.
  • DataOrchestratorAdministrators - grants access to the Data Orchestrator (Dagster) user interface.
  • MES - an OAuth Scope Role automatically generated as part of the environment. This role is required for non-Administrator users to log in to Critical Manufacturing MES. Without it, users will receive an error at login.
  • SysAdministrators - grants access to environment management endpoints related to ClickHouse backup and restore operations.

Info

In addition to these roles, installed applications create their own roles. These roles are automatically generated and follow the name of the corresponding application.

Creating a Role#

🔒 Role.Create

To create a Role in the application - note that the role must exist in the Active Directory - it's necessary to choose the Roles page and select the Create button in the ribbon:

  1. Provide the name for the Role.
  2. Optionally, provide a description.
  3. Optionally, enter a auto-lock timeout value (in seconds) which applies by default for every user which has this role defined as the primary role. Note that this value is overridden by the user level auto-lock timeout value.

  4. Optionally, specify a Distribution List where emails will be sent when notifying role.

    Note

    If a Distribution List is defined, it must be well formed - it must contain valid email addresses, and if multiple email addresses are provided, they must be separated by a semicolon.

  5. If the Role is an Active Directory Role, the Is Active Directory Group checkbox must be checked. Note that in this case the Name must match exactly the Active Directory group name. For groups from more than one Active Directory domain, see Multiple Active Directory Domains Configuration.

  6. If the Role is defined as an OAuth Scope Role, the Is OAuth Scope checkbox must be checked for proper authorization when using the appropriate Security Portal strategy.

    Note

    The MES OAuth Scope Role is required for non-Administrator users to log in to MES. Without it, the user will receive a message error at login.

  7. Select Create to complete the operation.

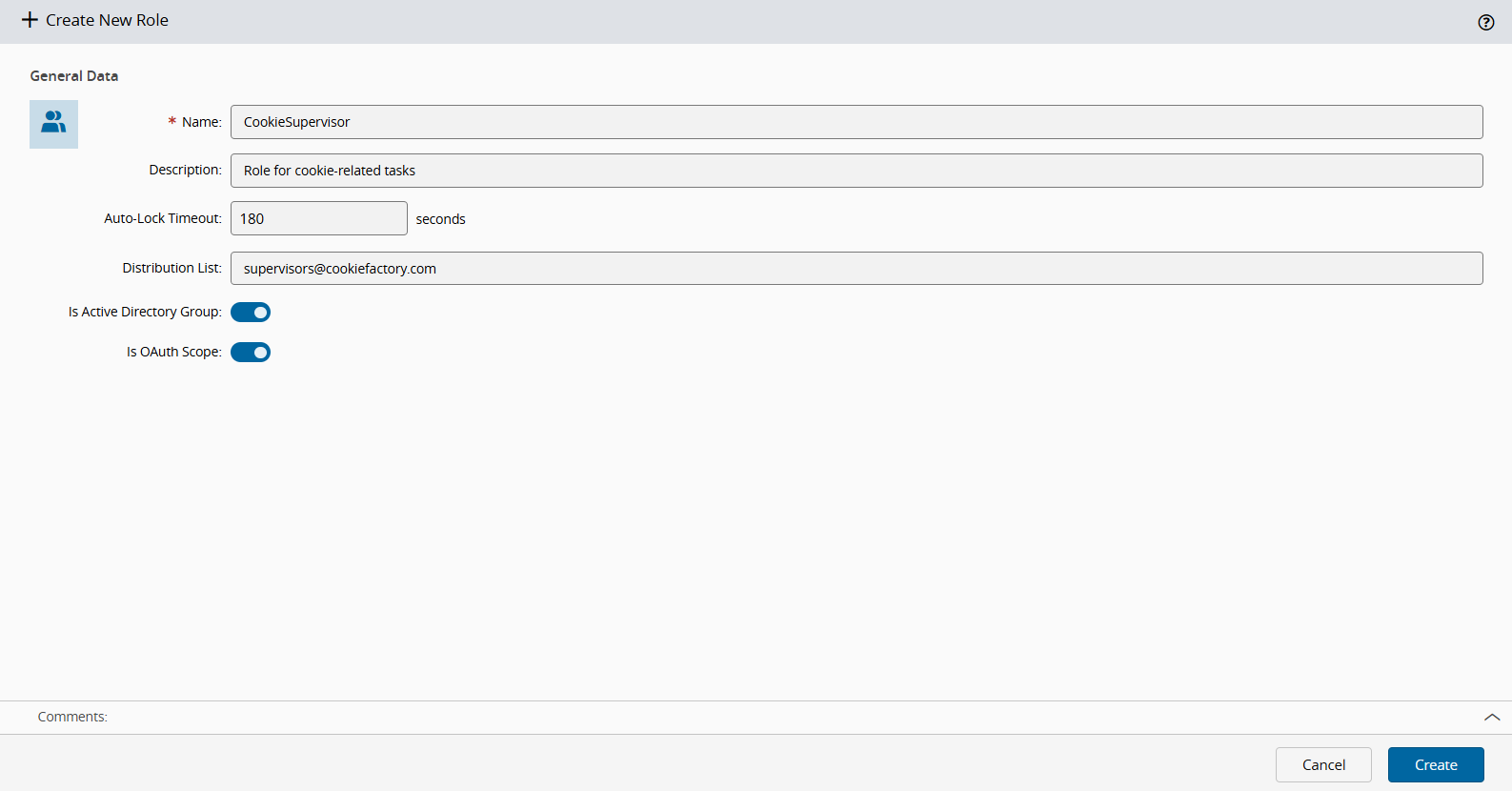

Create Role form with name, description, auto-lock, and directory settings

Editing a Role#

🔒 Role.Edit

To edit a Role, it's necessary to:

  1. Open the Role page.
  2. Open the wizard by selecting Edit on the top ribbon.
  3. Make the necessary changes.
  4. Commit the data to the database by choosing Update.

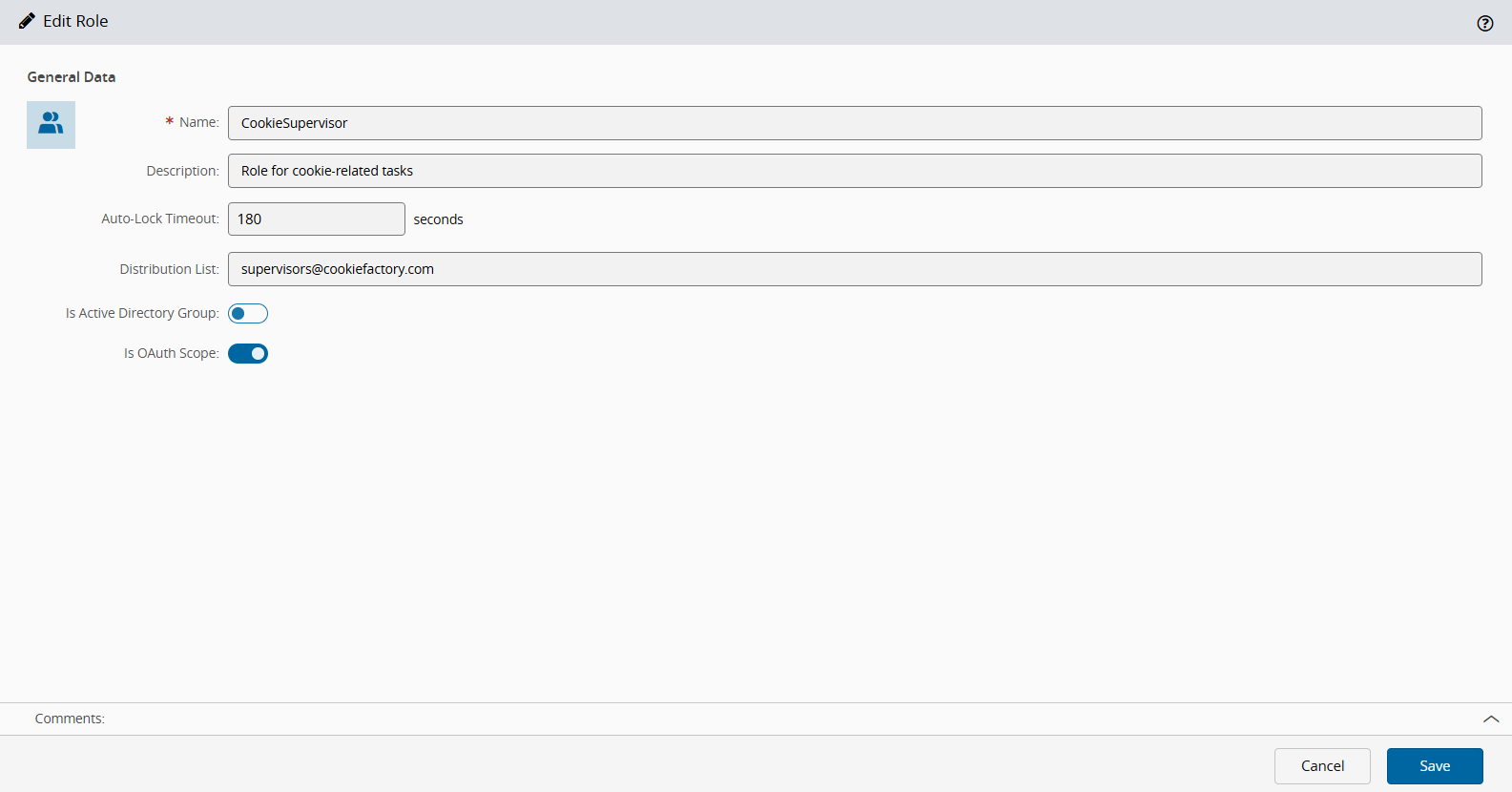

Edit Role form showing editable role details and update action

Removing a Role#

🔒 Role.Remove

To remove a Role, it's necessary to:

  1. Open the Role page.
  2. Open the wizard by selecting Remove on the top ribbon.
  3. Select Remove to complete the operation.

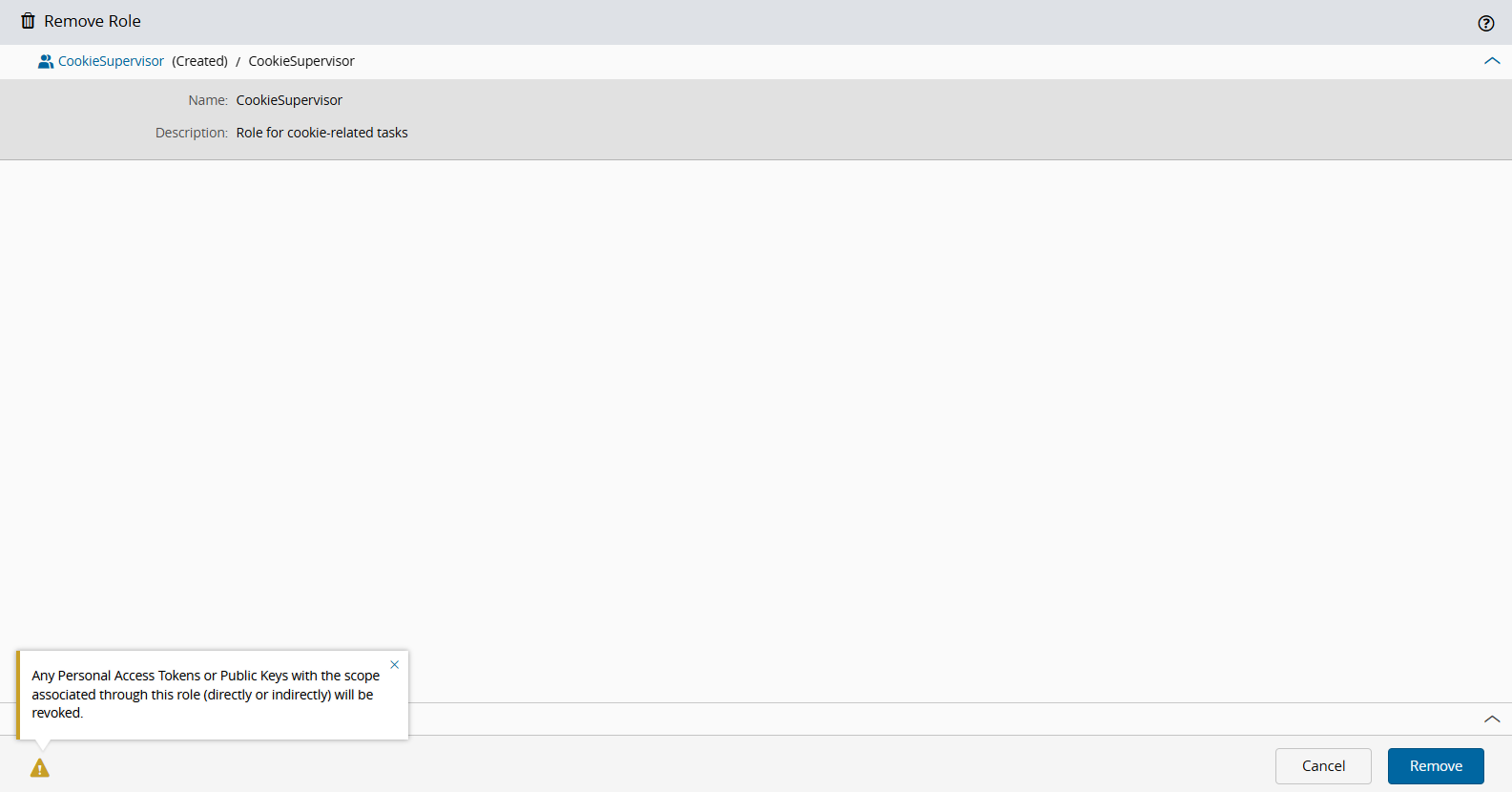

Remove Role confirmation dialog showing the role deletion action

Warning

Any Personal Access Tokens with the scope associated through the role (directly or indirectly) will be revoked.

Assigning Users to a Role#

🔒 Role.Edit

To assign one or more Users to a Role is necessary to:

  1. Open the Role details and navigate to the Members sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign dropdown button and select Users.
  3. Choose the desired Users to be assigned the current Role.
  4. Select Assign to complete the operation.

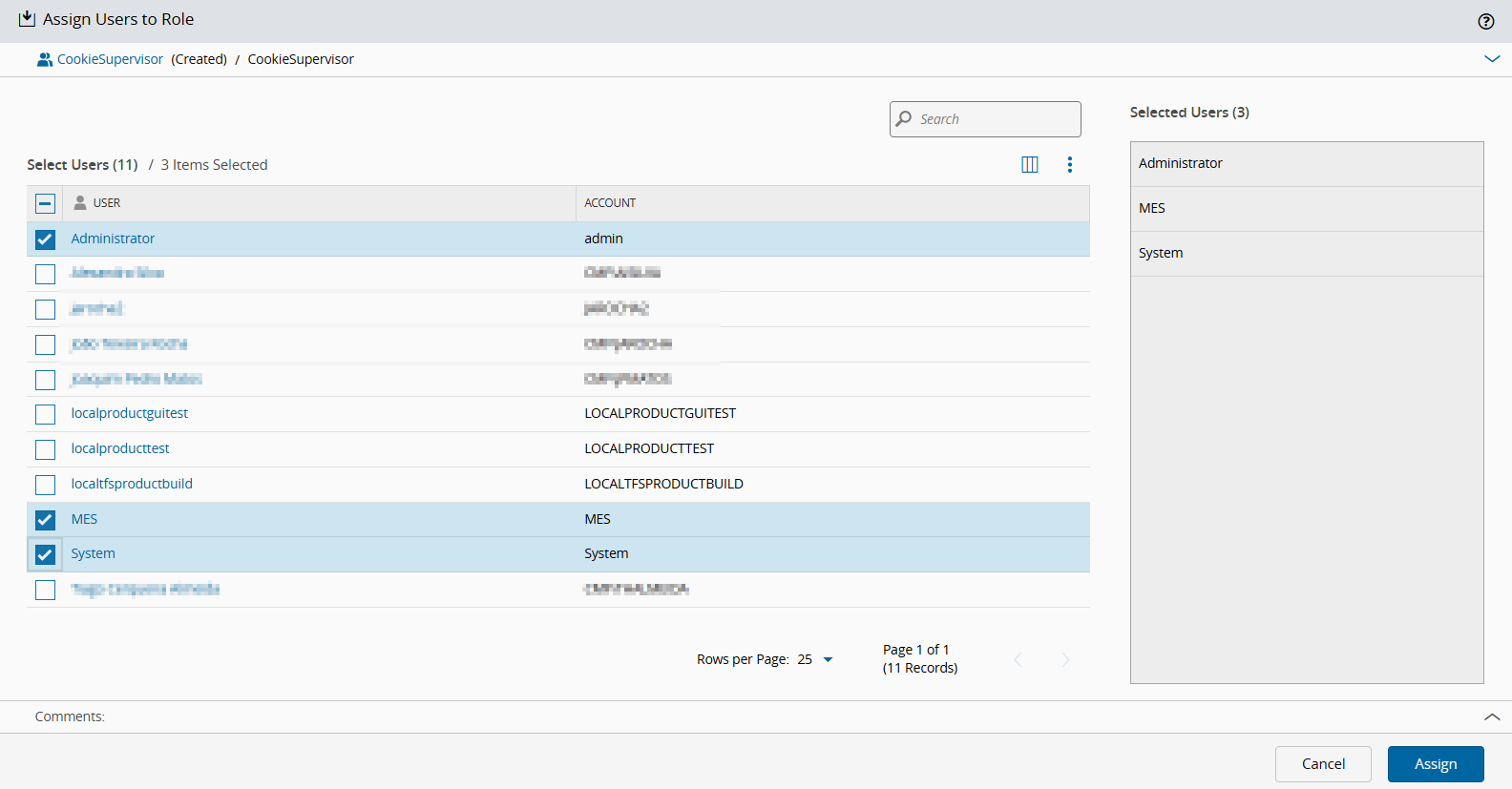

Assign Users dialog showing available users for the selected role

Unassigning Users from a Role#

🔒 Role.Edit

To unassign one or more Users from a Role is necessary to:

  1. Open the Role details and navigate to the Members sub-section in the Details View panel.
  2. Choose the Users you wish to unassign from the Role and select the Unassign dropdown button, followed by Users.
  3. Select Unassign to complete the operation.

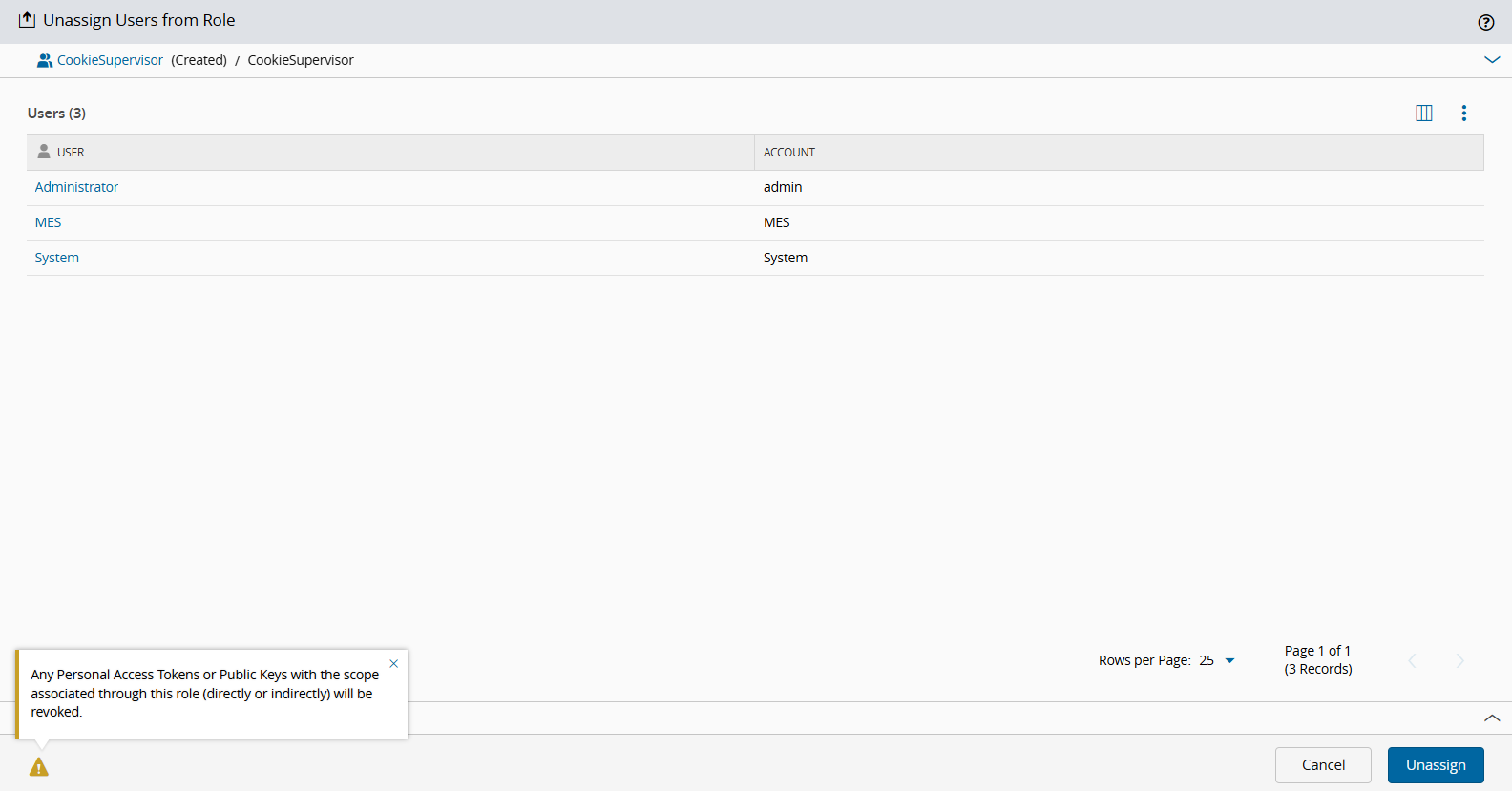

Unassign Users dialog showing users selected for removal from the role

Assigning Roles to a Role#

🔒 Role.Edit

To assign one or more Roles to a Role is necessary to:

  1. Open the Role details and navigate to the Members sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign dropdown button and select Roles.
  3. Choose the desired Roles to be assigned the current Role.
  4. Select Assign to complete the operation.

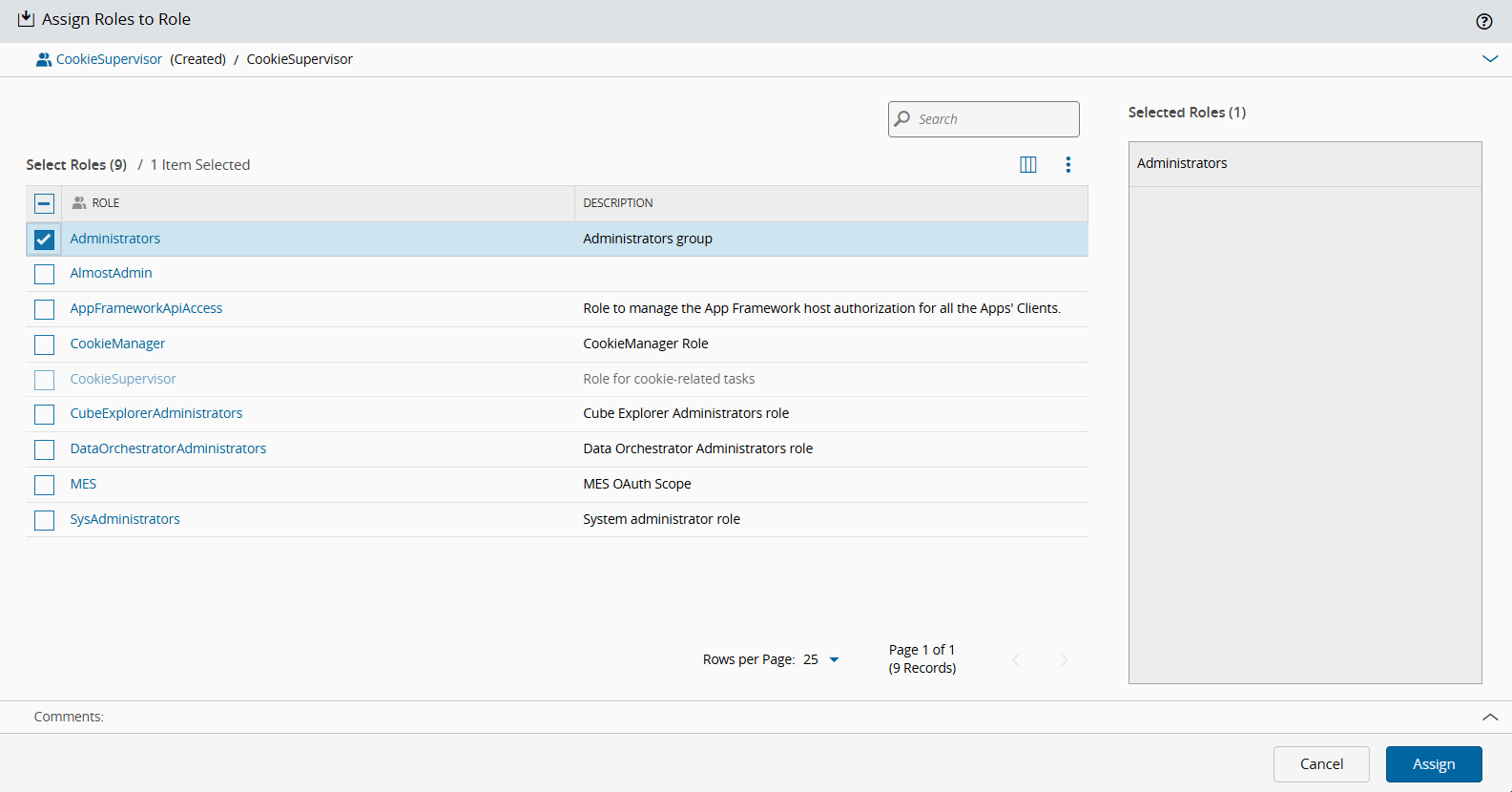

Assign Roles dialog showing available roles to inherit into the current role

Unassigning Roles from a Role#

🔒 Role.Edit

To unassign one or more Roles from a Role is necessary to:

  1. Open the Role details and select the Members sub-section in the Details View panel.
  2. Choose the Roles you wish to unassign from the Role and select the Unassign dropdown button, followed by Roles.
  3. Select Unassign to complete the operation.

Unassign Roles dialog showing roles selected for removal from the current role

Assigning Services to a Role#

🔒 Role.Edit

To assign one or more Services to a Role is necessary to:

  1. Open the Role details and select the Services sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign button.
  3. Select the desired Services to be assigned the current Role.
  4. Select Assign to complete the operation.

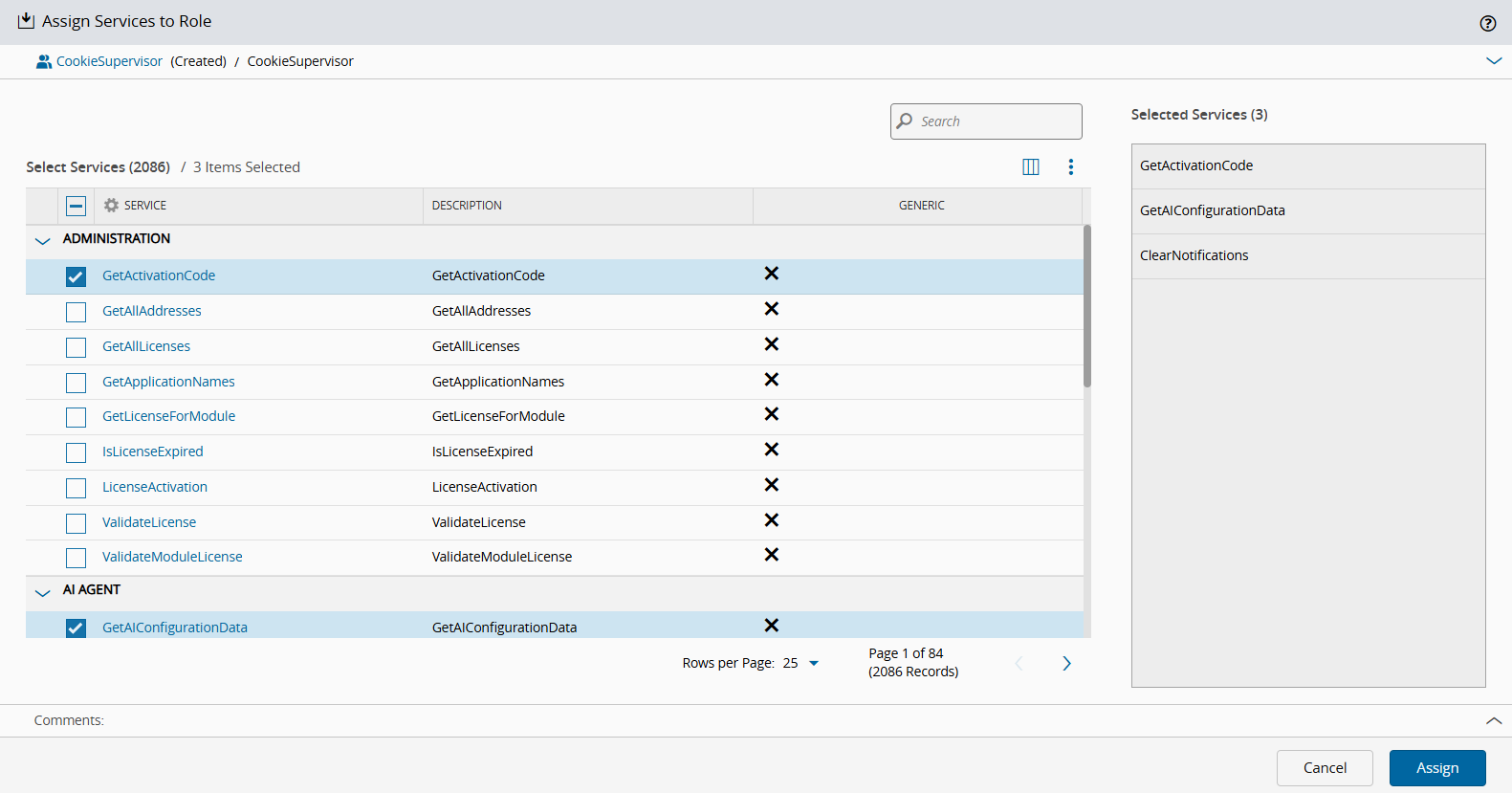

Assign Services dialog showing services available to the selected role

Unassigning Services from a Role#

🔒 Role.Edit

To unassign one or more Services from a Role is necessary to:

  1. Open the Role details and select the Services sub-section in the Details View panel.
  2. Choose the Services you wish to unassign from the Role and select the Unassign button.
  3. Select Unassign to complete the operation.

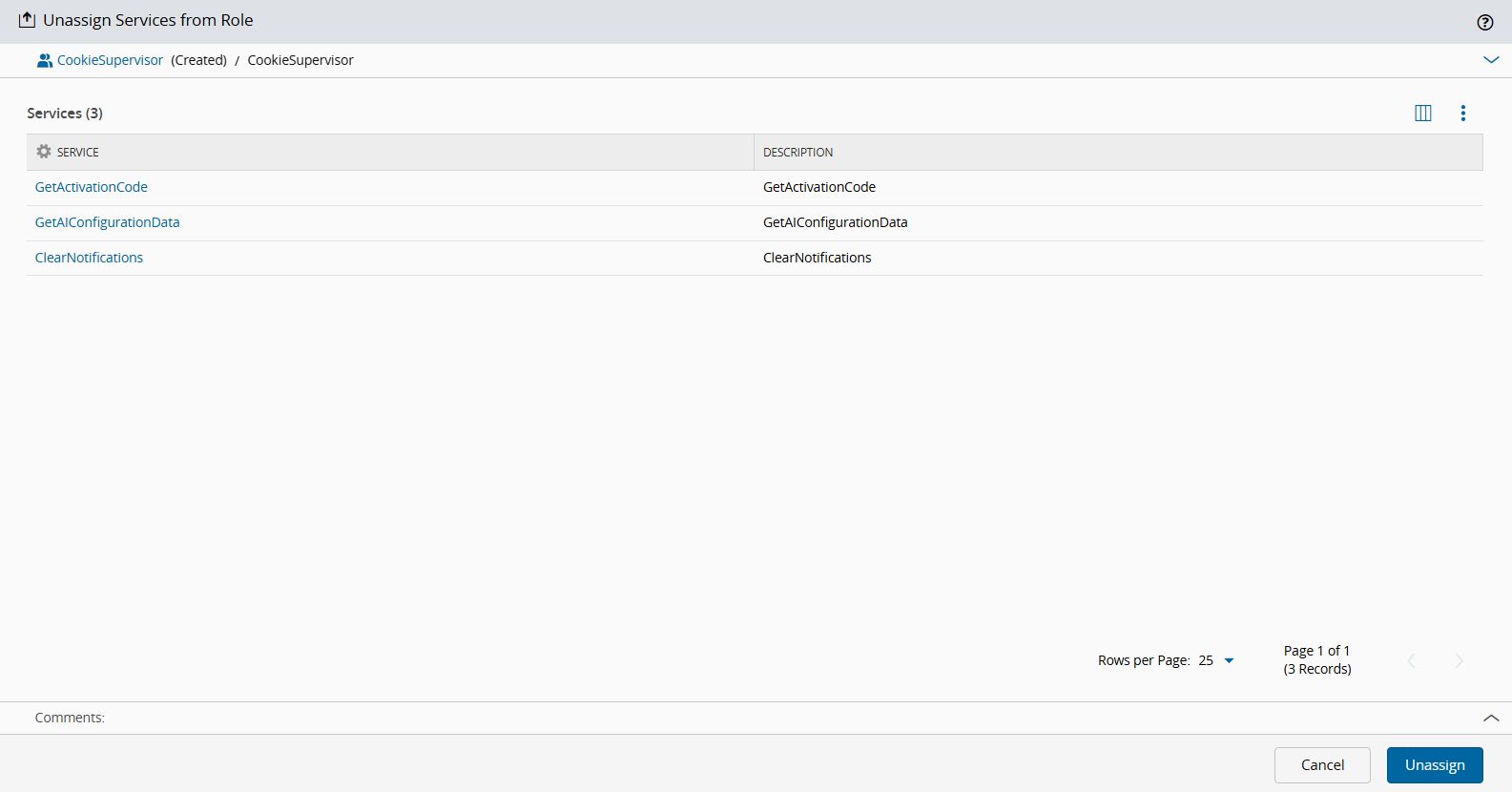

Unassign Services dialog showing services selected for removal from the role

Assigning Features to a Role#

🔒 Role.Edit

To assign one or more Features to a Role is necessary to:

  1. Open the Role details and select the Features sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign button.
  3. Choose the desired Features to be assigned the current Role.
  4. Select Assign to complete the operation.

Info

For easier feature assignment, there is the possibility of selecting all features at once, bypassing the grid paging and allowing for a one-click selection of the entire set of features. Simply use Select All Items and all the available features will be selected. Similarly, to deselect all features, use Clear Selection and all features will be deselected.

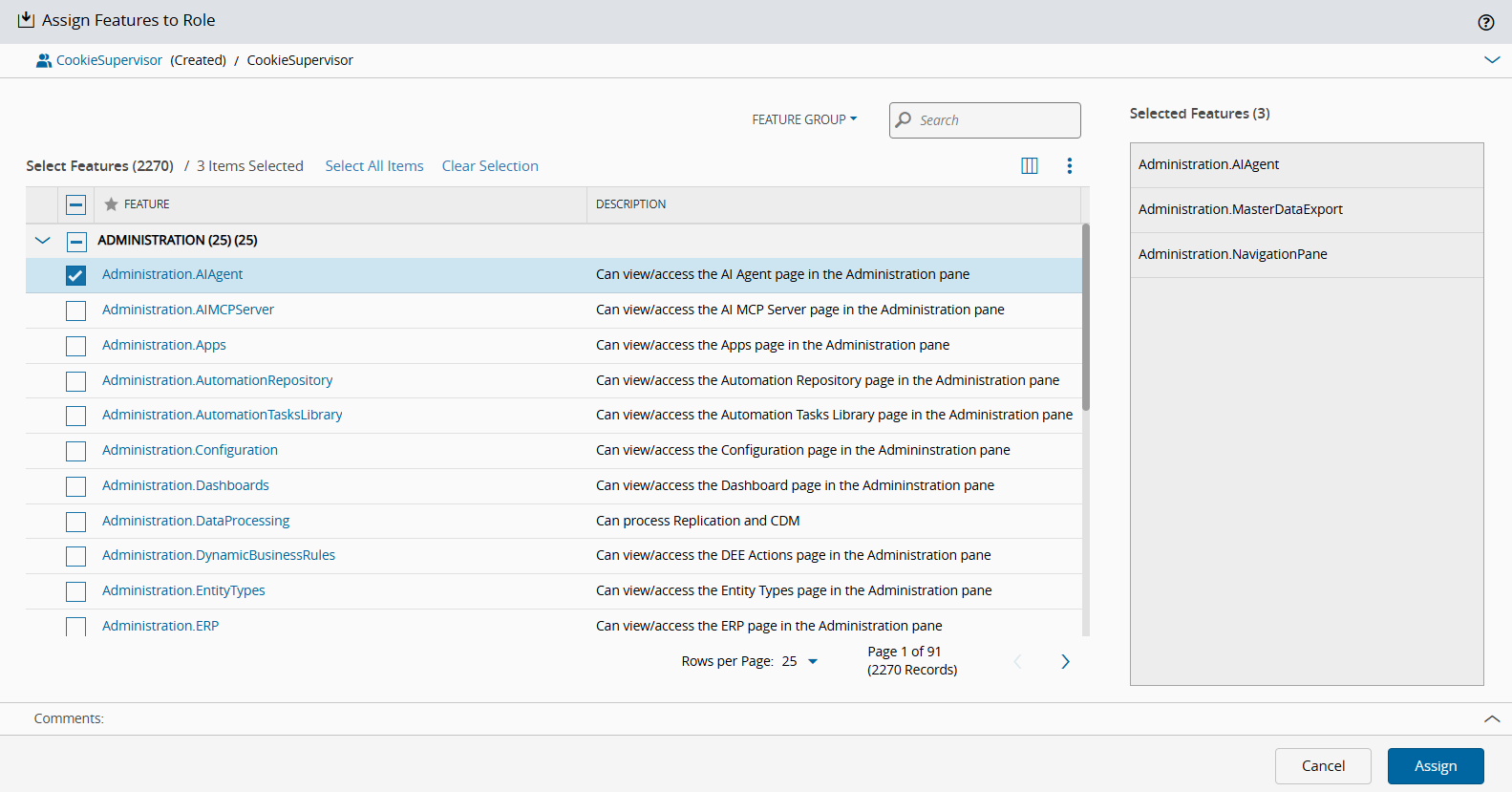

Assign Features dialog showing feature permissions available to the role

Unassigning Features from a Role#

🔒 Role.Edit

To unassign one or more Features from a Role is necessary to:

  1. Open the Role details and select the Features sub-section in the Details View panel.
  2. Choose the Features you wish to unassign from the Role and select the Unassign button.
  3. Select Unassign to complete the operation.

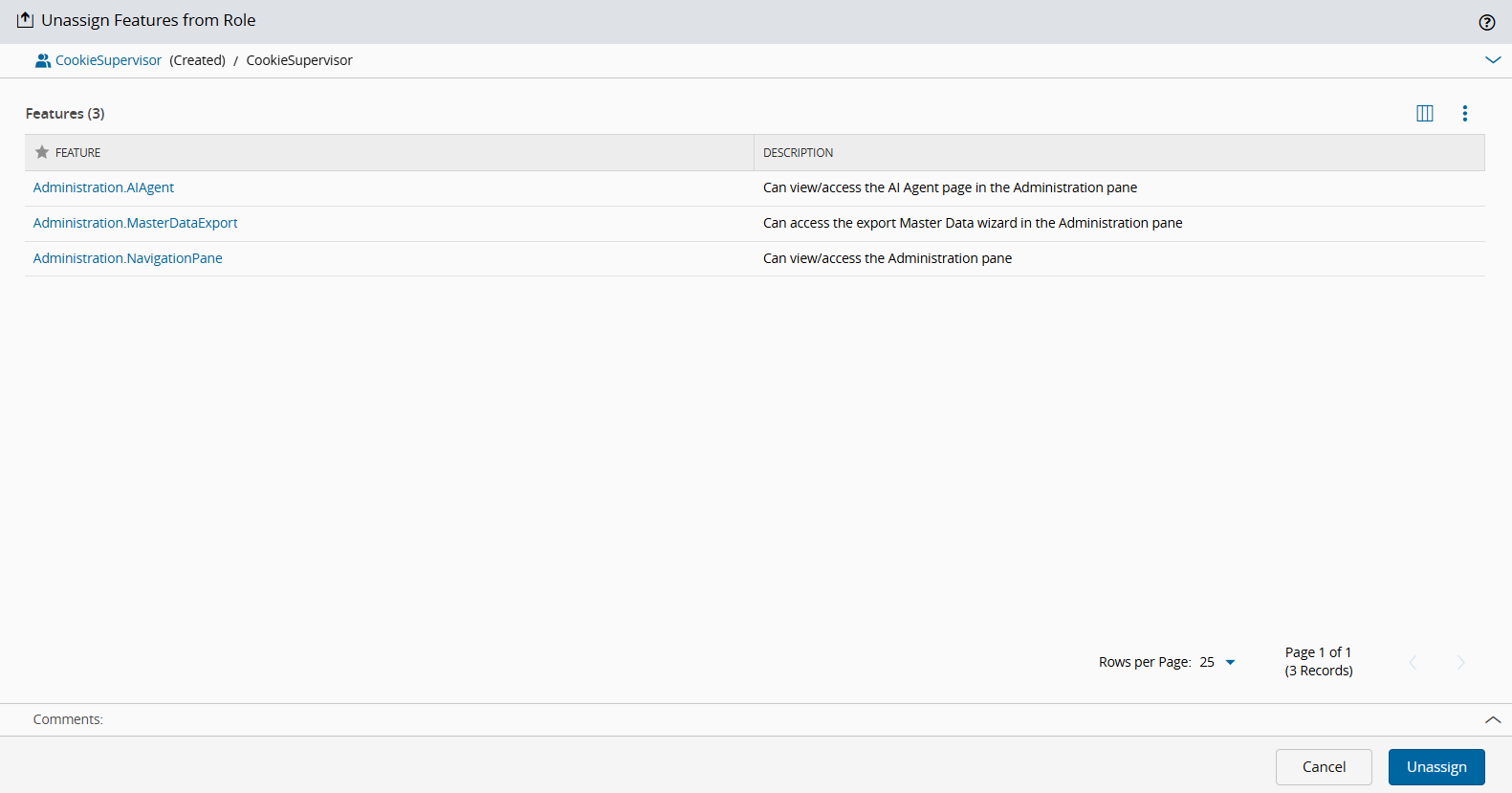

Unassign Features dialog showing features selected for removal from the role

Assigning Data Groups to a Role#

🔒 Role.Edit

To assign one or more Data Groups to a Role is necessary to:

  1. Open the Role details and select the Data Groups sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign button.
  3. Choose the desired Data Groups to be assigned the current Role.
  4. Choose the Access Mode for each of the Data Groups to assign to the current Role.
  5. Select Next.
  6. Choose the Access Mode for each Data Group and select Assign to complete the operation.

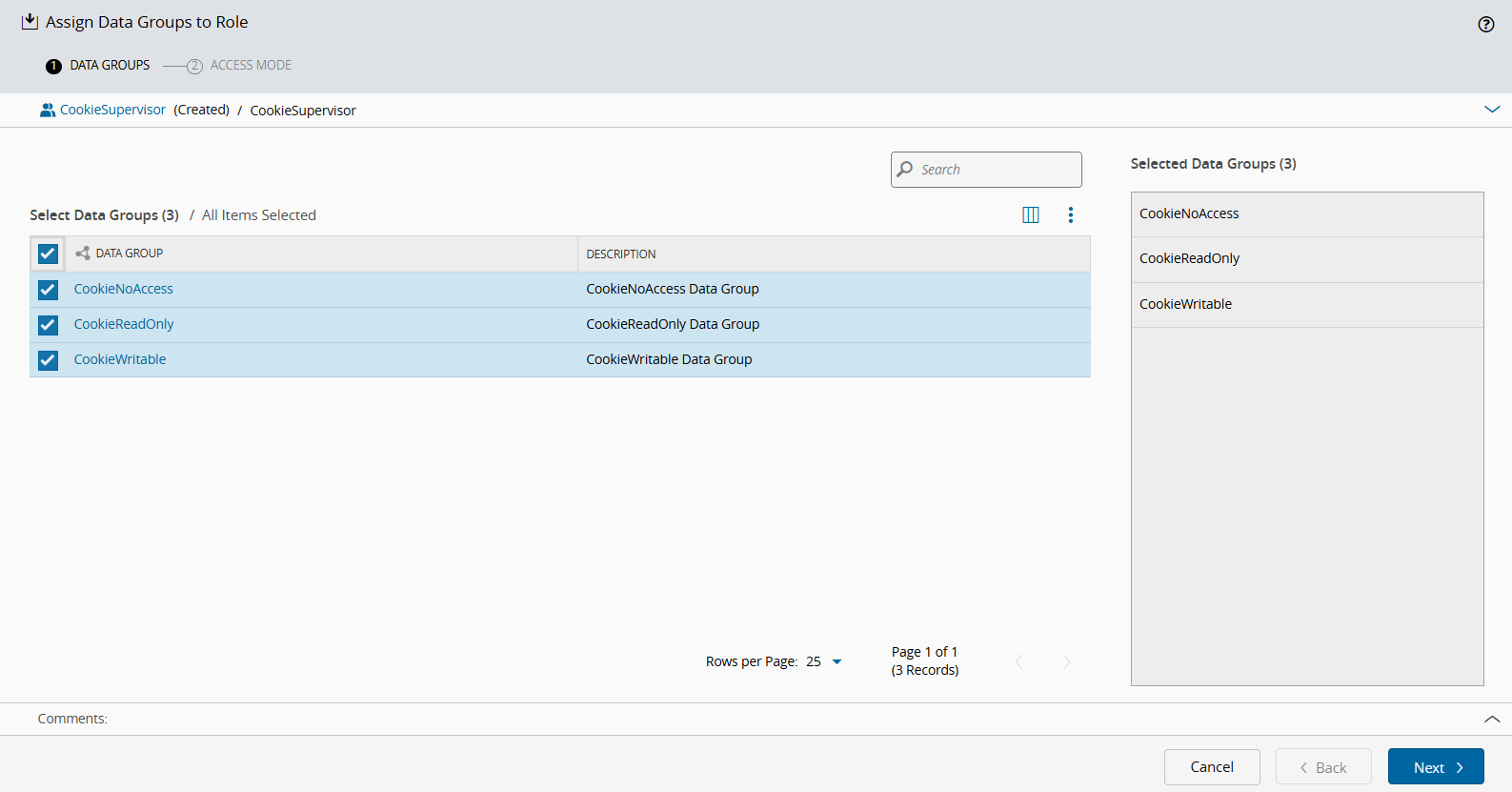

Assign Data Groups dialog

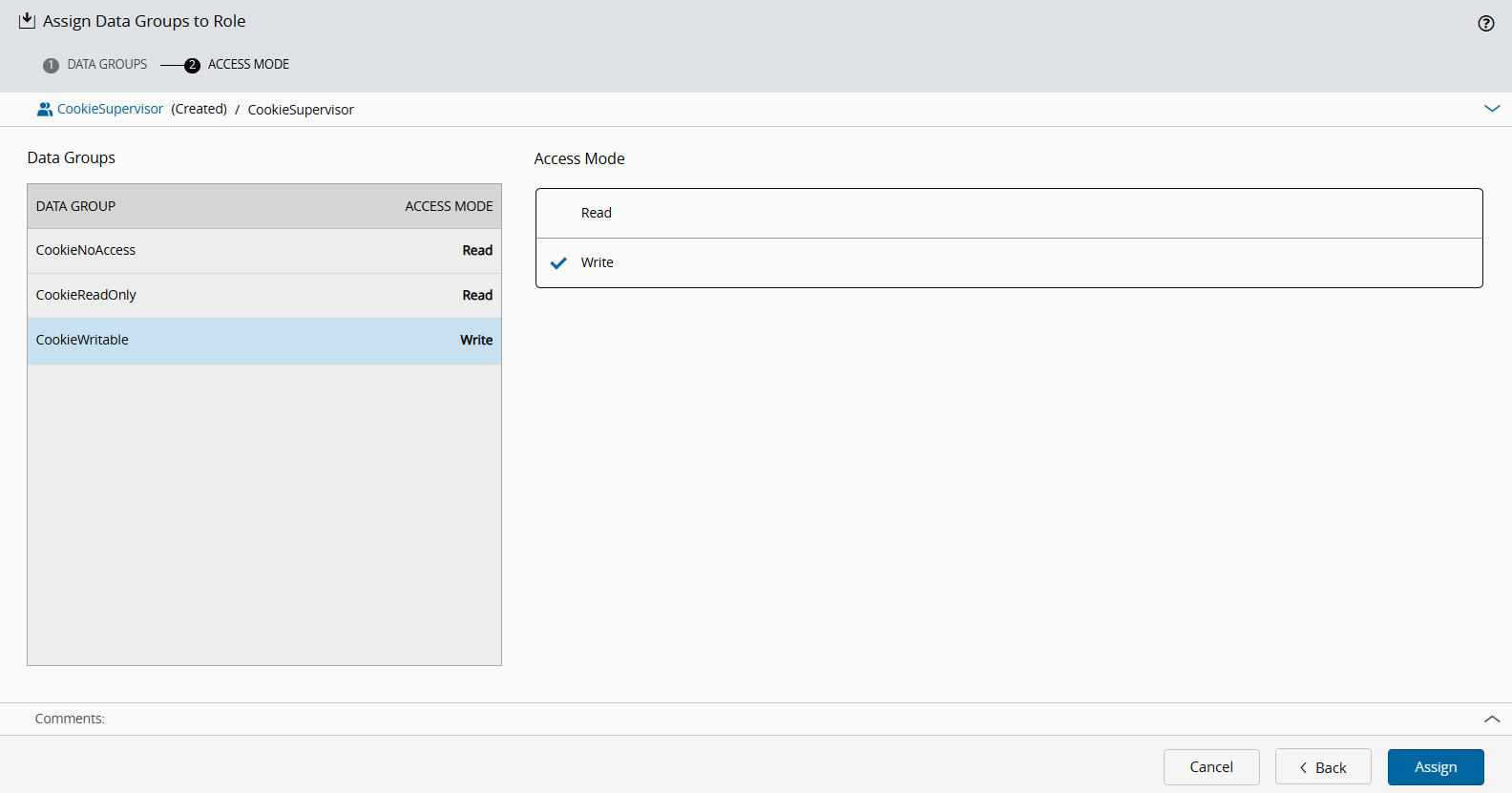

Assign Data Groups dialog showing access mode configuration for role membership

Unassigning Data Groups from a Role#

🔒 Role.Edit

To unassign one or more Data Groups from a Role is necessary to:

  1. Open the Role details and select the Data Groups sub-section in the Details View panel.
  2. Choose the Data Groups you wish to unassign from the Role and select the Unassign button.
  3. Select Unassign to complete the operation.

Unassign Data Groups dialog showing data groups selected for removal from the role

Assigning Report Folders to a Role#

🔒 Role.Edit

To assign one or more Report Folders to a Role is necessary to:

  1. Open the Role details and select the Report Folders sub-section in the Details View panel, or select the Roles in the Role list page.
  2. Select the Assign button.
  3. Choose the desired Report Folders to be assigned the current Role.
  4. Choose the Access Mode for each of the Report Folders to assign to the current Role.
  5. Select Next.
  6. Choose the Access Mode for each Report Folder and select Assign to complete the operation.

Warning

To access the Report Folders sub-section within the Role page, the user must have access to the ReportFolder.Edit feature.

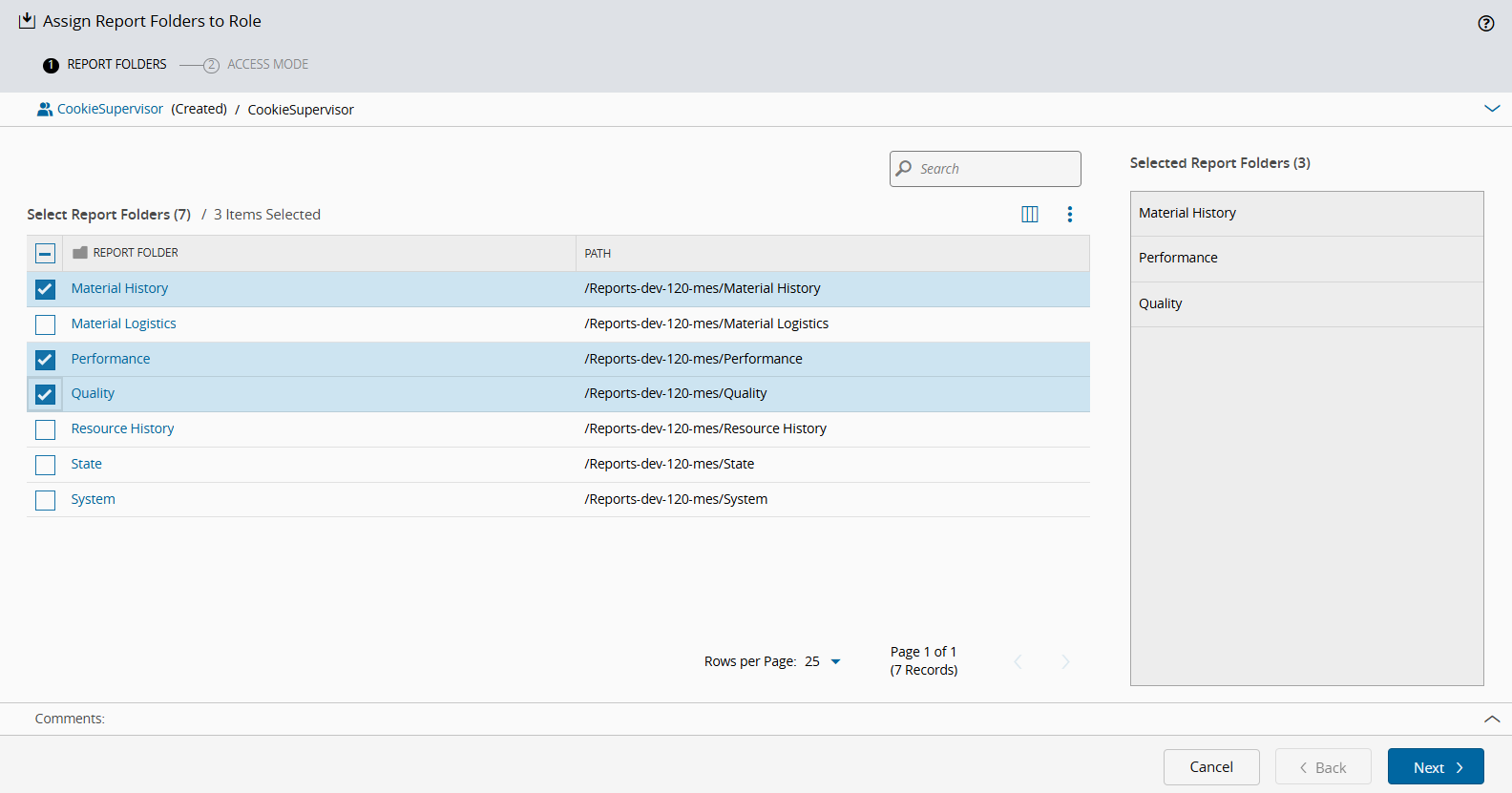

Assign Report Folders dialog showing report folder permissions

Assign Report Folders dialog showing access modes

Unassigning Report Folders from a Role#

🔒 Role.Edit

To unassign one or more Report Folders from a Role is necessary to:

  1. Open the Role details and select the Report Folders sub-section in the Details View panel.
  2. Choose the Report Folders you wish to unassign from the Role and select the Unassign button.
  3. Select Unassign to complete the operation.

Warning

  • If the user role is Administrator, you cannot unassign Report Folders. Administrators always have access to all available Report Folders.
  • To access the Report Folders sub-section within the Role page, the user must have access to the ReportFolder.Edit feature.

Unassign Report Folders dialog showing report folders selected for removal from the role

Managing Role Workspaces#

🔒 Role.ManageWorkspaces

To manage Role Workspaces, follow these steps:

  1. Select the desired Role and choose Manage Workspaces.

  2. Add, edit, or remove Role Workspaces as needed. For each record, specify:

    • The Workspace associated with the Role.
    • Whether the Workspace is set as the default.

    Note

    • To create a Workspace, you must create a UI Page configured with the Workspace scope.
    • Each Role/Workspace combination must be unique.
    • Only one Workspace can be marked as the default for each Role.

  3. Select Update to save and apply the changes.

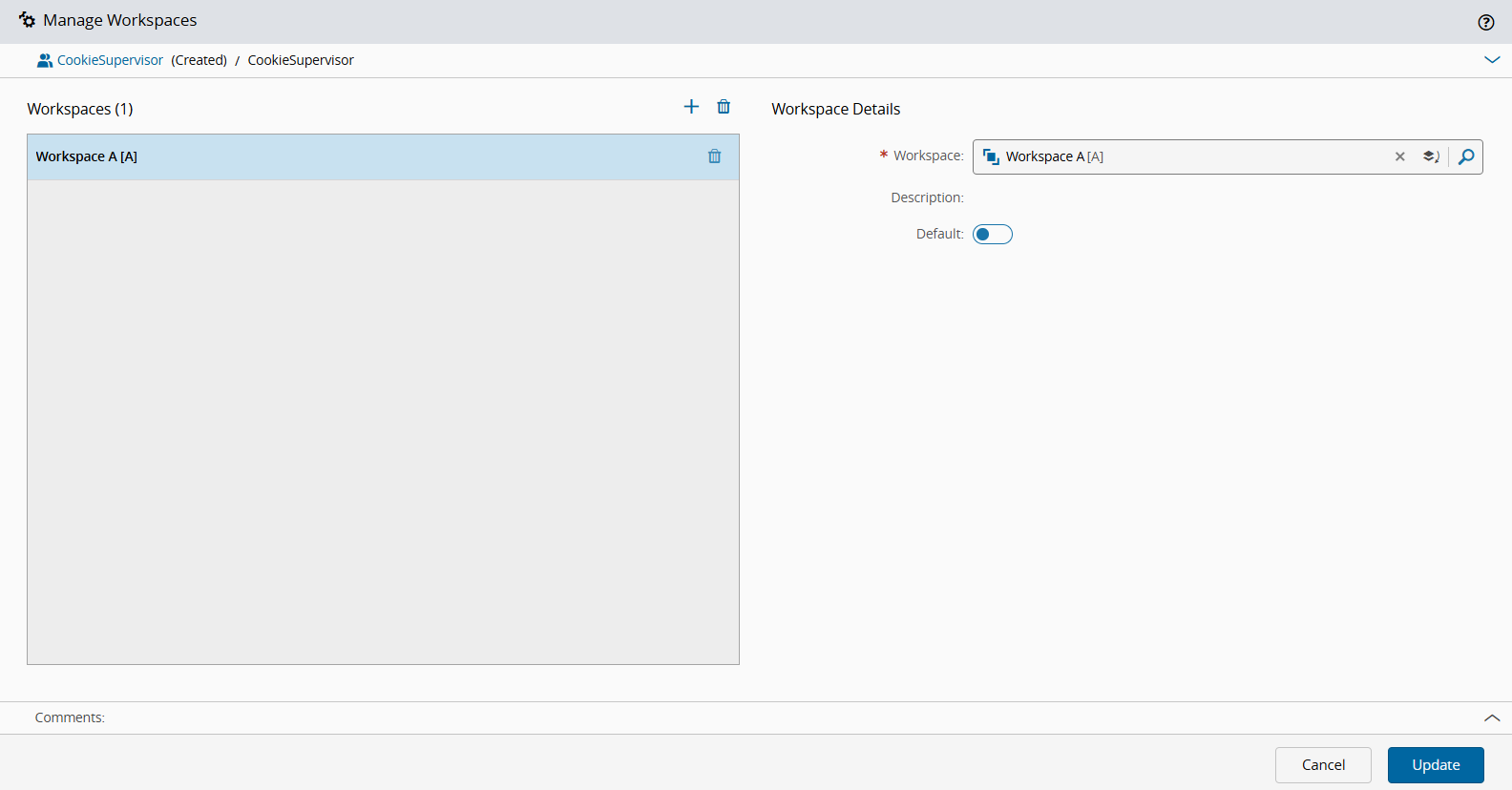

Manage Role Workspaces dialog showing workspace assignment and default workspace selection
