Buffer Bitwise#

This converter applies bitwise operations to the value. Valid operations are AND (&), OR (|), NOT (~), Shift Left (\<\<), Shift Right (>>) without sign propagation. It also has the Mask that behaves the same as AND. It receives a Buffer object, which is an object capable of manipulating streams of binary.

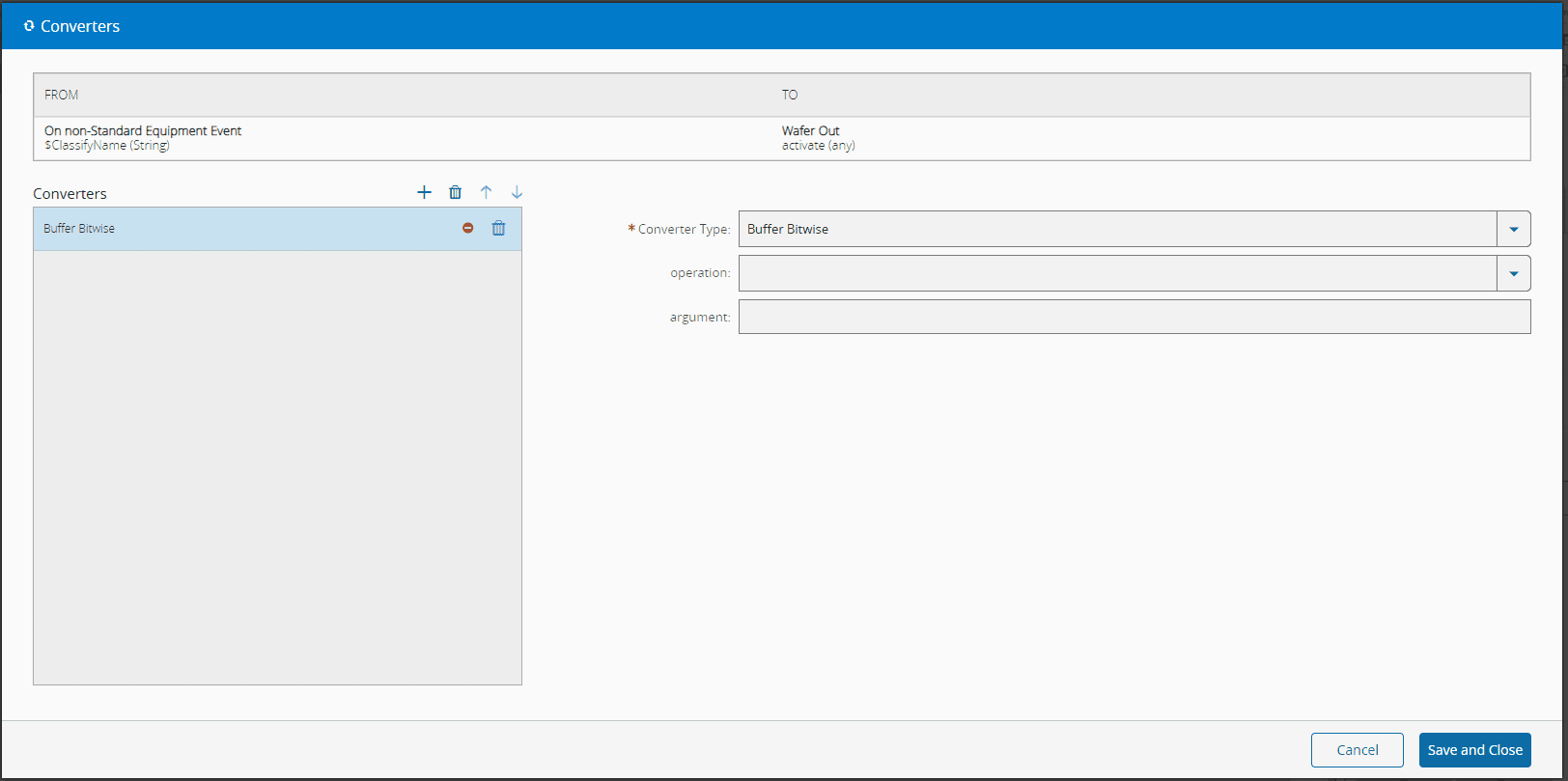

Settings#

Name	Data Type	Possible Values	Description
operation	`Enum`	`AND` `OR` `NOT` `Shift Left` `Shift Right` `Mask`	Type of bitwise operation to perform over the input buffer
argument	`Integer`		Argument to pass into the bitwise operation selected (example for `Shift Right`: `input` >> `argument`)

Table 1: Settings

Examples#

Using a single-byte input buffer, each operation acts on the value bit-by-bit:

Input (bin)	`operation`	`argument`	Output (bin)	Output (dec)
`0000 1110`	`AND`	`3`	`0000 0010`	`2`
`0000 1000`	`Mask`	`0`	`0000 0000`	`0`
`0000 1110`	`OR`	`3`	`0000 1111`	`15`
`0000 1111`	`Shift Left`	`1`	`0001 1110`	`30`
`0000 1111`	`Shift Right`	`1`	`0000 0111`	`7`
`0000 1101`	`NOT`	(ignored)	`1111 0010`	`242`

Table 2: Examples

Invalid Input#

This converter fails in any of the cases below. For what happens to the rest of the chain when a converter fails (the error is logged, reported for monitoring, and the next task does not run), see Converters.

Input	`operation`	Result
Non-Buffer (e.g., `String`)	any	Fails with `Given input value is not an instance of a Buffer`.
Buffer longer than 6 bytes	any	Fails with `Invalid size of buffer '<length>'. Must be up to 6 bytes long`
any Buffer	`UnknownOp`	Fails with `Unknown bitwise operation '<operation>'`.
`1000 0001`	`AND` with `argument` `128`	Fails with `The value of "value" is out of range. It must be >= -128 and <= 127. Received 128`. The result is written as a signed number of the input's length, so any result outside that range fails.

Table 3: Invalid Input
