Create System Entity Instance#

This converter creates a MES object skeleton only with the name or ID defined as the input value. It natively supports the entity types Resource, Container, Material, Data Collection, but can also receive custom types.

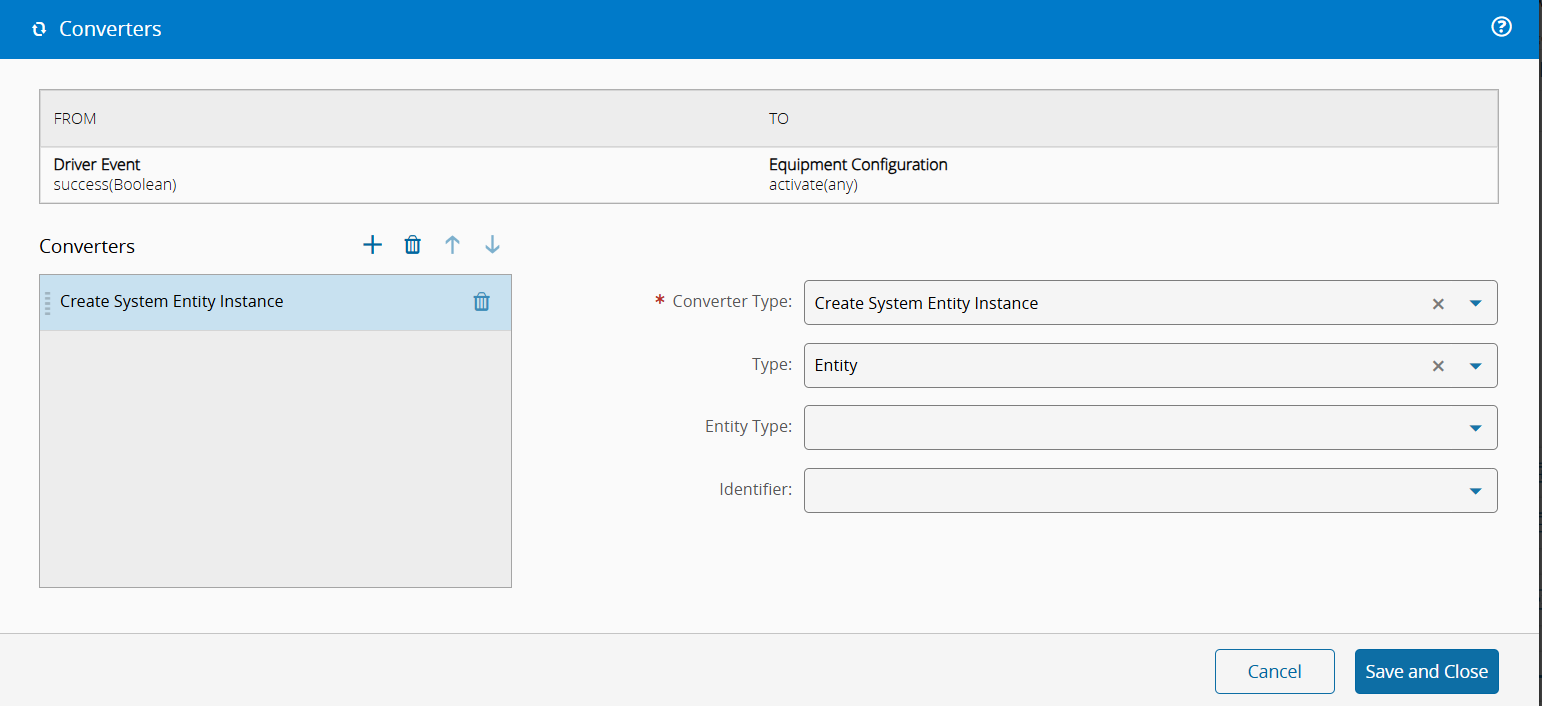

Settings#

Name	Data Type	Possible Values	Description
Type	`Enum`	`Entity` `Custom`	Type of entity instance
Entity Type	`Enum`	`Resource` `Container` `Material` `DataCollection`	Type of entity skeleton to create
Custom Type	`String`		Text to use as `$type` when Type is `Custom`. It is ignored when `entityType` is set to a built-in entity
Identifier	`Enum`	`Name` `Id`	The placeholder that will receive the input value

Table 1: Settings

Examples#

Input	`entityType`	`customType`	`identifier`	Output `$type`	Output field
`resourceName`	`Resource`	N/A	`Name`	`Cmf.Navigo.BusinessObjects.Resource, Cmf.Navigo.BusinessObjects`	`Name: resourceName`
`resourceId`	`Resource`	N/A	`Id`	`Cmf.Navigo.BusinessObjects.Resource, Cmf.Navigo.BusinessObjects`	`Id: resourceId`
`containerName`	`Container`	N/A	`Name`	`Cmf.Navigo.BusinessObjects.Container, Cmf.Navigo.BusinessObjects`	`Name: containerName`
`materialName`	`Material`	N/A	`Name`	`Cmf.Navigo.BusinessObjects.Material, Cmf.Navigo.BusinessObjects`	`Name: materialName`
`dataCollectionName`	`DataCollection`	N/A	`Name`	`Cmf.Navigo.BusinessObjects.DataCollection, Cmf.Navigo.BusinessObjects`	`Name: dataCollectionName`
`somethingName`	`Custom`	`Something`	`Name`	`Something`	`Name: somethingName`
`somethingId`	`Custom`	`Something`	`Id`	`Something`	`Id: somethingId`

Table 2: Examples

When entityType is set to a built-in entity, customType is ignored - for example, entityType = DataCollection together with customType = "Something" still produces $type = Cmf.Navigo.BusinessObjects.DataCollection, ....

Invalid Configuration#

The converter never fails - invalid settings are logged as errors and an object is still produced, which may cause problems further down when the malformed $type (or missing Name/Id) reaches MES. This is the Log and continue failure pattern; see Converters for how it compares to other converters.

`entityType`	`customType`	`identifier`	Output
`Custom`	(empty)	any	`{ "$type": "" }` (error logged: The field customType must not be empty if Entity Type is Custom)
unrecognized value	any	any	`{ "$type": "Unknown" }` (error logged: Unknown entity type to convert "...")
any	any	unrecognized	object without `Name` or `Id` (error logged: Unknown identifier "...").

Table 3: Invalid Configuration
