Set Equipment Properties#
This task is used to change a property value in the equipment, therefore it's associated to a particular driver.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT |
| Workflow | Data flow Control flow |
IsProtocol flag |
Inputs#
| Name | Data Type | Description |
|---|---|---|
<custom list> | <custom> | Input properties |
| Activate | any | Request the equipment to set new values to the configured properties |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#

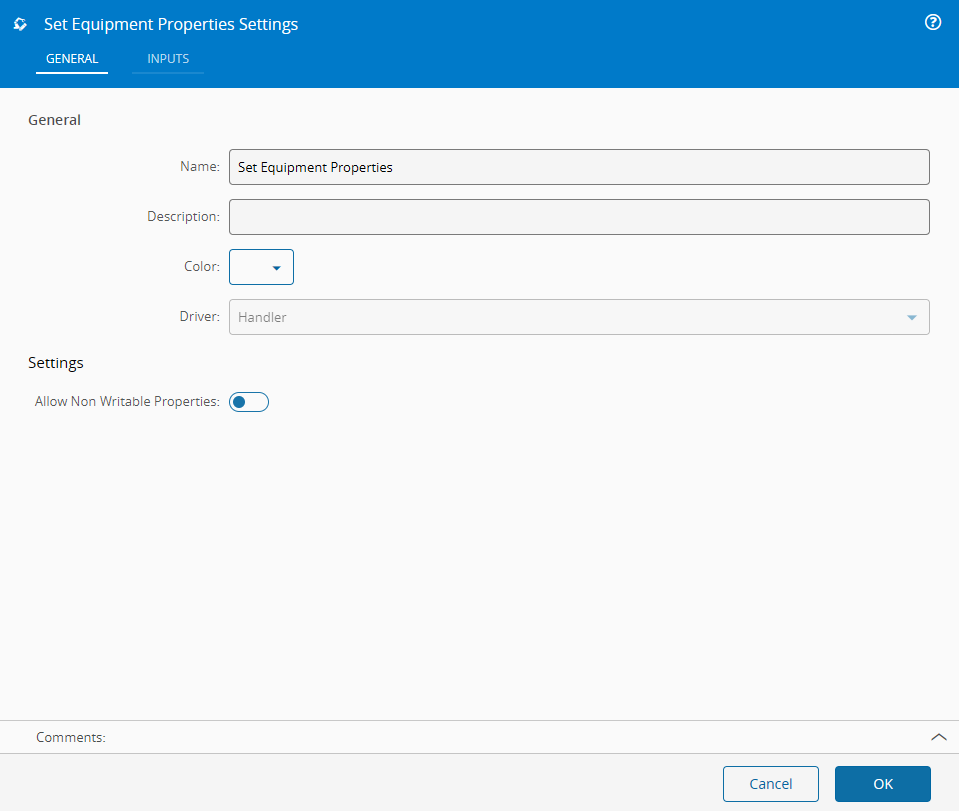

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Driver | String | Chosen Driver | It shows the chosen driver (cannot be changed) |
| Allow Non Writable Properties | Boolean | false | When true, the property picker also lists the properties that the Driver Definition marks as not writable. |
Extended Data
This task shows extended data in the Inputs tab. The extended data shown depends on the driver in use.

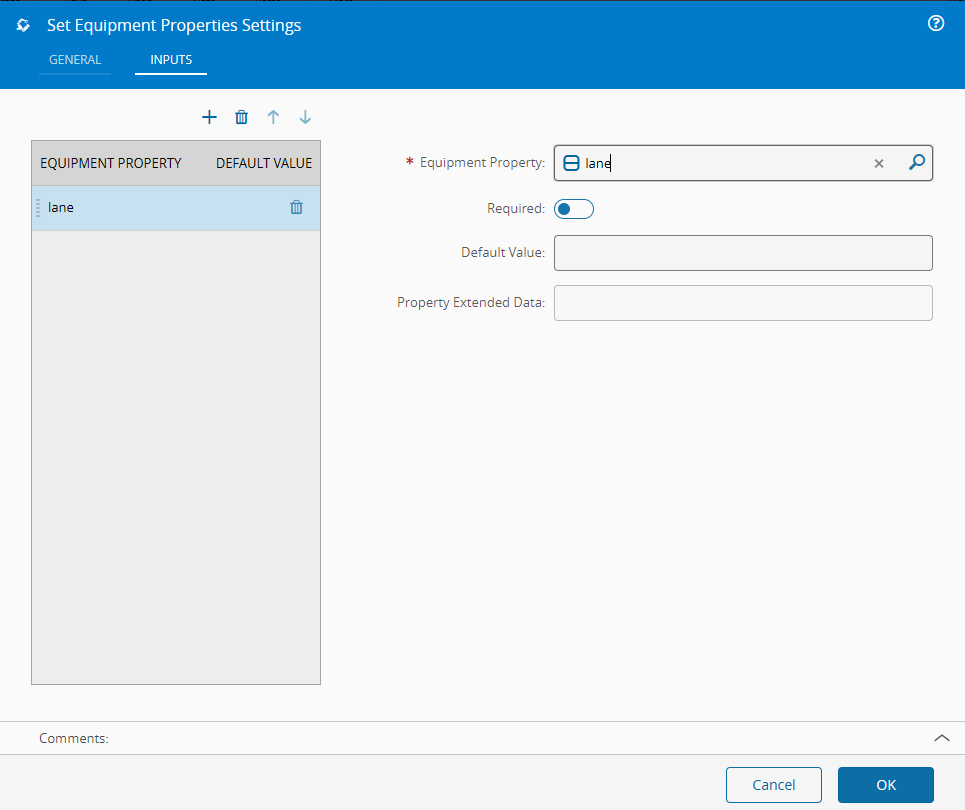

On the Inputs Tab, you have the following settings:
| Name | Data Type | Default | Description |
|---|---|---|---|
| Equipment Property | <EquipmentProperty> | A driver definition property | |
| Required | Boolean | false | If required to activate the task |
| Default Value | String | Value written when the input has no value |
Behavior#
In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller). When the task is activated the given input values are sent to the equipment.
Remarks#
All the communication with the equipment is handled by the driver in the backend.
An input with no value writes its Default Value, and an input with neither is left out of the write. In Data Flow, each input keeps the last value it received, so a later activation writes that value again.
