Driver Event OnInitialize#

The Driver Event task subscribes to driver lifecycle events and triggers workflow actions when specific driver states occur.
It replaces the event-handling functionality that was previously included in the Equipment Setup and Equipment Setup Result tasks.

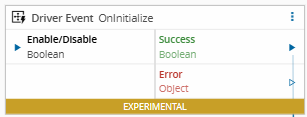

Screenshot showing the Driver Event OnInitialize dialog.

Note

This task results from a split of the Equipment Setup and Equipment Setup Result tasks. It should be used along with: Equipment Configuration and Driver Command.

Workflows#

Data Flow Control Flow

Inputs#

Name Data Type Description
Enable/Disable Boolean Activates or deactivates the event subscription.

Outputs#

Name Data Type Description
CommunicationState String Only for the OnCommunicationChange event: the communication state the driver moved to, one of Unknown, Ready, Connecting, ConnectingFailed, Setup, Communicating, Disconnecting, or Disconnected. The task emits it before Success.
Success Boolean Returns true when the task successfully subscribes to or processes the driver event.
Error Error Provides details if an error occurs while handling the event.

Settings#

Driver Event Task Settings Wizard

Name Data Type Default Description
Auto Enable Boolean true Automatically activates the event subscription when the workflow starts. If set to false, the task subscribes only when manually enabled.
Event Enum OnInitialize Driver lifecycle event to subscribe to. Supported events are:
OnInitialize
OnSetup
OnHeartbeat
OnCommunicationChange
Automatic Setup Boolean true Valid only for the OnInitialize event. When enabled, the task sends the SetupSuccess command to the driver as soon as the setup phase starts, so no Driver Command task is needed to complete it. Disable it when the workflow must initialize the equipment on the OnSetup event first.

Behavior#

The Driver Event task allows the user to surface the lifecycle of the driver.

The Driver Event OnInitialize task listens for key driver lifecycle events and triggers workflow actions when those events occur.
It initiates the configuration and connection sequence for a driver.

A typical workflow using this task includes the following steps:

  1. Driver Event OnInitialize listens for the selected lifecycle event (for example, OnInitialize or OnSetup).
  2. When the event occurs, it triggers the Equipment Configuration task to define driver parameters.
  3. After configuration, the Driver Command task issues the Connect command to establish communication with the equipment.
