Custom Code#

This task allows custom code to be executed in the system, similar to what happens with DEE Actions, creating an abstraction layer of code that can be used to aggregate several commands that can be more complex to create through the regular workflow editor.

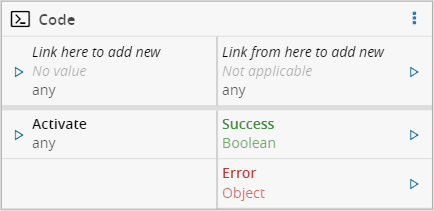

Inputs#

Outputs#

Settings#

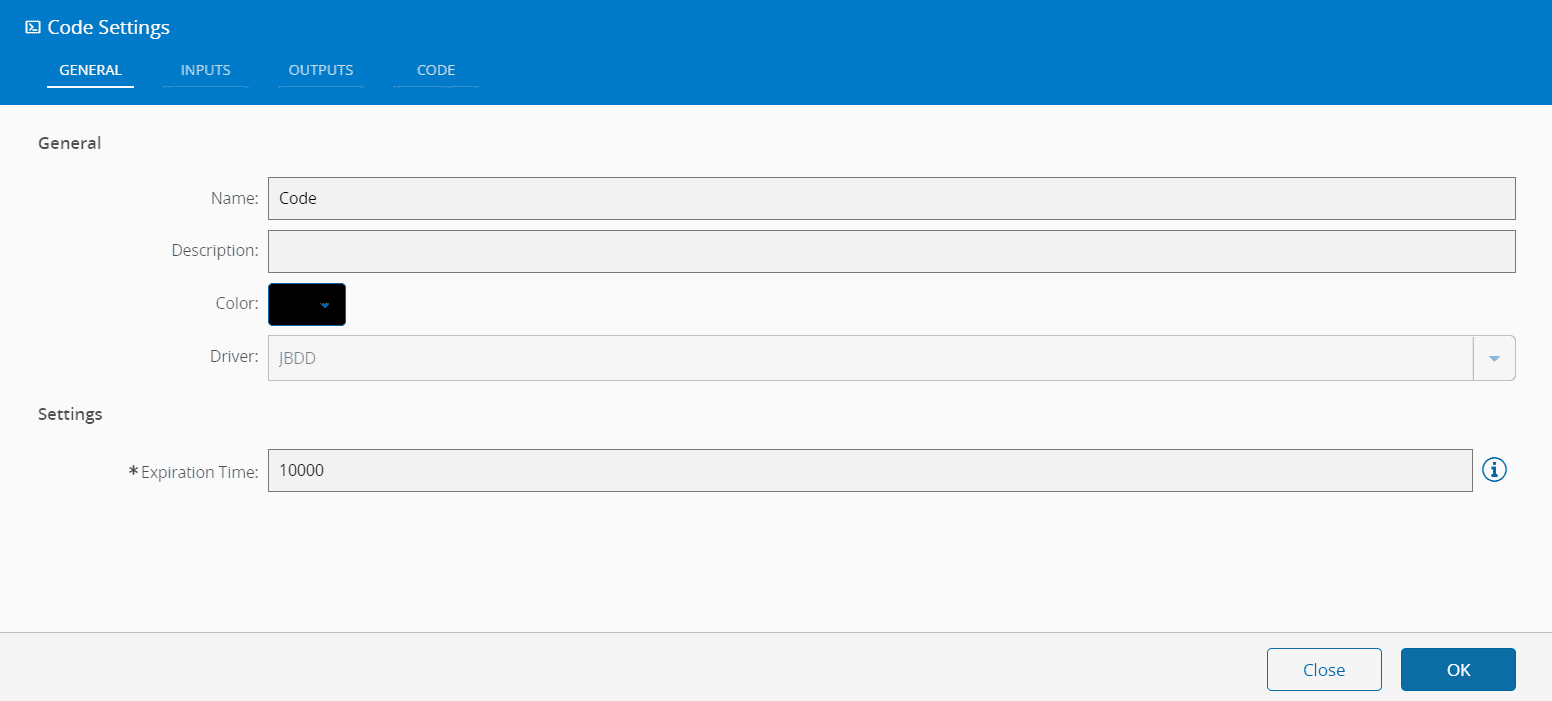

On the General Tab, you have the usual settings and the following settings:

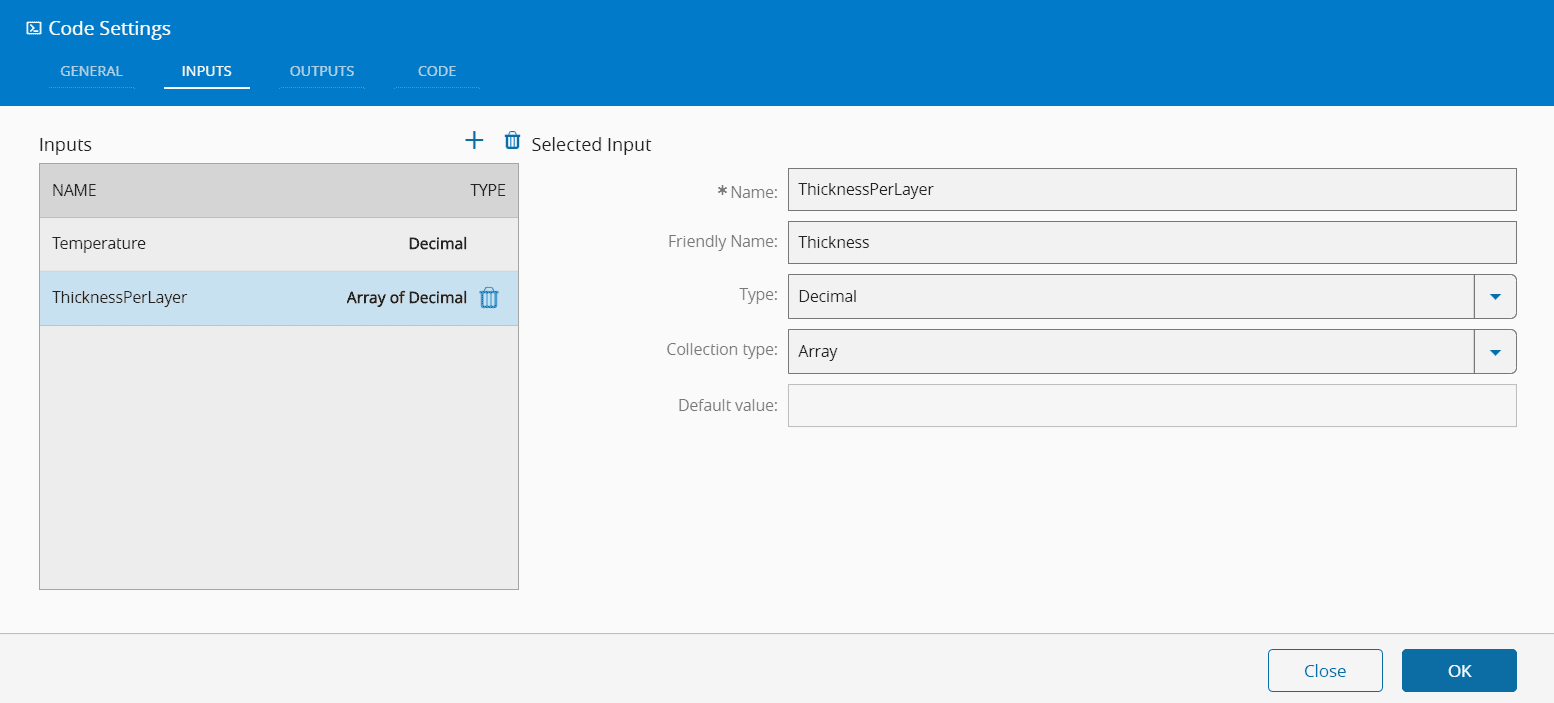

On the Inputs Tab, there are the following settings:

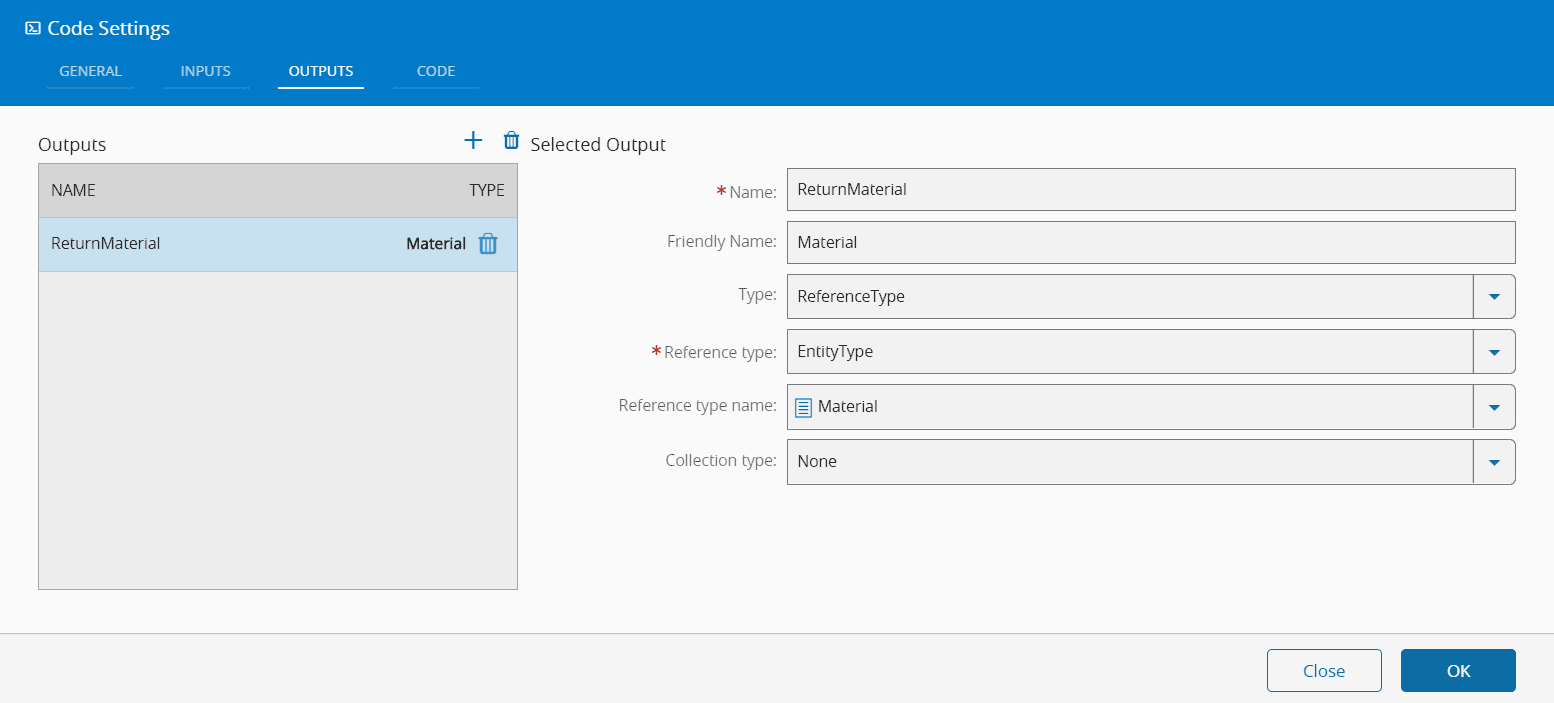

On the Outputs Tab, there are the following settings:

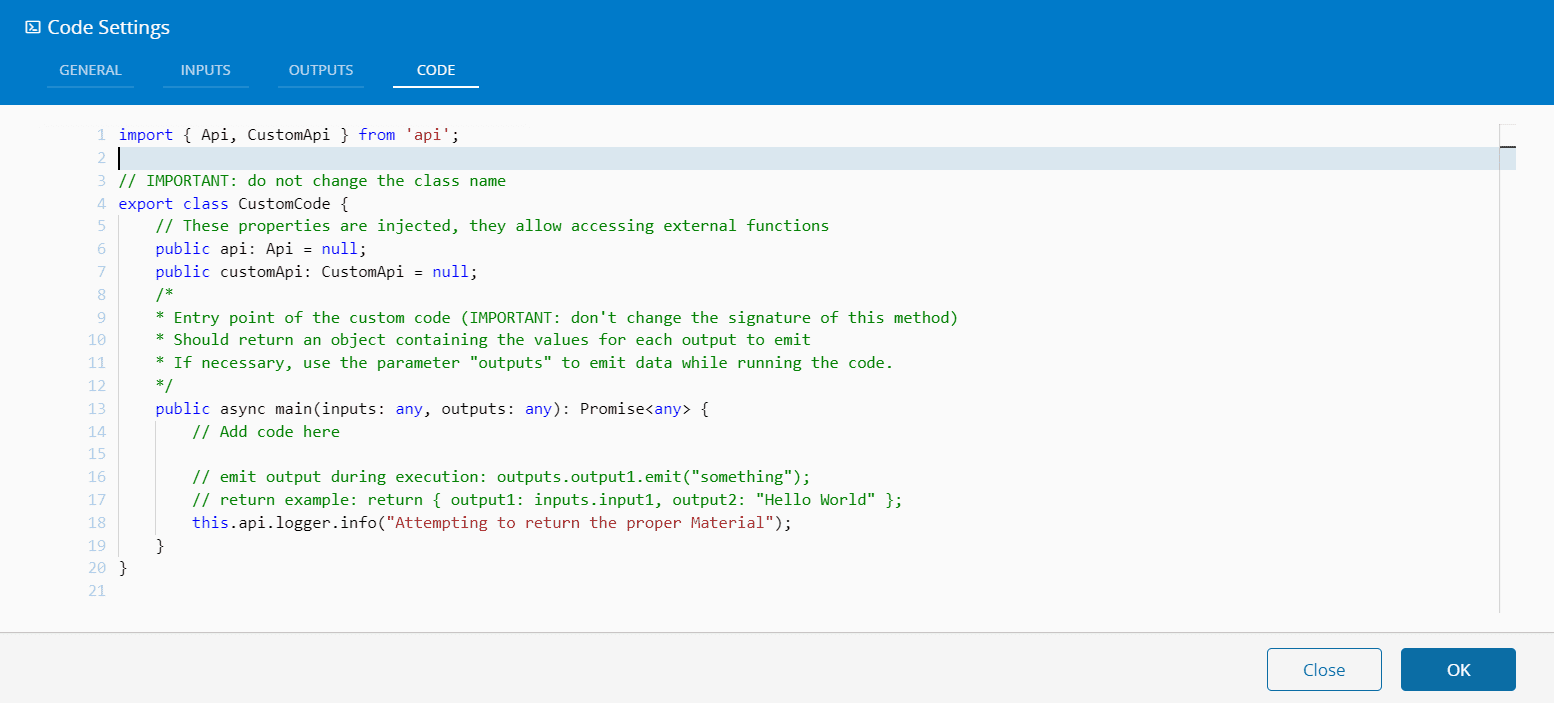

On the Code Tab, there is a editor with syntax highlighting and intelligent code completion that allows the user to edit the code that should be run in this Task. This is the main focus point of the Task and should be used with care since it permits access to the MES itself through API calls, as well as storing values in a database table and perform logging of important values.

Here is an example of a direct MES interaction, where this Task calls a business method that removes all filled positions from a Container by the use of the EmptyContainer method:

import { Framework } from 'framework';

export default class {
    /** Allows accessing external functions */
    public framework: Framework;
    constructor(framework: Framework) {
        this.framework = framework;
    }
    /*
        * Entry point of the class (IMPORTANT: don't change the signature of this method)
        * Should return an object containing the values for each output to emit
        * If necessary, use the parameter "outputs" to emit data while running the code.
    */
    public async main(inputs: any, outputs: any): Promise<any> {
        // Add code here
        this.framework.logger.warning(inputs.xx);
        const input = new this.framework.LBOS.Cmf.Navigo.BusinessOrchestration.ContainerManagement.InputObjects.EmptyContainerInput();
        input.Container = new this.framework.LBOS.Cmf.Navigo.BusinessObjects.Container();
        input.Container.Name = "Container001";
        input.IgnoreLastServiceId = true;
        const output = await this.framework.system.call(input);
        this.framework.logger.error(JSON.stringify(output));
        // emit output during execution: outputs.output1.emit("something");
        // return example: return { output1: inputs.input1, output2: "Hello World" };
    }
}

Behavior#

This task executes the (TypeScript) code created by the user in the Code section of the Task settings. This code is executed with the received inputs and emits all the outputs defined in the code. Although similar to what happens in the execution of DEE Actions in MES, in this particular situation the user can have full control over the inputs and outputs of the block, with added configuration options for both scalar and reference types.

The main class must be the default export of the code:

export default class

The constructor of the class receives the framework object, which gives access to the namespaces listed below:

constructor(framework: Framework)

The framework object can then be used in a method that must have the following signature:

public async main(inputs: any, outputs: any): Promise<any>

Inside the main method the user can create code to access multiple namespaces. Here is a list of the available API namespaces and the methods and classes that can be used:

Datastore#

Driver#

Logger#

MessageBus#

System#

Utils#

Remarks#

This Task should be used with care since a user may unwittingly introduce extra complexity in a workflow where a more simple way to perform specific tasks can be achieved by using simpler, more straightforward Tasks. Due to possible breaking changes (method signature changes, parameter renaming, among others), this Task should be used sparingly and when no other form of automation workflow is possible.

Every output named in the object returned by main is emitted, even when its value is null.

A new instance of the class is created for each execution, so a value kept in a class property is not available to the next execution.

The task keeps the input values of each execution context apart, and an activation runs the code with the values received in its own execution context. Values emitted on the same output in quick succession, with no await between them, reach a linked Data Flow task once, with the last value.

The task does not stop code that runs for a long time, and a loop that does not end blocks the Automation Controller.

The driver namespace is available only in a workflow associated with a driver. In any other workflow, framework.driver is not defined.
