Create File#

When activated, the create file task creates a new file or update the content of an existing one. The file path can be provided either by the input port or in the task settings.

Deprecated

Starting with version 12.0.0, this task is deprecated and will be removed in a future version. Use the Execute Equipment Command task with the CreateFile command of the file driver instead. On upgrade to version 12.0.0, Data Flow workflows using this task are migrated automatically.

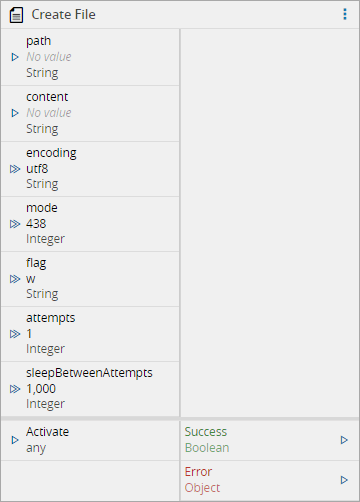

Inputs#

Name	Data Type	Description
path	`String`	File path
content	`String`	File content to be written
encoding	`String`	File content encoding
mode	`Integer`	File system permissions mode
flag	`String`	File System Flags
attempts	`Integer`	Number of attempts to perform this operation. Default is 1 attempt
sleepBetweenAttempts	`Integer`	Interval of time between the attempts. Default is 1000ms
Activate	`any`	Activate the task

Outputs#

Name	Data Type	Description
Success	`Boolean`	Triggered when the task is executed with success
Error	`Error`	Triggered when the task failed for some reason

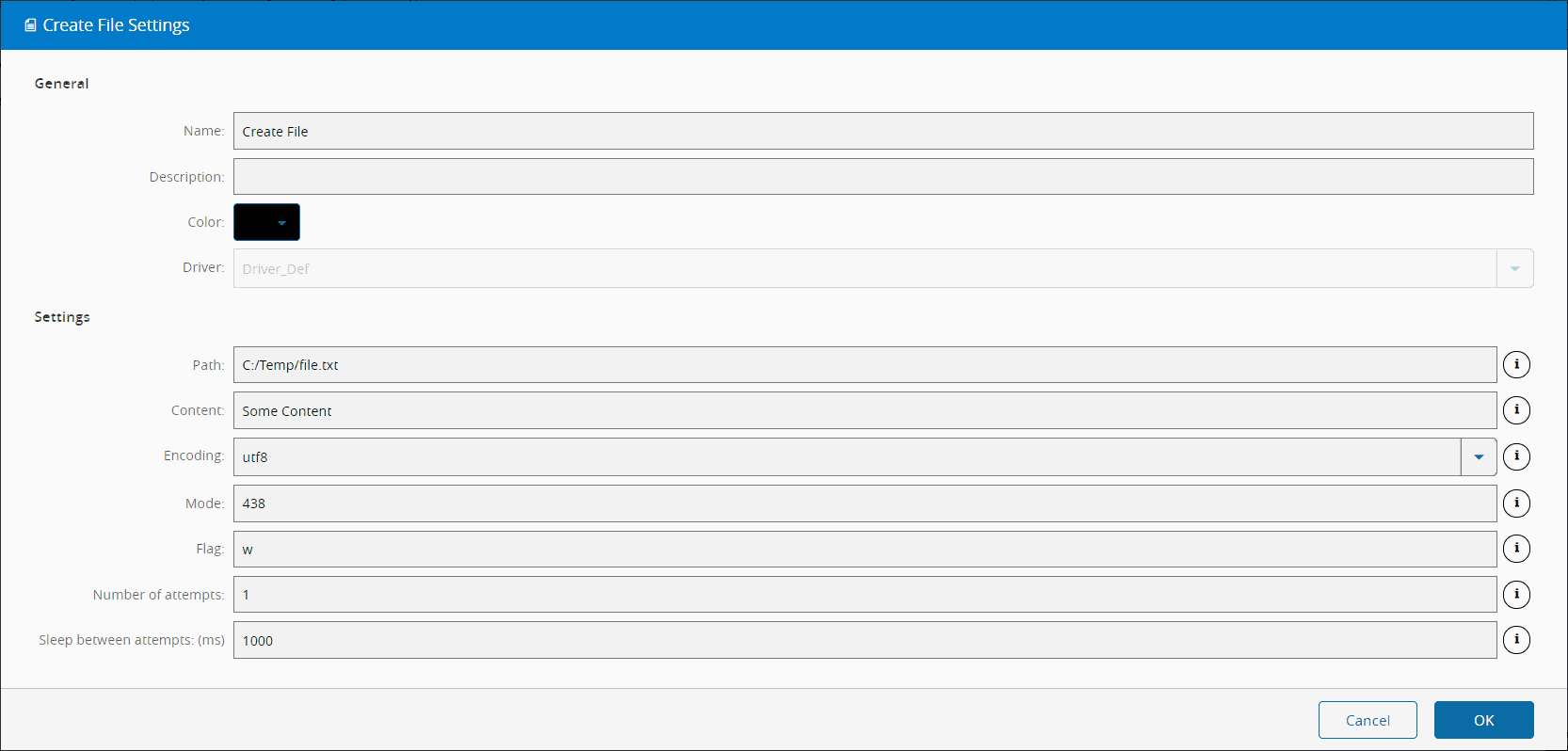

Settings#

On the General tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Path	`String`			File path
Content	`String`			File content to be written
Encoding	`Enum`	`utf8` `ucs2` `utf16le` `latin1` `binary` `base64` `ascii` `hex`	`utf8`	File content encoding
Mode	`Integer`		0o666	File system permissions mode
Flag	`String`		w	File System Flags
Number of attempts	`Integer`		1	Number of attempts to perform this operation.
Sleep Between Attempts	`Integer`		1000	Interval of time between the attempts.

For the Path file you can use tokens as represented below:

Available tokens:
  ${path} - Watched path
  ${archive} - Archive path
  ${temp} - Temporary directory of the user
  ${id} - DriverId ("\" chars replaced with "_")

Examples:
  ${path}\subdir\newFile.txt
  ${temp}\files\${id}\Recipe\File.csv
  c:\source\Result\OK.bin

File system permissions mode#

The task setting mode controls the ability of the users to view, change, navigate, and execute the contents of the file system.

Each of the three rightmost digits represents a different component of the permissions: owner, group, and others. These are the examples from the symbolic notation section given in octal notation:

Symbolic Notation	Octal Notation	Integer Notation	Description
`----------`	0o000	000	No permissions
`-rwx------`	0o700	448	Read, write & execute only for owner
`-rwxrwx---`	0o770	504	Read, write & execute for owner and group
`-rwxrwxrwx`	0o777	511	Read, write & execute for owner, group and others
`---x--x--x`	0o111	73	Execute
`--w--w--w-`	0o222	146	Write
`--wx-wx-wx`	0o333	219	Write & execute
`-r--r--r--`	0o444	292	Read
`-r-xr-xr-x`	0o555	365	Read & execute
`-rw-rw-rw-`	0o666	438	Read & write
`-rwxr-----`	0o740	480	Owner can read, write & execute Group can only read Others have no permissions

File System Flags#

The following flags are available :

Flags	Description
`a`	Open file for appending. The file is created if it does not exist.
`ax`	Like `'a'` but fails if the path exists.
`a+`	Open file for reading and appending. The file is created if it does not exist.
`ax+`	Like `'a+'` but fails if the path exists.
`as`	Open file for appending in synchronous mode. The file is created if it does not exist.
`as+`	Open file for reading and appending in synchronous mode. The file is created if it does not exist.
`r`	Open file for reading. An exception occurs if the file does not exist.
`r+`	Open file for reading and writing. An exception occurs if the file does not exist.
`rs+`	Open file for reading and writing in synchronous mode. Instructs the operating system to bypass the local file system cache.
`w`	Open file for writing. The file is created (if it does not exist) or truncated (if it exists).
`wx`	Like `'w'` but fails if the path exists.
`w+`	Open file for reading and writing. The file is created (if it does not exist) or truncated (if it exists).
`wx+`	Like `'w+'` but fails if the path exists.

Behavior#

In this task you choose a driver when dropping it into the workflow (if you have more than one driver associated with the controller).

Upon activation, will send a CreateFile command to the driver where it will try to write into a file located in the path location. If it fails, will retry attempts times, waiting sleepBetweenAttemptsmilliseconds each time.

If the operation is executed with success, a value true is emitted on the Success output. In case of the task , for some reason, is not able perform the copy operation, an Error is emitted.

Remarks#

There is no particular remark to be made.
