On Fuji Nexim Request#

This Task is specific to be used with the Fuji Nexim Driver.

This Task receives request messages of a specific type, which can be configured in the Task's settings.

The Task's static and dynamic outputs are updated after each event received.

Deprecated

Starting with version 12.0.0, this task is deprecated and will be removed in a future version. Use the On Equipment Event task with the configured Fuji Nexim request message as the event instead. On upgrade to version 12.0.0, Data Flow workflows using this task are migrated automatically and links from the requestId output are renamed to the occurrenceId output.

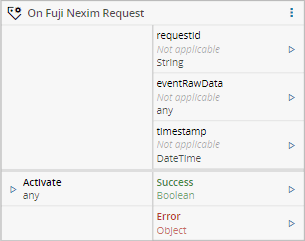

Inputs#

Name	Data Type	Description
Activate	`Boolean`	Activates the task

Outputs#

Name	Data Type	Description
requestId	`string`	The RequestId of the message received
timestamp	`DateTime`	The timestamp for when the event is triggered
eventRawData	`any`	The raw automation event object
Success	`Boolean`	If there was no problem emits a true
Error	`Error`	Error that occurred during the processing of this task

Settings#

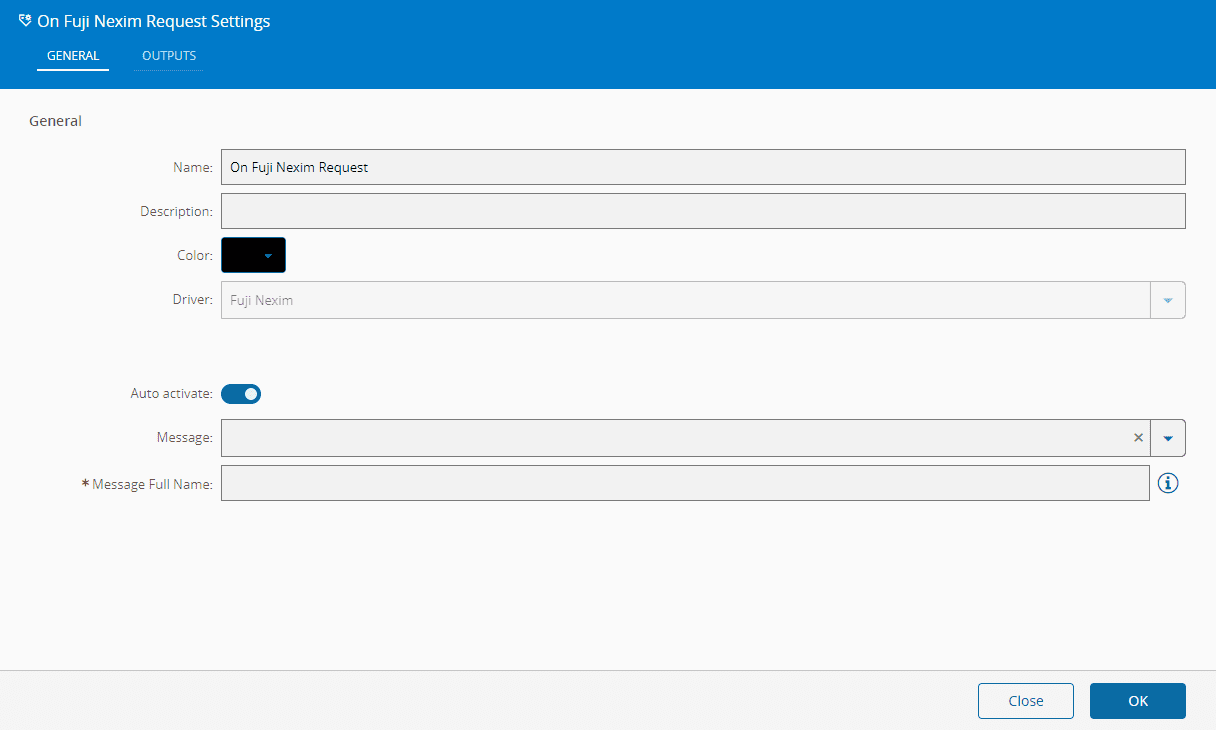

On the General Tab, you have the usual settings and the following settings:

Name	Data Type	Values	Default	Description
Auto Activate	`Boolean`		true	If the event is activated by the register of an event of that type or if it is only activated by the `activate` input
Message Full Name	`string`			Name of the message from Fuji Nexim specification, for example, STARTEV. Mandatory.
Message	`enum`	`BOM List` `Machine State Change` `Panel CheckIn` `Panel CheckOut` `Program Change Completion` `Program Change Completion 2` `Production Completed` `Production Start`		Specifies the behavior of the task. Mandatory.

Behavior#

When activated, this Task subscribes to a specific request message, configured in the settings.

Every time a message is received (via request) it emits the respective results to its outputs.

When you select a message, the task creates the dynamic outputs that correspond to the event properties of the selected message. The event type of the message defines whether the machine waits for a reply, as described in the Connect IoT - Fuji Nexim Driver page.

Remarks#

None.
