Send Fuji Nexim Reply#
This Task is specific to be used with the Fuji Nexim Driver.
This Task sends reply messages of a specific type, which can be configured in the Task's settings.
Deprecated
Starting with version 12.0.0, this task is deprecated and will be removed in a future version. Use the Execute Equipment Command task with the configured Fuji Nexim reply message as the command instead. On upgrade to version 12.0.0, Data Flow workflows using this task are migrated automatically and links to the requestId input are renamed to the correlationId input.

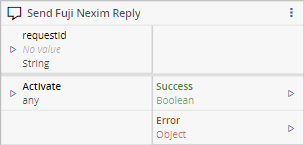

Inputs#
| Name | Data Type | Description |
|---|---|---|
| requestId | string | The RequestId of the message received |
| Activate | Boolean | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |

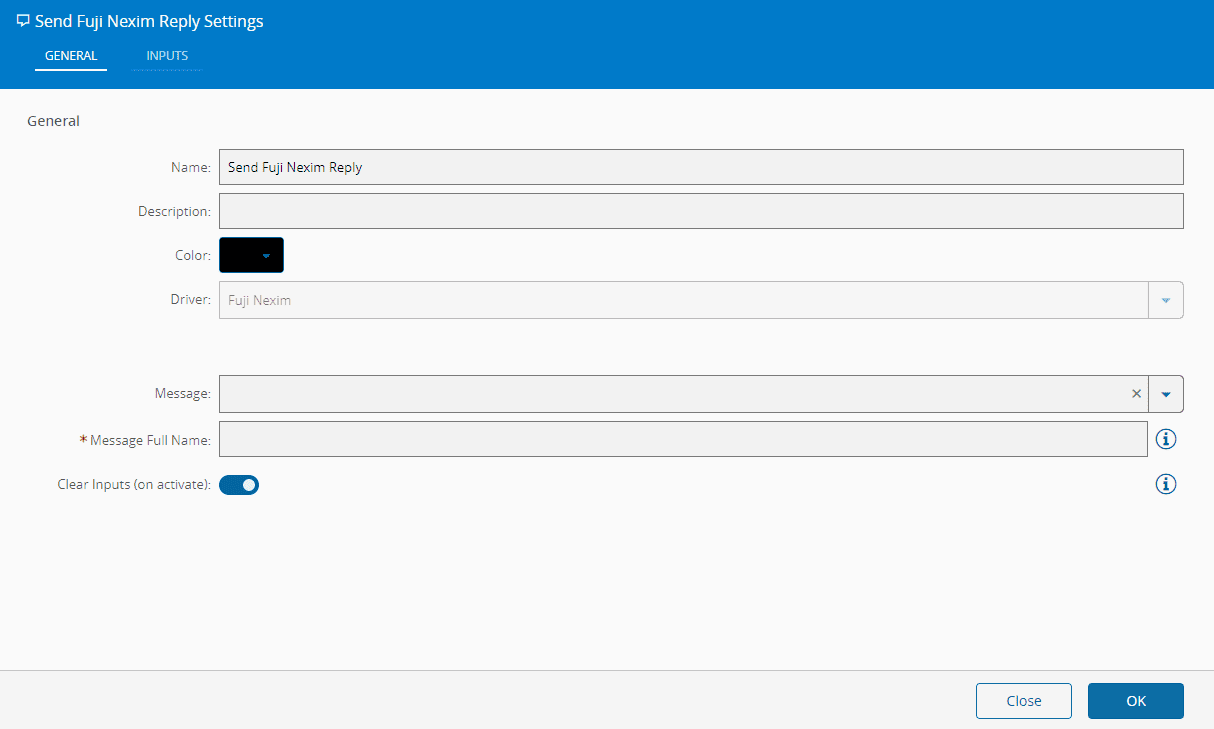

Settings#
On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Clear Inputs (on activate) | Boolean | true | Defines if it is to clear the input values after receiving an activate | |
| Message Full Name | string | Name of the message from Fuji Nexim specification, e.g.: STARTEV_ACK. | ||
| Message | enum | BOM List ReplyMachine State Change ReplyPanel CheckIn ReplyPanel CheckOut ReplyProgram Change Completion ReplyProgram Change Completion 2 ReplyProduction Completed ReplyProduction Start Reply | Specifies the behavior of the task. Mandatory. |
Behavior#
When activated, this Task sends a reply of a specific message, configured in the settings.
The requestId input is important to identify the request to be replied to.
Remarks#
None.
