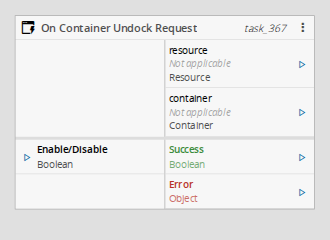

On Container Undock Request#
This trigger task listens for Container Undock requests coming from the MES and lets a workflow perform the equipment-side handling when an operator undocks a Container from a Resource.
It belongs to the System / MES category, under Triggers, and is available in both Data Flow and Control Flow workflows. In a Control Flow workflow it appears as a Start trigger named When a Resource performs Container Undock.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow Control flow |
IsProtocol flag |
Behavior#
When an operator performs Undock Container, the MES sends a request on the ConnectIoT.Undock.RequestReply subject and waits for a reply. This task receives that request, emits the resource and the container involved in the operation, and emits Success.
The MES sends the request only when the Resource involved in the operation has the Enable Automation Scenarios and Container Undock Interlocking properties enabled. The request is handled by the Automation Controller instance associated with the Resource or, when defined, with its Automation Scenarios Owner Entity.
The MES stays blocked until a reply is sent. If none is sent within the Reply Timeout, the task emits Error and the undock fails on the MES side.
The reply is produced differently depending on the workflow type:
- Control Flow - the reply is the result of the trigger's handler branch.
- Data Flow - a downstream Send Container Undock Reply task sends the reply.
Inputs#
| Name | Data Type | Description |
|---|---|---|
| Enable/Disable | Boolean | Enables (true) or disables (false) the message listener at runtime. Works together with the Auto Enable setting. |
Table: On Container Undock Request task inputs
Outputs#
| Name | Data Type | Description |
|---|---|---|
| resource | Resource | The Resource where the operation is being performed. |
| container | Container | The Container being undocked. |
| Success | Boolean | Triggered when a request is received and processed. |
| Error | Error | Triggered when the task fails or the reply times out. |
Table: On Container Undock Request task outputs

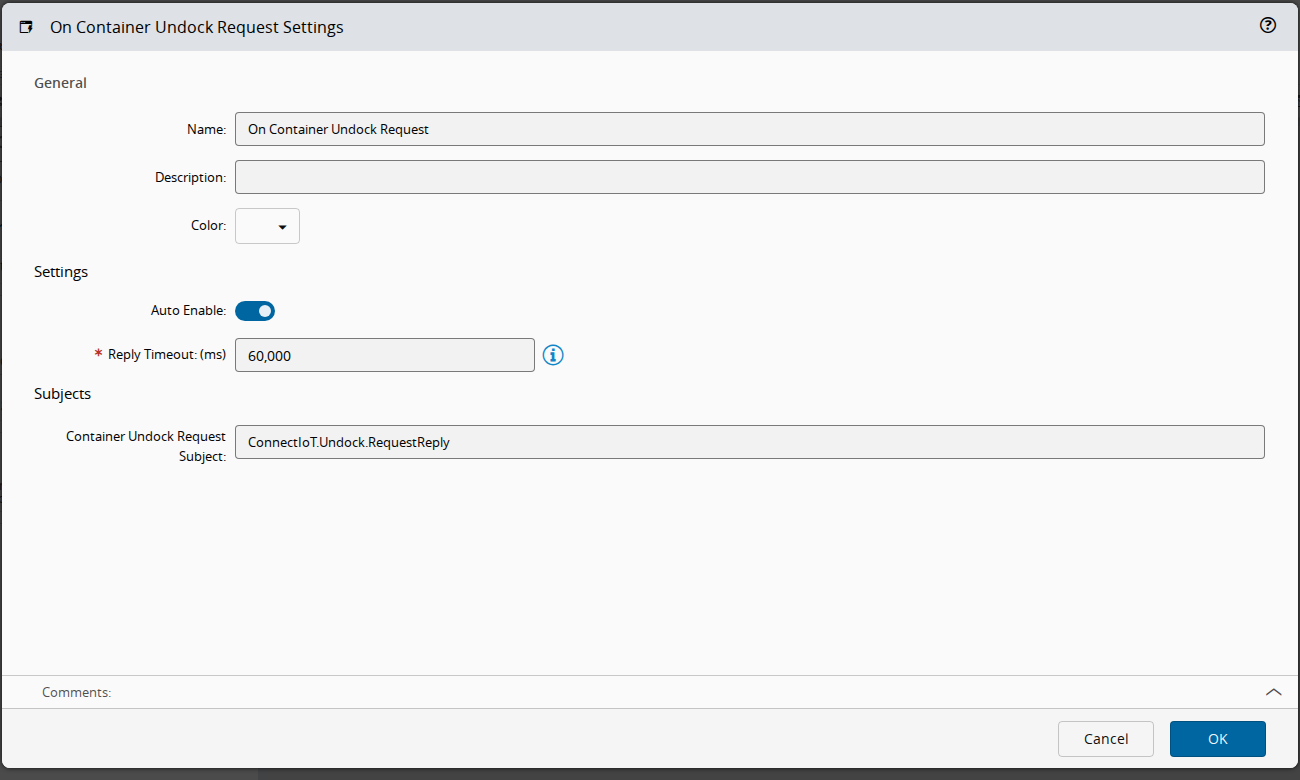

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Enable | Boolean | true | Automatically enables the message listener when the task starts. | |
| Reply Timeout | Integer | ms | 60000 | Amount of time allowed to wait for a reply before issuing a timeout. This setting is mandatory. |
| Container Undock Request Subject | String | ConnectIoT.Undock.RequestReply | Subject used to communicate with the MES. This setting is read-only. |
Table: On Container Undock Request task settings
Remarks#
This task pairs with the Send Container Undock Reply task, which sends the reply back to the originating request.
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
