ISA-95 Decoder#

The ISA-95 Decoder task resolves the ISA-95 equipment hierarchy of a MES entity. Given an Enterprise, Site, Facility, Area, or Resource, it emits the name of each ISA-95 level that can be derived from that entity, along with the complete resolution as a single object.

Use it together with the Entity Instance task to enrich equipment data with its plant location, for example before posting a measurement to Data Platform.

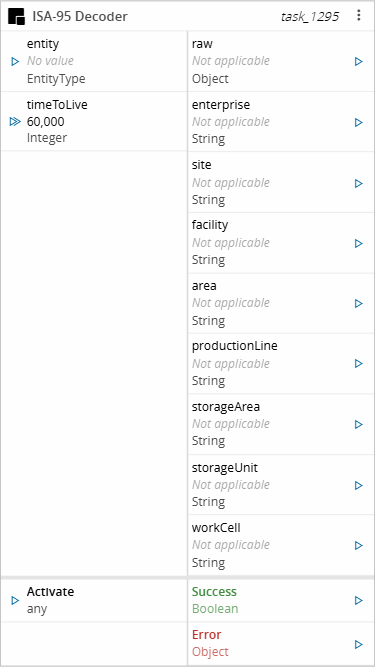

Details#

Inputs#

Outputs#

Table: ISA-95 Decoder outputs

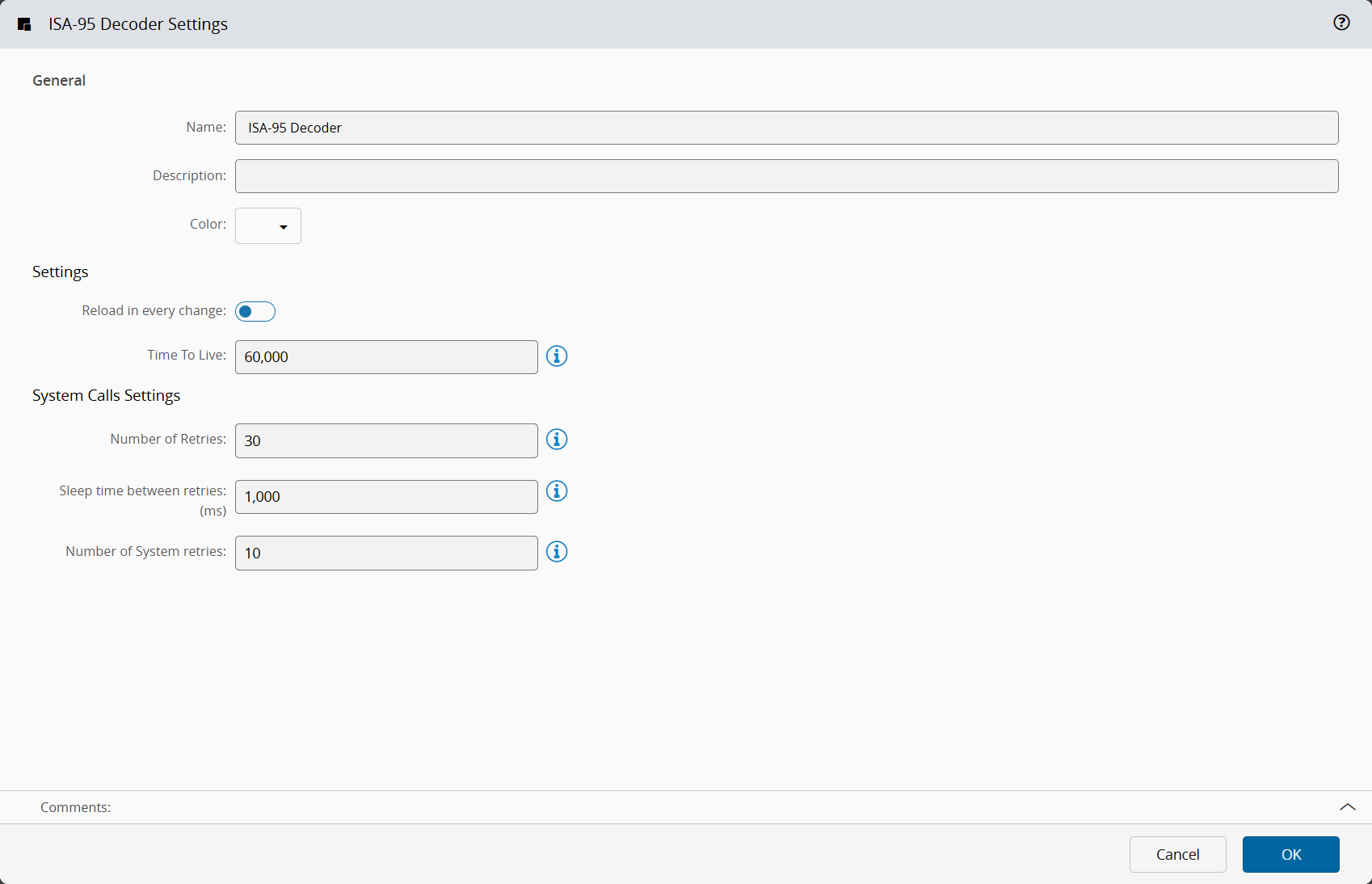

Settings#

The General tab includes standard task settings and the following parameters:

Table: ISA-95 Decoder general settings

And the following retries settings:

Behavior#

Resolution#

The task resolves the hierarchy upwards from the entity it receives, so the outputs it can fill depend on the entity type:

Table: ISA-95 levels resolved per entity type

Enterprise, Site, and Facility are read from the Facility of the entity's Area. Because a Site and its Enterprise are optional in the plant model, the enterprise and site outputs can have no value even when the facility output has one.

An Area is mapped according to its area type:

• A plain Area fills the area output with its own name, even when it is nested under another Area.
• A Production Line Area fills the productionLine output, and a Storage Area fills the storageArea output. In both cases, the area output holds the name of the top-most Area above it.

A Resource is then mapped according to its processing type and its parent Resources. The Resource mapping is applied after the Area mapping, so a Line Resource replaces the Production Line Area in the productionLine output.

Table: Resource mapping per processing type

A Line parent is only used for a Process Resource. Any other Resource under a Line, such as a Load Port, gets the productionLine output from its Area, which is the Production Line Area if there is one.

Examples#

The examples below use the following plant model. Each Resource belongs to the nearest Area above it.

flowchart TD
    enterprise[Enterprise1] --> site[Site1] --> facility[Facility1] --> area1[Area1<br/>Area]
    area1 --> plArea1[PLArea1<br/>Production Line Area]
    area1 --> sArea1[SArea1<br/>Storage Area]
    plArea1 --> line1[Line1<br/>Line] --> process1[Process1<br/>Process] --> loadPort2[LoadPort2<br/>Load Port]
    plArea1 --> process0[Process0<br/>Process] --> process2[Process2<br/>Process]
    sArea1 --> storage1[Storage1<br/>Storage]
    area1 --> line2[Line2<br/>Line] --> process3[Process3<br/>Process] --> process4[Process4<br/>Process]
    area1 --> process5[Process5<br/>Process]
    process5 --> loadPort1[LoadPort1<br/>Load Port]
    process5 --> storage2[Storage2<br/>Storage]

The following table shows the outputs when each of these Resources is the input entity. All of them also fill enterprise (Enterprise1), site (Site1), and facility (Facility1). Empty cells have no value.

Table: Resolution examples

When the input entity is above the Area level, only the levels down to that entity are filled. For example, Site1 as the input entity fills enterprise and site, and every other output has no value.

The raw output holds all levels in one object. Levels with no value are undefined, so they are left out when the object is serialized. For Process1, raw is:

{
    "enterprise": "Enterprise1",
    "site": "Site1",
    "facility": "Facility1",
    "area": "Area1",
    "productionLine": "Line1",
    "workCell": "Process1"
}

Typical Uses#

• Add the plant location to equipment data before posting it to Data Platform with the Post Telemetry or Post Measurement task.
• Build a hierarchical name, such as a topic or a tag path, from the enterprise, site, area, productionLine, and workCell outputs, skipping the levels that have no value.
• Resolve the location of a Resource other than the one the controller is connected to, by passing that Resource from the Entity Instance task.

Caching#

Resolutions are cached per entity, using the entity type and identifier as the key. While a cached entry is valid, the task reuses it instead of calling the system, which keeps repeated activations for the same equipment inexpensive.

• The cache entry is valid for the number of milliseconds set in Time To Live. Set it to 0 to resolve the hierarchy on every activation.
• Enable Reload in every change to bypass the cache without disabling it, so an entry is refreshed instead of reused.
• Only successful resolutions are cached. A failed call is retried on the next activation.
• Concurrent activations for the same entity share one system call.

The cache is kept per Automation Controller and is not shared between controllers.

Errors#

The task emits the Error output when:

• The entity has no identifier or no type.
• The entity type is not one of Enterprise, Site, Facility, Area, or Resource.
• The entity has no ISA-95 hierarchy in the system.
