Send Material Track In Reply#
This action task sends the reply back to a Material Track In request received from the MES, completing the request/reply exchange started by the On Material Track In Request task.
It belongs to the System / MES category, under Actions, and is available in Data Flow workflows.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow |
IsProtocol flag |
Behavior#
When activated, this task sends the reply back to the Material Track In request that the On Material Track In Request task is waiting on, which unblocks the MES. The reply comes from the reply input, or from the Default Reply setting when no reply is provided.
This task must run in the same workflow branch (zone) as the request it answers. If there is no pending request to answer, the task emits Error instead.

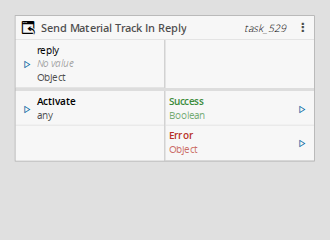

Inputs#
| Name | Data Type | Description |
|---|---|---|
| reply | Object | Reply to send back to the Material Track In request. Optional; when omitted, the Default Reply is used. |
| Activate | Any | Activates the task, sending the reply. |
Table: Send Material Track In Reply task inputs
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | Triggered when the reply is sent successfully. |
| Error | Error | Triggered when sending fails, or no pending request exists in the current context. |
Table: Send Material Track In Reply task outputs

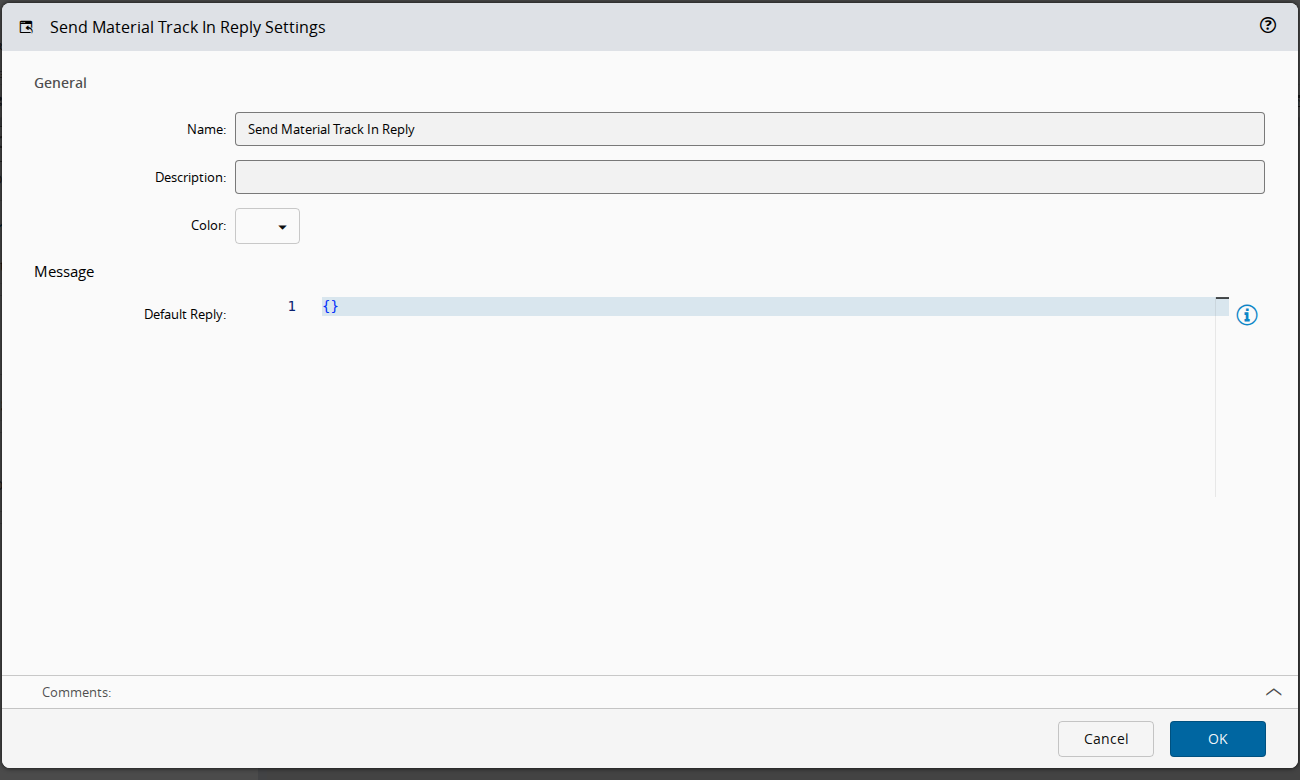

Settings#
On the General tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Default Reply | Object | {} | Optional default message to reply with when the task is activated and no reply is provided on the input. |
Table: Send Material Track In Reply task settings
Remarks#
This task pairs with the On Material Track In Request task, which listens for the request that this task replies to. It must be executed within the zone created by that task.
MES confirms the operation with any reply and does not read its content. To refuse the operation with a reason, link an Error with a message into reply: MES fails the operation with that message. See Connect IoT - MES Interoperability Scenarios Tutorial.
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
