Send Recipe List Reply#
This action task sends the reply back to a recipe list request received from the MES, completing the request/reply exchange started by the Recipe List Request task.
It belongs to the System / MES category, under Actions.
Details#
| Fields | Details |
|---|---|
| Scope | Connect IoT Data Platform Enterprise Integration Factory Automation |
| Workflow | Data flow |
IsProtocol flag |
Behavior#
When activated, this task sends the recipe list back to the request that the Recipe List Request task is waiting on, which unblocks the MES. The recipeList input is expected to carry an array with the names of the recipes available at the equipment.
This task must run in the same workflow branch (zone) as the request it answers. If there is no pending request to answer, the task emits Error instead.

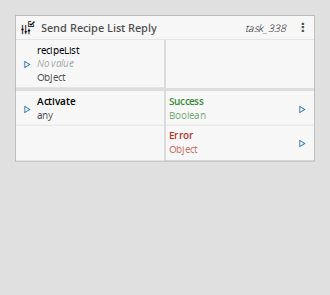

Inputs#
| Name | Data Type | Description |
|---|---|---|
| recipeList | Object | The list of recipes to send to the MES, an array with the recipe names. |
| Activate | Any | Activates the task, sending the reply. |
Table: Send Recipe List Reply task inputs
Outputs#
| Name | Data Type | Description |
|---|---|---|
| Success | Boolean | Triggered when the reply is sent successfully. |
| Error | Error | Triggered when sending fails, or no pending request exists in the current context. |
Table: Send Recipe List Reply task outputs
Settings#
On the General tab, you have the usual settings and the following settings:

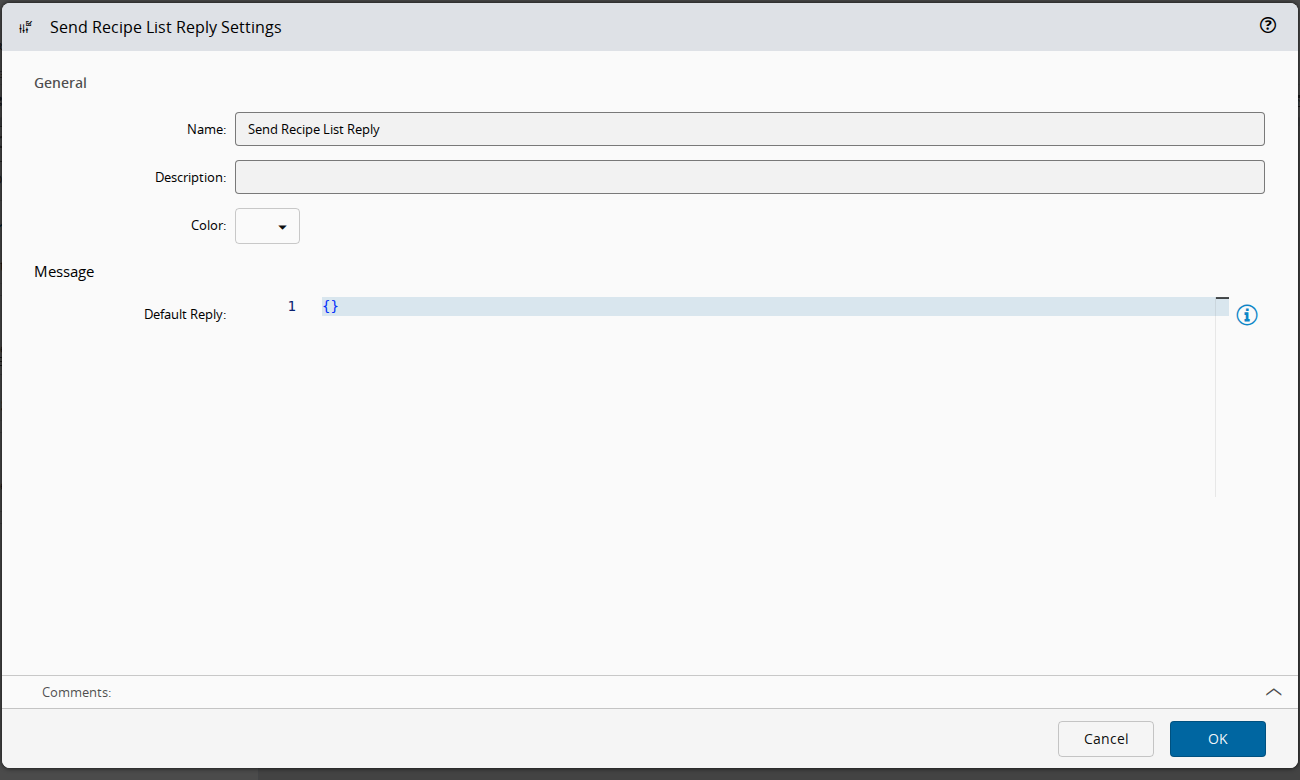

| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Default Reply | Object | {} | Optional default message to reply with when the task is activated and no reply is provided on the input. |
Table: Send Recipe List Reply task settings
Remarks#
This task pairs with the Recipe List Request task, which listens for the request that this task replies to. It must be executed within the zone created by that task.
MES reads each item of the list as a recipe name, or as an object with a non-empty Name, and fails the request for an item without a name. Link an array: a text is sent as one item without a name. See Connect IoT - MES Interoperability Scenarios Tutorial.
This task uses a specific structure of context-based data called zone. More information on this topic can be read in the Zones page.
