On PanaCIM Request#
This Task is specific to be used with the PanaCIM Driver.
This Task receives request messages of a specific type, which can be configured in the Task's settings.
The Task's static and dynamic outputs are updated after each event received.

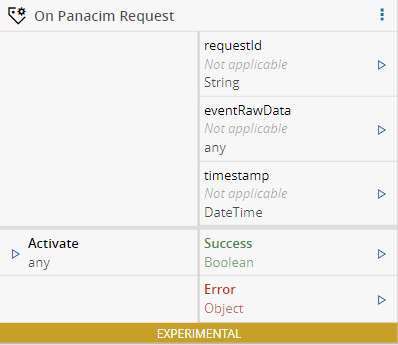

Inputs#
| Name | Data Type | Description |
|---|---|---|
| Activate | Boolean | Activates the task |
Outputs#
| Name | Data Type | Description |
|---|---|---|
| requestId | string | The RequestId of the message received |
| timestamp | DateTime | The timestamp for when the event is triggered |
| eventRawData | any | The raw automation event object |
| Success | Boolean | If there was no problem emits a true |
| Error | Error | Error that occurred during the processing of this task |
Settings#

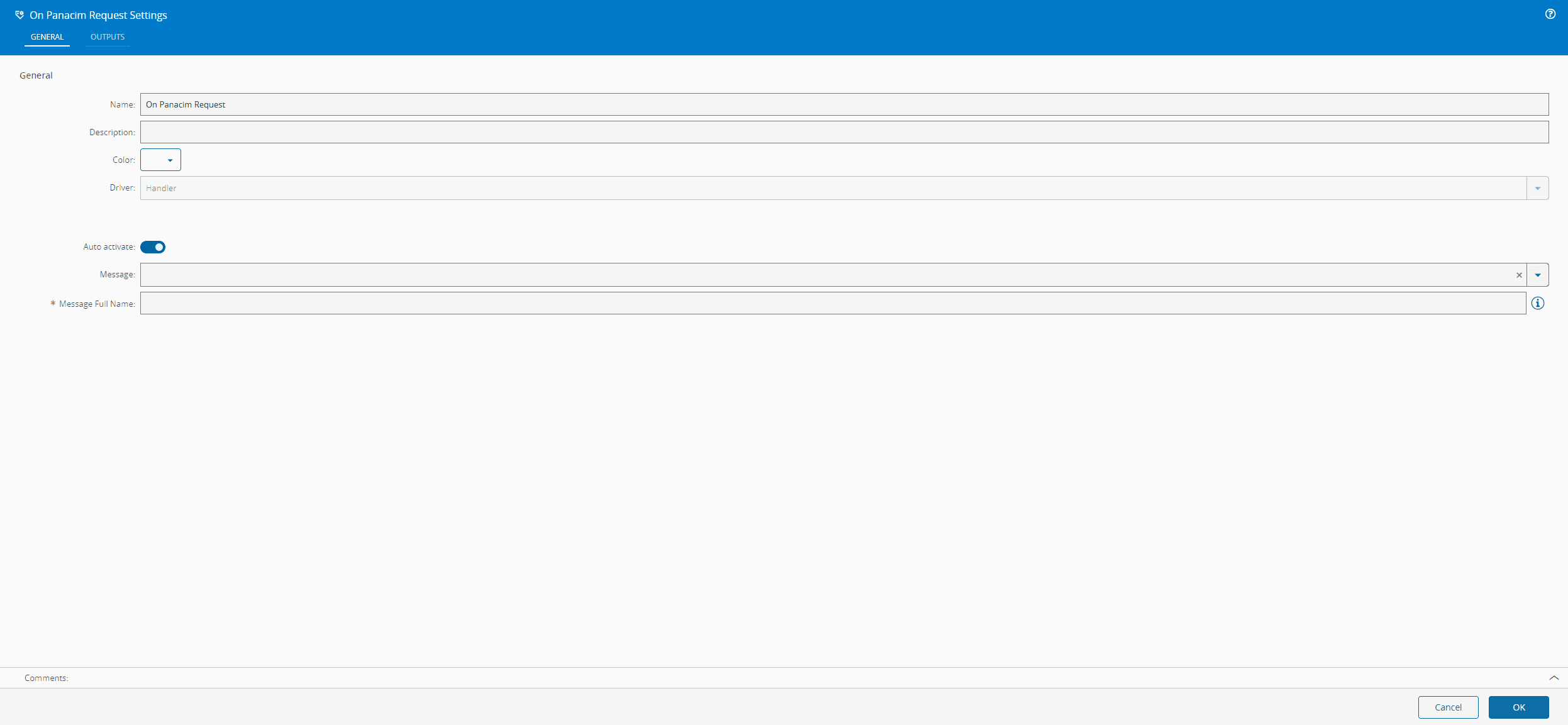

On the General Tab, you have the usual settings and the following settings:
| Name | Data Type | Values | Default | Description |
|---|---|---|---|---|
| Auto Activate | Boolean | true | If the event is activated by the register of an event of that type or if it is only activated by the activate input | |
| Message Full Name | string | Identifier of the selected message in the PanaCIM specification, that is, the device ID of the event in the Automation Driver Definition, for example 500. It is filled automatically when you select the Message. | ||
| Message | enum | PCB-ID Request | Specifies the behavior of the task |
Behavior#
When activated, this Task subscribes to a specific request message, configured in the settings.
Every time a message is received (via request) it emits the respective results to its outputs.
When you select the Message in the settings, the Task generates one dynamic output for each property of the selected event, as defined in the Automation Driver Definition. The Property Name of each output is the device ID of the property, that is, the path of the value in the message XML (for example, Body.Pcb.Barcode). The driver uses the Property Name to retrieve the value from the request message. The event-specific path of the event property is not copied to the outputs, so to read a value from a different path, change the Property Name of the output. For the path resolution rule, see Connect IoT - PanaCIM.
Remarks#
None.
