Change Set Page#

ChangeSet.Show

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

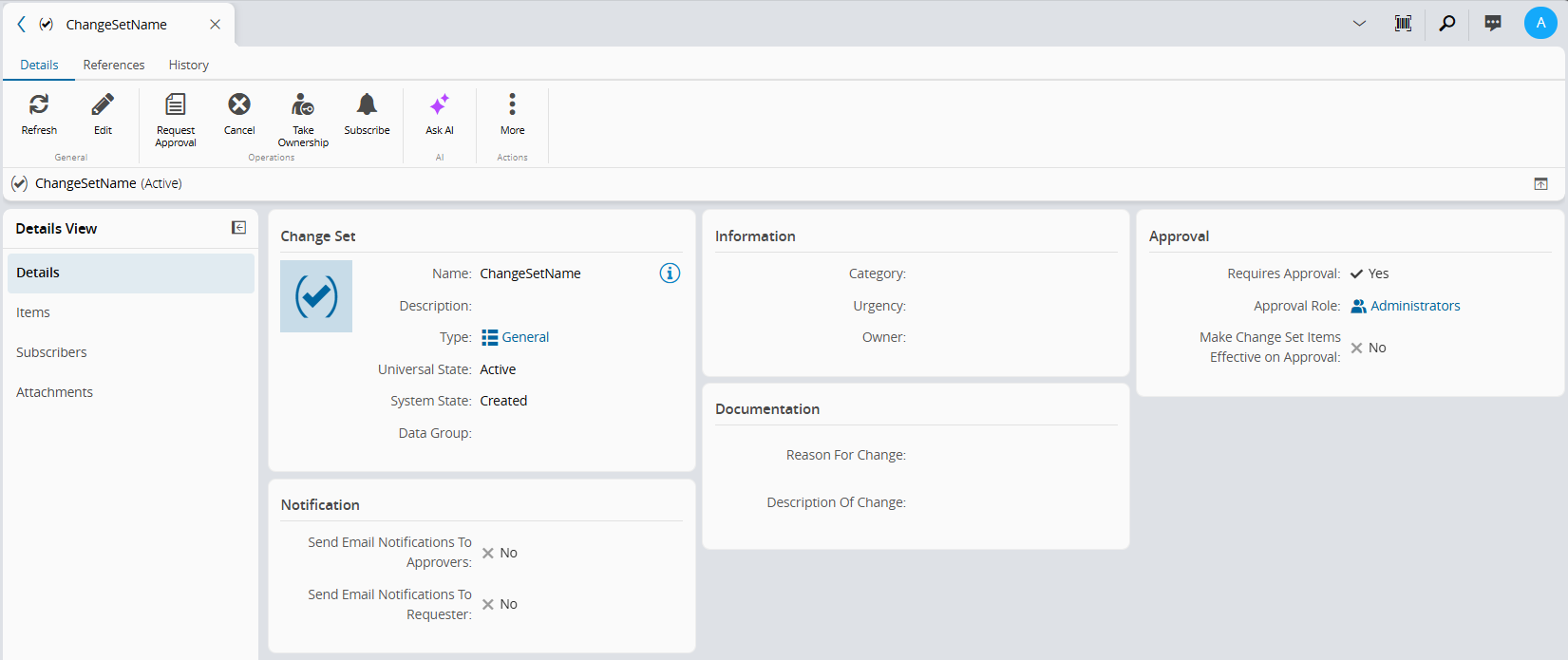

• Details - displays general information on the Change Set. Additionally, it displays the Details of the Change Set, as illustrated below. Moreover, if you select the Compare button on the top ribbon, this will allow you to compare all the Items of the Change Set.

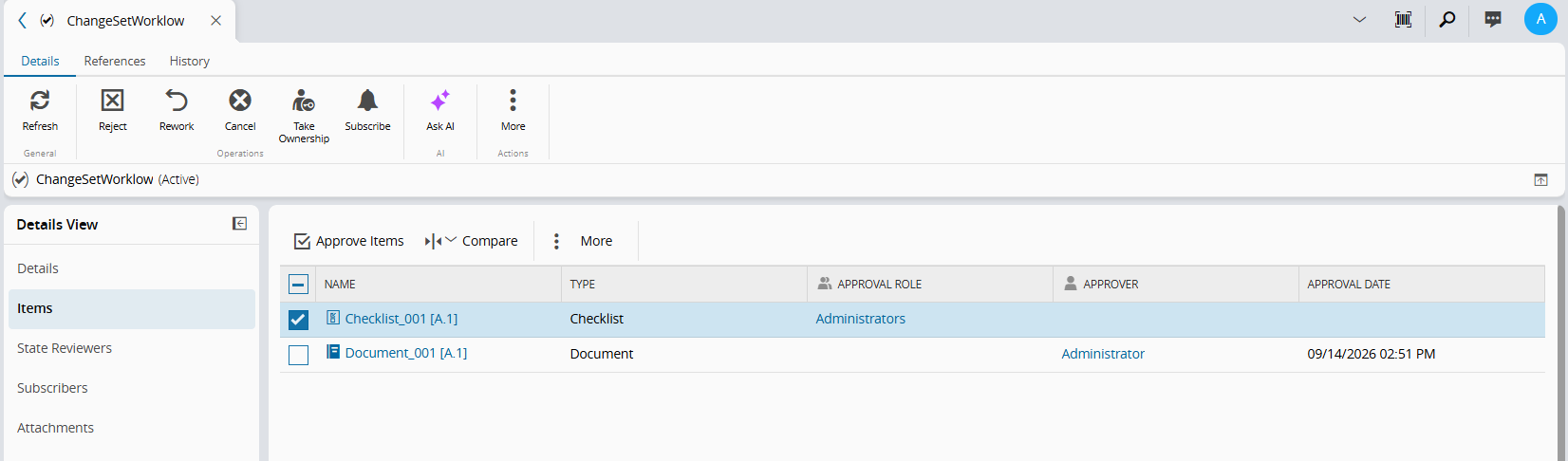

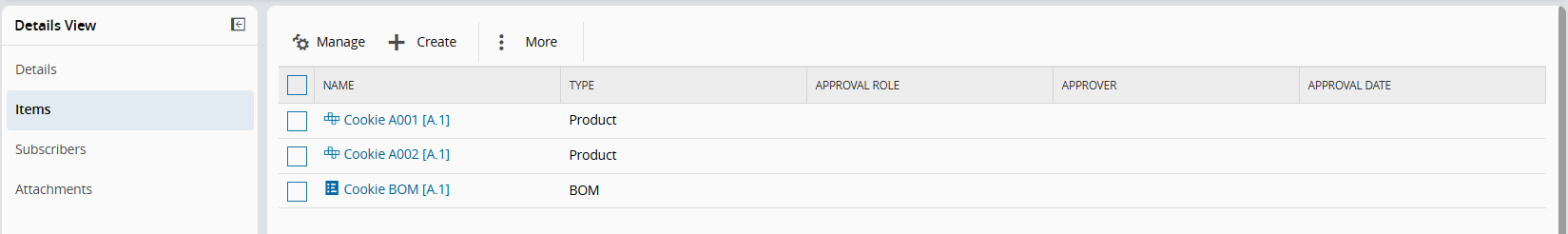

• Items - displays the Change Set Items in a list in which it will be possible to visualize the name of the Change Set Item, its type, the approval role or the name of the approver in charge of approving the item. In case the Change Set Item has already been approved, it will also be possible to see its approval date and time.

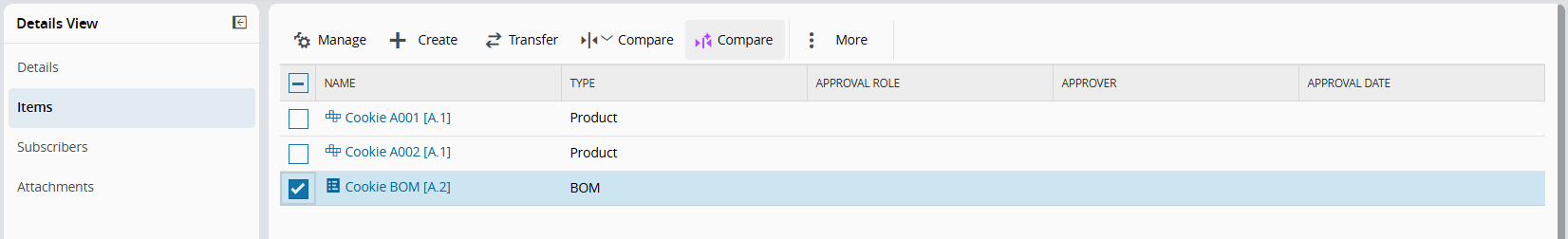

Furthermore, if you select an Item and then select the AI Compare button, you will be able to compare the selected version to its previous version.

If a Change Set Item still has not been approved, it is possible to tick its checkbox and select the Approve Item button to approve it. To find out more about approving Change Set Items, see Approve Change Set Items.

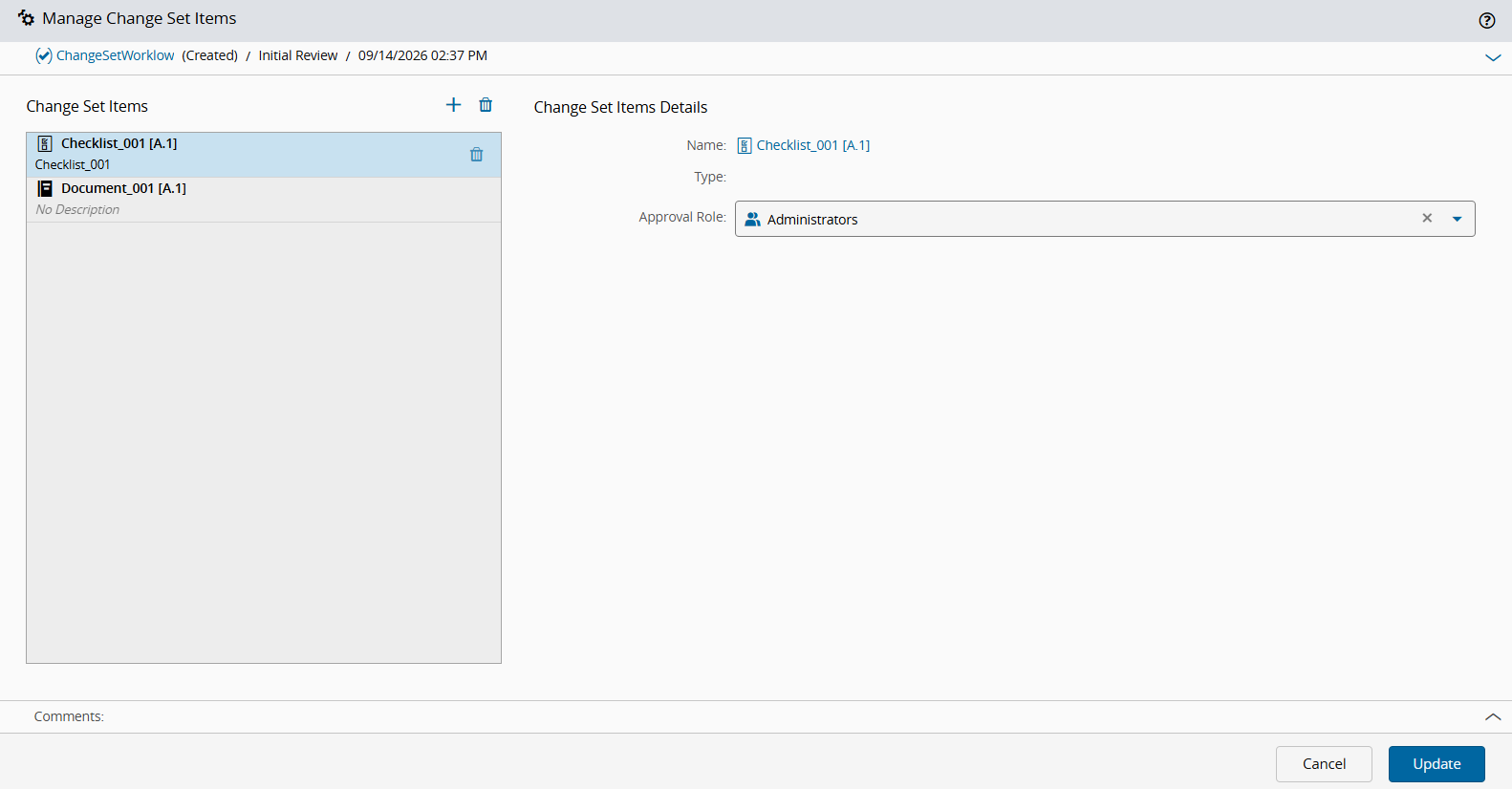

If the Change Set is still in the Created state, it is possible to select Edit to modify these Change Set Items concerning the Approval Role.

• State Reviewers - displays the Change Set Reviewers associated to this Change Set. The Reviewer must explicitly approve the Change Set at a certain state. Within this tab there are three separate tabs with information on the current state review process:

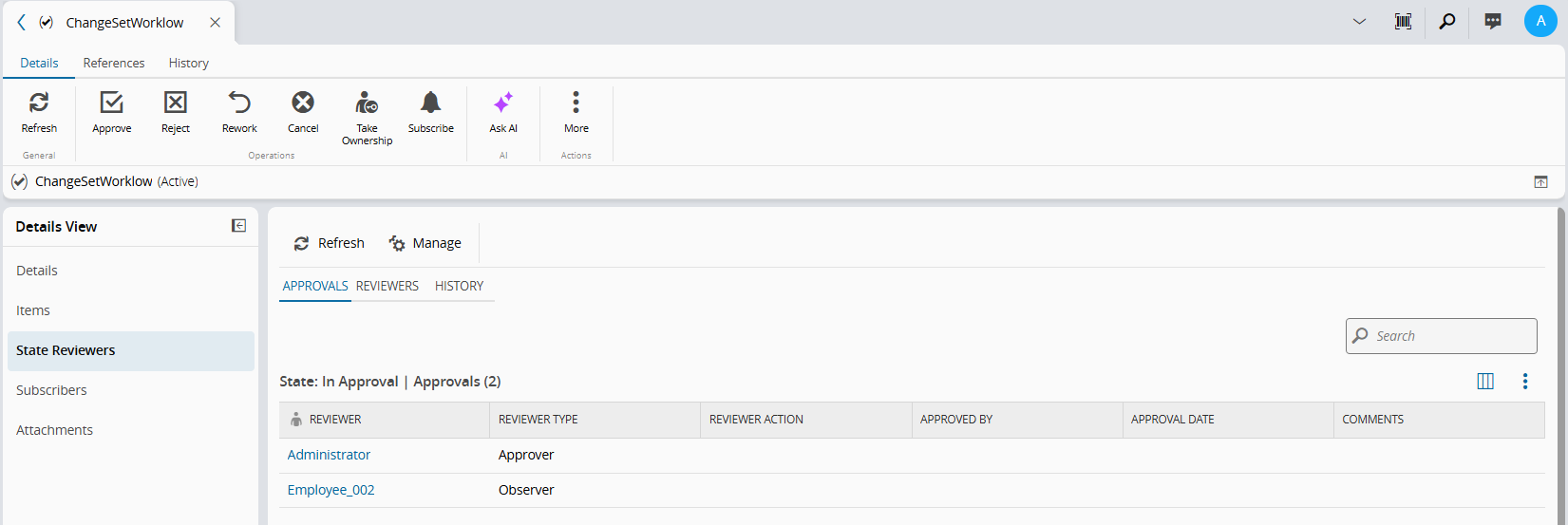

  • Approvals - all Approvals for the Change Set

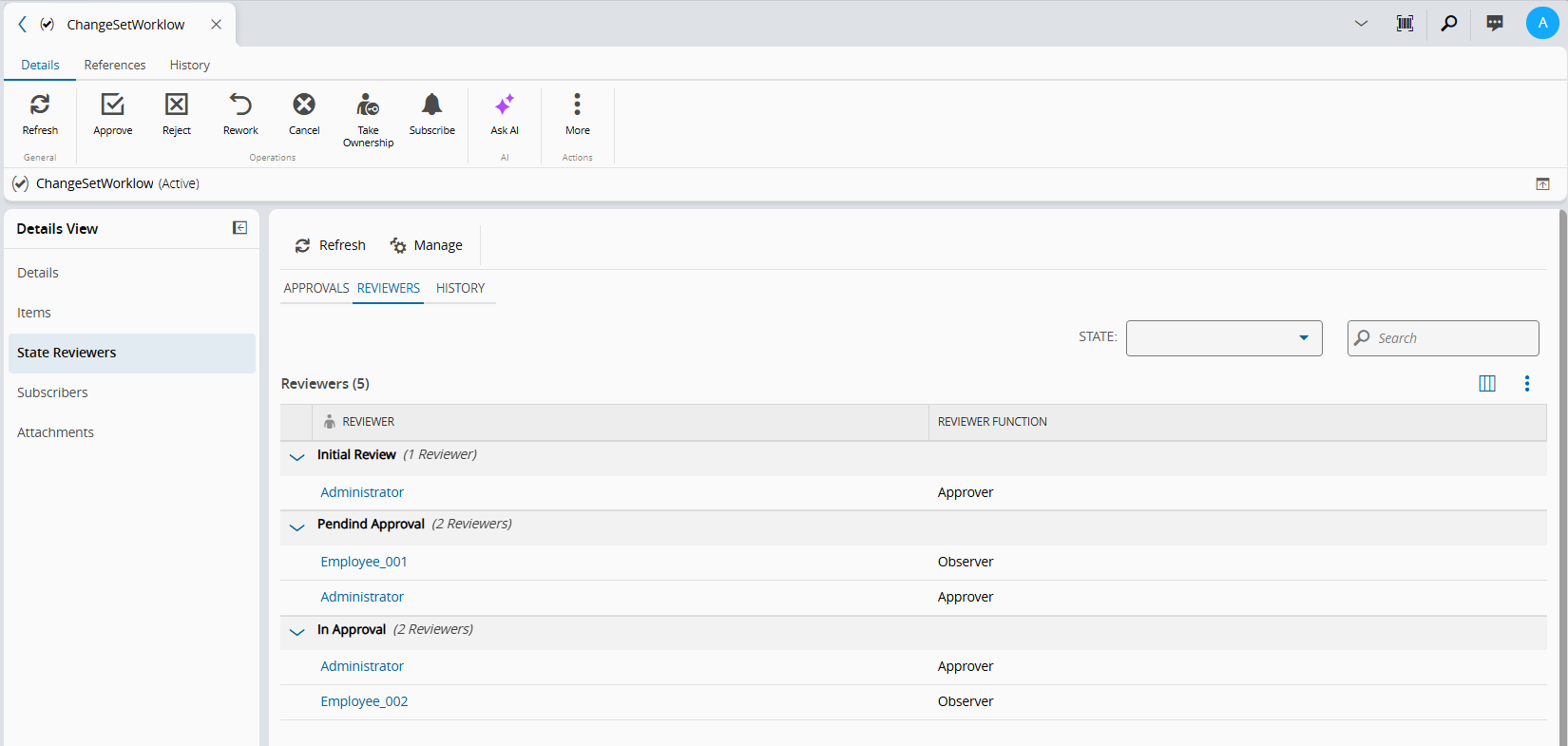

  • Reviewers - all Reviewers for the Change Set

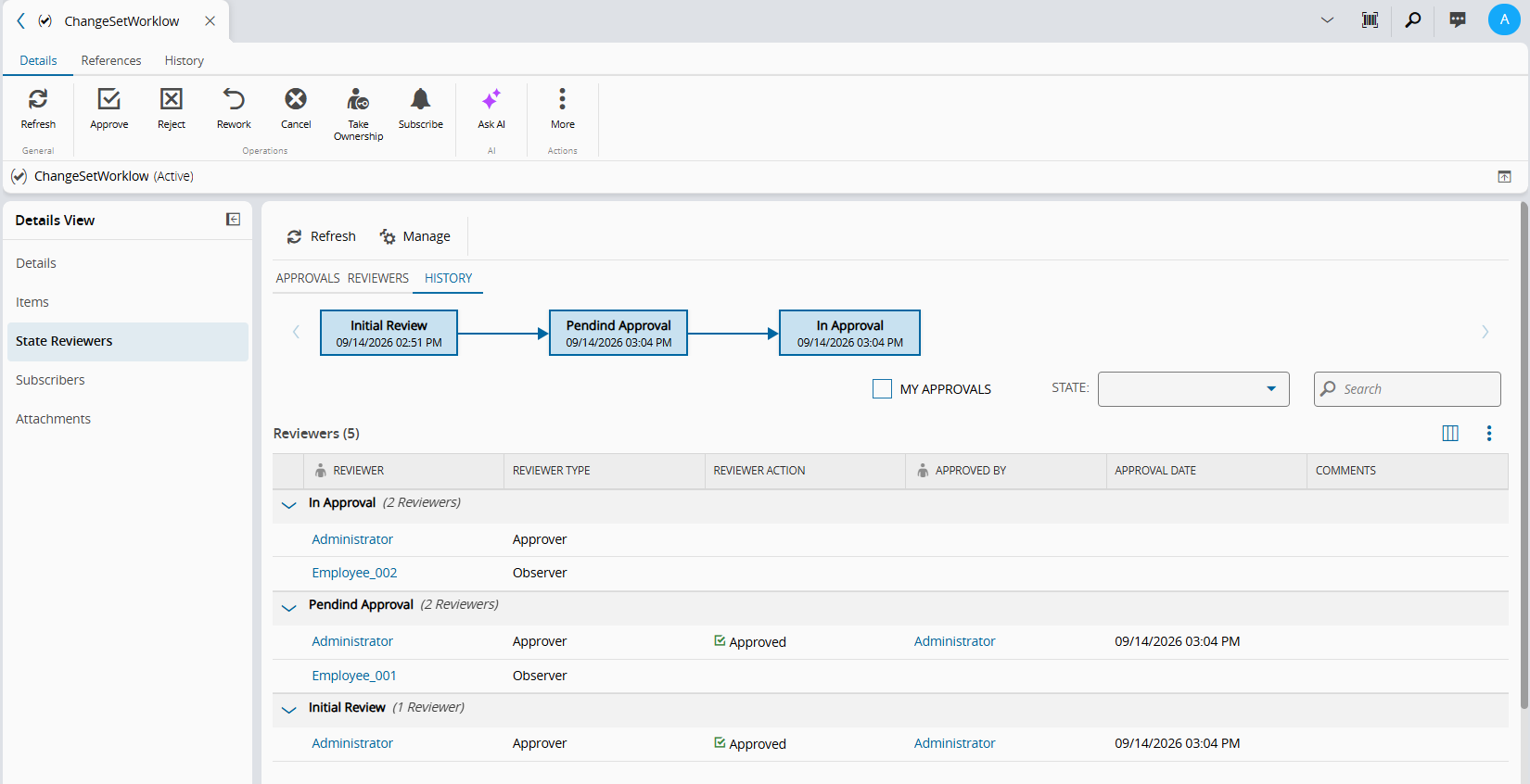

  • History - all the history of approvals for the Change Set

• Subscribers - displays all the subscribers of the current Change Set.

References Tab#

This tab combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the Change Set and other entities and enables the user to edit them. For more information, see Relations.
• Where Used - displays the set of relationships between the Change Set and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Change Set object:

• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
