Chart Page#

🔒 Chart.Show

The Chart page displays general information on the specific Chart. In addition it enables you to perform all the operations that can be performed on a specific Chart.

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

  • Details - displays general information on the Chart.
  • Limits - displays information on the specification limits of the Chart.
  • Contexts - displays the chart keys (which uniquely identify a chart) as well as mandatory context which needs to be collected when posting data to the Chart.
  • Rules - displays rules to check for violations in the Chart.
  • Logical Charts - displays a list of the logical charts that hold the data points that allow visual representation of the Chart.
  • Attributes - enables the visualization of existing attributes and the possibility to create new ones. For more information, see Attributes.
  • Attachments - shows the documents that are attached to the Chart and enables you to attach additional documentation to the Chart.

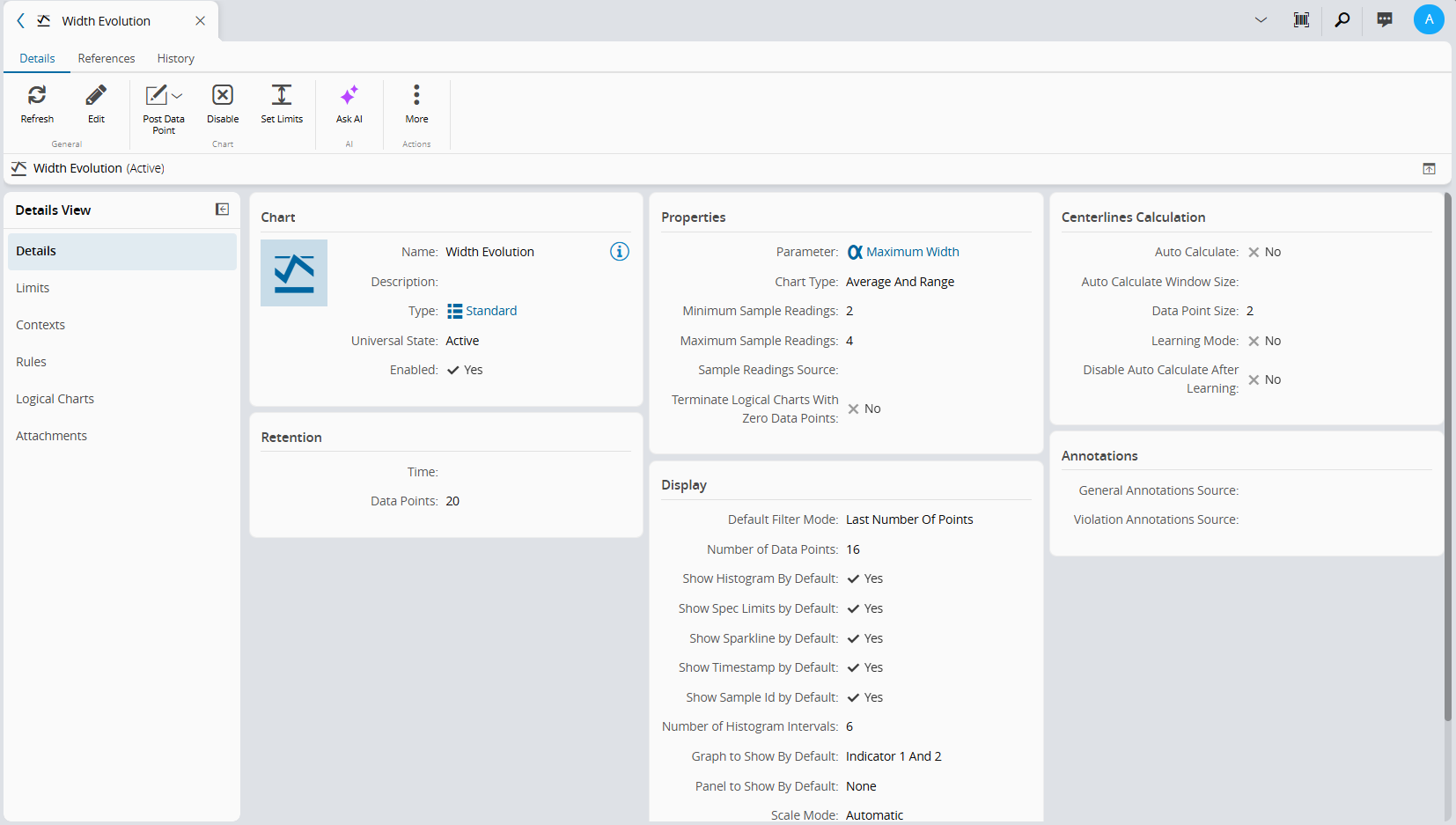

Main view of the Chart page

References Tab#

This tab combines information concerning other objects that have references to the current object:

  • Relations - displays the existing Relations between the Chart and other entities and enables the user to edit them. For more information, see Relations.
  • Where Used - displays the set of relationships between the Chart and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Chart object:

  • History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
