Container Page#

Container.Show

The Container page displays general information on the specific Container. In addition it enables the user to perform all the operations that can be performed on a specific Container.

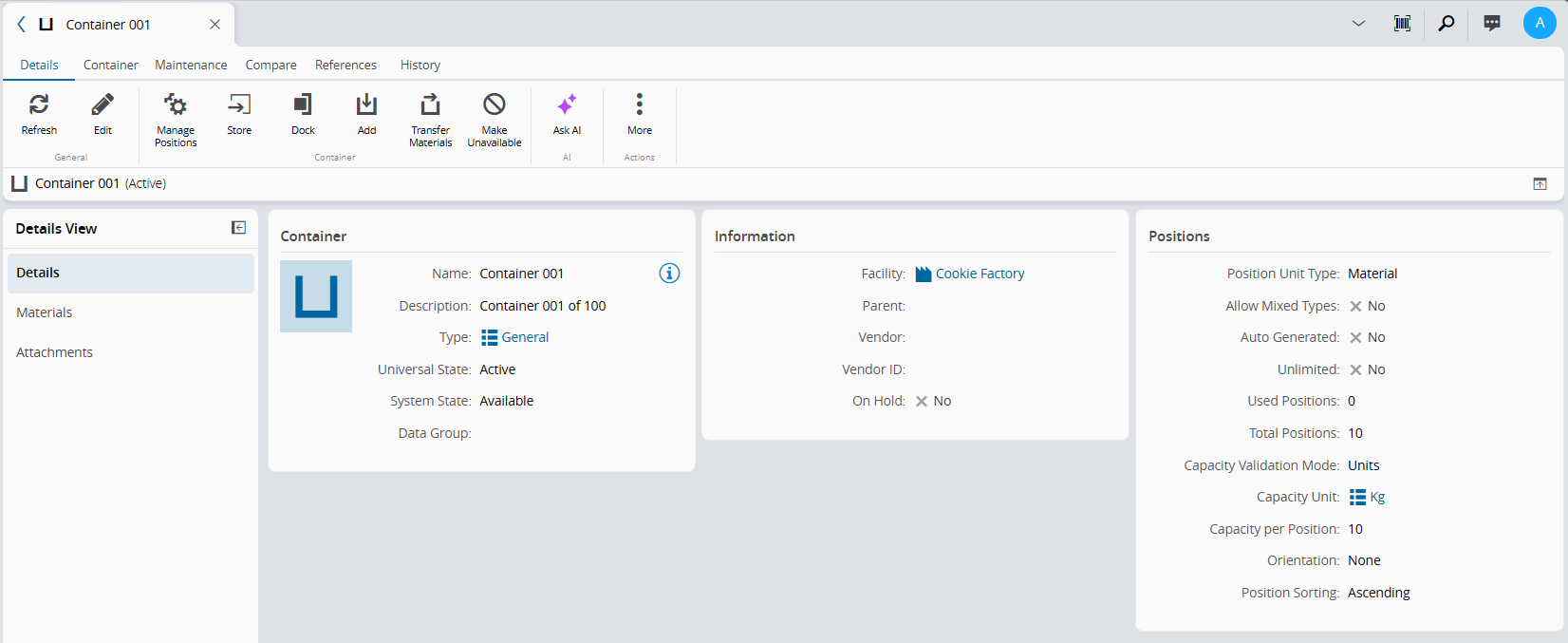

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

• Details - displays general information on the Container.
• Materials - displays general information on the Materials currently associated with the Container.
• Resources - displays general information on the Resources currently associated with the Container.
• Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
• Attachments - shows the documents that are attached to the Container and enables the user to attach additional documentation to the Container.

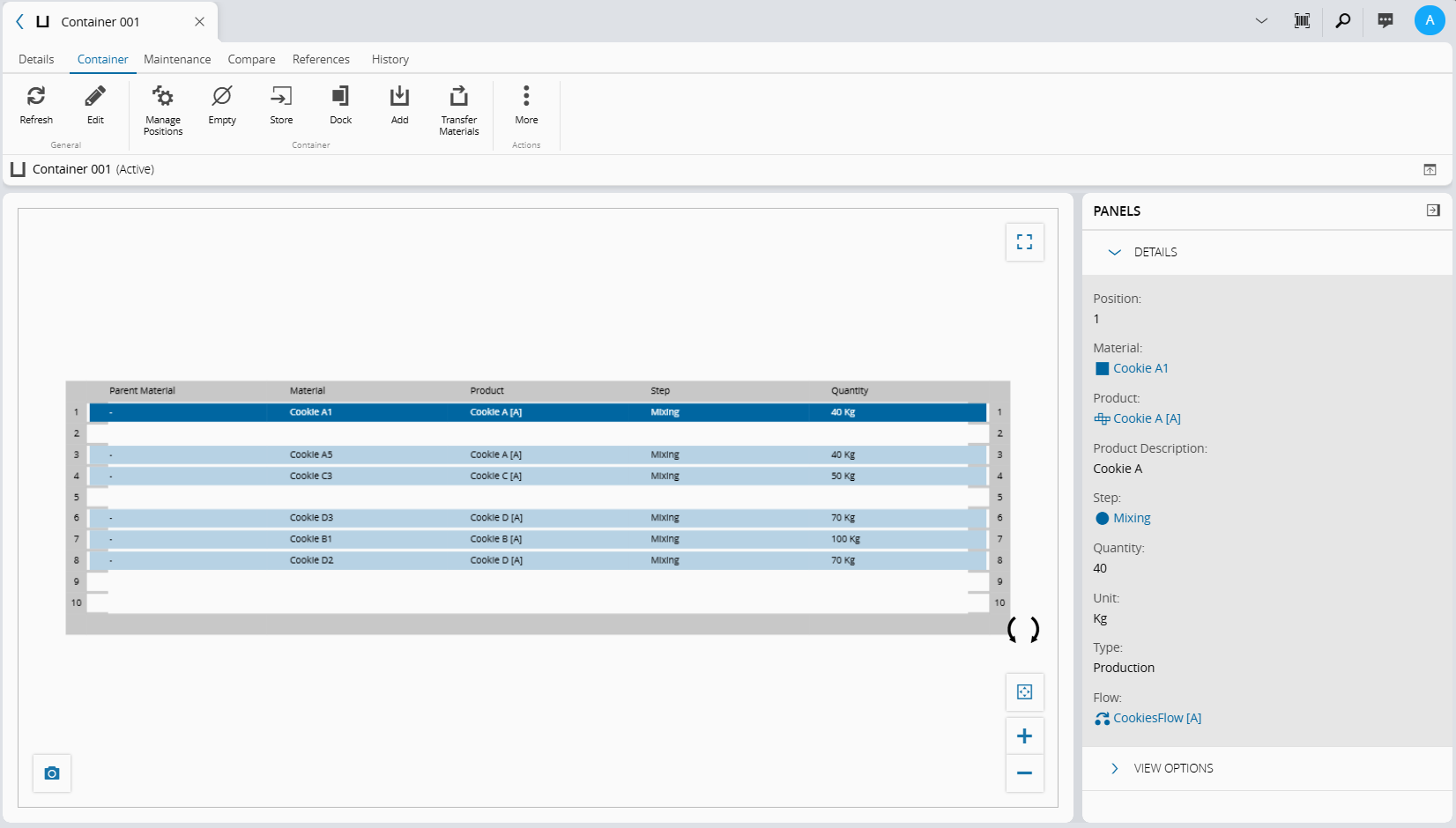

Container Tab#

For Containers of PositionUnitType Material, a top-down view of the Container is made available to the user, displaying all the storage positions of the Container, including information on the stored Materials for each position. The user can zoom and drag the visualization and select each of the positions that are shown in grid form, with the pertinent information being displayed on the right-hand panel.

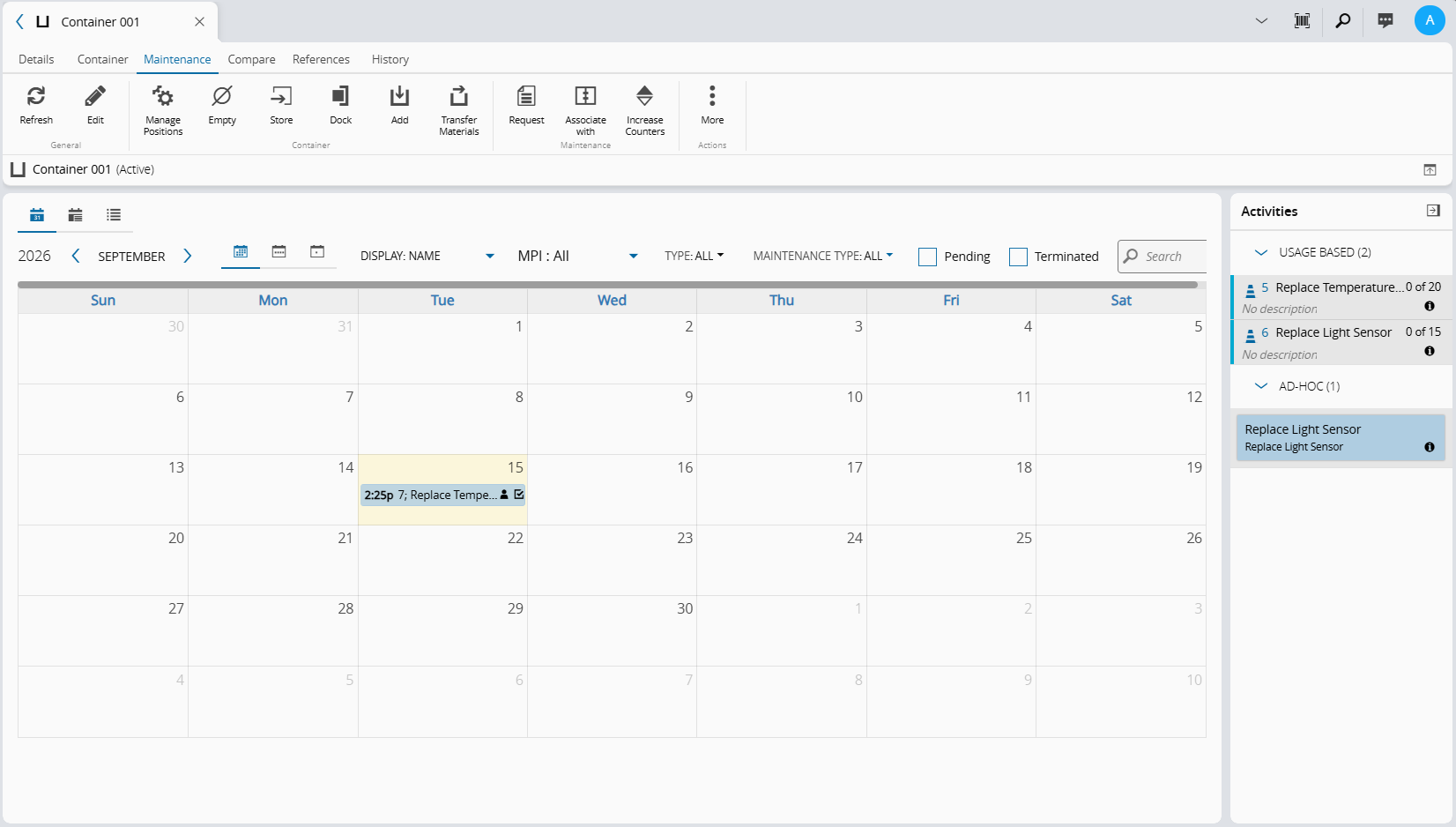

Maintenance Tab#

This tab shows all of the Maintenance Activities planned for the Container.

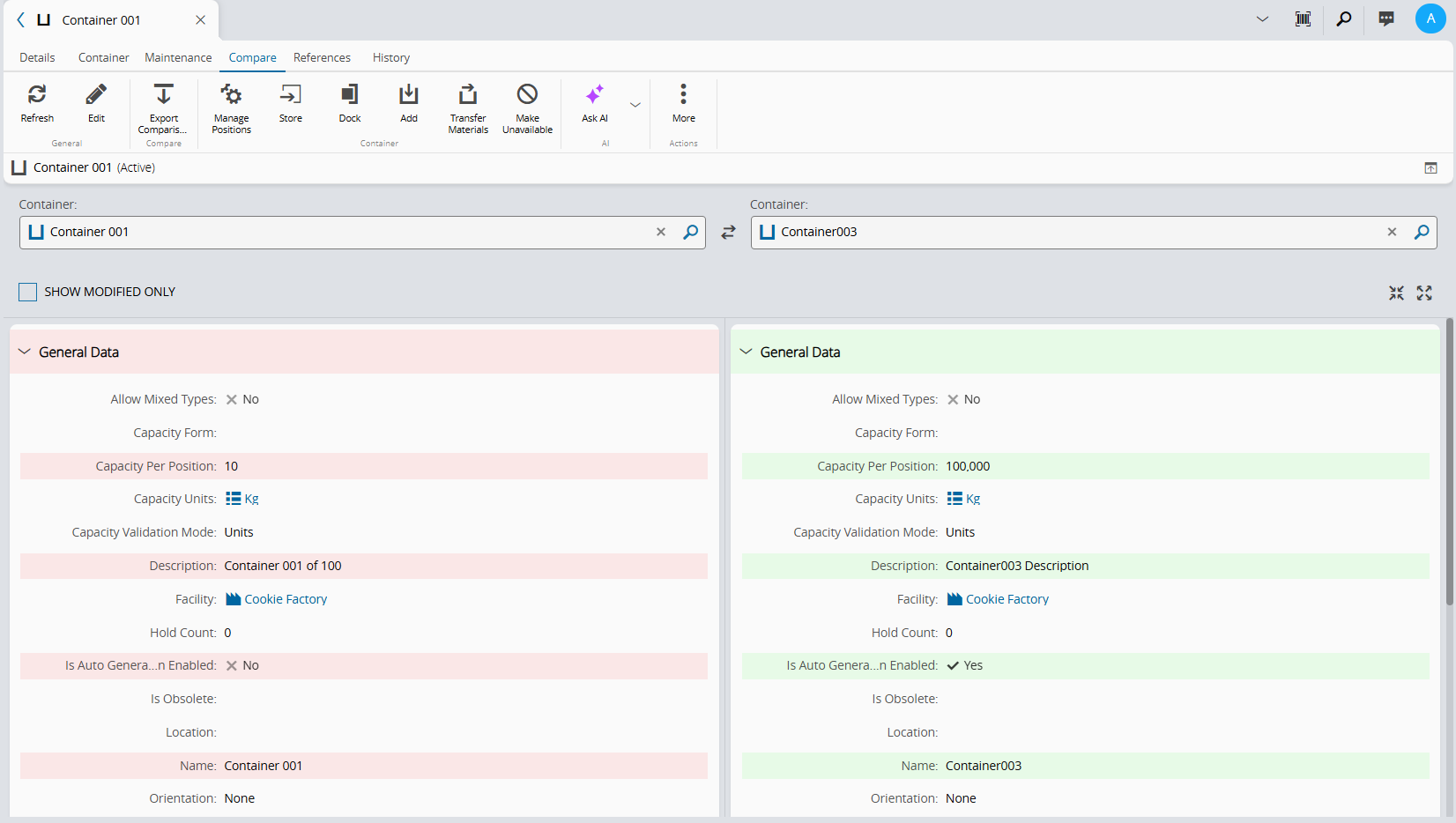

Compare Tab#

Container.Compare

This tab provides a quick visual comparison between the selected entity version and any other version that can be selected through it. You can also export the comparison results to a PDF file through the Export Comparison button on the top ribbon. For more information, see Compare Entity Versions.

References Tab#

This tab combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the Container and other entities and enables the user to edit them. For more information, see Relations.
• Where Used - displays the set of relationships between the Container and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Container object:

• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
