Data Collection Limit Set Page#

🔒 DataCollectionLimitSet.Show

The Data Collection Limit Set page displays general information on the specific Data Collection Limit Set. In addition, it enables you to perform all the operations that can be performed on a specific Data Collection Limit Set.

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

  • Details - displays general information on the Data Collection Limit Set.
  • Parameter Limits - displays information on the defined limits of the Parameters that are part of the Data Collection Limit Set.
  • Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information, see Attributes.
  • Attachments - shows the documents that are attached to the Data Collection Limit Set and enables you to attach additional documentation to the Data Collection Limit Set.

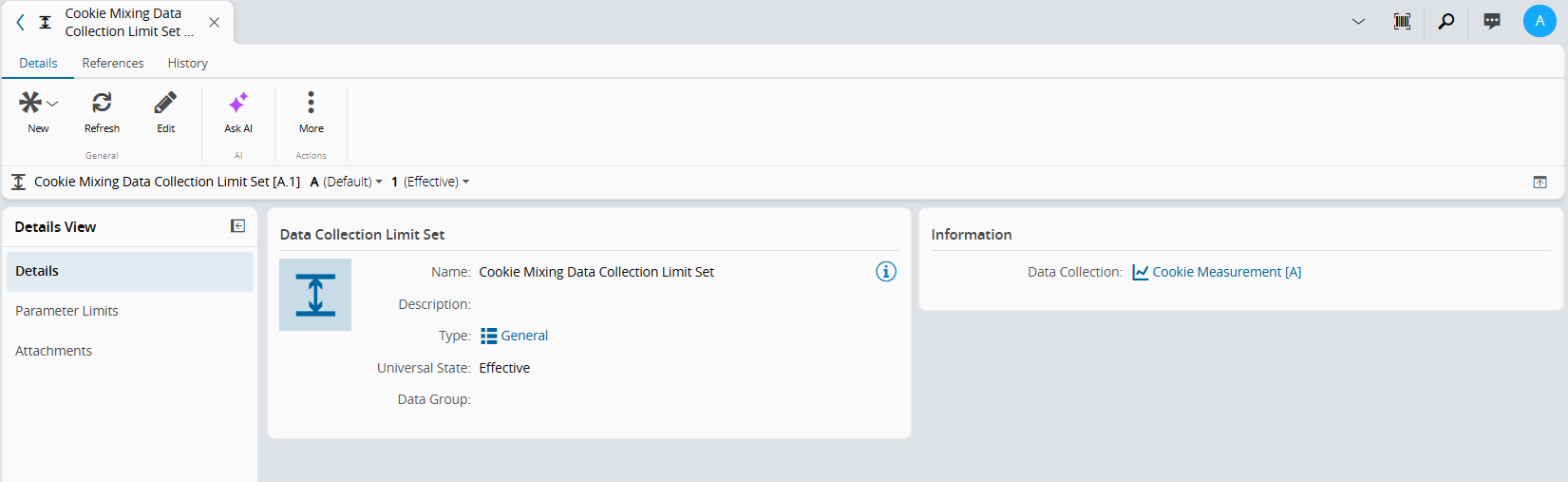

Main view of the Data Collection Limit Set page

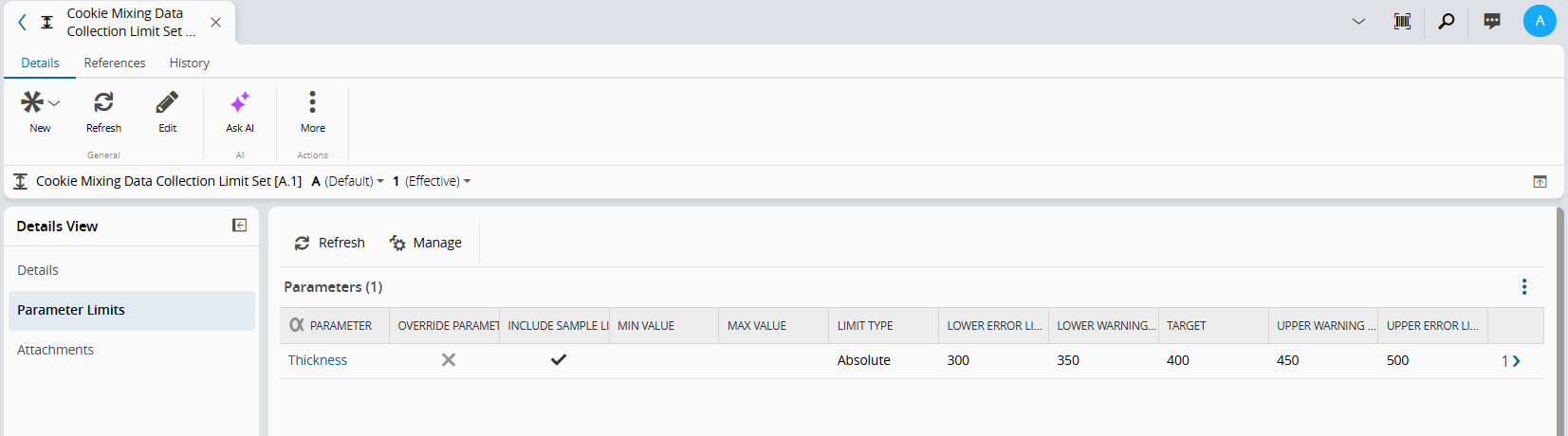

Parameter Limits tab of the Data Collection Limit Set page

References Tab#

This tab combines information concerning other objects that have references to the current object:

  • Relations - displays the existing Relations between the Data Collection Limit Set and other entities and enables the user to edit them. For more information, see Relations.
  • Where Used - displays the set of relationships between the Data Collection Limit Set and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Data Collection Limit Set object:

  • Change Set History - displays the history of the change sets associated to the object. For more information on Change Set history, visit the Change Set History page.
  • History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
