Experiment Page#

Experiment.Show

The Experiment page displays all the operations that can be performed within a specific Experiment. Additionally, it enables you to check the details of the Experiment in different tabs, as described below.

Details#

In the Details sub-section, it is possible to see the Experiment's general data such as the concerning Experiment Definition, and all the settings that have been configured at the creation level. If the Experiment is already terminated, you can also see its results and conclusions (if they have already been edited).

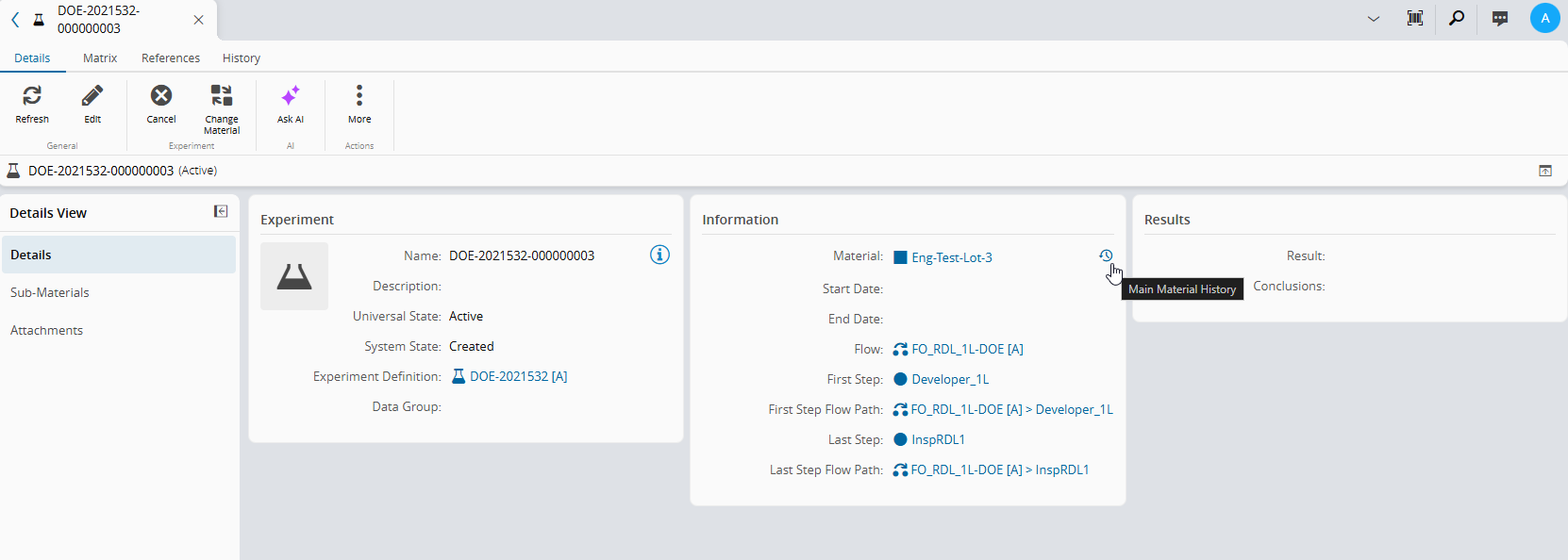

After the main Material is changed, a history icon with the hover text Main Material History appears next to the Material field. Select to open the main Material assignment history.

Main Material History#

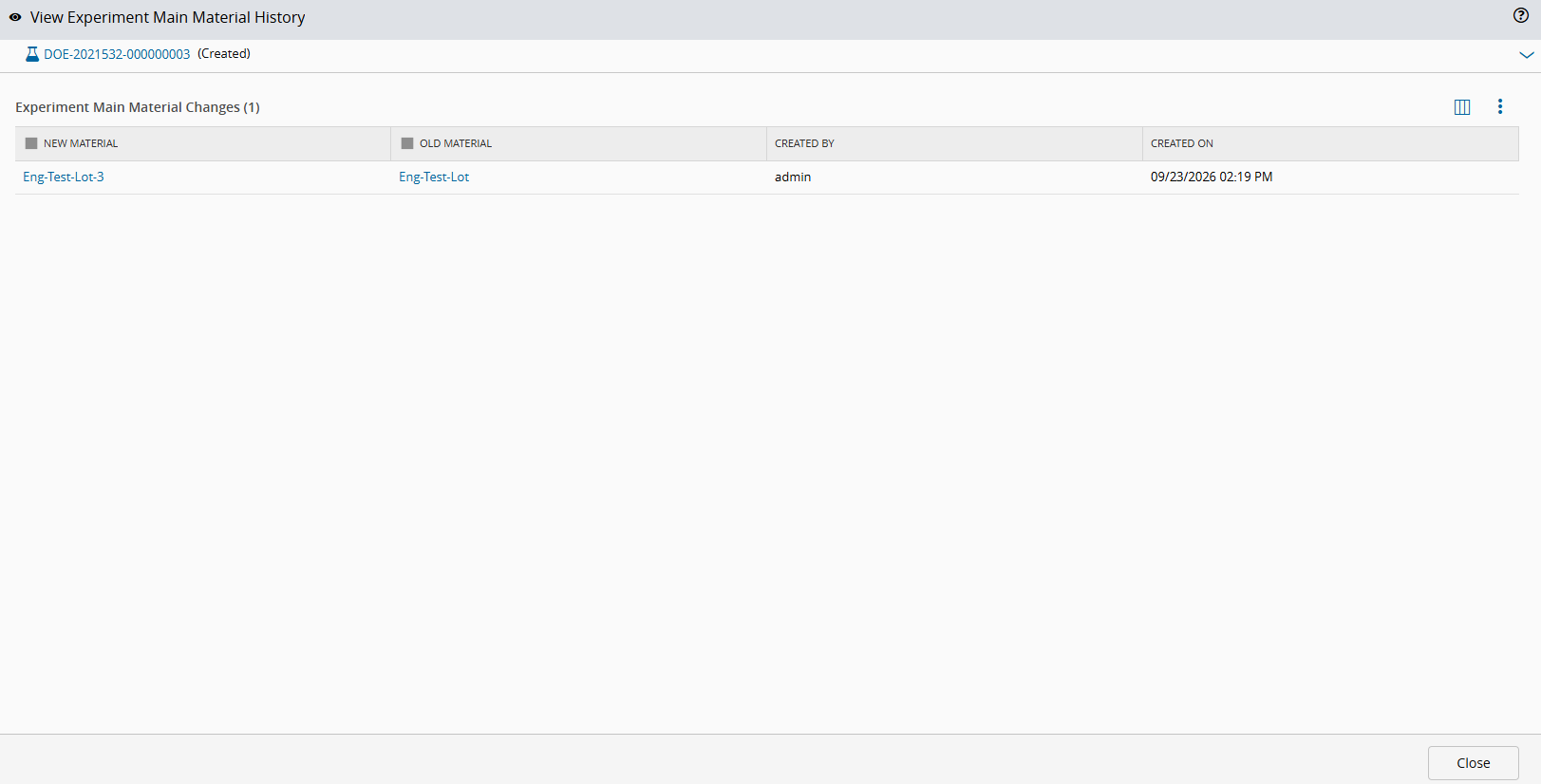

The modal displays the main Material assignment history in reverse chronological order. The grid includes New Material, Old Material, Modified By, and Modified On.

To replace the current main Material, use Change Experiment Material.

Sub-Materials#

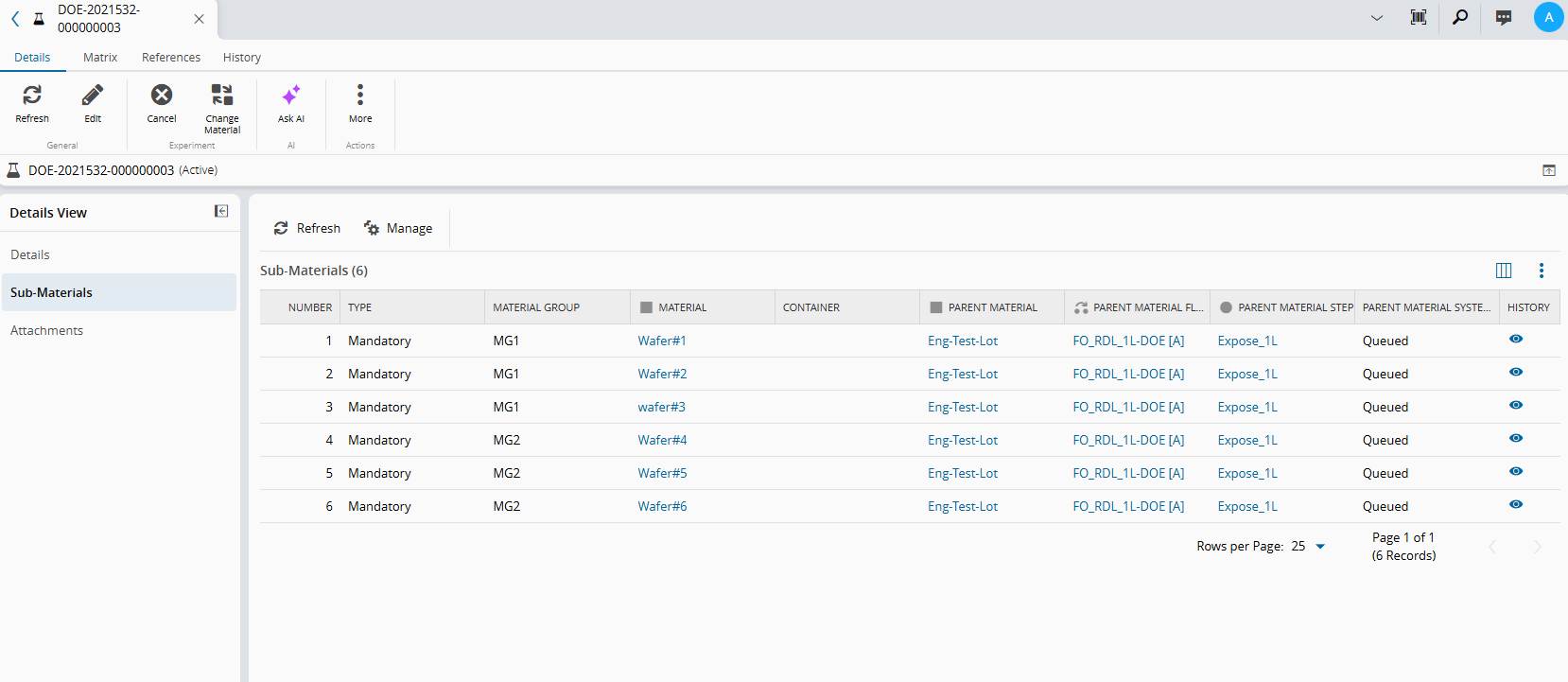

The Sub-Materials sub-section presents the list of sub-materials, containers and main material groups used in the Experiment:

To visualize additional information on the Experiment, select the Matrix Tab on the top ribbon.

Matrix#

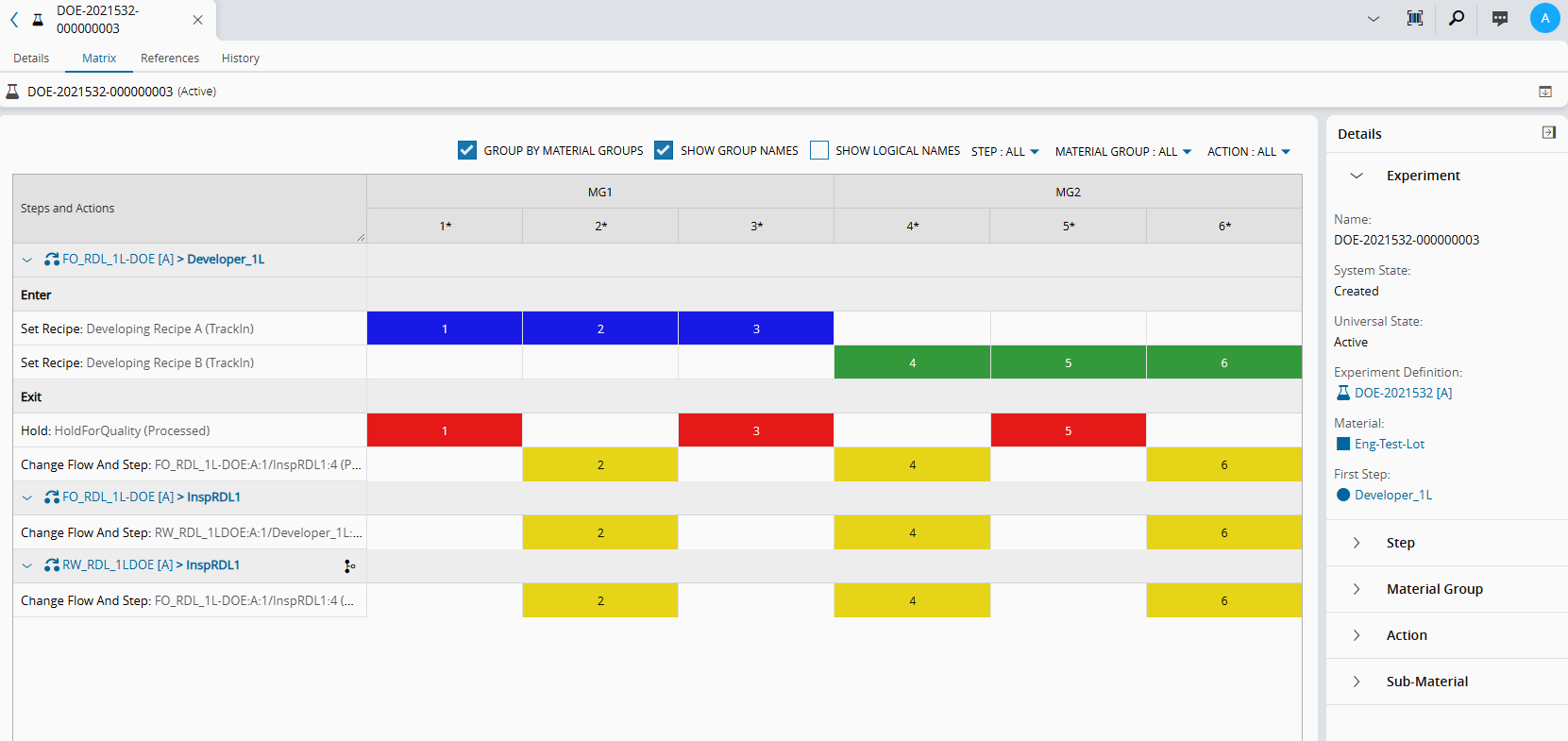

The Matrix Tab allows you to see all the material groups, sub-materials and sub-materials' numbers, steps, and actions in a grid layout.

The pane on the right-hand side of the screen will enable you to see further information on each of these sections: Experiment Definition, Step, Material Group, Action, Sub-Material.

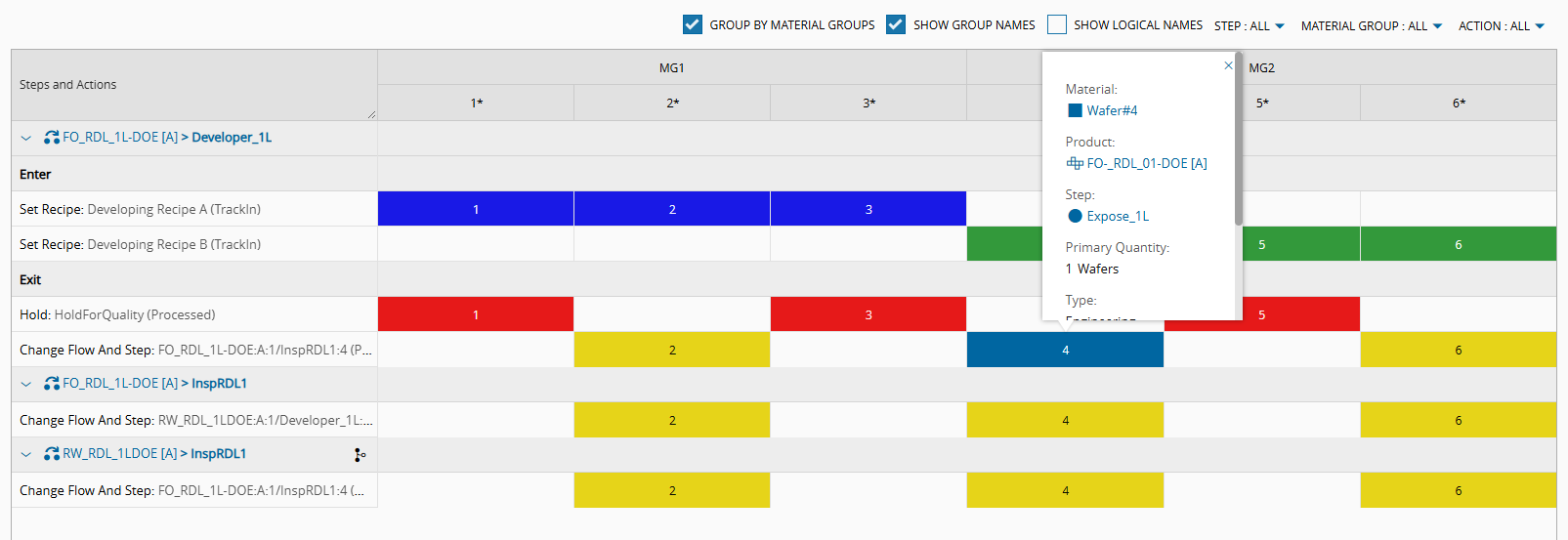

By clicking on each sub-material number, it is possible to see its specific details such as main material, product, quantity, container and associated facility, flow and step. Hovering over the specific sub-material will also display contextual information on it.

It is also possible to filter out Steps, Material Groups and Actions. Each option will default to "All" and will display all the Steps, Material Groups and Actions related to the specific Experiment.
However, all the items are subject to being filtered, thus displaying only the information that you wish to see.
