Maintenance Activity Order Page#

MaintenanceActivityOrder.Show

Details Tab#

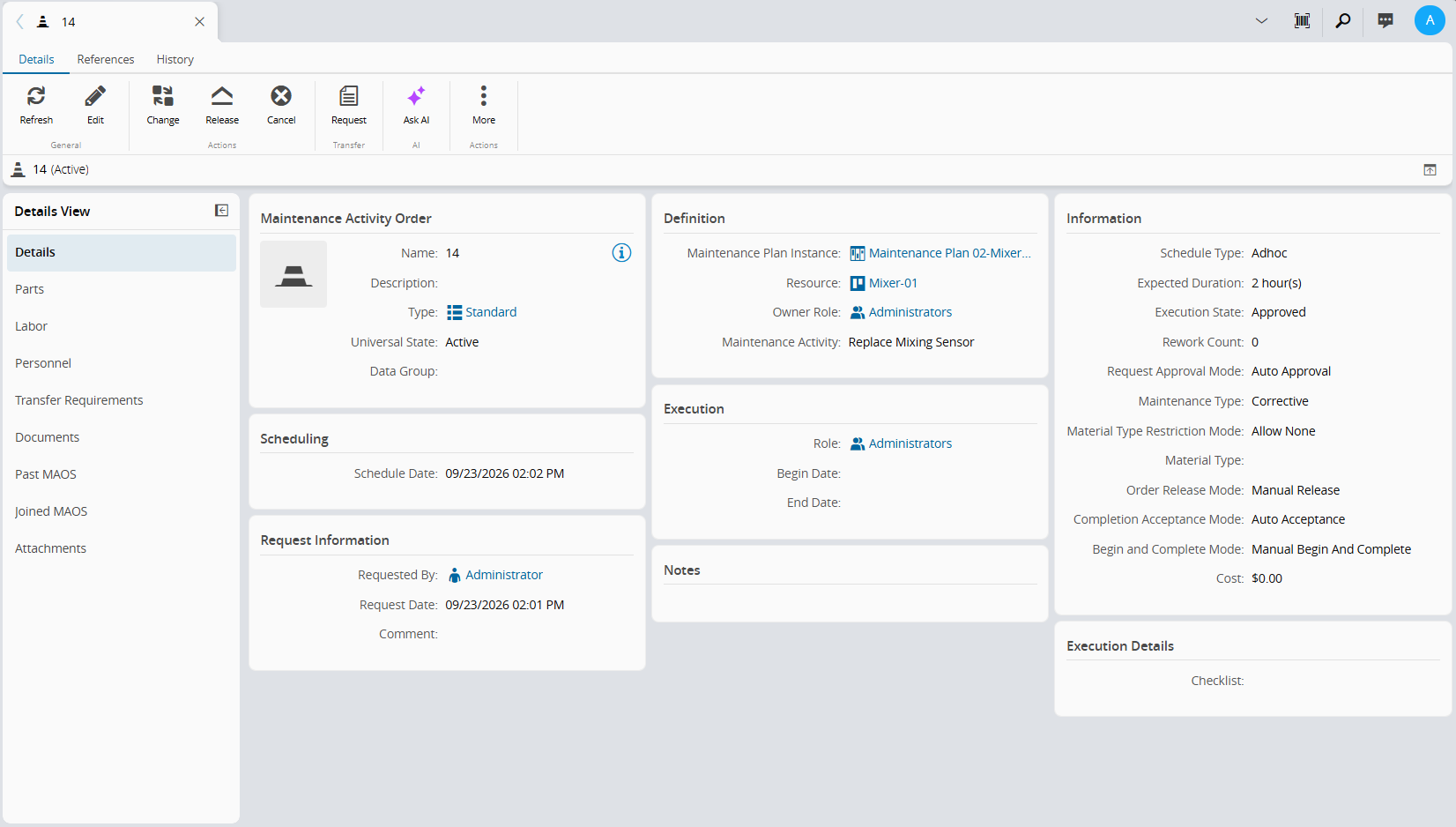

The Maintenance Activity Order (MAO) page displays all the operations that can be performed within a specific MAO. Additionally, it displays the Details of the MAO, as illustrated below:

Data Collection#

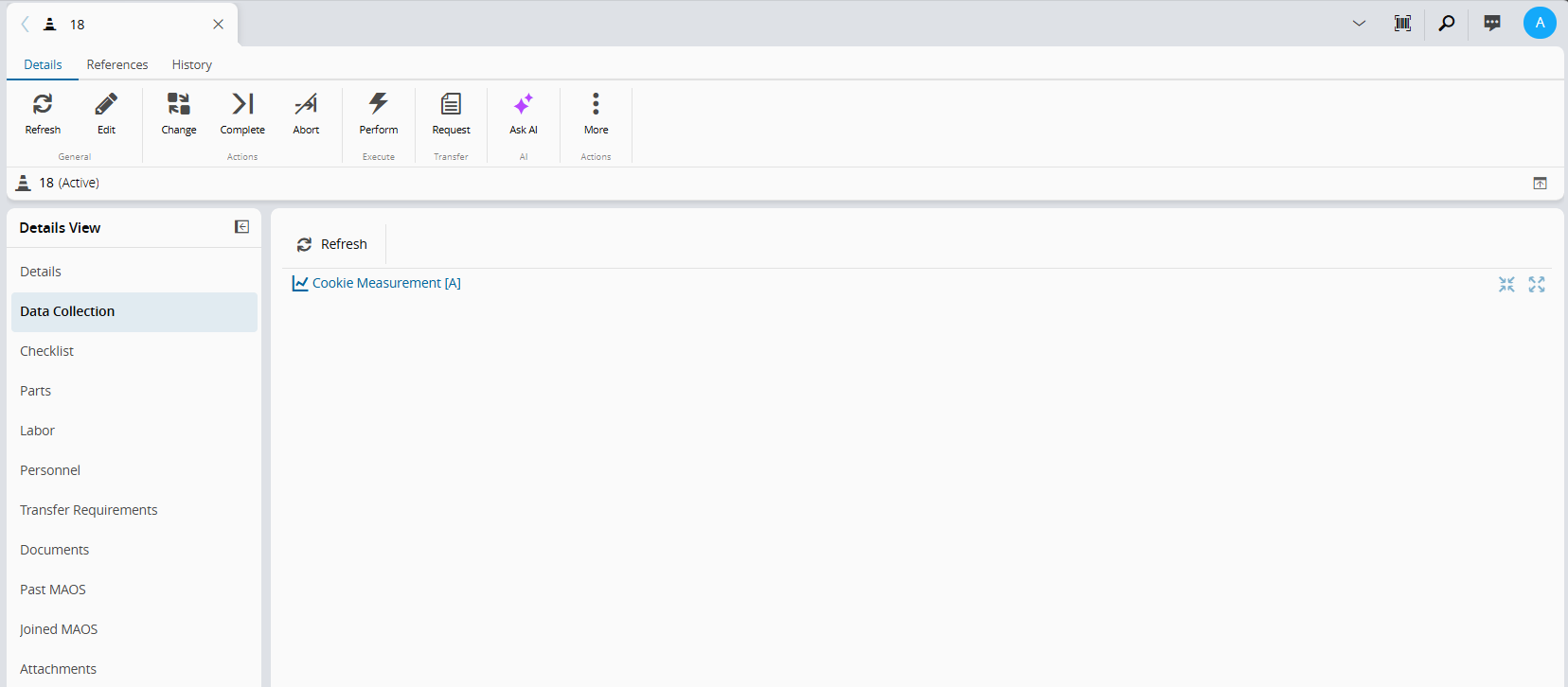

Select the Data Collection sub-section from the Details View panel to display all the Data Collection Parameters, alongside their Sample IDs and Readings, in read-only mode:

Checklist#

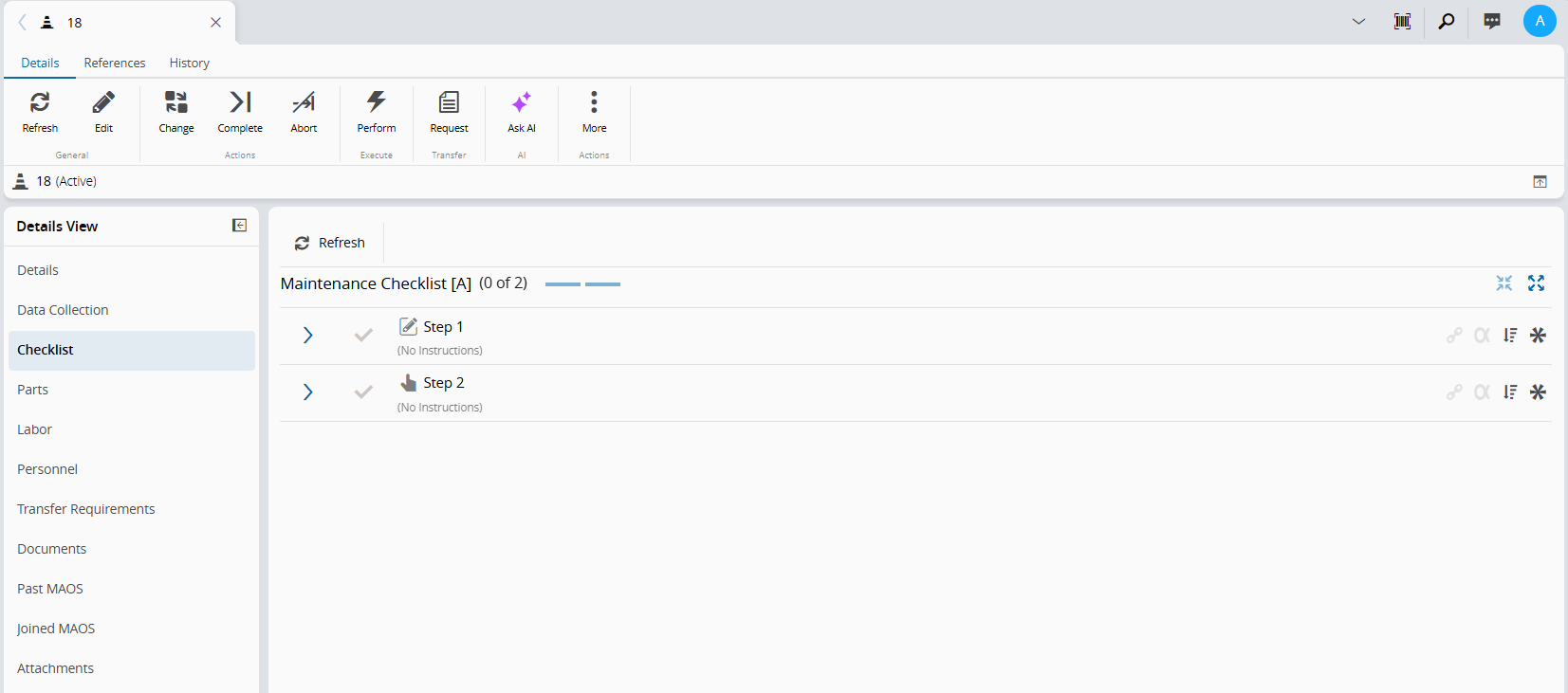

The Checklist sub-section displays the existing checklist(s), associated with the current MAO and all the Checklist items:

Parts#

The Parts sub-section displays a list of the parts that are necessary to execute a BOM and, consequently, a MAO, and that are associated to a specific Product. For each Part, information on quantities and cost are also displayed.

Labor#

The Labor sub-section displays the name of the Employee(s) associated with the current MAO and all the related Employee-specific information, such as Certifications, Checked-In Date, Begin and End Dates, Duration, Cost, and Exclusiveness.

Personnel#

The Personnel sub-section displays a summary of the previously defined Check-in Options and of the Labor Hours.

Transfer Requirements#

All Transfer Requirements associated to the MAO are listed in this sub-section.

Qualifications#

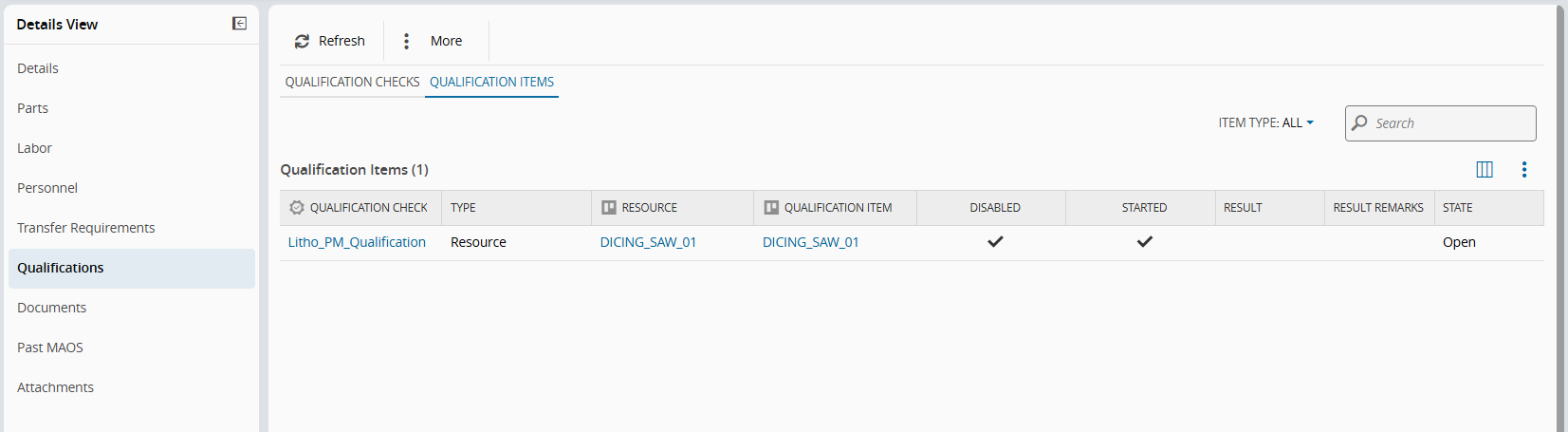

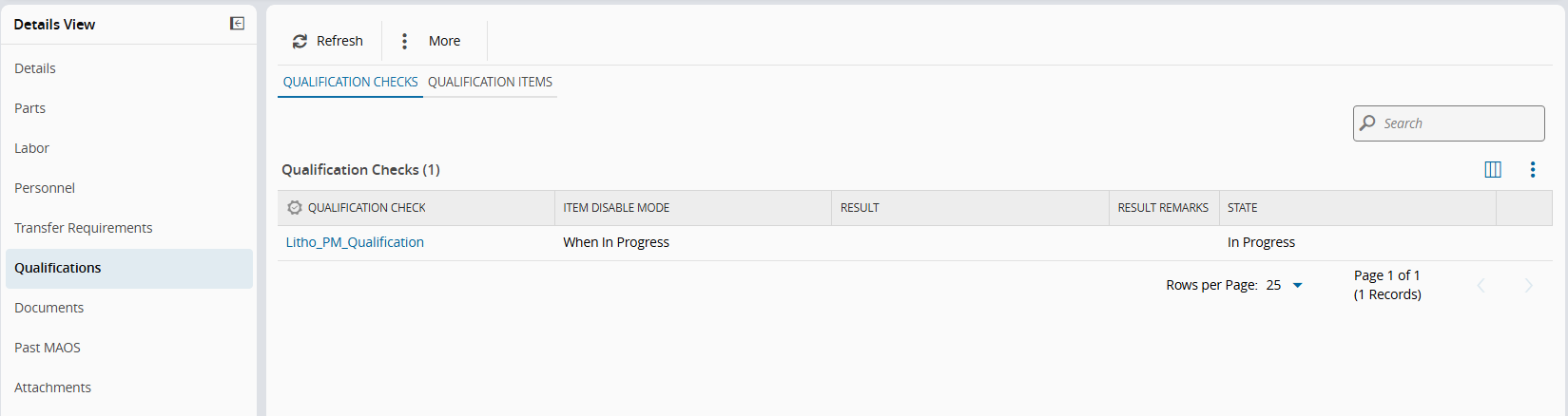

The Qualifications sub-section displays a summary of the Qualification Checks and the Qualification Items associated with the current MAO. This is only displayed if the Maintenance Plan scope is set to Qualification. For more information, see Create Maintenance Plan.

Documents#

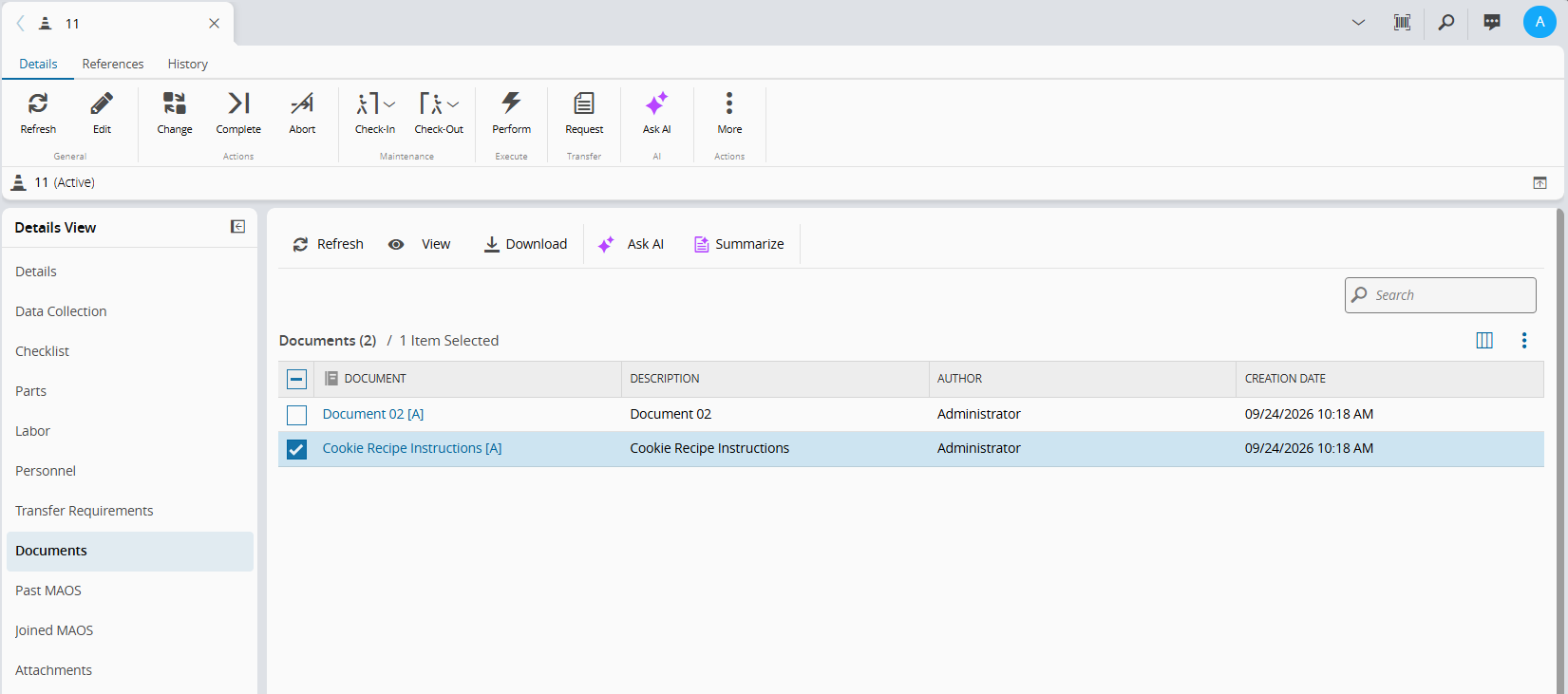

The Documents associated to this MAO are available in this sub-section:

Past MAOS / Joined MAOS#

When selected, these sub-sections display, respectively, a list of past MAOs or active MAOs that were joined with a Parent MAO. From this list you can obtain information on the execution or the schedule states of the MAOs, along with their begin and end dates.
