Product Group Page#

ProductGroup.Show

The Product Group page displays general information on the specific Product Group. In addition it enables the user to perform all the operations that can be performed on a specific Product Group.

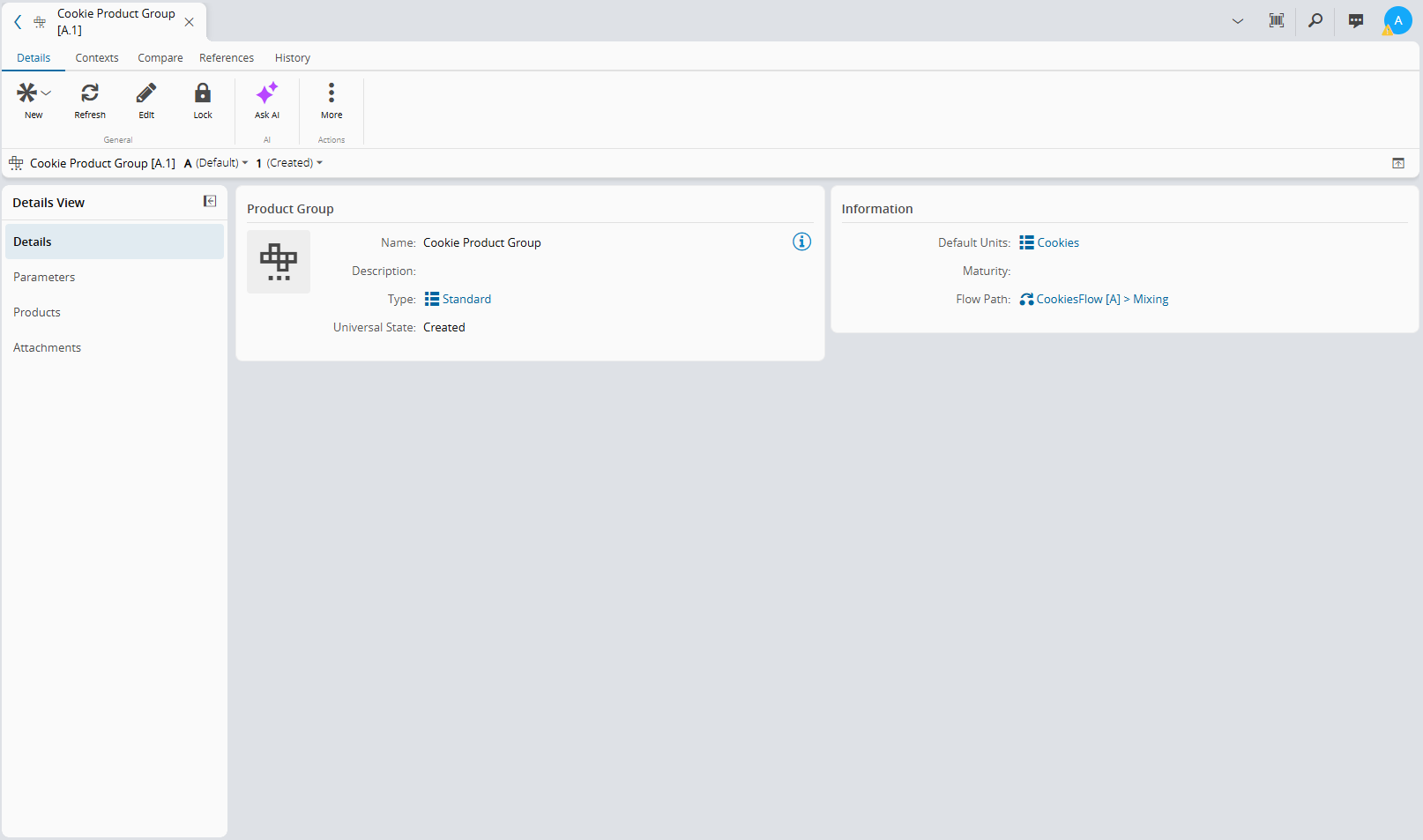

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

• Details - displays general information on the Product Group.
• Parameters - displays information on the Parameters that are part of the Product Group and that are shared across several Products. Parameter attributes can also be seen by pressing the arrow on the right-most side of the row.
• Products - displays information on the Products that are part of the Product Group.
• Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
• Attachments - shows the documents that are attached to the Product Group and enables the user to attach additional documentation to the Product Group.

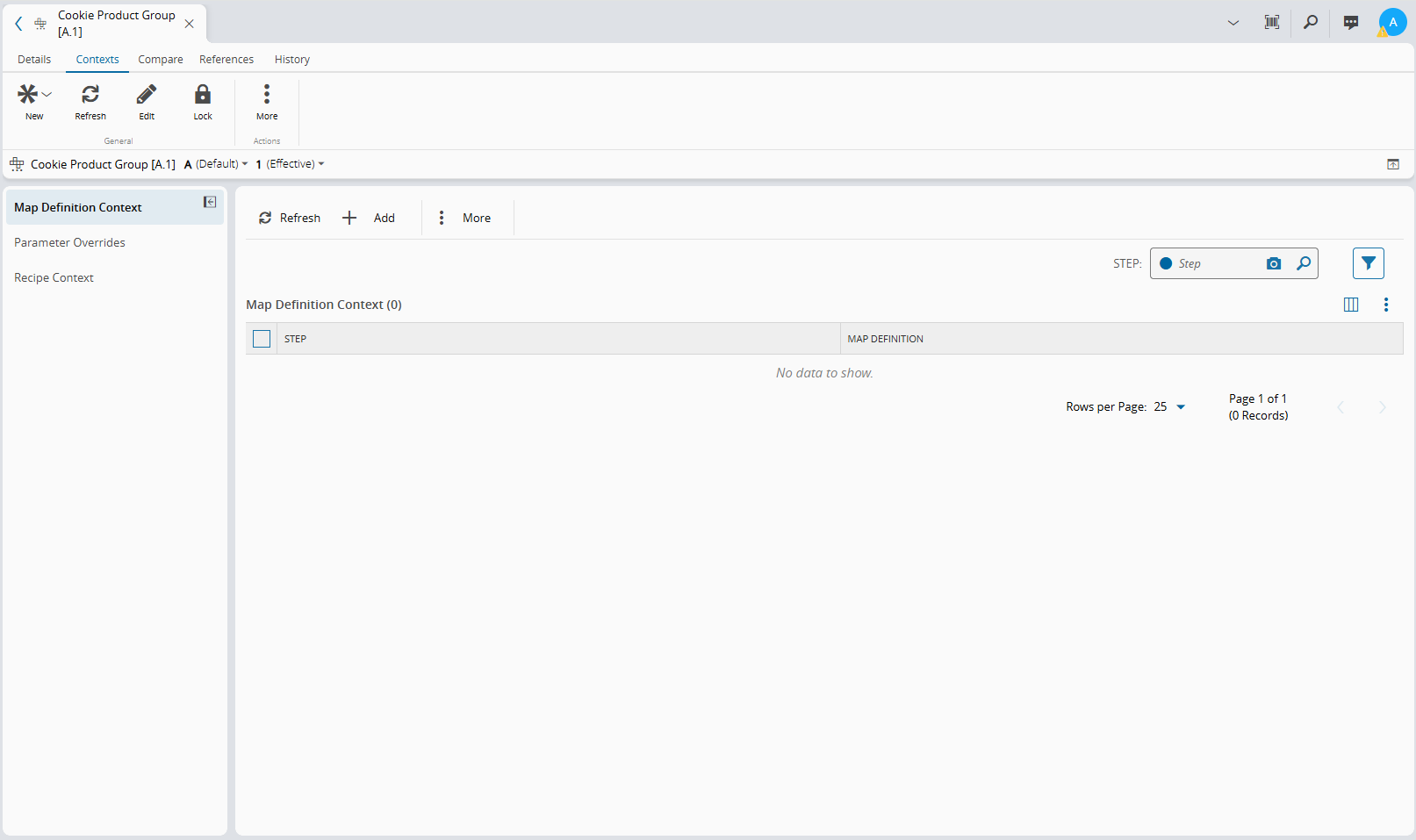

Contexts Tab#

This tab combines information on several context resolution tables on which the current Product Group is used as an element:

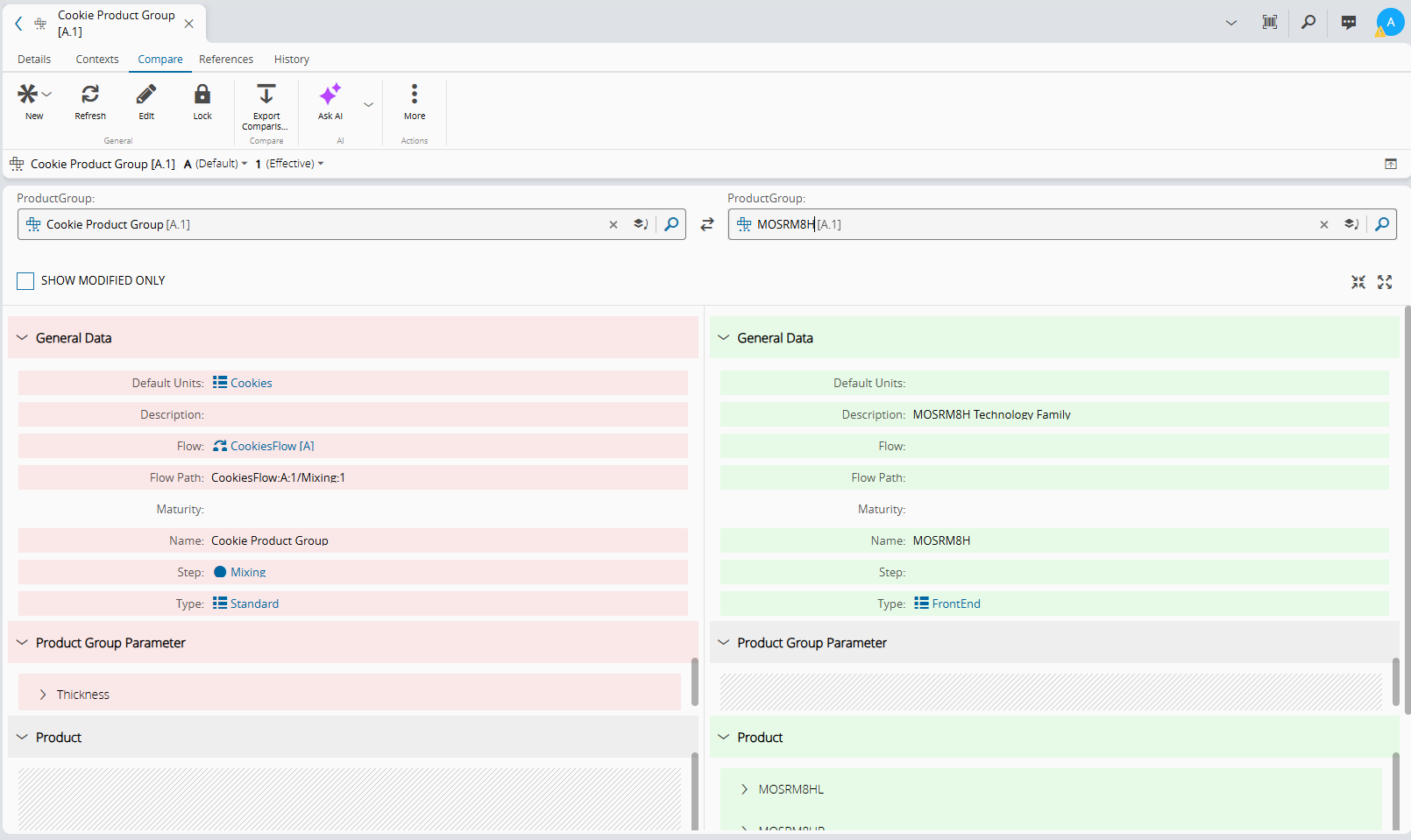

Compare Tab#

ProductGroup.Compare

This tab provides a quick visual comparison between the selected entity version and any other version that can be selected through it. You can also export the comparison results to a PDF file through the Export Comparison button on the action bar. For more information, see Compare Entity Versions.

References Tab#

This tab combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the Product Group and other entities and enables the user to edit them. For more information, see Relations.
• Where Used - displays the set of relationships between the Product Group and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Product Group object:

• Change Set History - displays the history of the change sets associated to the object. For more information on Change Set history, visit the Change Set History page.
• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
