Product Standard Flow Report#
Product.ViewReports.StandardFlow
Description#
This report provides access to the Product Standard Flow report of any Product which is available in the Operational Data Store (ODS) database.
Data Source(s)#
- ODS database
Filters#
You can customized the Standard Flow report by selecting the options below:
- BOM
- Checklist
- Data Collection
- Document
- Durables
- Future Action
- Inspection Plan
- Line Flows
- Personnel Requirements
- Recipe
- Resource
- Reworks
- Sampling
- SPC
- Time Constraints

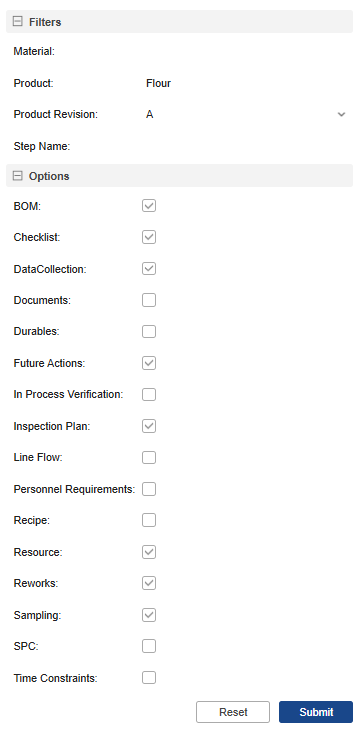

Select the checkboxes for the options you want, as shown below.
Note
The information regarding the Line Flows and the Reworks associated with the Product will appear at the end of the report.
Fields#
- Product
- Flow
- Flow Structure

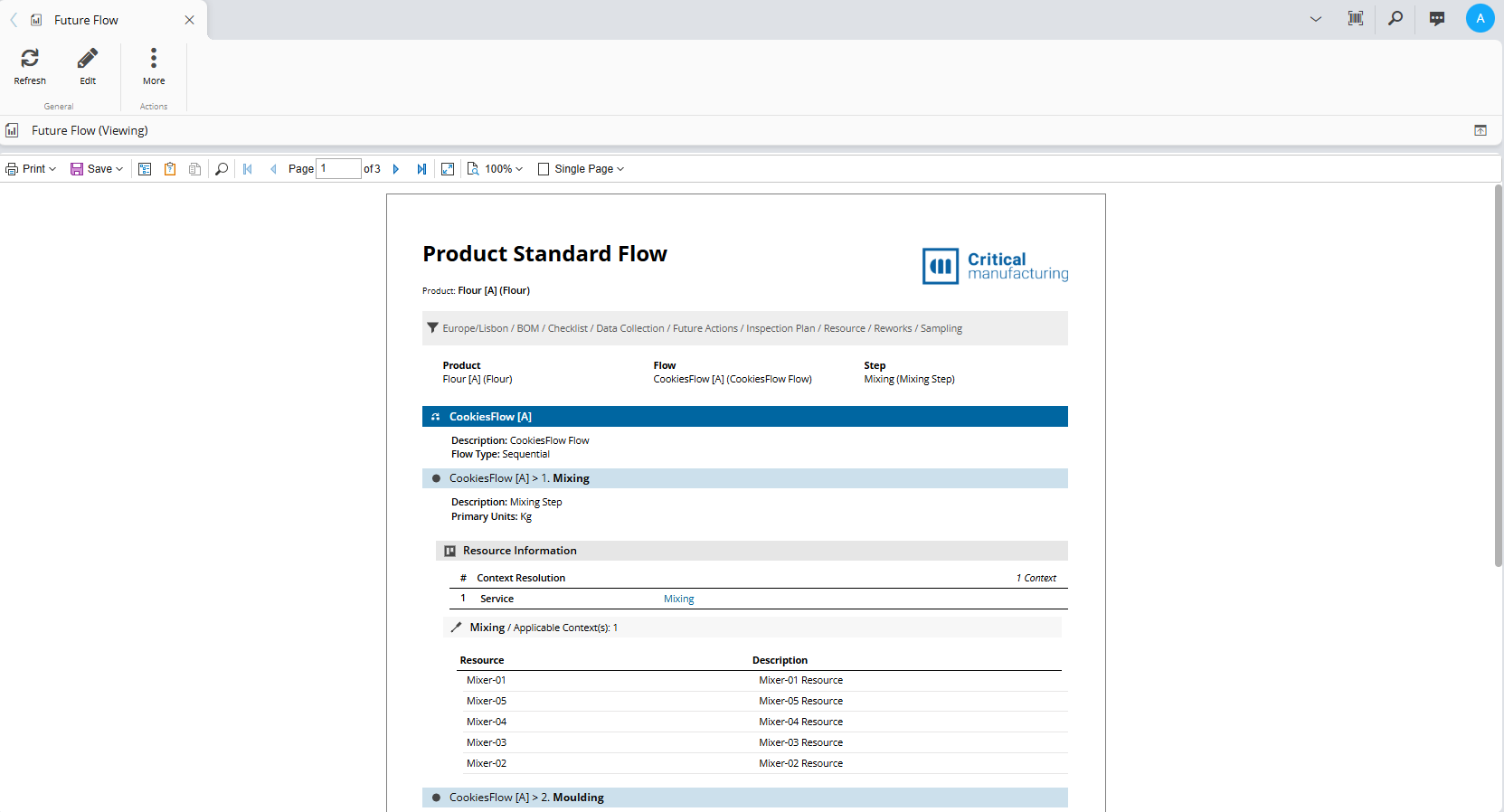

Example#
