Recipe Page#

Recipe.Show

The Recipe page displays general information on the specific Recipe. In addition it enables the user to perform all the operations that can be performed on a specific Recipe.

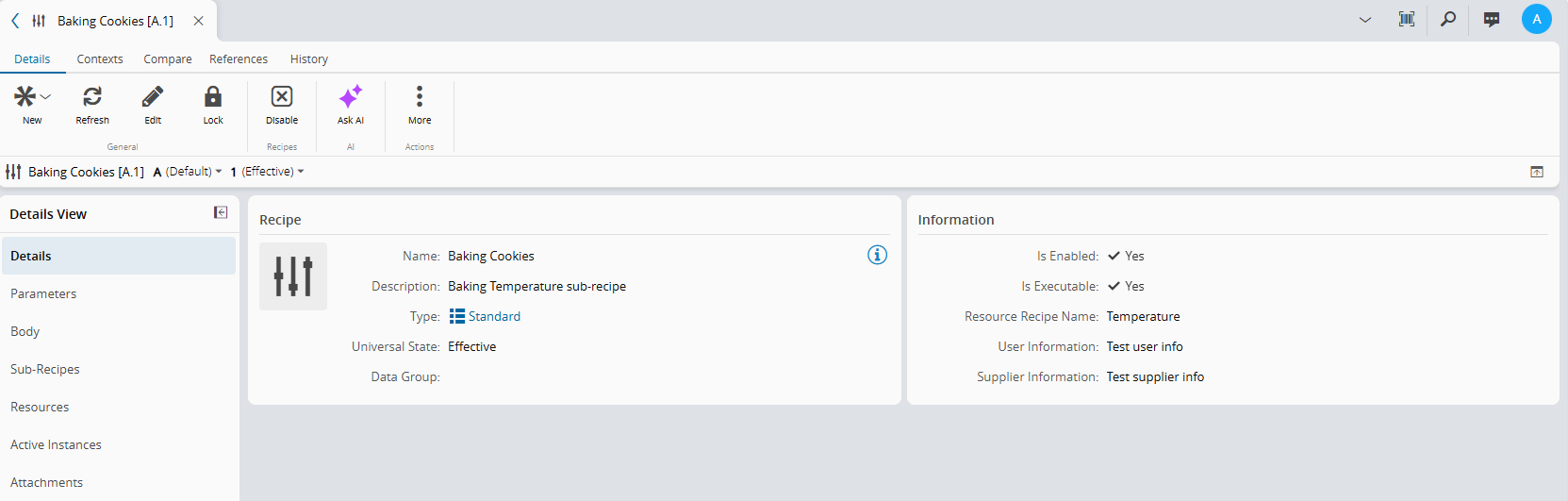

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

• Details - displays general information on the Recipe.
• Parameters - displays information on the defined Parameters that are part of the Recipe.
• Body - displays information on the defined body of the Recipe.
• Sub-Recipes - displays information on the child Recipes for the current Recipe.
• Active Instances - displays information on the currently active instances of the Recipe.
• Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
• Attachments - shows the documents that are attached to the Recipe and enables the user to attach additional documentation to the Recipe.

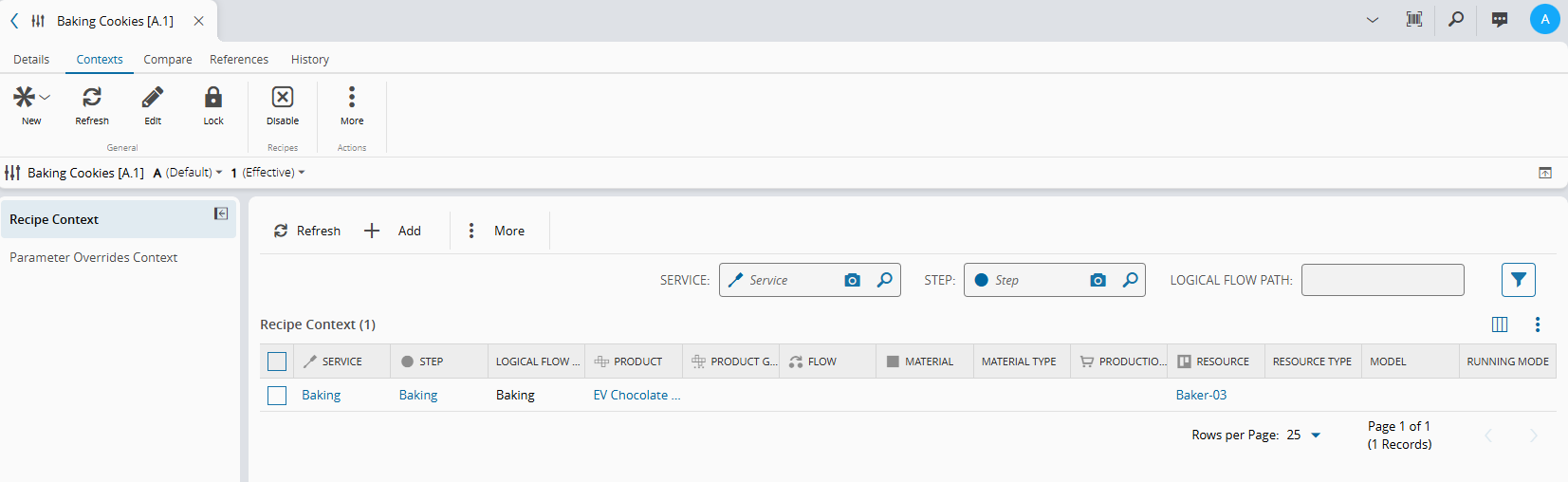

Contexts Tab#

This tab shows information concerning all the contexts currently connecting the Recipe to other objects in the system:

• Recipe Context - displays the existing Relations between the Recipe and the other entities in the system.

• Parameter Overrides - displays the existing configuration used to override particular parameters for a Recipe for a given context.

  Info

  Note: RecipeContext combinations are managed in a Smart Table and are not added manually in this panel. More information in the RecipeContext page.

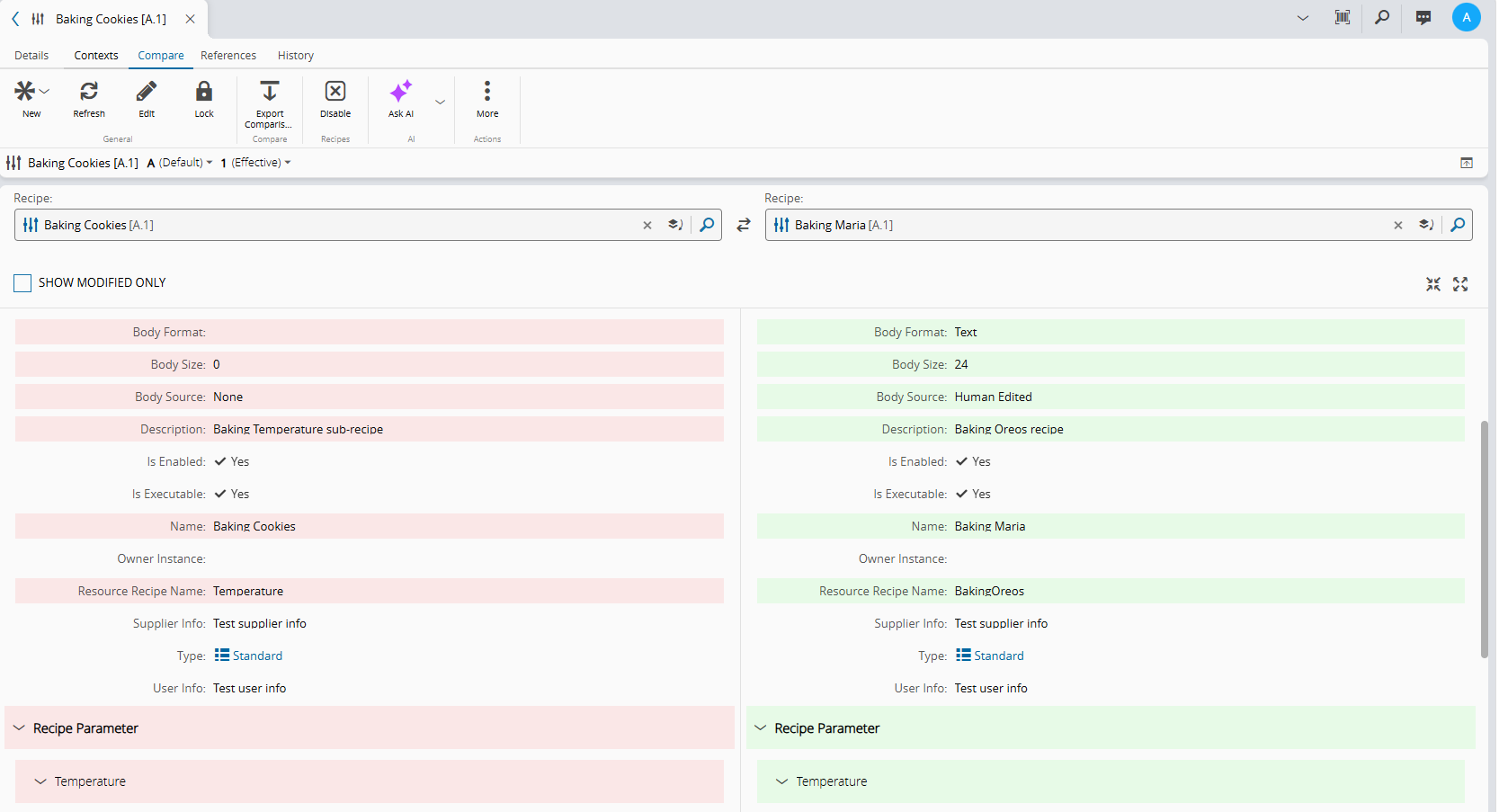

Compare Tab#

Recipe.Compare

This tab provides a quick visual comparison between the selected entity version and any other version that can be selected through it. You can also export the comparison results to a PDF file through the Export Comparison button on the action bar. For more information, see Compare Entity Versions.

References Tab#

This tab combines information concerning other objects that have references to the current object:

• Relations - displays the existing Relations between the Recipe and other entities and enables the user to edit them. For more information, see Relations.
• Where Used - displays the set of relationships between the Recipe and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Recipe object:

• Change Set History - displays the history of the change sets associated to the object. For more information on Change Set history, visit the Change Set History page.
• History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
