Schedule Scenario Page#

ScheduleScenario.Show

The Schedule Scenario page displays general information on the specific Schedule Scenario. In addition it enables the user to perform all the operations that can be performed on a specific Schedule Scenario.

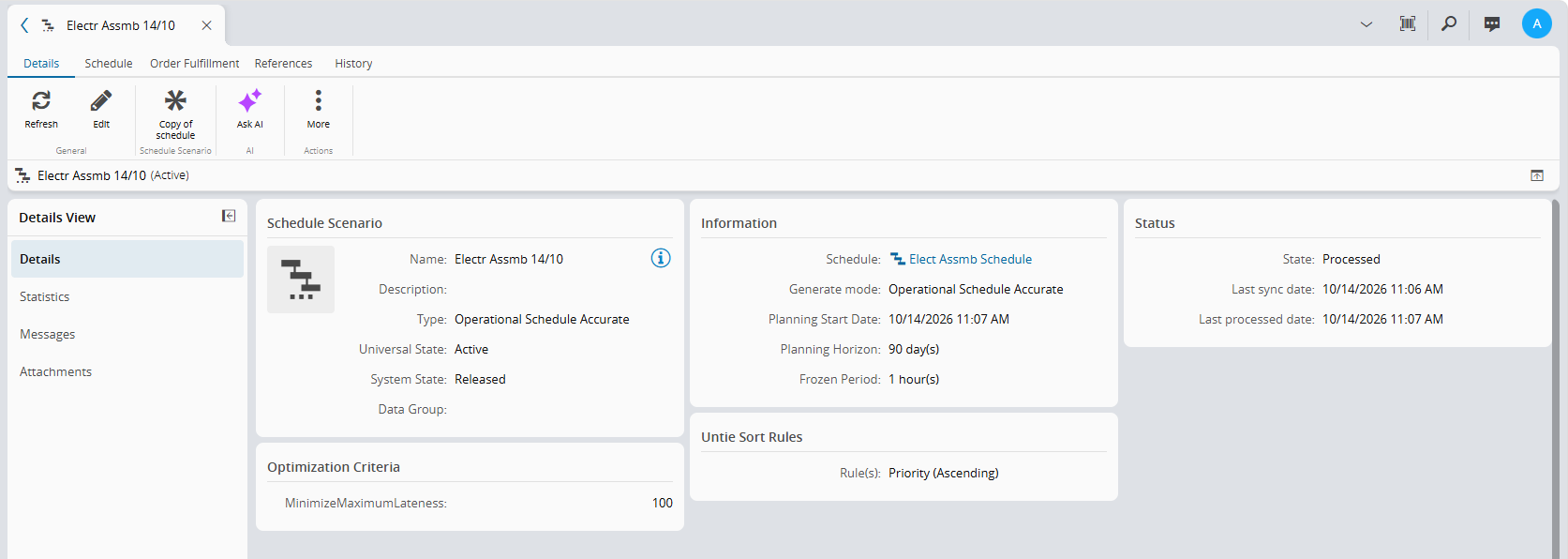

Details Tab#

The Details tab provides a collapsible Details View panel on the left side of the page. The panel can be collapsed or expanded. Depending on configuration and the optional licensed modules, the panel will display some or all of the following sub-sections:

Details - displays general information on the Schedule Scenario.
Statistics - displays general statistics from the current Schedule Scenario.
Messages - displays messages sent and received during the execution of the Schedule Scenario.
Attributes - enables the visualization of existing Attributes and the possibility to create new ones. For more information on Attributes, visit the section Attributes.
Attachments - shows the documents that are attached to the Schedule Scenario and enables the user to attach additional documentation to the Schedule Scenario.

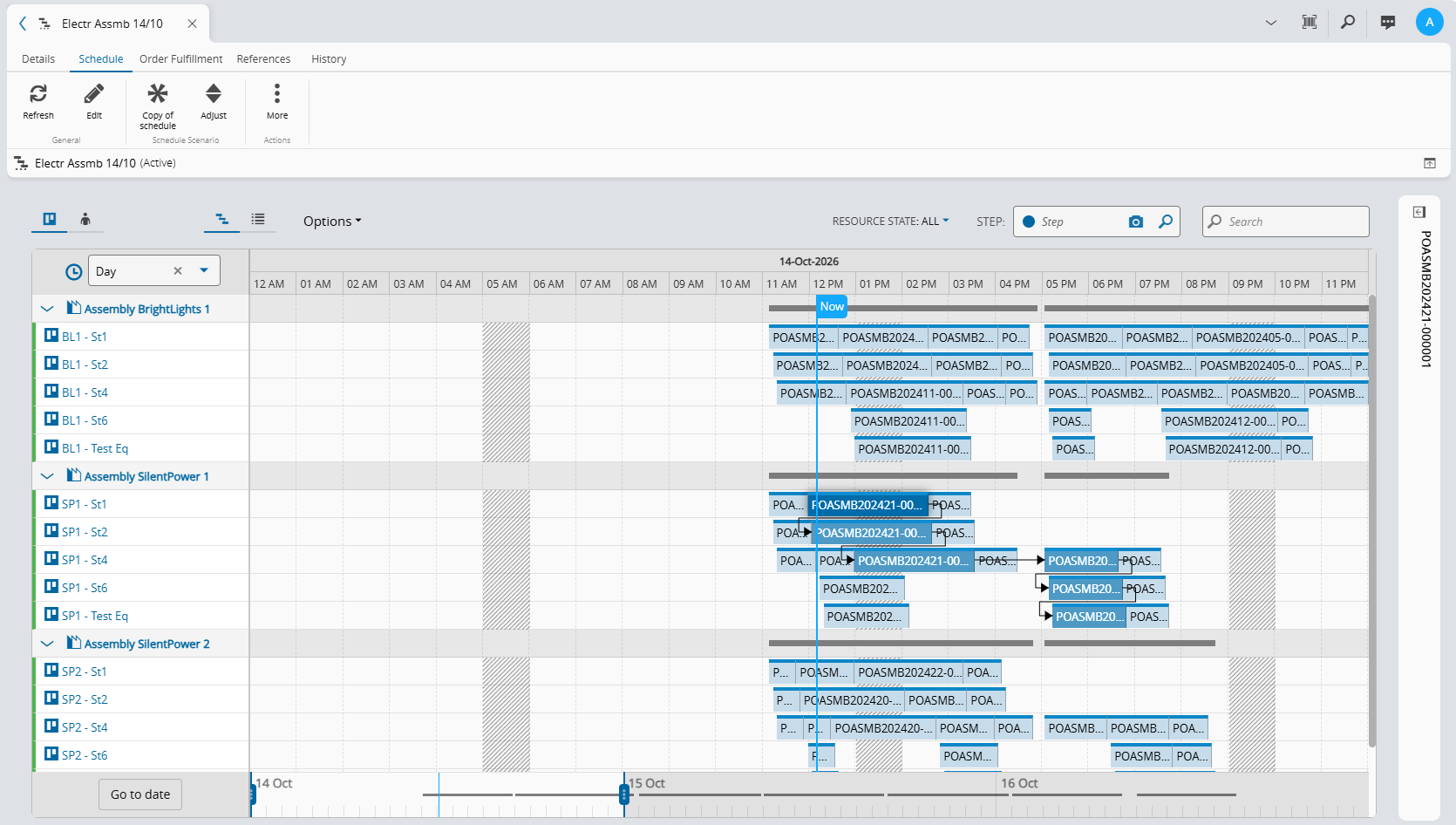

Schedule Tab#

The Schedule Tab is the default tab when landing on a Schedule Scenario. For more information, see Schedule Tab.

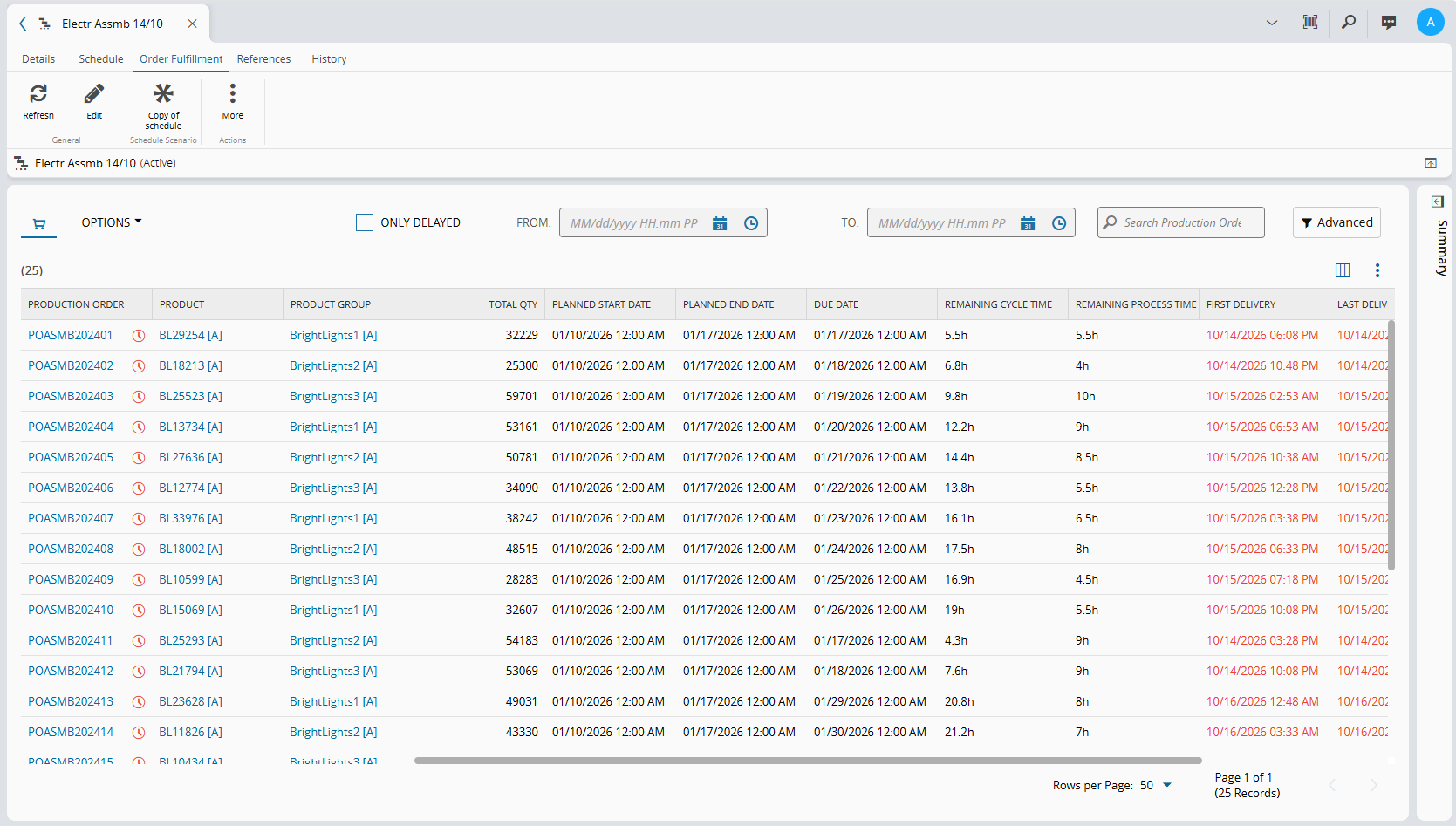

Order Fulfillment Tab#

Allows viewing the data for order fulfillment according to the parameters of the Schedule Scenario.

References Tab#

This tab combines information concerning other objects that have references to the current object:

Relations - displays the existing Relations between the Schedule Scenario and other entities and enables the user to edit them. For more information, see Relations.
Where Used - displays the set of relationships between the Schedule Scenario and the other objects used throughout the system.

History Tab#

This tab combines information concerning other objects that have references to the current Schedule Scenario object:

History - displays the history of the operations, associated information, user(s) performing the changes and date and time of the changes.
